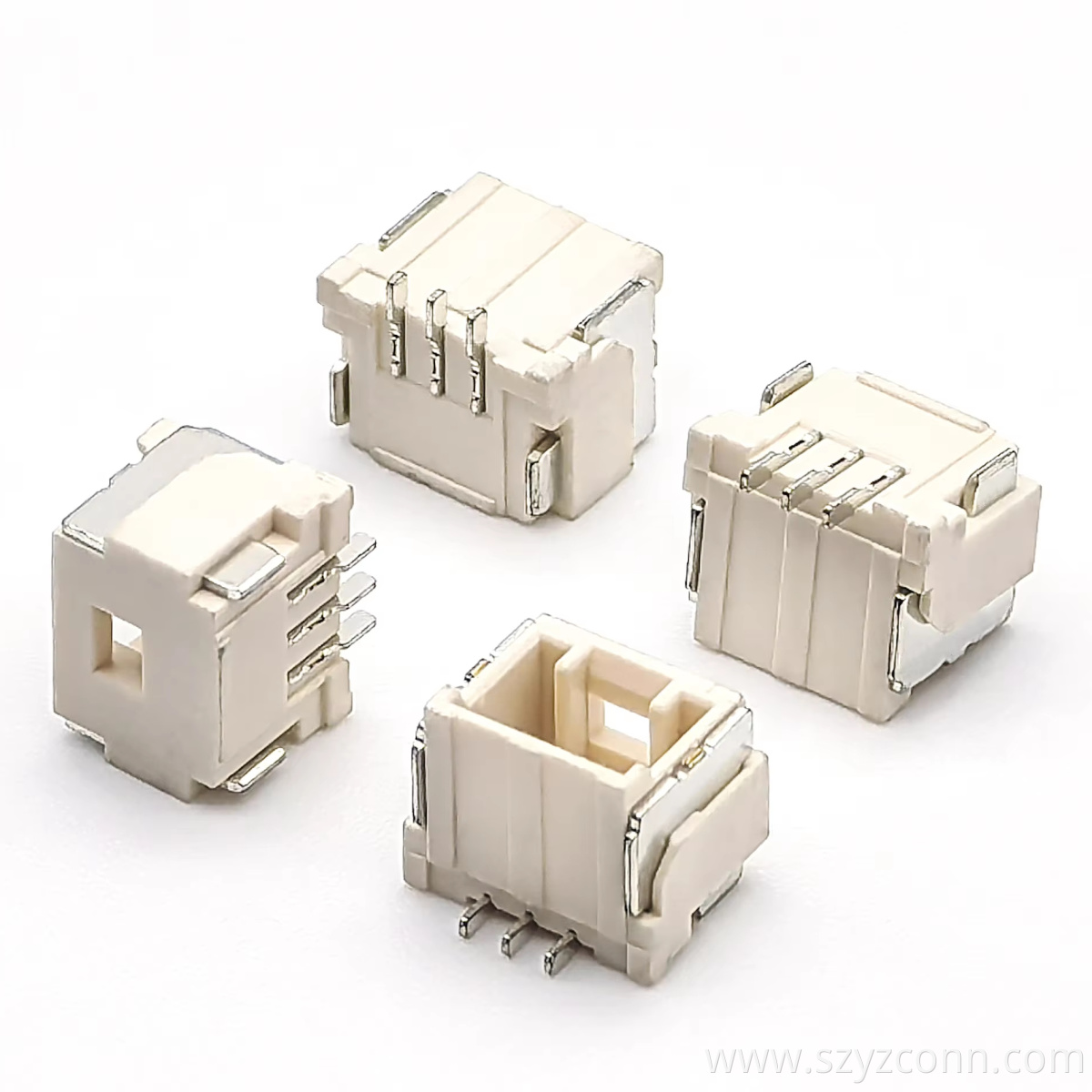

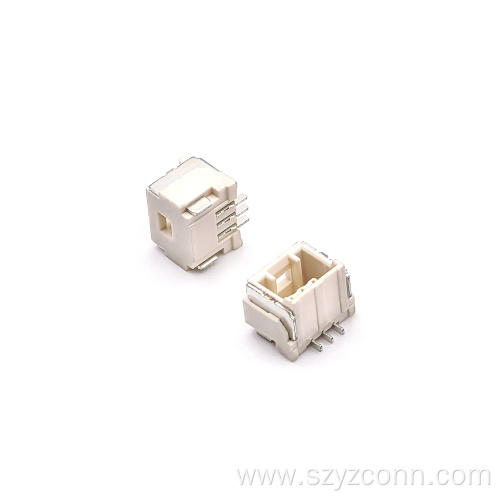

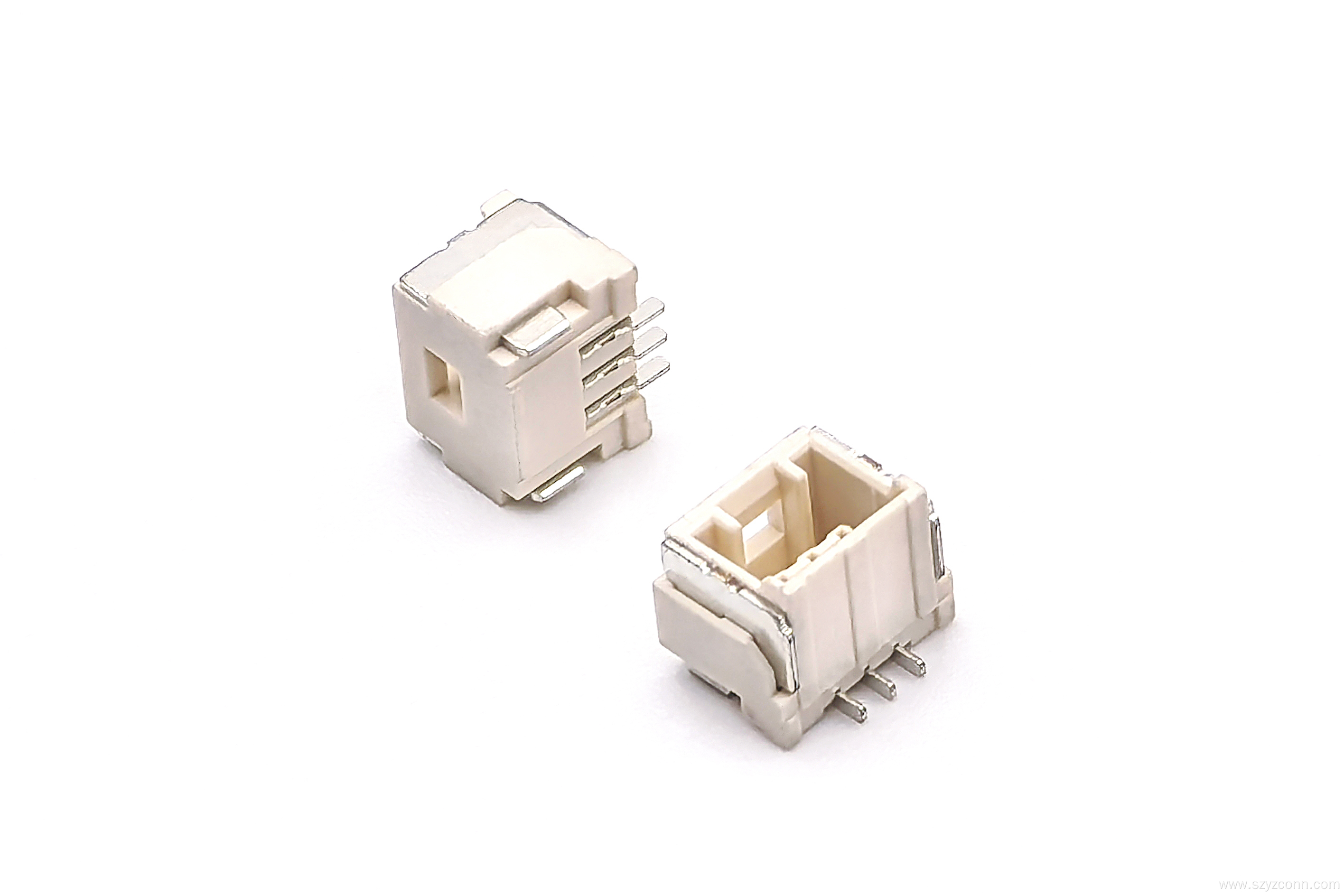

1.5mm Pitch Wafer Automotive-Grade Pin Header

1.5mm Pitch for Automotive PCB Applications

The 1.5mm Pitch Wafer Automotive-Grade Pin Header is designed for vehicle electronics that need a compact board connection without going down to an extremely small pitch. The 1.5mm spacing gives the contacts a practical layout and works well for PCB assemblies where there is a little more room around the Connector .

The connector uses an SMD mounting format and is rated for 1A at 100V. If you are comparing a 1.5mm Wafer Pin Header PA9T for an automotive project, be sure to check the housing material against the final drawing, as the material specification should match the actual version being ordered. This model itself is specified with phosphor bronze contacts and tin plating.

Phosphor Bronze Contacts for Stable Board Connections

The contacts are made from phosphor bronze with tin plating. This combination is commonly used in board-level connectors and gives manufacturers a straightforward option when both contact material and soldering performance need to be considered.

The working temperature range is -25°C to +105°C, which is useful for vehicle electronic assemblies that may see noticeable temperature changes during operation. For customers sourcing a 1.5mm Wafer Pin header Connector, the current rating, voltage rating, contact finish, and temperature range can be checked together before matching the connector to the PCB.

SMD Reel Packaging for Production

This model is supplied in reel packaging with a minimum packing quantity of 100 pieces. For customers running automated SMT assembly, reel packaging makes it easier to handle the components as part of a regular production process.

The automotive-grade design is intended for PCB connection applications where the mounting method and operating temperature both matter. If you are looking for a 1.5mm wafer Housing Connector smt, the PCB footprint and mating structure should be confirmed along with the 1.5mm pitch. A matching Wafer Housing Terminal can be selected according to the required mating arrangement, while Buy Wafer Terminals can be used as a reference when comparing related parts.

Product Specifications

Why Choose Shenzhen Yangzhan Electronics?

Yangzhan Electronics, also known as YZTECH Electronics, was established in 2014 and focuses on precision connectors, industrial Terminal Blocks, and cable assemblies. The company supports product development, tooling, manufacturing, assembly, inspection, sales, and service, allowing customers to work with one supplier through different stages of a connector project.

For automotive connector projects, details such as pitch, contact material, plating, temperature range, and SMT mounting need to match the actual application. YZTECH Electronics uses production and inspection equipment from Japan, Germany, and Taiwan and provides support from plastic and metal terminal tooling through final assembly. Customers looking for related Housing Connector products or a Wafer Pin header connector can also discuss different structures and specifications with the Shenzhen-based team.
