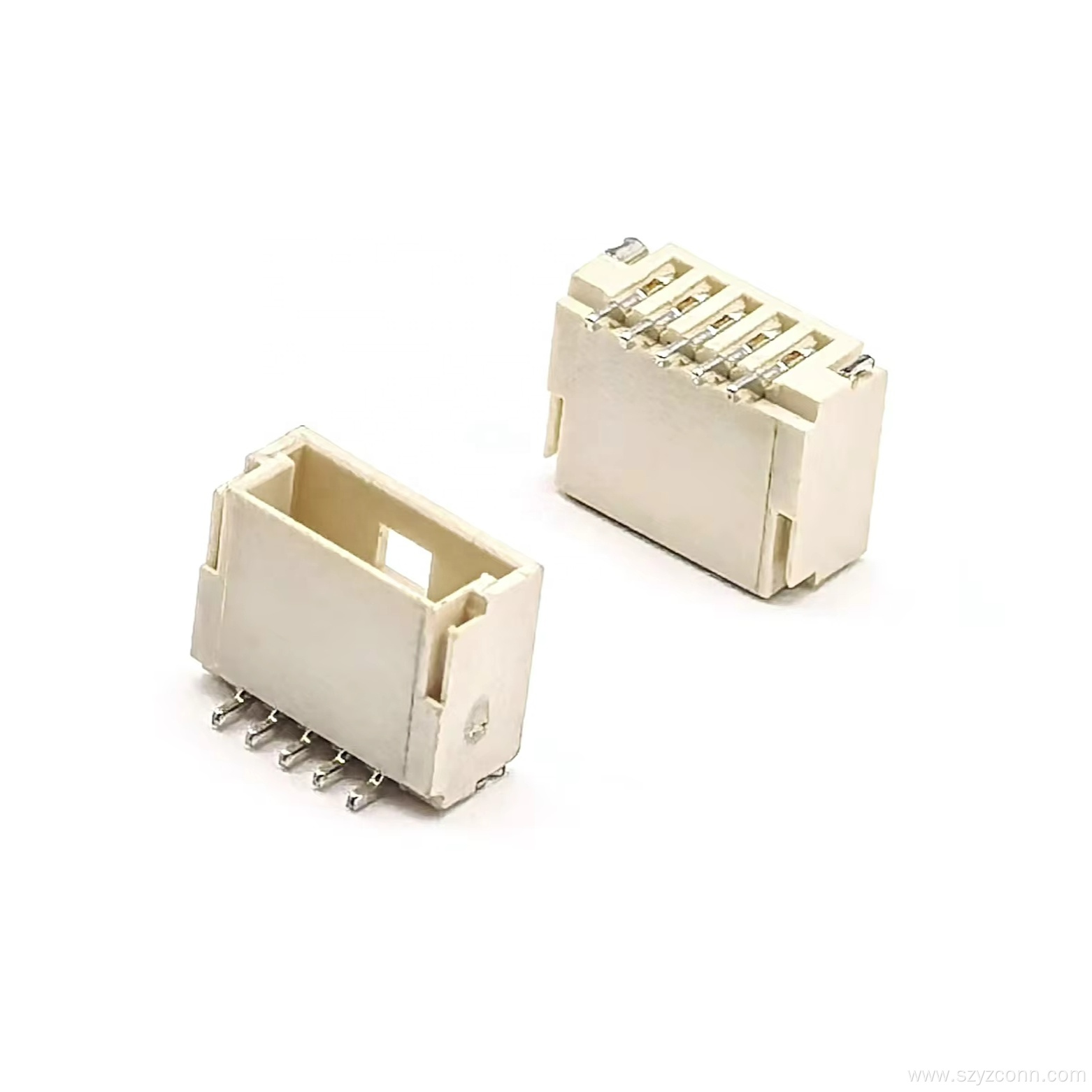

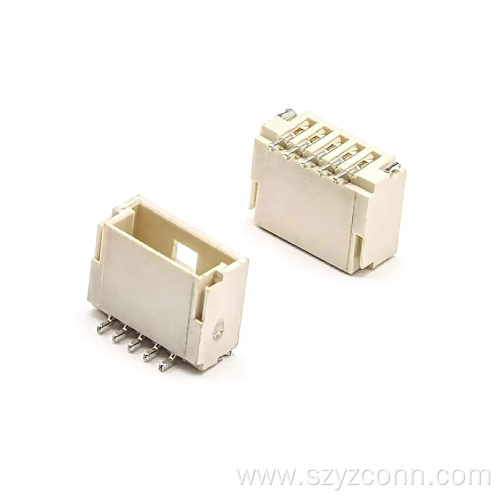

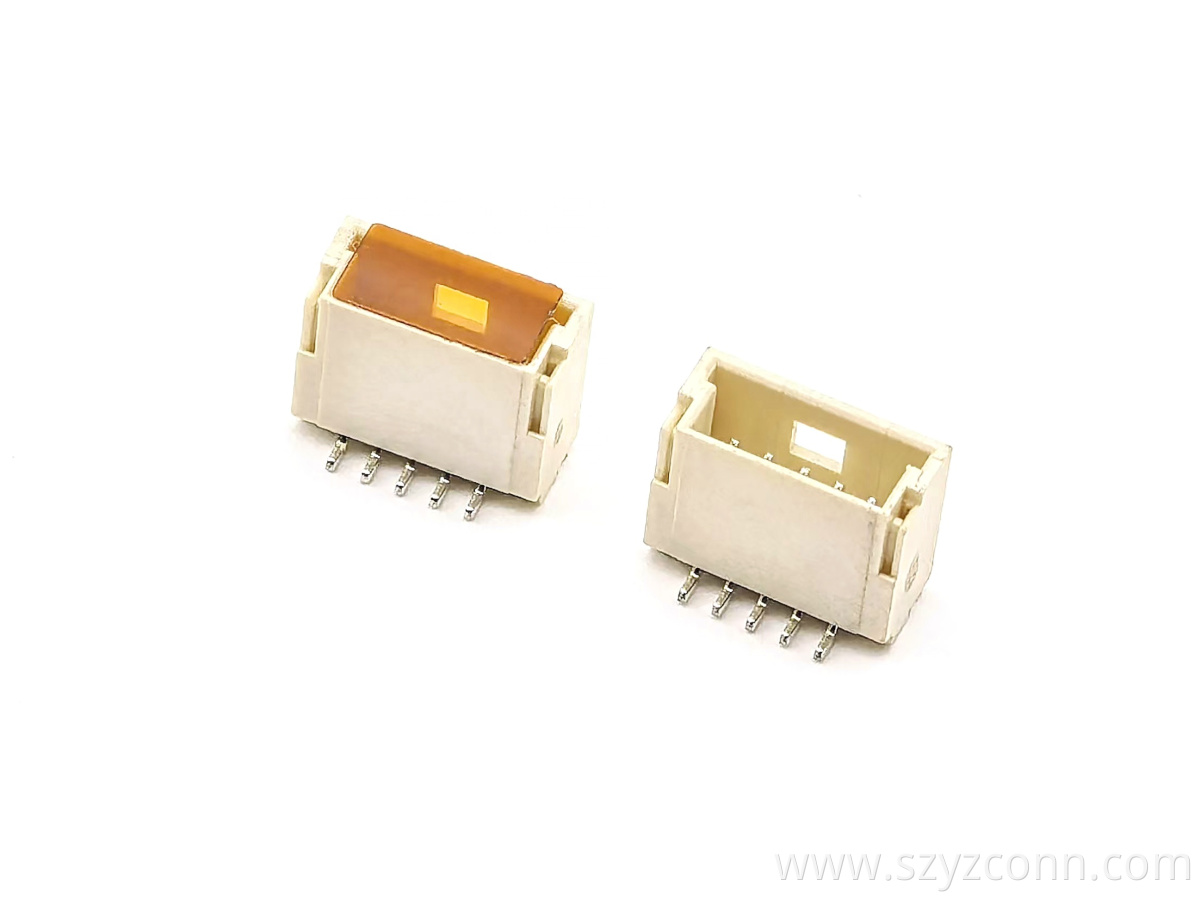

PH1.0mm Wafer Pin header Connector 5P

1. Compact 1.0mm Pitch for Space-Saving PCB Designs

The PH1.0mm Wafer Pin Header 5p is made for applications where PCB space is tight and a smaller connection layout is needed. With a 1.0mm pitch and 5 pins, this Connector keeps the connection area compact without making the assembly complicated. It is a good fit for small electronic boards, control modules, and Other products where space needs to be used carefully.

The SMT design also makes the connector easy to work with during automated PCB assembly. Instead of taking up extra board space with a larger connector, this small-pitch option gives designers more room around the connection area. For projects that need a compact [Wafer Pin Header ], the 1.0mm pitch is worth considering when matching the PCB layout and mating components.

2. 5-Pin Pin Header for Practical PCB Connections

The PH1.0mm wafer pin header connector smt features a 5-pin configuration for board-to-board or board-to-wire connection applications. The pin header structure is simple and easy to understand, which helps during component selection and assembly. For a small PCB, having the right pin count and pitch can make a noticeable difference in the overall layout.

This connector can also be used together with a suitable housing and terminal to build a complete wire connection. When selecting a [Wafer Housing Terminal], it is important to check the matching dimensions and contact arrangement rather than looking at the terminal alone. This helps avoid compatibility problems during final assembly.

3. Reel Packaging for Efficient SMT Production

The PH1.0mm wafer Housing Connector smt is supplied in reel packaging, with a minimum packing quantity of 100 pieces. Reel packaging is convenient for customers using automatic SMT equipment because the components can be fed continuously during production. It is particularly useful when the same connector is required in regular batches.

The product batch is 10068 (Small) and the connector is a vertical-mount pin header type. The shipping location is Shenzhen, making it convenient for customers who need connector products supplied from the Shenzhen manufacturing area. If you are looking to [Buy Wafer Terminals], you can compare the pitch, pin count, mounting method, and matching housing before placing an order.

Product Specifications

Why Choose Shenzhen Yangzhan Electronics

Shenzhen Yangzhan Electronics (YZTECH Electronics) has been working in the connector industry since 2014, with a focus on precision connectors, industrial Terminal Blocks, and cable assemblies. The company works closely with Taiwanese enterprises and has introduced production and inspection equipment from Japan, Germany, and Taiwan. From plastic and metal terminal mold development to processing and assembly, the company can support different stages of connector production.

For products such as the PH1.0mm WAFER Pin Header Connector 5P, small dimensions and accurate component matching are important during PCB assembly. Yangzhan Electronics follows a quality-focused manufacturing process and provides support covering R&D, manufacturing, processing, sales, and service. Customers looking for a matching [Housing Connector] can also discuss the required structure and application with the team before production, making it easier to build a suitable connection solution.
