PH1.0mm Wafer Pin Header With Long Pins

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: A10004-06AWB

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

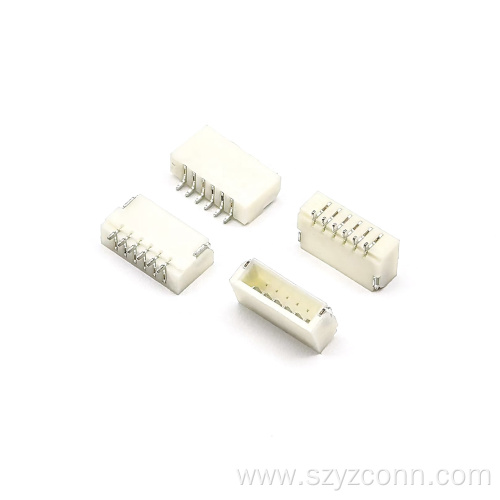

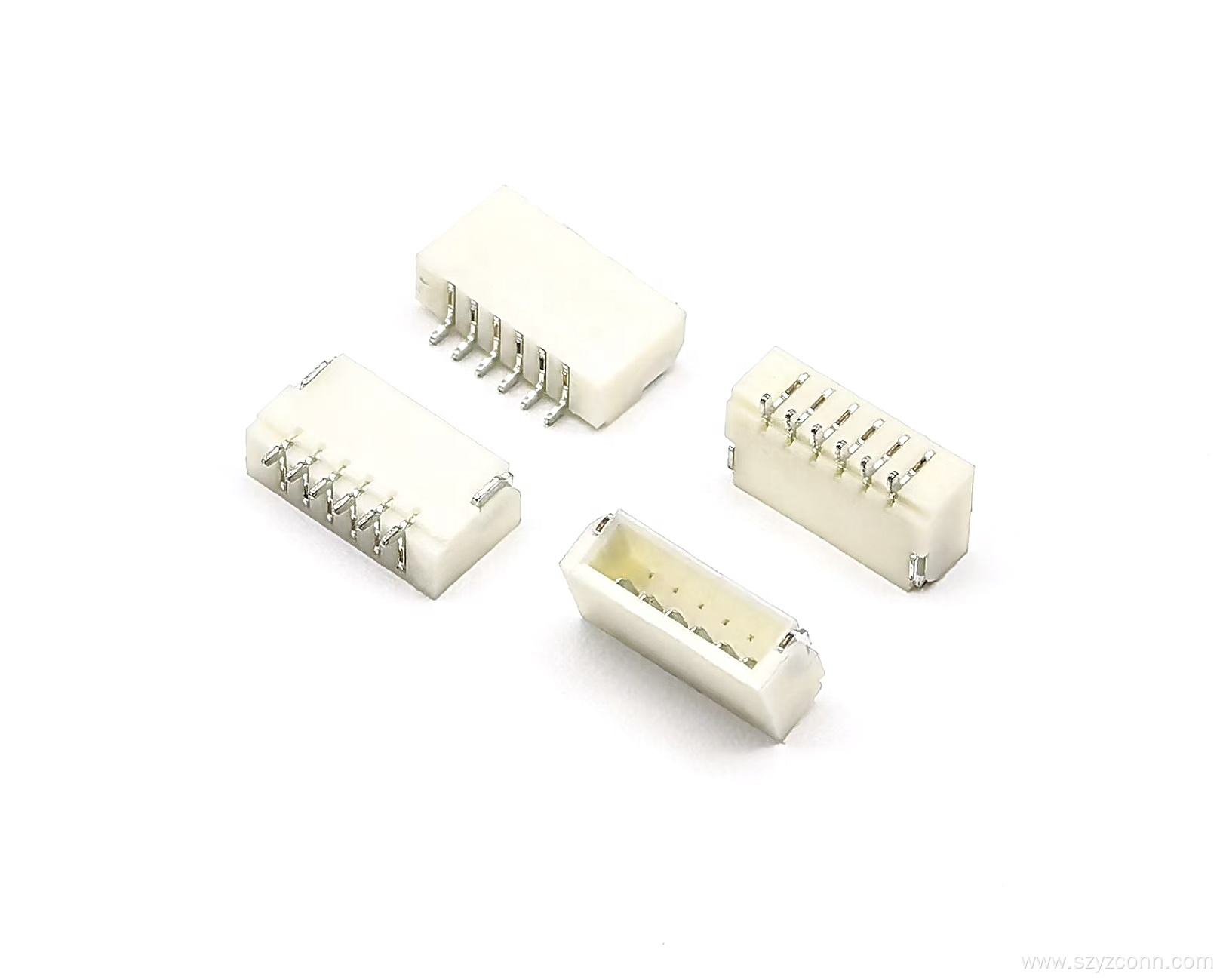

PH1.0mm Wafer Pin Header With Long Pins

YZTECH unveils its cutting-edge PH1.0mm Wafer Pin Header With Long Pins,engineered with an elongated pin architecture to conquer complex PCB connection challenges.This single-row, 6-position male PH1.0mm wafer pin header employs horizontal mounting for dependable board-to-board linking where extended pin length is critical.Forged from precision-stamped phosphor bronze and coated with uniform tin plating,the contacts deliver exceptional spring resilience and sustained conductivity,supporting 1A current and 125V operational demands.The advanced PA9T insulation material ensures heightened thermal stability and structural integrity,making this PH1.0mm Wafer Pin header Connector ideal for scenarios requiring prolonged pin reach without sacrificing reliability.

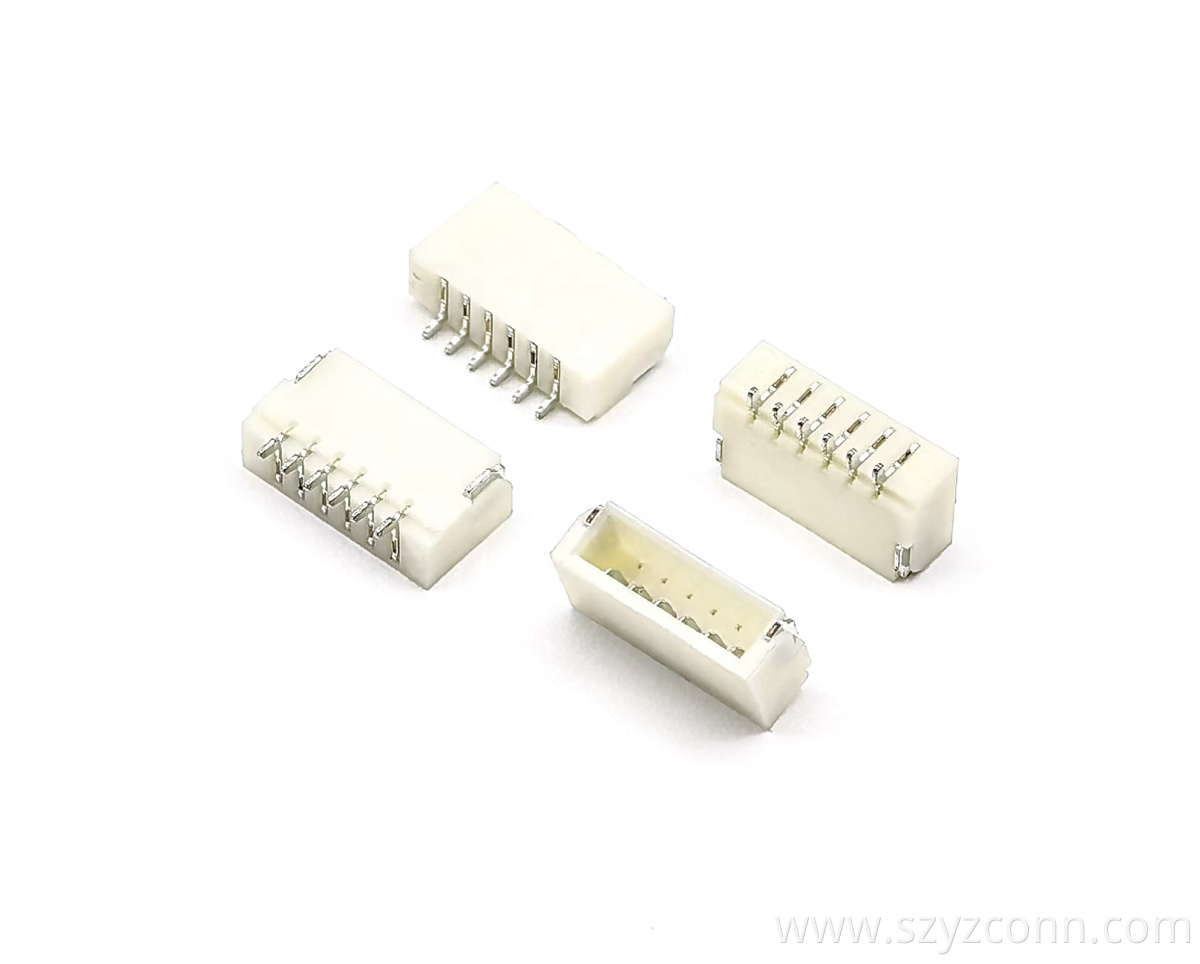

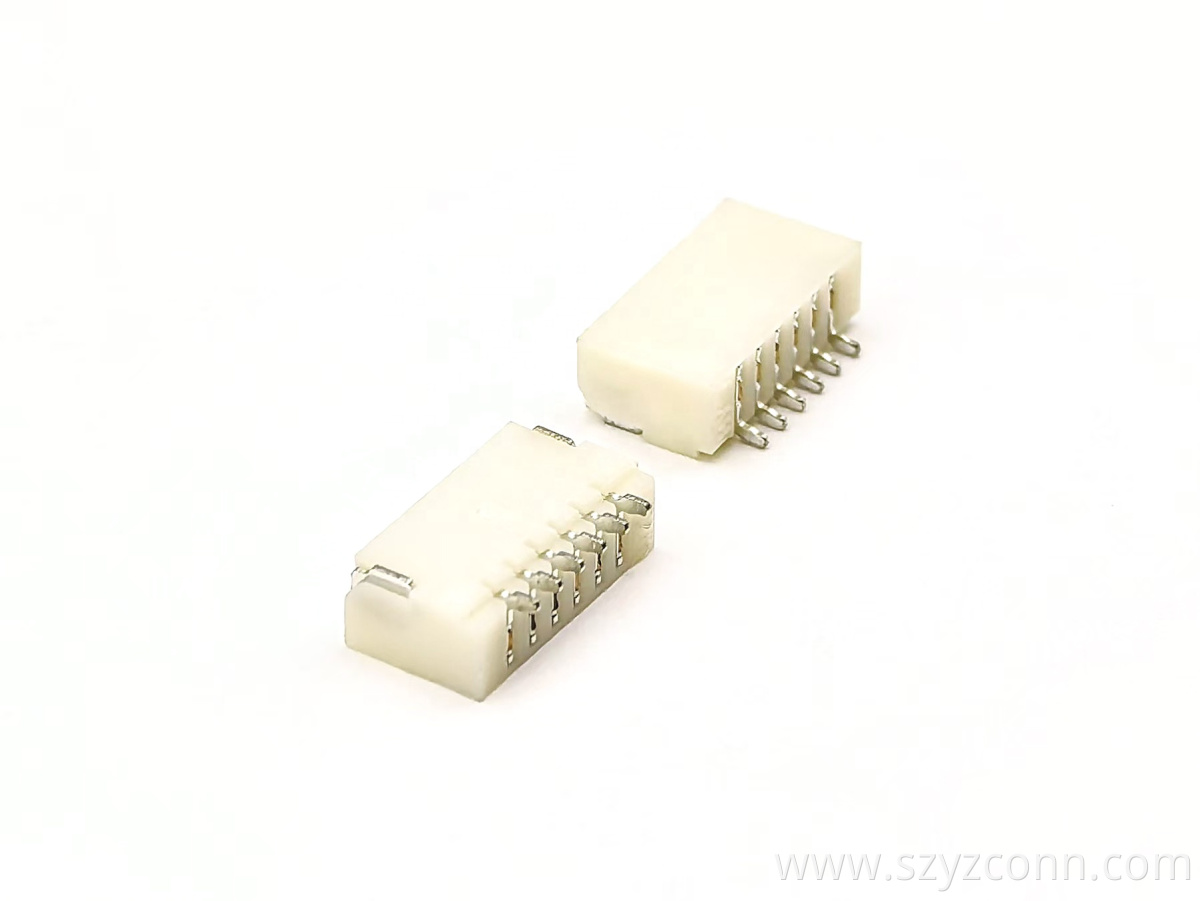

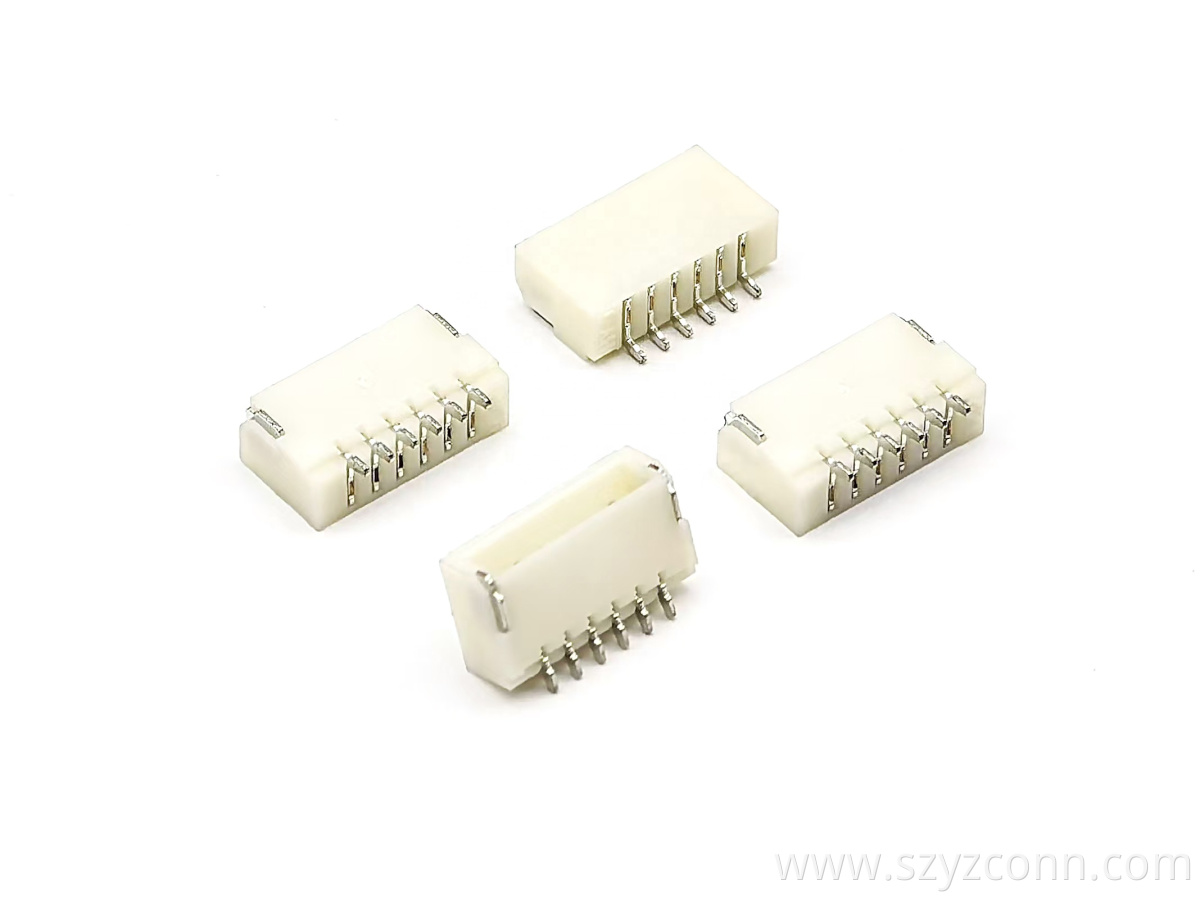

PH1.0mm Ultra-thin Right-angle Wafer SMT Type Pin Header Connector

Operational consistency is maintained from -25°C to 85°C, catering to commercial and industrial applications.The high-performance PA9T housing resists thermal stress and mechanical deformation,while tin-plated phosphor bronze contacts guarantee optimal solderability and anti-corrosion properties.Extended pins facilitate secure PCB mounting in configurations needing extra clearance or multi-layer board penetration.Reel packaging streamlines automated assembly,enhancing manufacturing efficiency and quality control in high-volume production.

This specialized Wafer Housing Terminal excels in scenarios where standard pin lengths fall short,including stacked board designs,modular systems,and embedded electronics.Its ultra-fine 1.0mm pitch and extended pin architecture ensure both connection reach and reliability.Compliant with DIN standards and RoHS directives,the PH1.0mm wafer Housing Connector supports seamless integration into global supply chains.The reel packaging aligns with SMT pick-and-place systems, minimizing handling errors and ensuring consistent placement accuracy.
