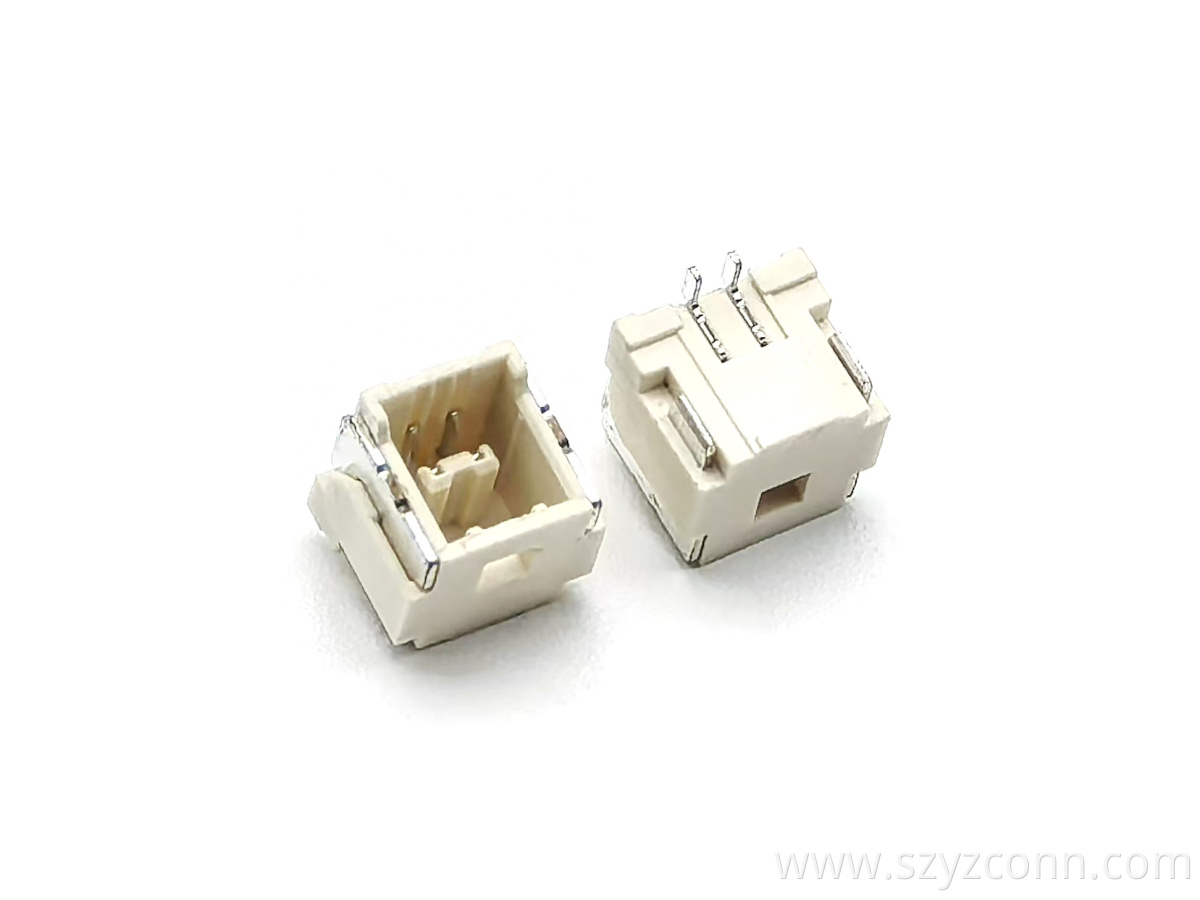

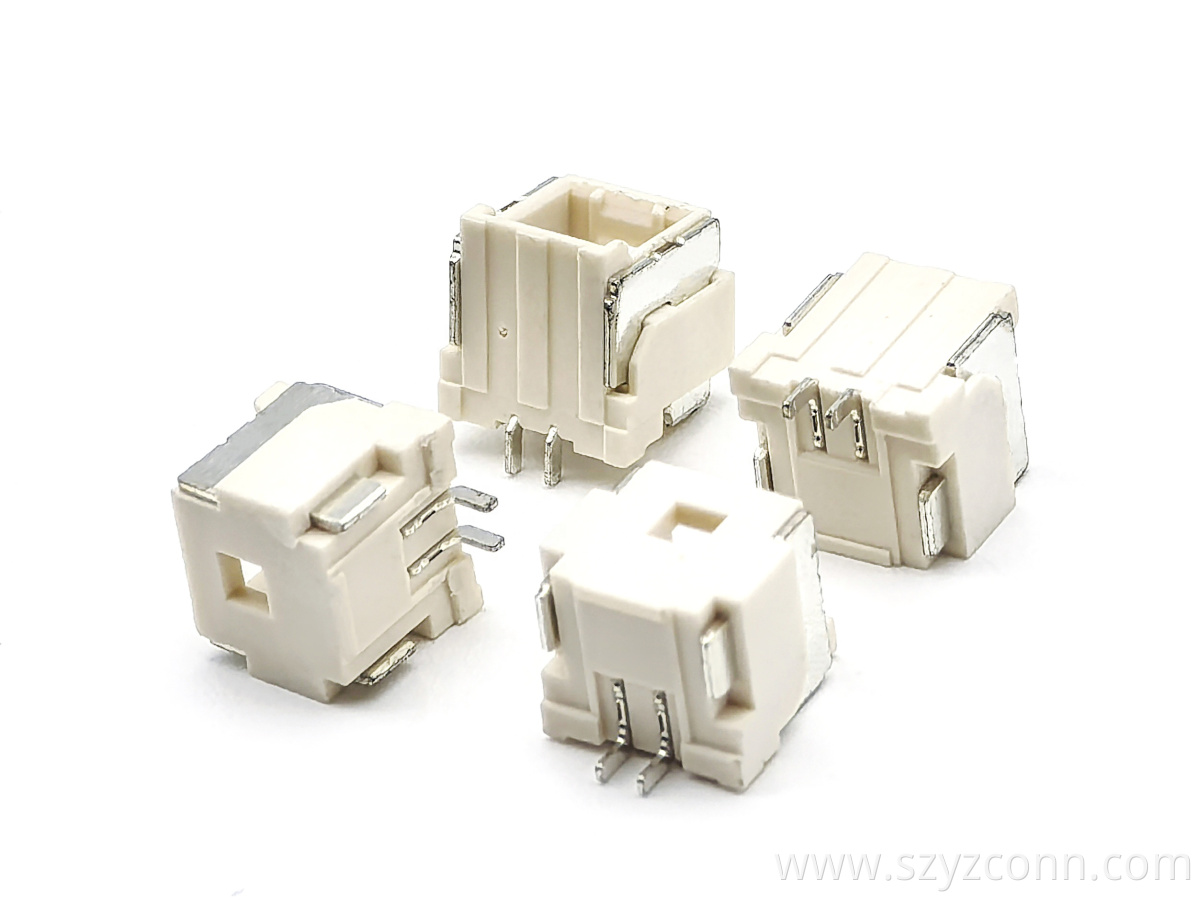

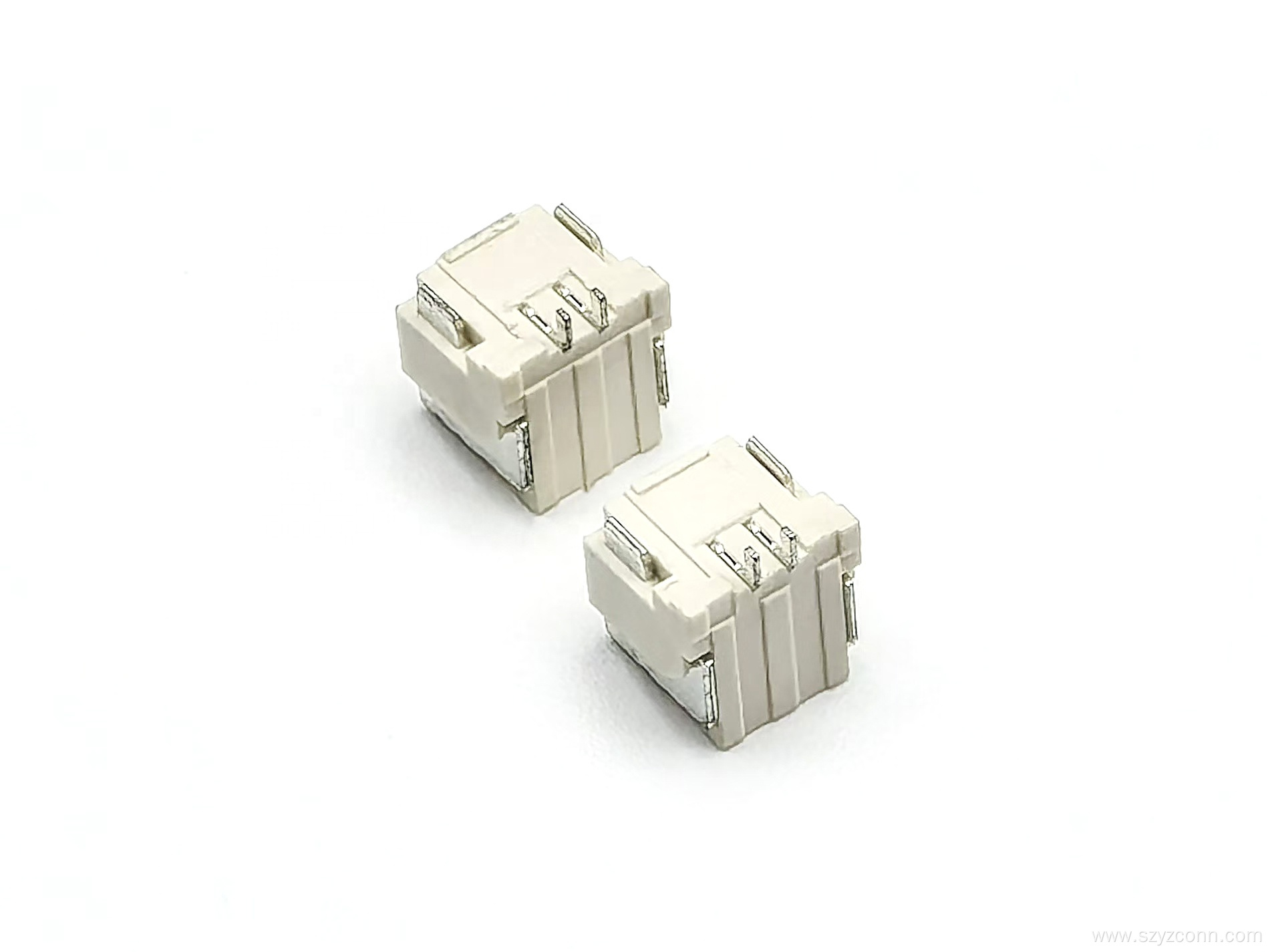

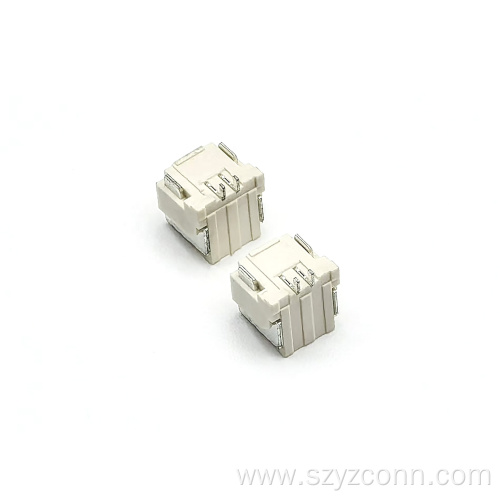

PH1.5mm Wafer Pin header Connector SMT 2P

1.5mm Horizontal Mounting for Compact PCB Layouts

The PH1.5mm Wafer pin header connector SMT 2P is a two-position Connector with a horizontal mounting design. The 1.5mm pitch keeps the two contacts close together, while the low-profile layout works well for PCB designs where the connector needs to sit along the board rather than stand vertically.

This model uses SMT mounting and is rated at 1A and 100V. For customers looking for a 1.5mm Wafer Pin Header vertical smt, it is worth checking the mounting direction carefully, since this particular PH1.5mm version is designed for horizontal placement. A suitable Wafer Housing Terminal can then be matched according to the mating structure.

Two Contact Materials for the Connector Assembly

The contact system uses both phosphor bronze and brass. The phosphor bronze contacts are tin plated, while the brass soldering lugs are also tin plated. This gives the connector a clearly defined contact and soldering structure for PCB assembly.

The working temperature range is -25°C to +105°C, making the connector suitable for electronic assemblies that may experience noticeable temperature changes during operation. If you are sourcing a wafer pin header connector 2p smt, the 2-position layout, contact construction, plating, and temperature range can all be checked against the requirements of the finished PCB.

Reel Packaging for SMT Production

The PH1.5mm connector is supplied on a reel with a quantity of 100 pieces. Reel packaging is convenient for automated SMT production and makes it easier to feed the components into a regular assembly process without changing the packing format.

The product lot is marked PH1.5mm (15068), which can be used for production identification and order tracking. When comparing a wafer Housing Connector PA9T material, the housing material should be confirmed from the specific product drawing or datasheet because PA9T is not included in the specifications provided for this model. For related parts, Buy Wafer Terminals can help when comparing different terminal options, while a matching Housing Connector can be selected for the mating side.

Product Specifications

Why Choose Shenzhen Yangzhan Electronics?

Yangzhan Electronics, also known as YZTECH Electronics, was established in 2014 and specializes in precision connectors, industrial Terminal Blocks, and cable assemblies. The company supports product development, tooling, processing, assembly, inspection, sales, and service, so customers can work with one supplier across different stages of a connector project.

For a small 2P SMT connector, details such as pitch, mounting direction, contact material, plating, and soldering structure all need to line up with the PCB design. YZTECH Electronics uses production and inspection equipment from Japan, Germany, and Taiwan and supports plastic and metal terminal tooling through assembly. Customers looking for a related Wafer Pin header Connector can also discuss different pin counts, mounting styles, and connector configurations with the Shenzhen-based team.
