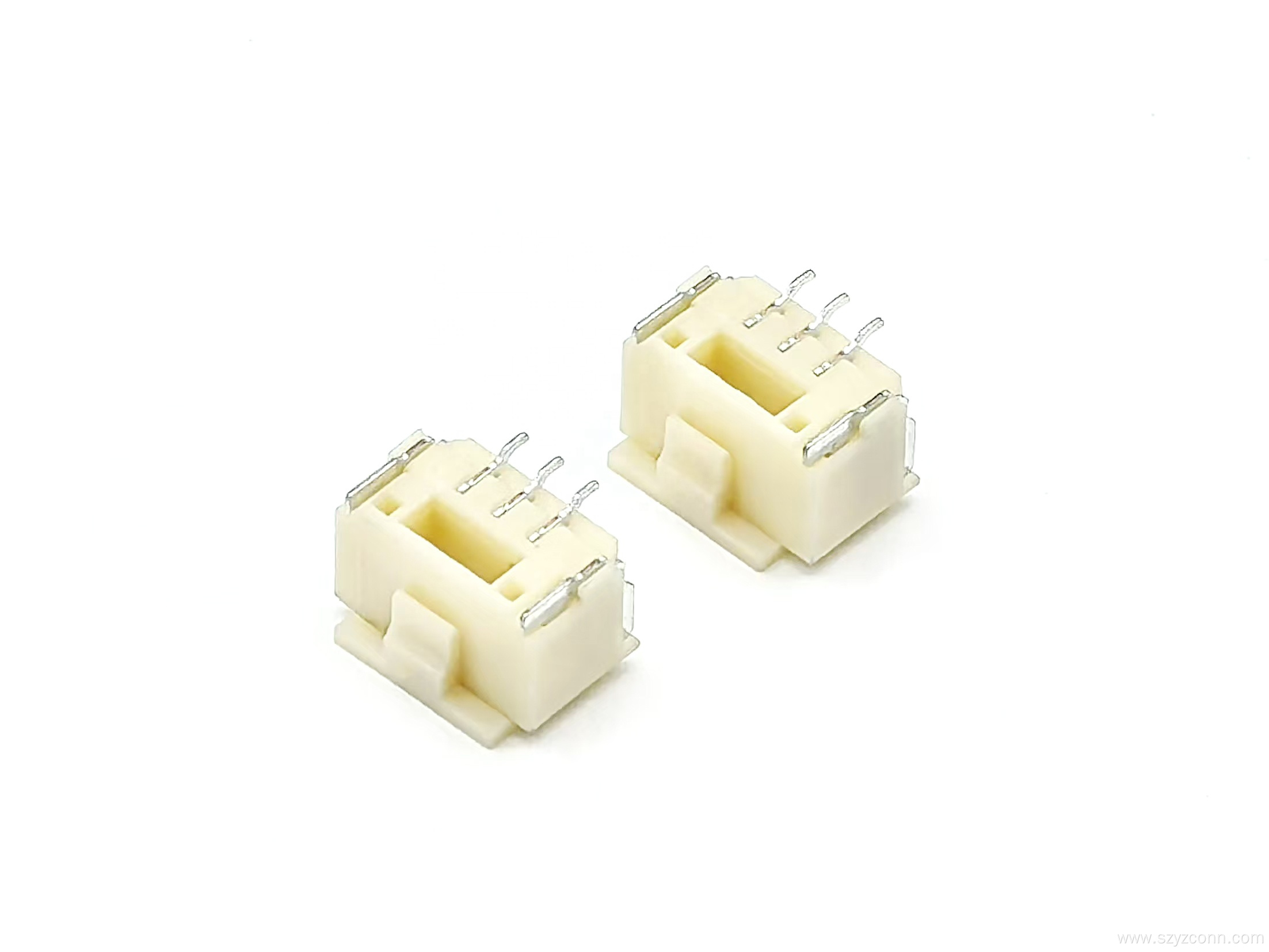

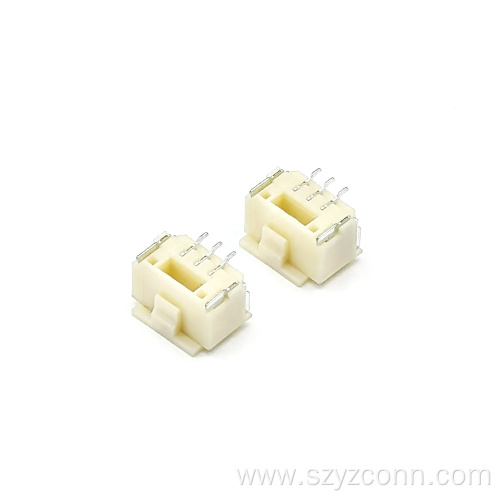

GH1.25mm Wafer Vertical SMT Pin header 3P

GH1.25mm Wafer Vertical SMT Pin header 3P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Ivory 1-core 3P

Contact Now

Product Description

Product Attributes

Model No.: A12509-03AB

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Other

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

GH1.25mm Wafer Vertical SMT Pin Header 3P

YZTECH’s GH1.25mm Wafer Vertical SMT Pin header 3P introduces a groundbreaking approach to space optimization in PCB design.This GH1.25mm Wafer Pin Header smt features a vertical mount configuration,perfect for Z-axis constrained applications where traditional horizontal connectors cannot fit.

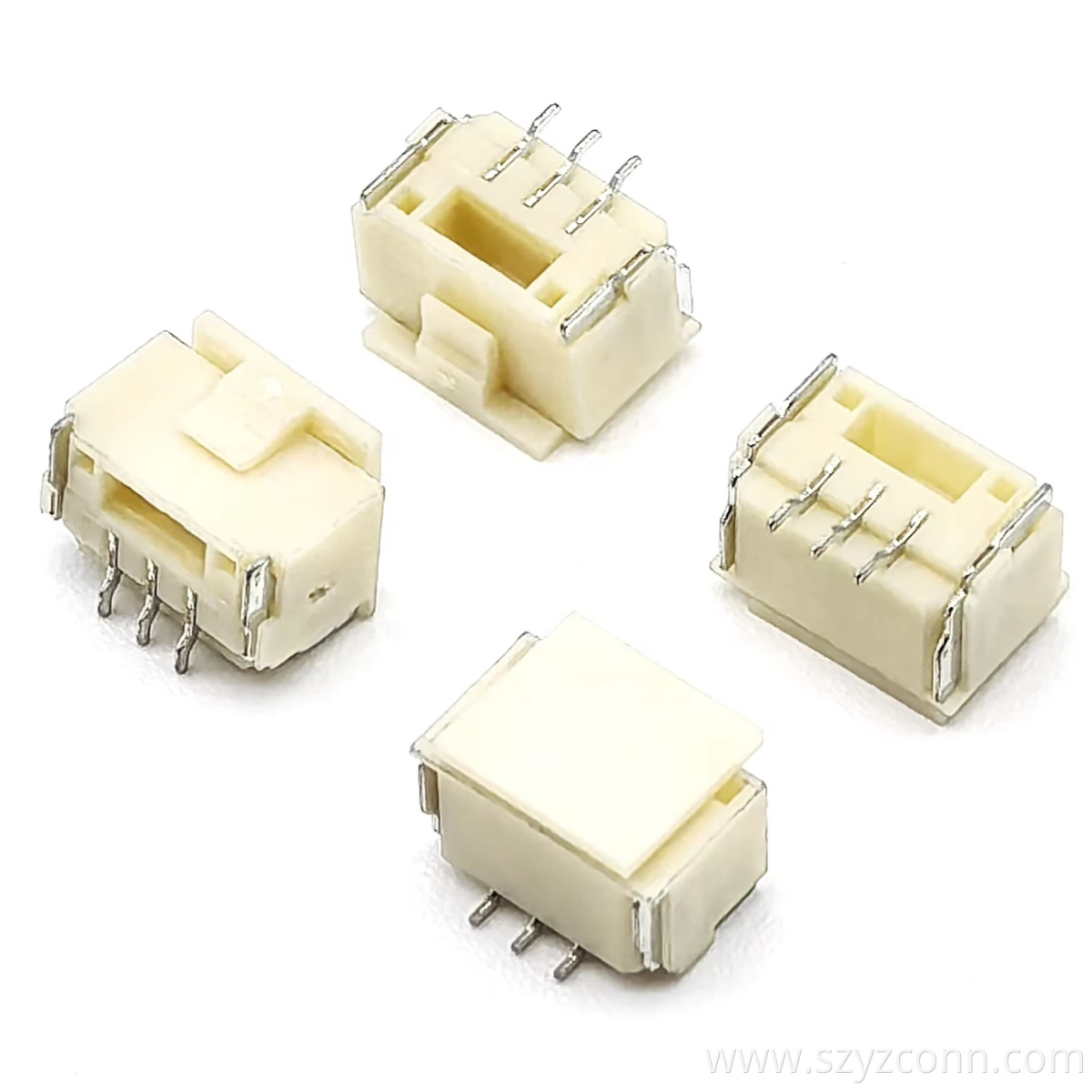

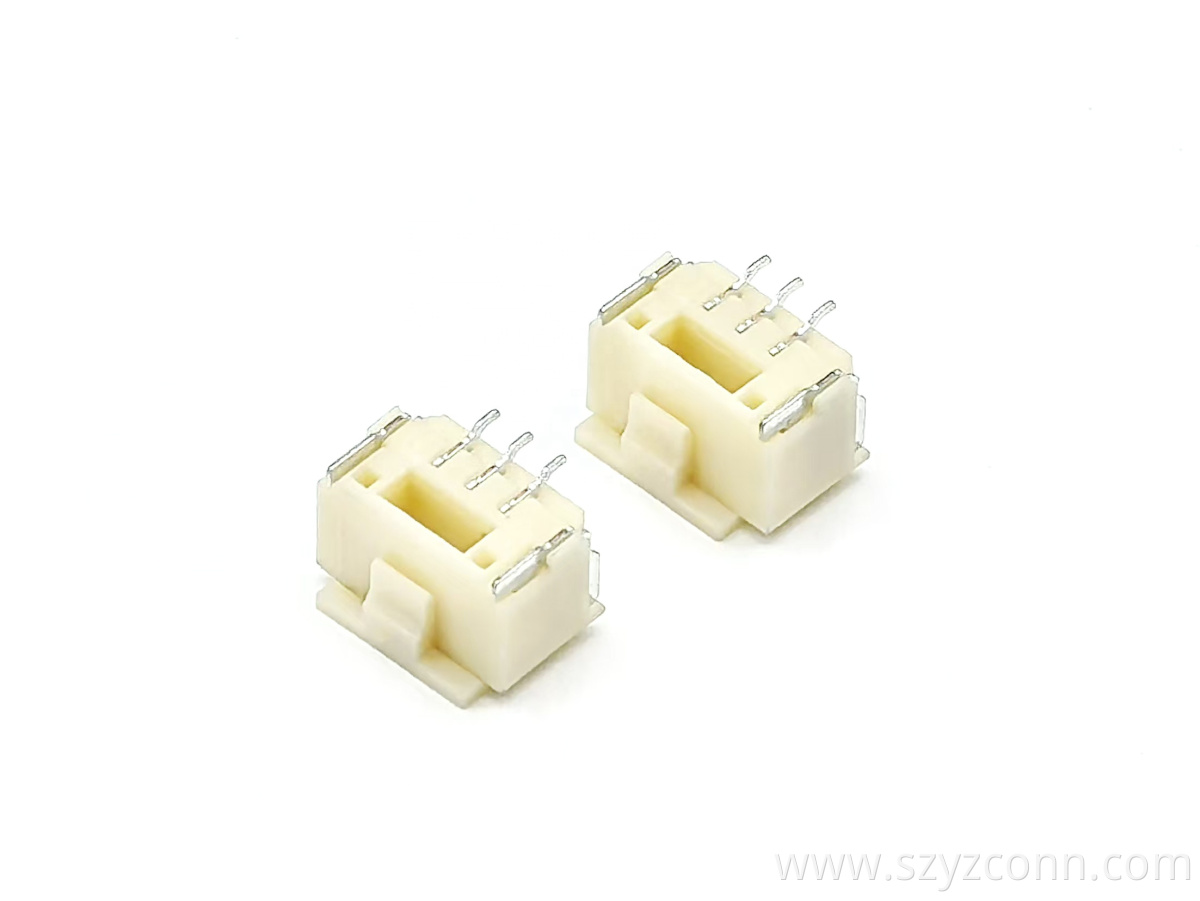

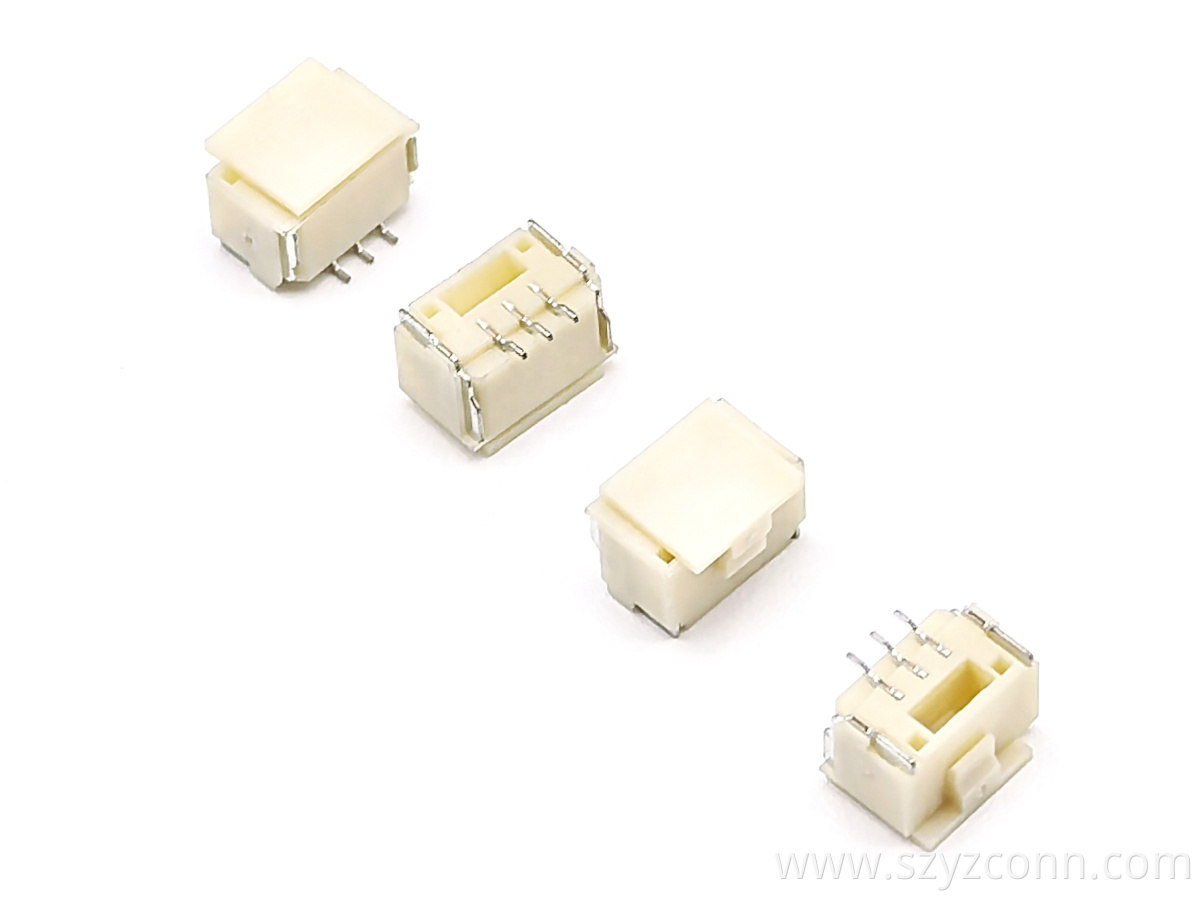

GH1.25mm Pitch Wafer Vertical SMT Pin header Connector 3P

Engineered with phosphor bronze contacts coated in tin plating,this GH1.25mm Wafer Pin header Connector delivers 1A current at 50V while ensuring corrosion resistance and electrical reliability.The PA6T colloidal material exceeds industry standards with its exceptional thermal stability (-25°C to +85°C) and mechanical resilience,maintaining dimensional integrity through reflow soldering and repeated thermal cycles.The phosphor bronze contacts with tin plating provide over 500 mating cycles with consistent low contact resistance,ideal for industrial controls and automotive electronics.The 1.25mm pitch of this GH1.25mm wafer Housing Connector smt ensures precise signal integrity for both digital and analog applications,supporting high-speed data transmission without crosstalk.Its 50V rating suits low-voltage power distribution and signal routing in compact modules,while the vertical orientation optimizes airflow in densely packed enclosures.

The reel packaging supports automated pick-and-place equipment,streamlining assembly and reducing labor costs.With a focus on reliability,efficiency,and compliance,this Wafer Housing Terminal empowers engineers to achieve superior performance in miniaturized designs while meeting international standards.Contact YZTECH today to explore how our vertical mounting expertise and custom engineering solutions can elevate your next-generation PCB designs and accelerate market entry in competitive global landscapes.
