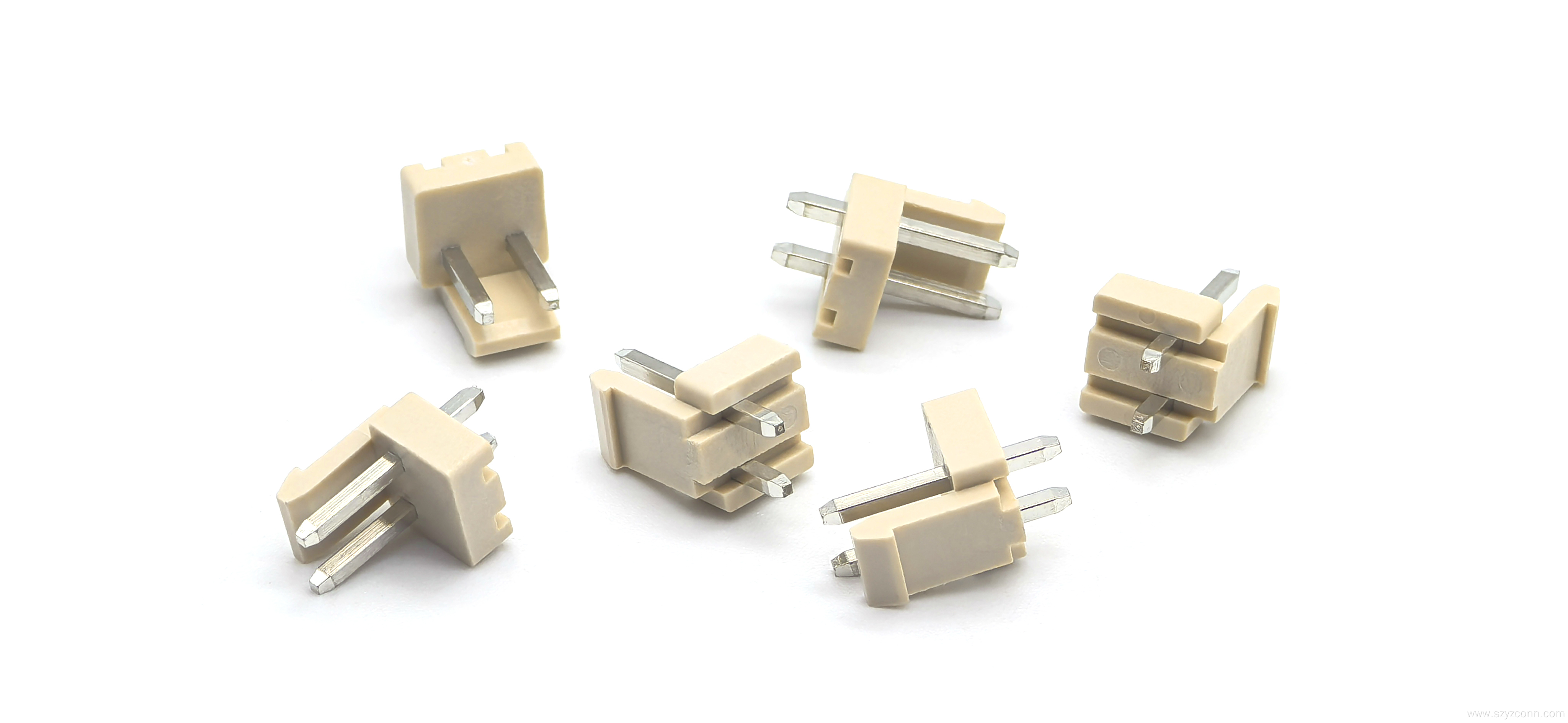

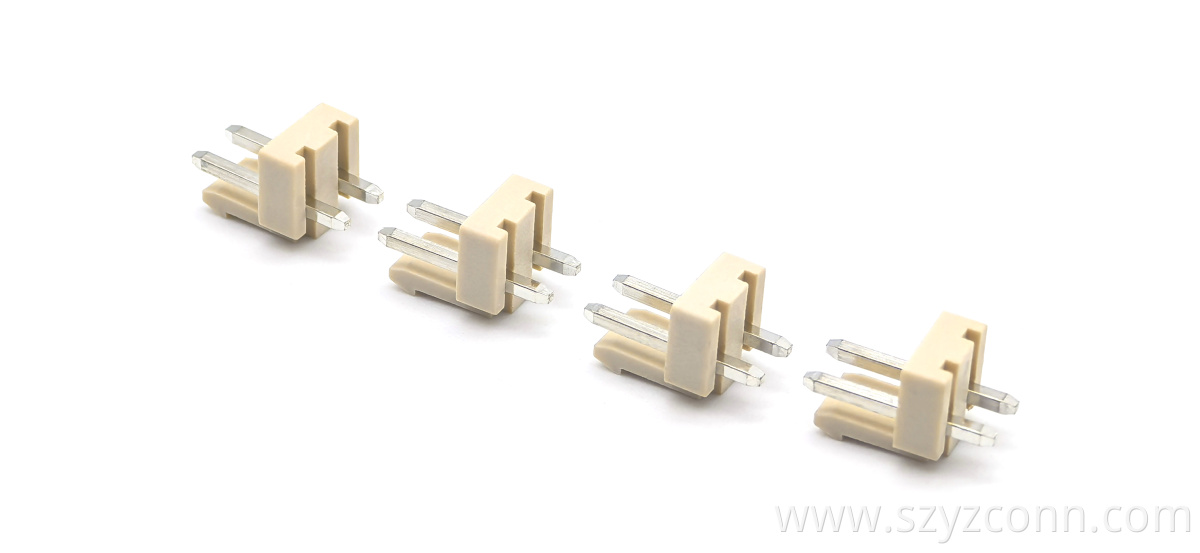

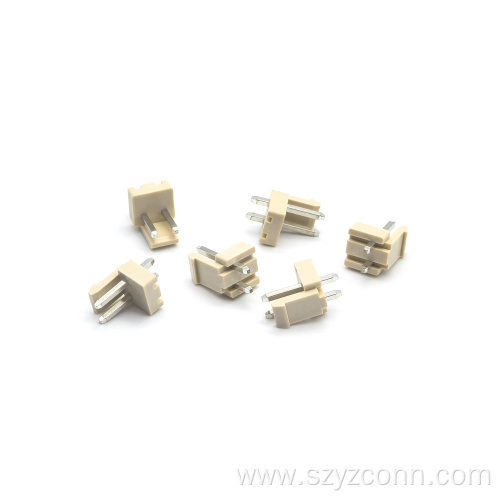

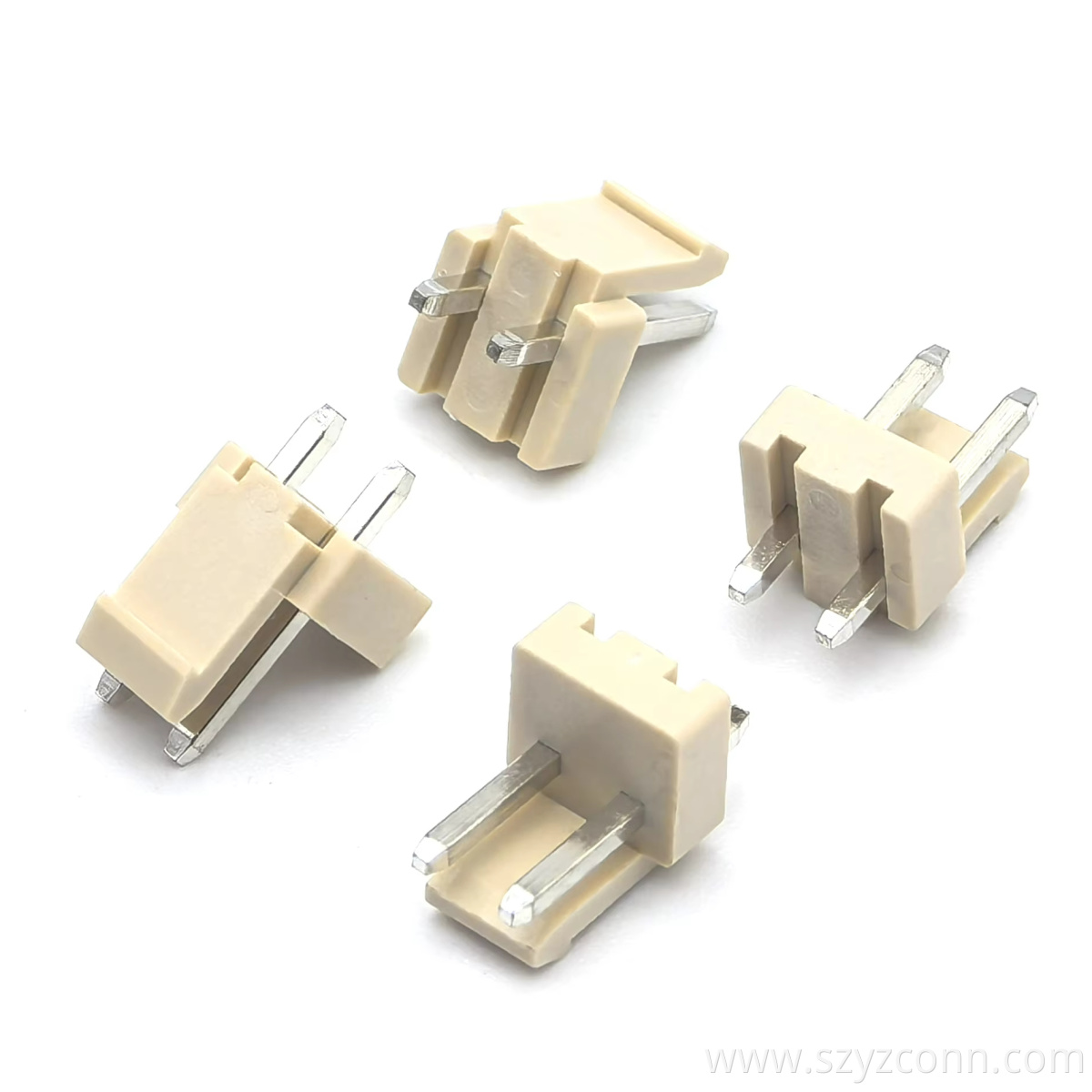

VH3.96 Wafer Pin header Connector 2P

3.96mm Pitch for Higher-Current Connections

The VH3.96 Wafer pin header connector 2P uses a 3.96mm pitch with two positions, giving the contacts more space compared with small-pitch wafer connectors. This type of layout can be useful when the PCB design needs a larger connection pitch and a straightforward plug-in structure.

The Connector is rated for 7A and 250V, making it suitable for electronic assemblies that require a higher current and voltage rating. If you are comparing a wafer pin header connector NL66-V0, the electrical specifications should be checked together with the actual housing and mating requirements before selecting the final part.

Copper Contacts with Tin Plating

The contacts are made from copper and finished with tin plating. The combination provides a simple contact construction for applications where electrical performance and soldering need to be considered together.

The working temperature range is -25°C to +85°C. The connector is supplied as a 2-position version, so it can be used where two connection points are needed without adding unnecessary positions. Customers looking for a VH3.96 Wafer Pin Header beige version can also confirm the housing color and product drawing before ordering. A matching Wafer Housing Terminal can be selected according to the mating side of the assembly.

Bag Packaging for Easy Handling

This VH3.96 Pin Header is supplied in bags, with a minimum packing quantity of 100 pieces. Bag packaging is easy to handle during manual assembly and also works well for customers who keep connectors in stock for regular production.

The lot is identified as VH3.96 pin header connector, making it easier to track the product during purchasing and production. When looking for a VH3.96 wafer Housing Connector 2p, it is useful to check the pitch, pin count, current rating, and mating structure together. For related components, Buy Wafer Terminals can be used when comparing terminal options, while a suitable Housing Connector can be selected for the complete connection setup.

Product Specifications

Why Choose Shenzhen Yangzhan Electronics?

Yangzhan Electronics, also known as YZTECH Electronics, was established in 2014 and focuses on precision connectors, industrial Terminal Blocks, and cable assemblies. The company supports product development, tooling, processing, assembly, inspection, sales, and service, so customers can discuss connector requirements from the initial design stage through production.

For a larger-pitch connector such as the VH3.96 2P, electrical rating, contact material, plating, pin spacing, and mating structure all need to fit the application. YZTECH Electronics uses production and inspection equipment from Japan, Germany, and Taiwan and supports plastic and metal terminal tooling as well as final assembly. Customers looking for a related Wafer Pin header Connector can also discuss different pin counts, pitches, and connection structures with the Shenzhen-based team.
