1.25mm Wafer Vertical SMT Pin header 8P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: B12501-08AB

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

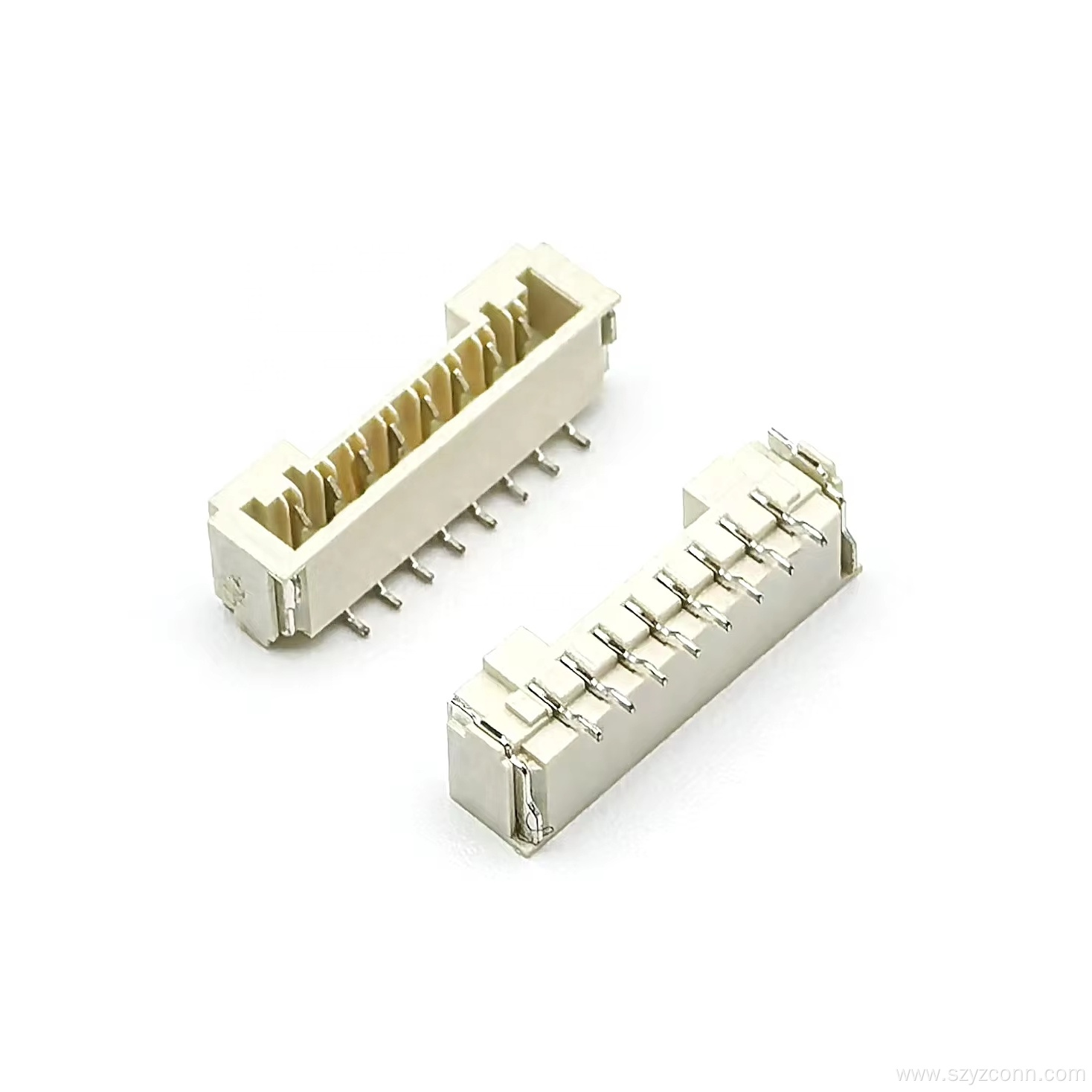

1.25mm Wafer Vertical SMT Pin Header 8P

YZTECH’s 1.25mm Wafer Vertical SMT Pin header 8P redefines space efficiency in PCB assemblies with its 8-pin single-row configuration.Engineered for vertical mounting,this 1.25mm Wafer Pin Header optimizes Z-axis utilization in stacked board architectures,enabling dense interconnection without compromising signal integrity.The rectangular male contacts feature phosphor bronze construction with tin plating, delivering 1A current capacity at 50V while ensuring corrosion resistance and low contact resistance.LCP colloidal material provides exceptional thermal stability -25°C to +85°C and mechanical resilience,maintaining dimensional integrity during reflow soldering and thermal cycling.The reel packaging streamlines high-speed SMT assembly,ensuring precise placement accuracy and manufacturing consistency across automated production lines.

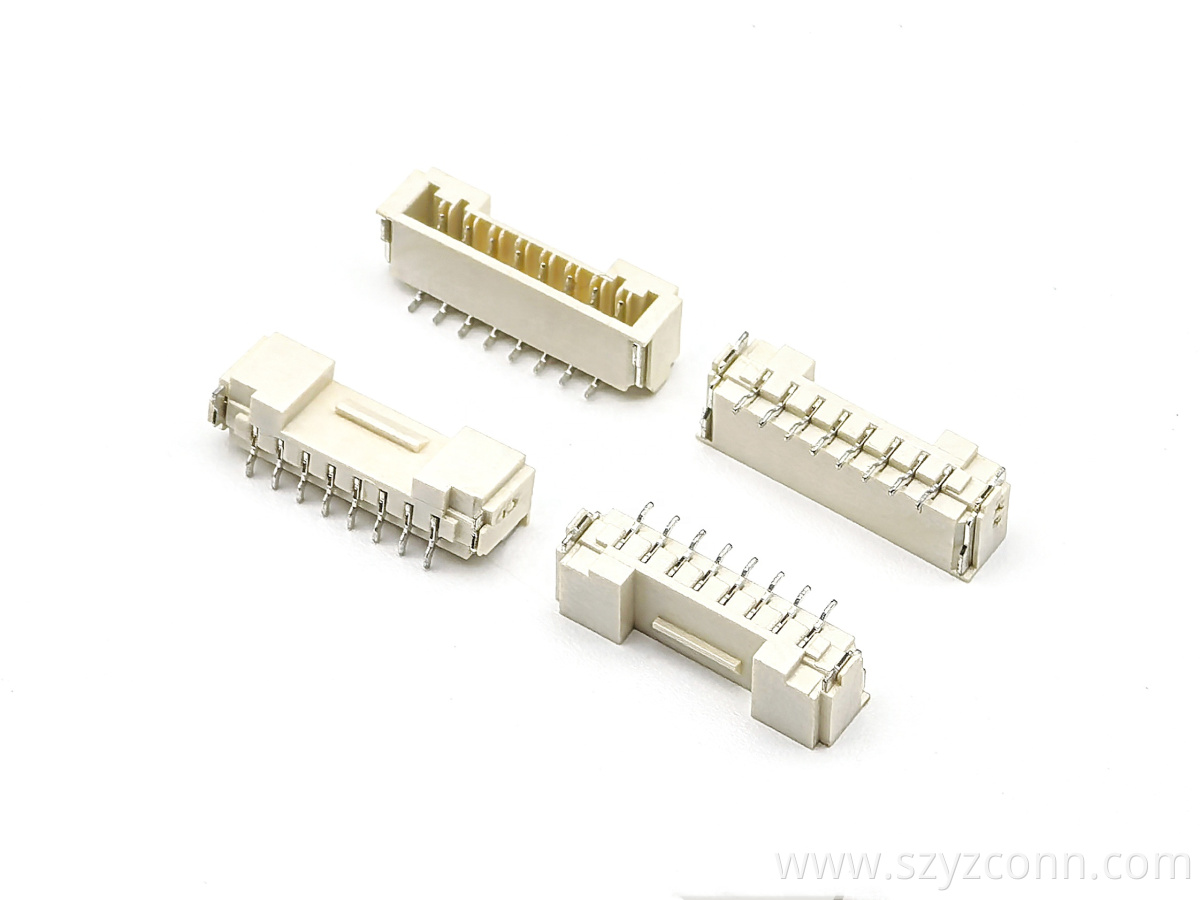

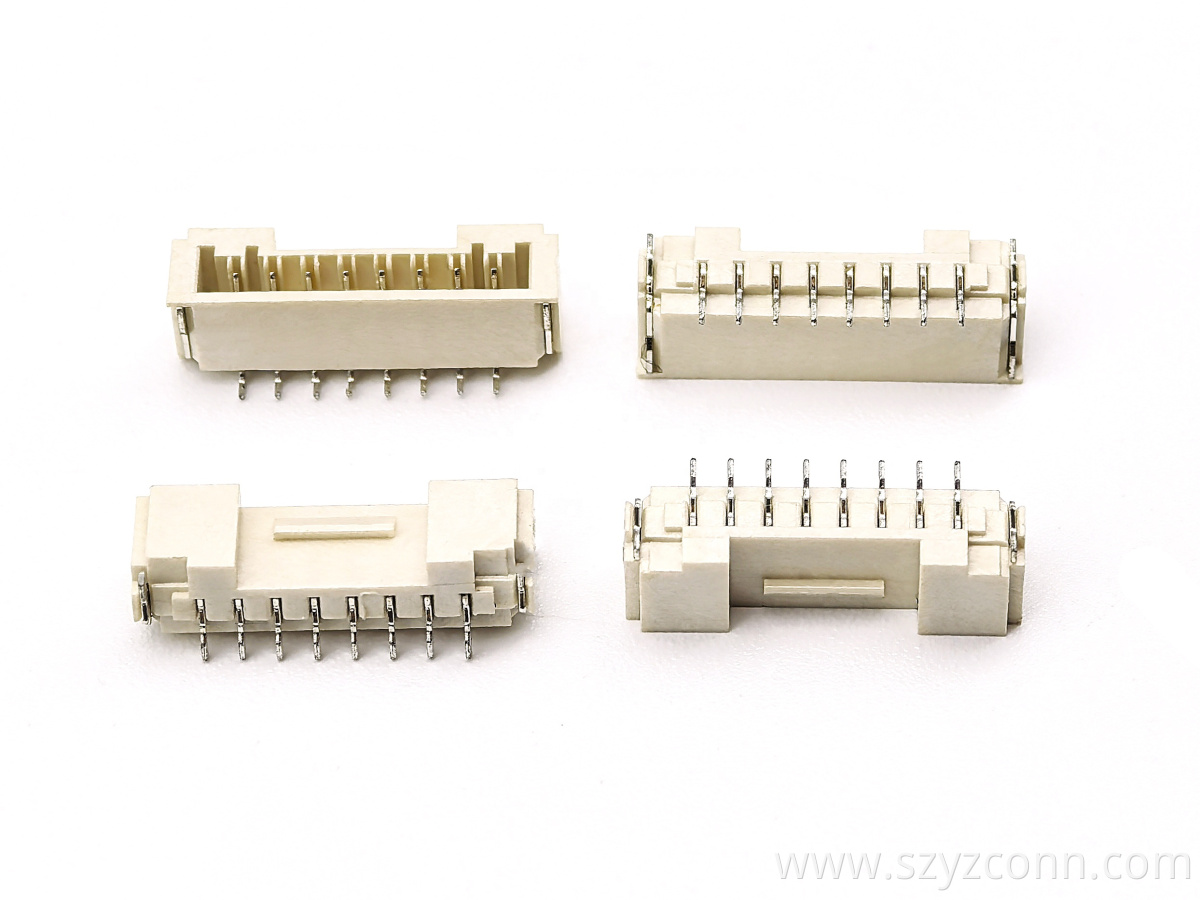

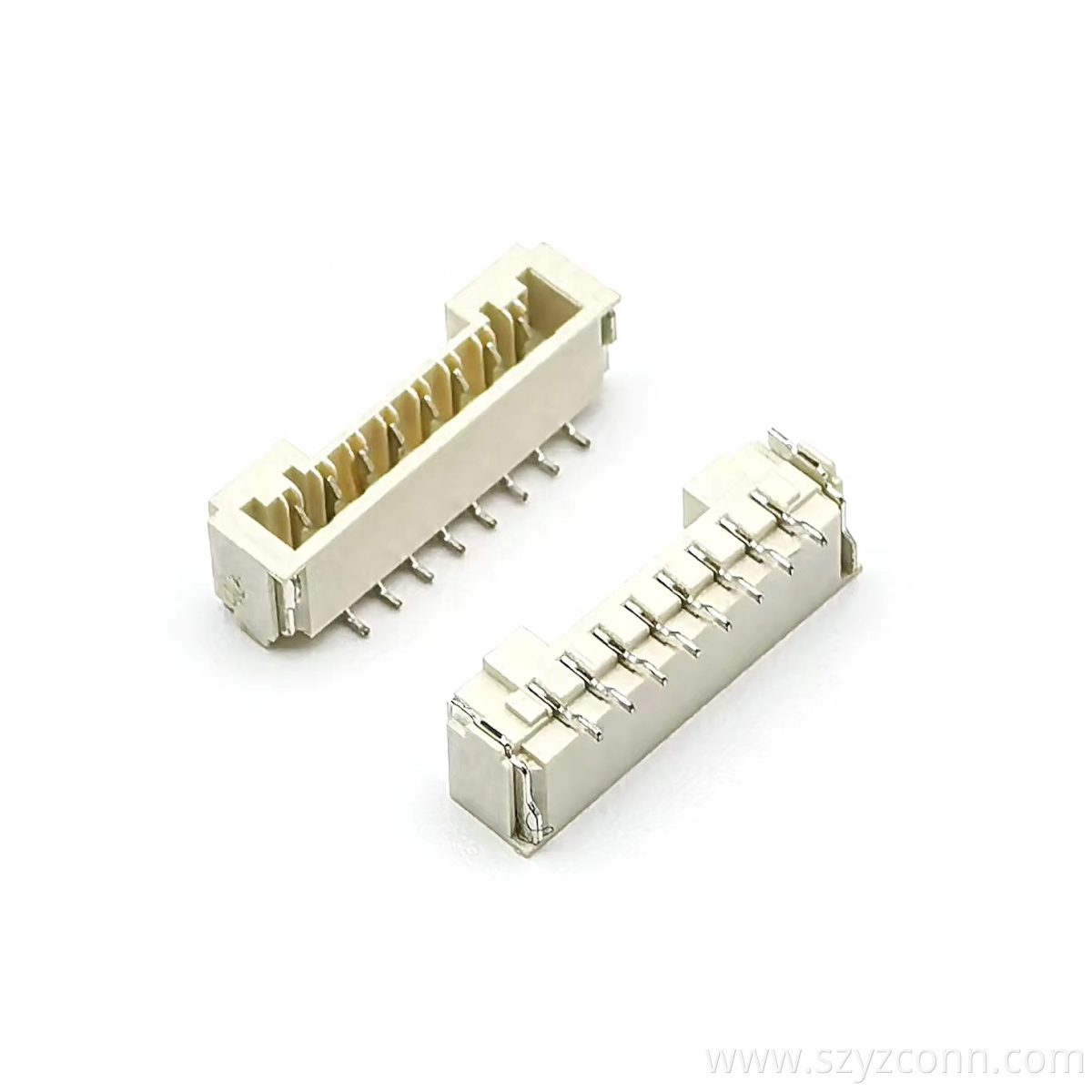

1.25mm Pitch Wafer Vertical SMT Pin header Connector 8P

This 1.25mm Wafer Pin header Connector excels in applications requiring rigorous electrical and environmental performance.The 1.25mm pitch of 1.25mm wafer Housing Connector ensures precise signal transmission for high-speed digital circuits while maintaining mechanical stability during vibration-prone operations.LCP insulation’s superior heat resistance minimizes warpage risks during soldering, enhancing long-term reliability.Phosphor bronze contacts with tin plating deliver over 500 insertion cycles with consistent performance,ideal for industrial controls,automotive electronics,and consumer devices.

Compliant with RoHS standards,the Wafer Housing Terminal supports eco-conscious manufacturing while meeting global regulatory requirements.Its 50V rating suits low-voltage power distribution and signal routing in compact IoT modules,wearables,and medical monitors.
