PH1.5mm Wafer Pin header Connector SMT 3P

Recessed 1.5mm Design for Neat PCB Connections

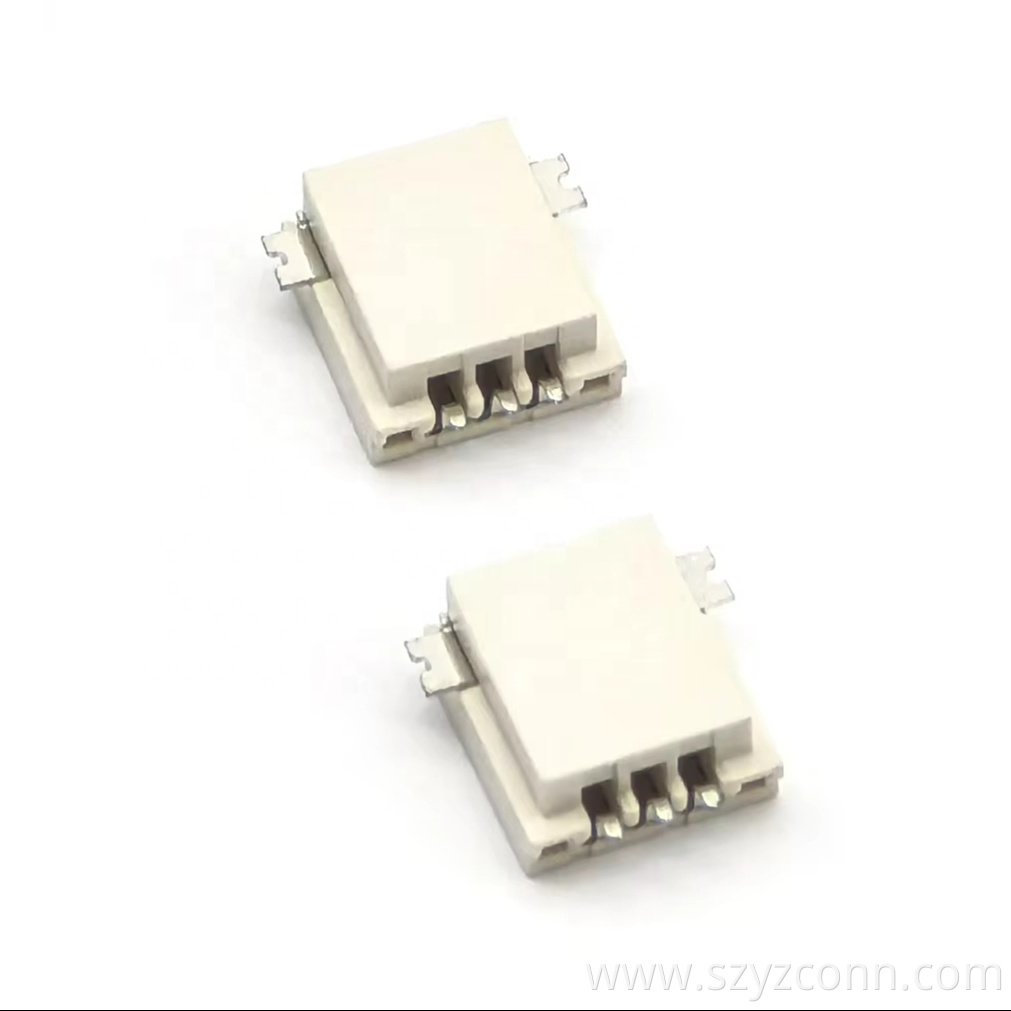

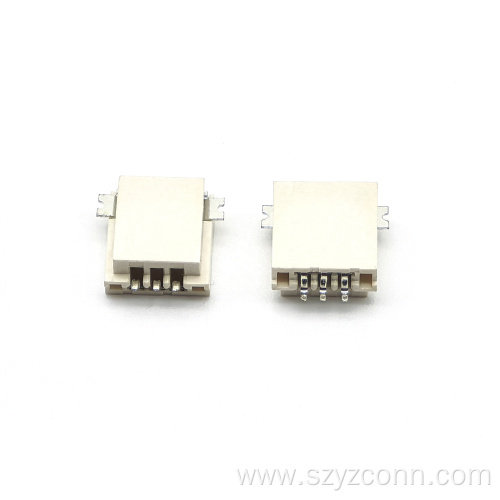

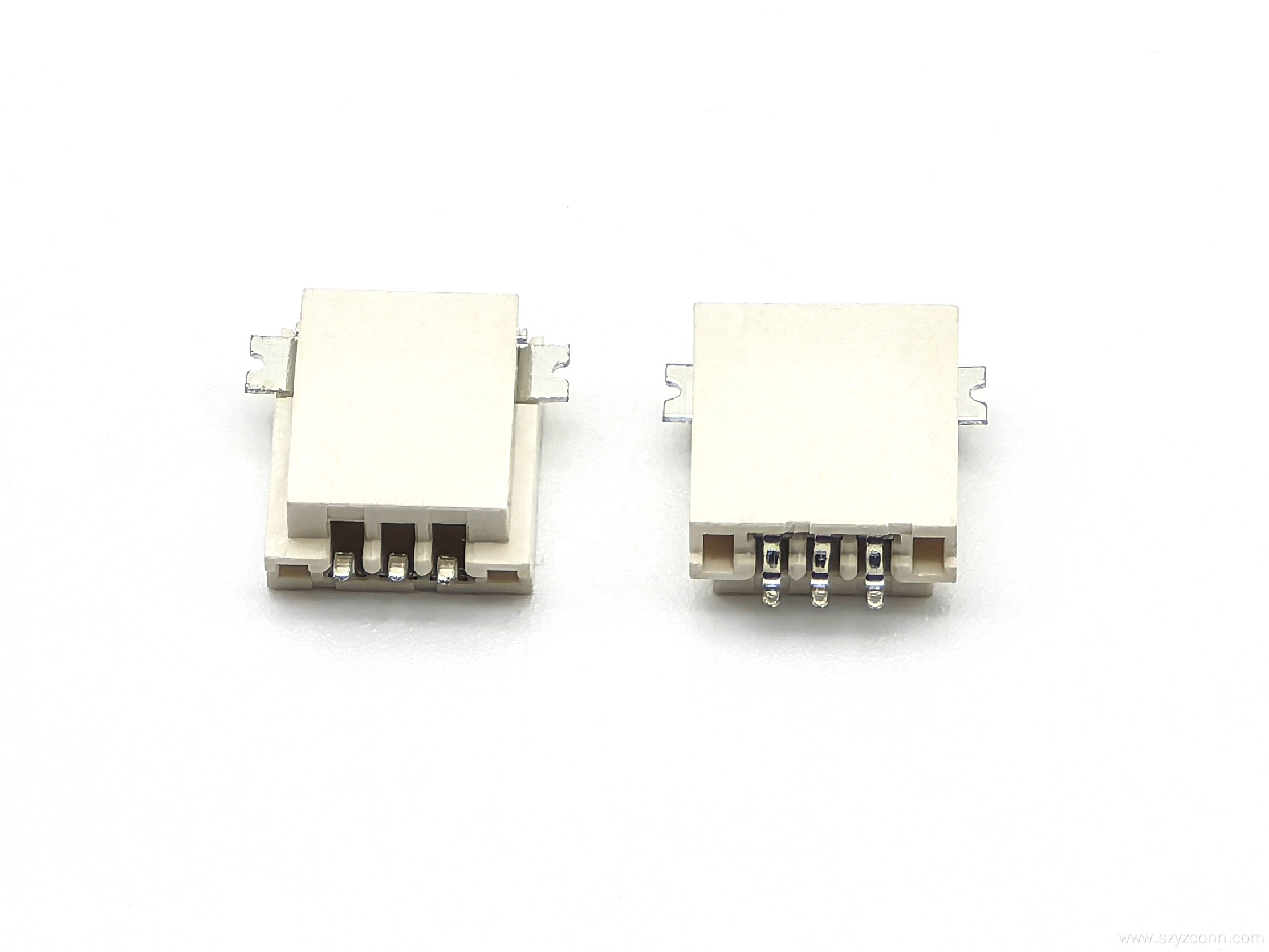

The PH1.5mm recessed Wafer Pin Header is designed for compact PCB applications where the Connector needs to stay close to the board. With a 1.5mm pitch and 3-pin layout, it provides a simple connection option without taking up more space than necessary.

The recessed structure gives the connector a neat overall profile and helps keep the connection area organized. For small electronic devices, control boards and Other space-conscious designs, this type of connector can make PCB layout and wiring a little easier.

Product Specifications

SMT Reel Packaging for Batch Assembly

The PH1.5mm wafer Pin Header connector is supplied in reel packaging, so it can be fed into automated SMT equipment more easily. For production lines handling the same PCB design repeatedly, reel packaging saves time during component loading and keeps the parts ready for continuous assembly.

The connector is rated for 2A and 250V, with an operating temperature range of -25°C to +105°C. Its phosphor bronze contacts are tin plated, providing a practical contact material combination for everyday electronic equipment and PCB connection applications.

3-Pin Structure for Compact Board-to-Wire Applications

With three positions and a 1.5mm pitch, this connector works well when a project needs a few connection points but still has to keep the board layout clean. It can be used in compact electronic equipment, control boards and other applications where a small board-side connection is needed.

For customers looking for related components, the Wafer Housing Terminal range provides more options for wafer-style connection requirements. If you need to source different terminal specifications, you can Buy Wafer Terminals according to your project. The Housing Connector range can also be considered when a matching housing solution is required, while the Wafer Pin Header family covers other board connection formats.

Why Choose Shenzhen Yangzhan Electronics?

Shenzhen Yangzhan Electronics, also known as YZTECH, was established in 2014 and specializes in precision connectors, industrial Terminal Blocks and cable assemblies. For products such as this PH1.5mm wafer housing terminal, the manufacturing process covers plastic and metal mold development, component processing, assembly and inspection.

YZTECH uses production and testing equipment from Japan, Germany and Taiwan and works closely with Taiwan-funded enterprises. For a small-pitch Wafer Pin header Connector, details such as pitch accuracy, terminal positioning and SMT performance are important during production. With its manufacturing base in Shenzhen, YZTECH can support customers from product manufacturing through inspection and shipment.
