PH1.0mm Wafer Pin header Connector 6P

Ultra-Thin Profile for Tight PCB Spaces

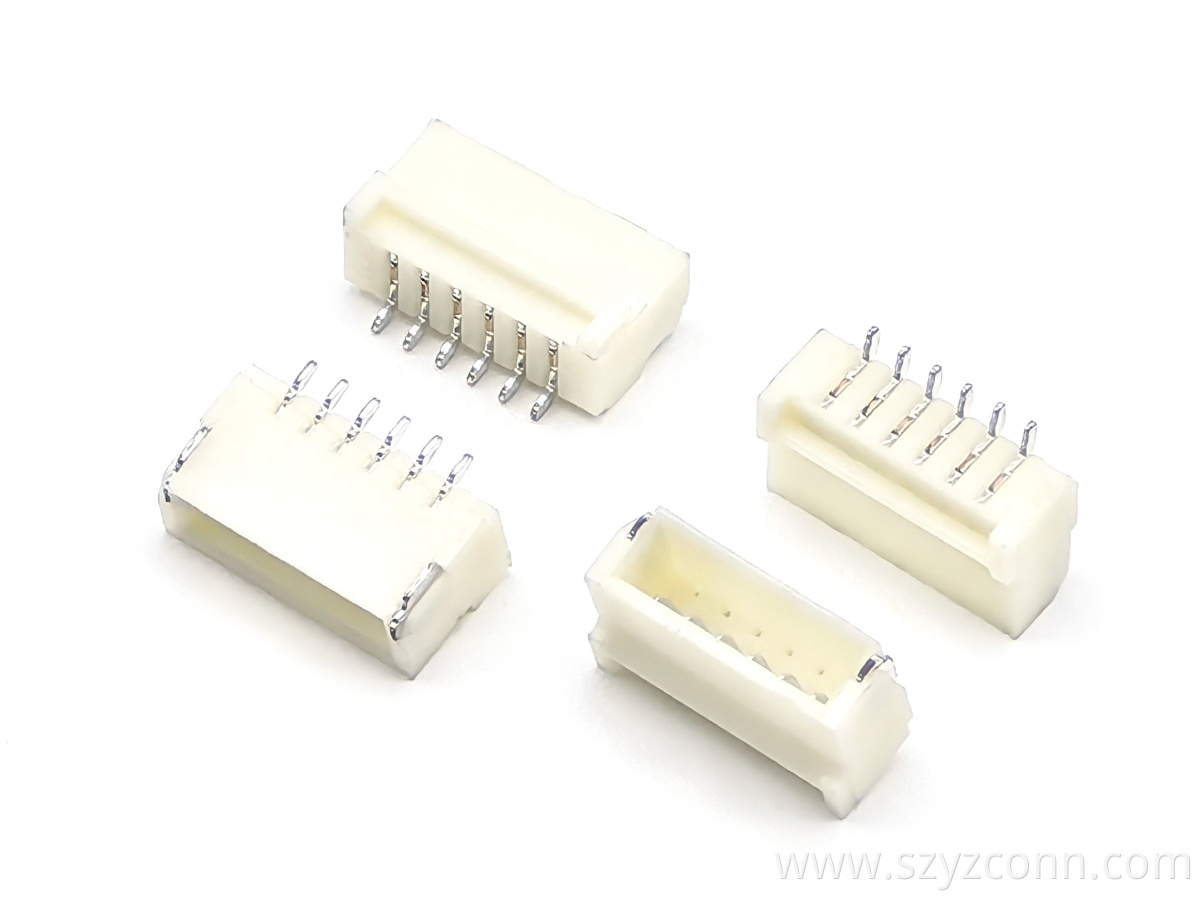

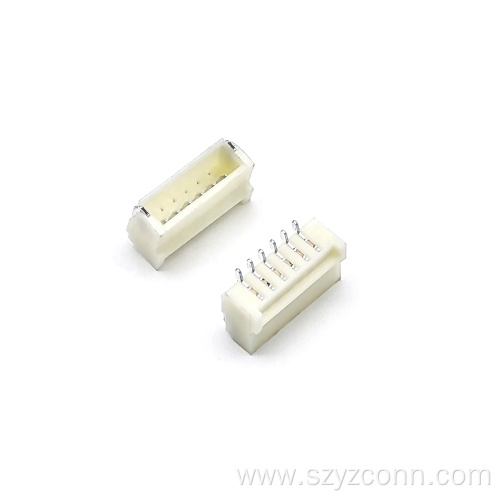

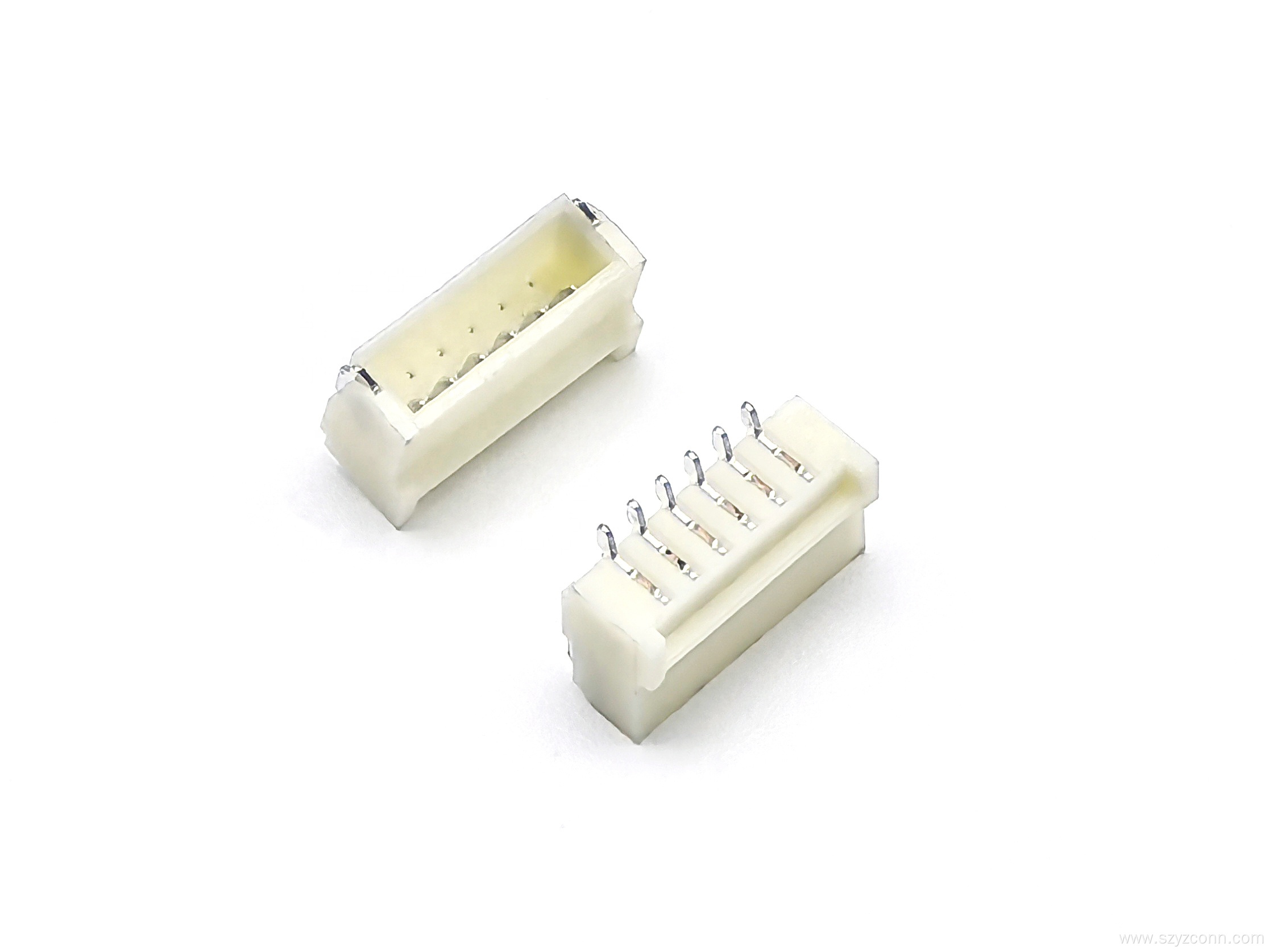

The PH1.0mm Wafer pin header connector 6P is made for PCB layouts where there is not much room around the Connector . Its ultra-thin horizontal mounting style keeps the connector close to the board, which can be useful when the finished assembly needs to stay slim.

With a 1.0mm pitch and six positions, this connector provides a compact way to arrange multiple contacts without taking up unnecessary board space. For projects looking for an ultra-thin Wafer Pin Header, the low-profile design is worth considering when connector height is one of the main layout concerns.

6-Pin Connection with Tin-Plated Contacts

The connector uses phosphor bronze contacts with tin plating. The rated current is 1A and the rated voltage is 125V, while the working temperature range is -25°C to +85°C. These specifications make it suitable for a range of everyday electronic equipment and PCB assemblies.

The six-position layout gives designers a little more flexibility when several signal or power connections need to be placed in one small area. If you are comparing a 6p wafer pin header connector, it is also useful to check the mating housing, cable arrangement, and available board clearance. A matching Wafer Housing Terminal can then be selected according to the complete connection setup.

SMT Reel Packaging for Production Lines

This model uses SMT packaging and is supplied on a reel, with a minimum packing quantity of 100 pieces. Reel packaging makes the parts easier to handle during automated assembly and keeps the components ready for regular production runs.

The product lot is marked as PH1.0mm ultra-thin horizontal mount, which reflects its main structural feature. For customers sourcing a 1.0mm wafer Housing Connector 6p, the mounting direction and connector height should be checked along with the pitch and pin count before finalizing the design. Other related options, such as Buy Wafer Terminals and Housing Connector, can also be considered when building a complete mating solution.
