Wafer VH3.96 Pin Header Connector Straight 3P

Wafer VH3.96 Pin Header Connector Straight 3P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: WAFER VH3.96 Straight DIP

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Supply Type: Original Manufacturer

Place Of Origin: China

Package: Other

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Bag&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

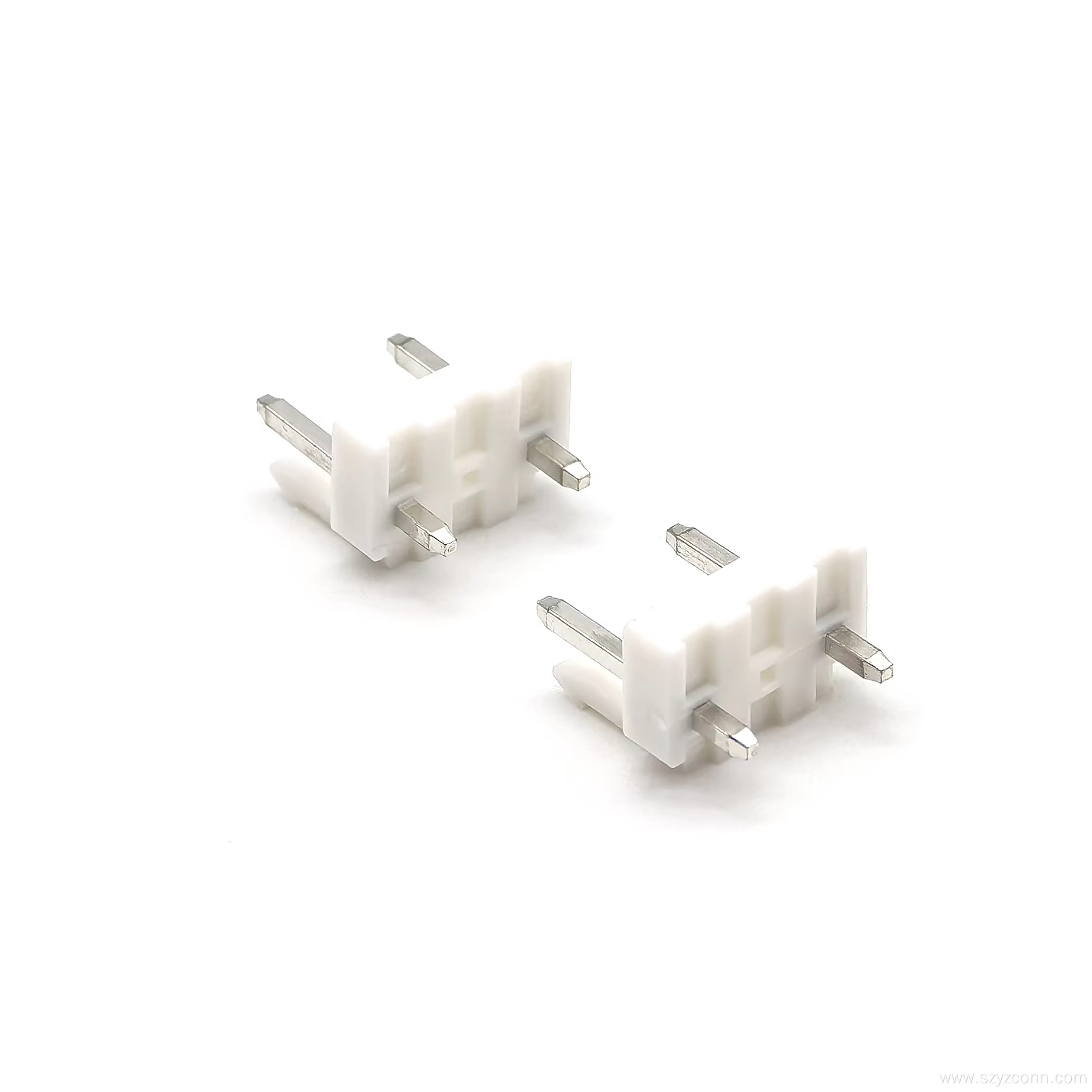

Wafer VH3.96 pin header connector Straight 3P

VH3.96 Straight 3P Pin Header for Reliable Connections

The Wafer VH3.96 Pin header connector Straight 3P is a 3-position straight pin header designed for reliable wire-to-board and PCB connection applications. With a VH3.96 pitch configuration and compact straight structure, it is suitable for electronic equipment, control boards, power connection modules, and industrial applications requiring stable connections.

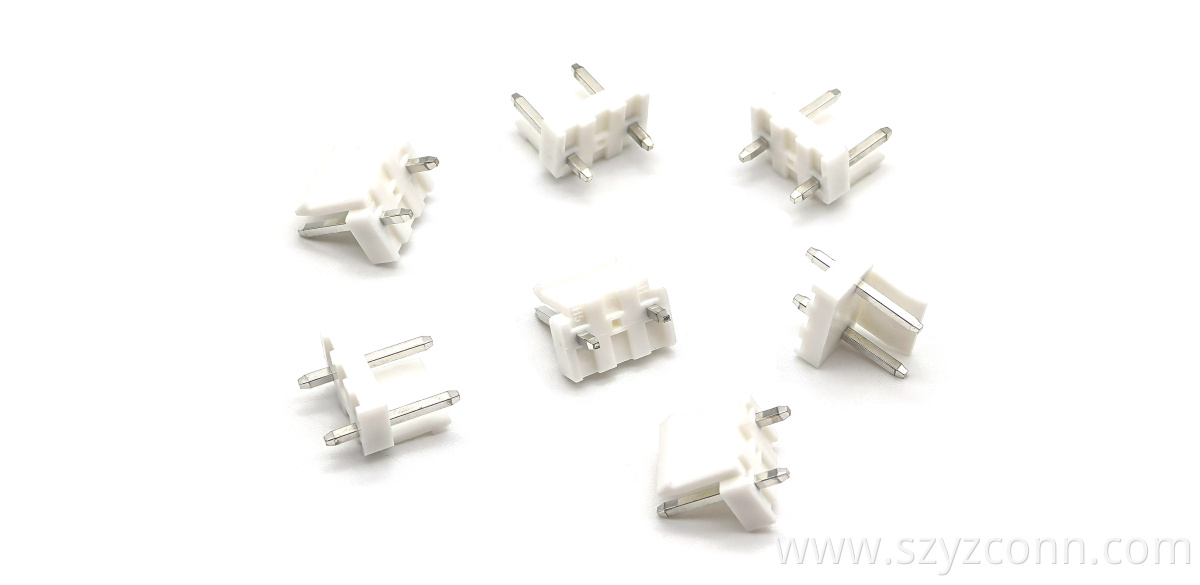

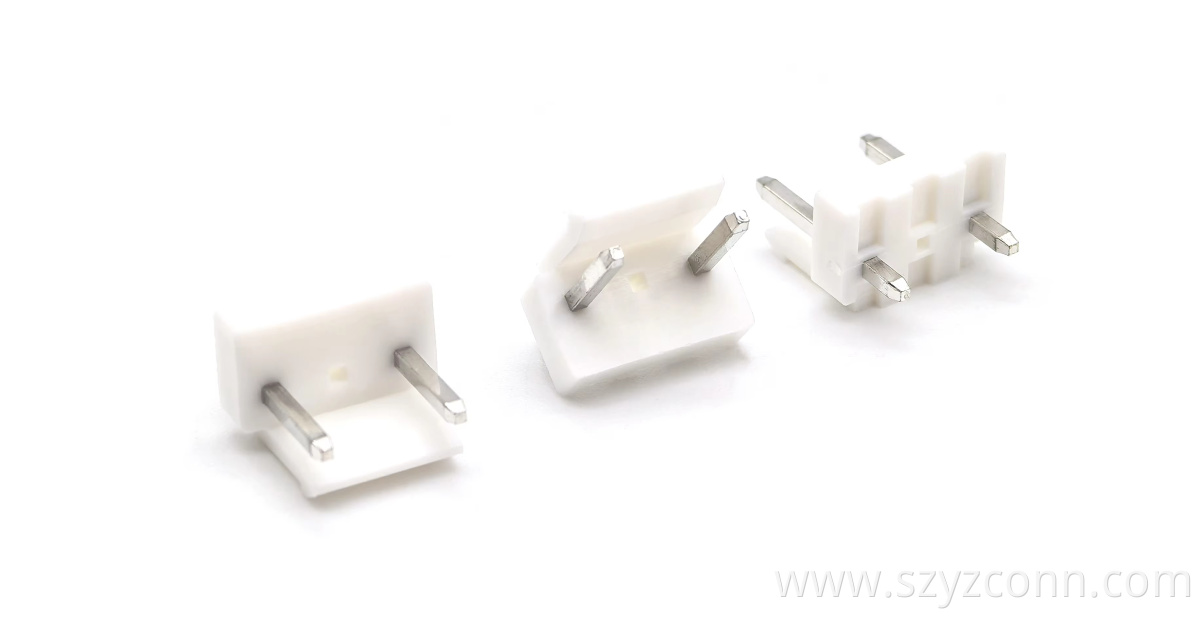

Wafer VH3.96 Pin Header Connector Straight DIP 3P Pin 2: No Connect

The Connector is rated at 7A and 250V, providing higher current and voltage capacity for a wide range of electrical applications. Copper contacts with tin plating offer a practical conductive interface and good soldering performance, while the natural-color housing provides a clean and versatile appearance for different PCB assemblies.

Product Specifications and Connection Options

The VH3.96 series is designed to provide a straightforward connection solution for 3-position applications. For projects requiring a VH3.96 wafer Housing Connector 3P, this connector can be incorporated into corresponding housing and terminal systems according to the required mechanical configuration.

Parameter	Specification
Rated Current	7A
Rated Voltage	250V
Contact Material	Copper
Contact Plating	Tin Plated
Operating Temperature	-25°C to +85°C
Packaging	Bag
Minimum Packaging Quantity	2,000 PCS
Color	Natural

For specific circuit designs using Wafer Pin Header pin 2 no connect, the 3-position configuration can be selected according to the actual electrical layout and connection requirements. The connector can also be paired with a compatible Wafer Housing Terminal to create a complete wire-to-board connection solution.

Applications and Sourcing Support

The VH3.96 Wafer Pin header Connector is suitable for power distribution, industrial control equipment, automation systems, electronic appliances, PCB assemblies, and Other applications requiring a compact multi-position connection. Its 7A rated current and 250V rated voltage make it suitable for applications where both electrical capacity and reliable contact performance are important.

For customers developing different connector assemblies, related Wafer Pin Header products can be selected according to pitch, position, and mounting requirements. A compatible Housing Connector can also be used when a complete mating connection is required. For volume purchasing requirements, Buy Wafer Terminals can provide a convenient reference for sourcing related wafer connector components.

Why Choose YZ-TECH Electronics?

Founded in 2014, Shenzhen Yangzhan Electronics specializes in the R&D and manufacturing of precision connectors, industrial Terminal Blocks, and cable assemblies. The company integrates mold development, precision processing, molding, assembly, and inspection, with production and testing equipment sourced from Japan, Germany, and Taiwan.

For VH3.96 connector applications, Yangzhan Electronics focuses on practical product requirements such as 7A current capacity, 250V voltage rating, copper contacts, tin plating, and stable multi-position connection. With integrated R&D, manufacturing, processing, sales, and service capabilities, Yangzhan Electronics provides reliable connection products and customized support for customers in different electronic and industrial applications.
