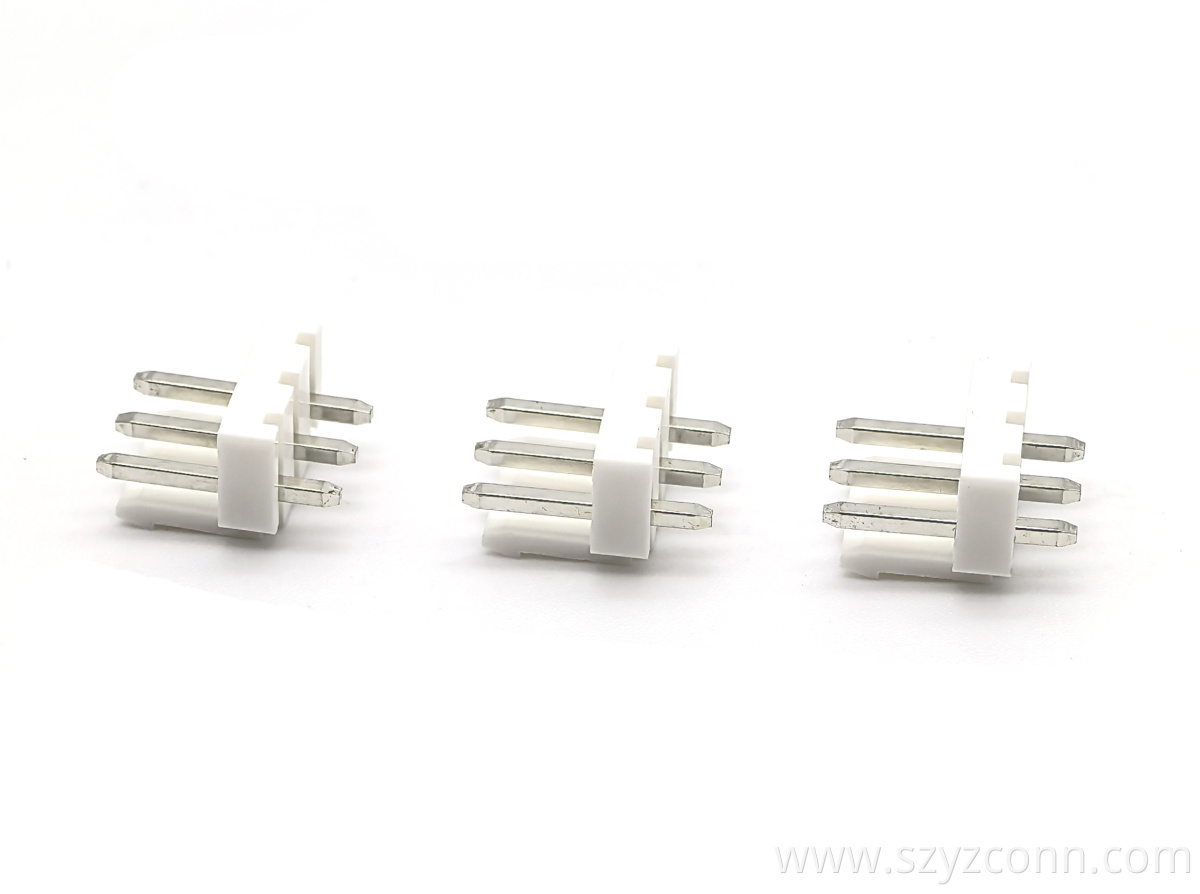

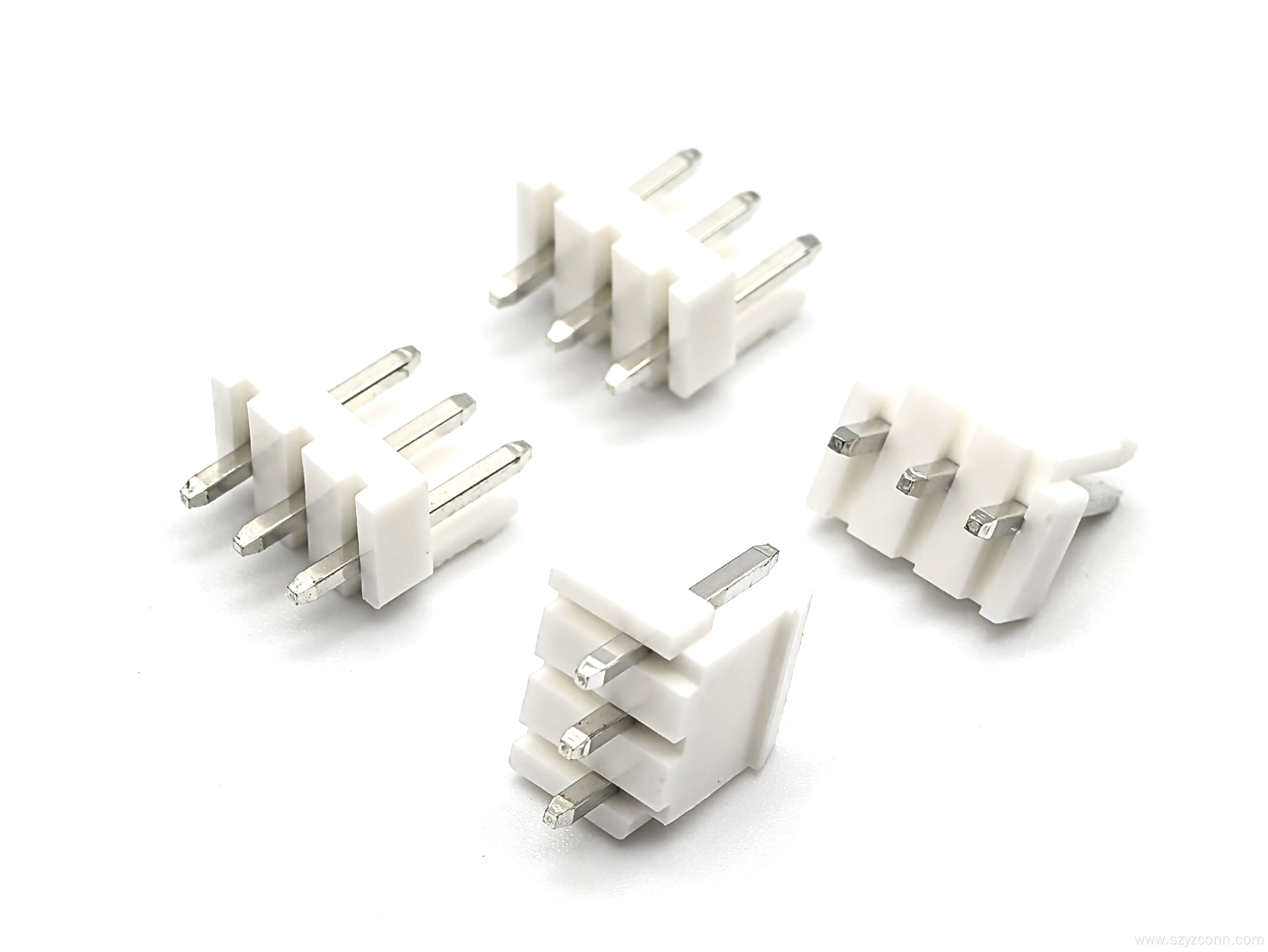

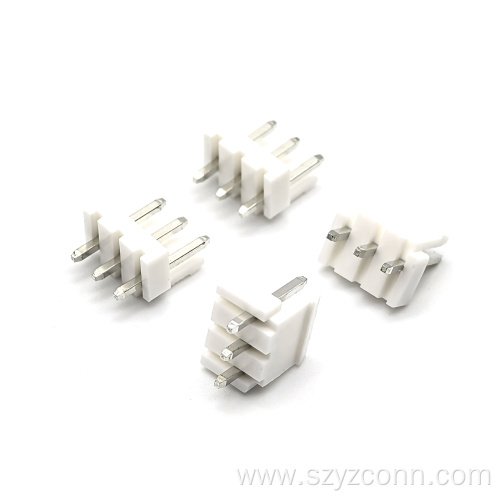

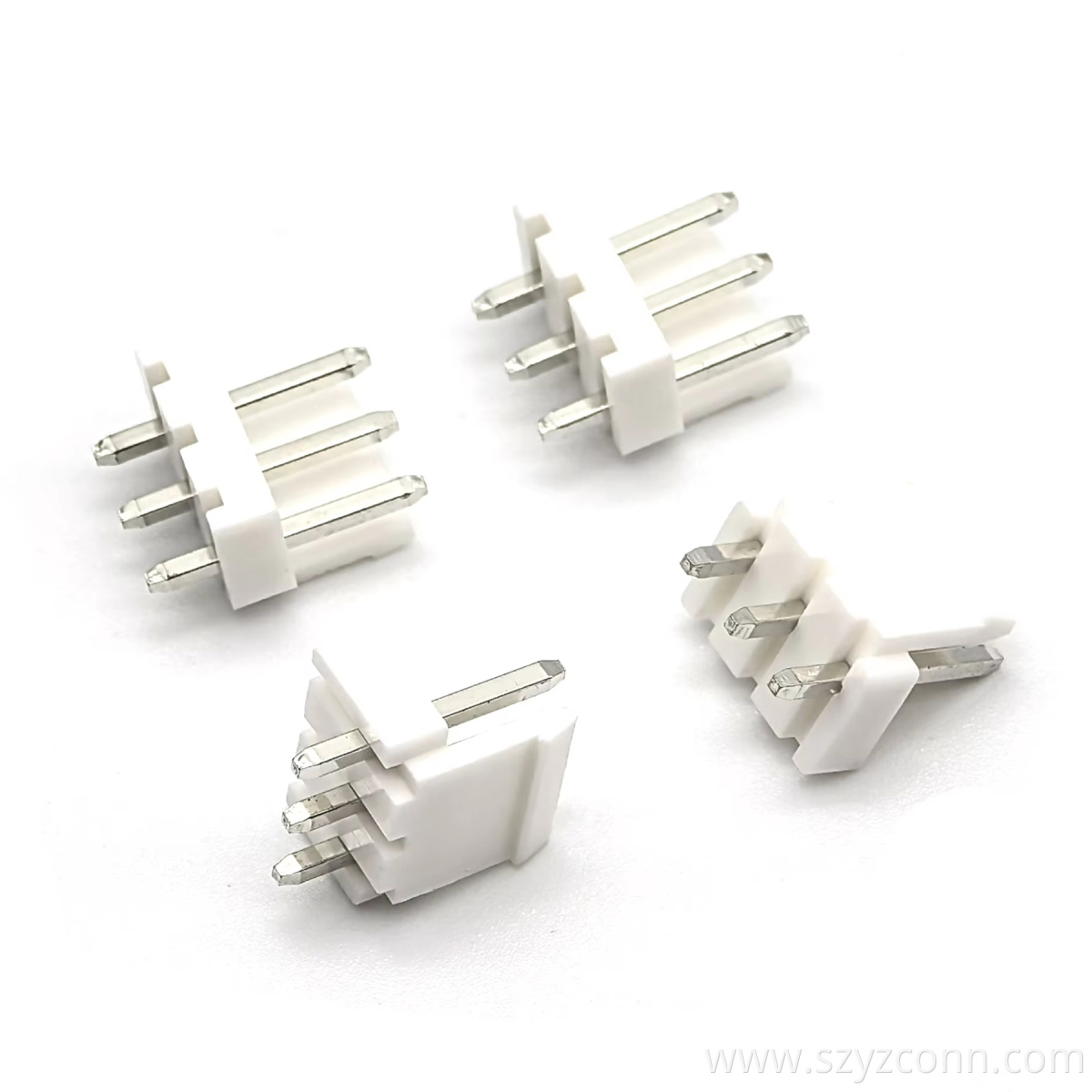

VH3.96 Wafer Pin Header Straight DIP 3P

Straight DIP Design for Easy PCB Assembly

The VH3.96 Wafer Pin Header Straight DIP 3P is made for applications that need a straightforward board connection without a complicated assembly process. Its straight DIP design allows the pins to pass directly through the PCB, making it a practical choice for equipment where the Connector needs to sit firmly on the board.

With a 3-position layout and a 3.96 mm pitch, the VH3.96 wafer pin header 3p gives designers a clean way to arrange power or signal connections in a limited PCB area. If you are building a matching wire-to-board connection, the Wafer Housing Terminal can be selected according to the required mating structure.

Phosphor Bronze Contacts for Everyday Connection

The contacts are made from phosphor bronze and tin plated, giving the connector a solid material base for regular electrical connection. The product is rated for 5A current and 250V voltage, so it can be used in various equipment and control applications where a compact wafer connector is needed.

Another useful point is its temperature range. The connector can work from -40℃ to +105℃, which gives it plenty of room for applications exposed to cold starts, heat around equipment, or changing working conditions. For customers looking to Buy Wafer Terminals, this specification can also be considered when matching terminals with the same connection requirements.

Practical Packaging for Bulk Production

For customers buying connectors in production quantities, this VH3.96 Wafer Pin header Connector is supplied in bags with 2,000 pieces per bag. The bag packaging keeps the components together and is convenient for inventory management, especially when the parts are used repeatedly during assembly.

The housing uses NL66-V0 material, providing a suitable material option for the connector body. The batch is identified as VH3.96 straight DIP wafer connector, with shipment from Shenzhen, China. If your project needs a matching Housing Connector, the mating design and required specifications can be checked together before production.

Product Specifications

Why Choose Shenzhen Yangzhan Electronics

Shenzhen Yangzhan Electronics has been working in the connector industry since 2014, with a focus on precision connectors, industrial Terminal Blocks, and cable assemblies. For products such as the VH3.96 wafer housing connector, we pay attention to the details that affect actual assembly, including pitch, pin structure, contact material, housing material, plating, and production consistency.

We work closely with Taiwan-invested enterprises and use production and inspection equipment from Japan, Germany, and Taiwan. From plastic and metal terminal mold development through processing and final assembly, we can handle the main production stages in-house. This gives customers a practical way to source VH3.96 wafer pin header connector products while also discussing matching parts and customized requirements with one supplier.
