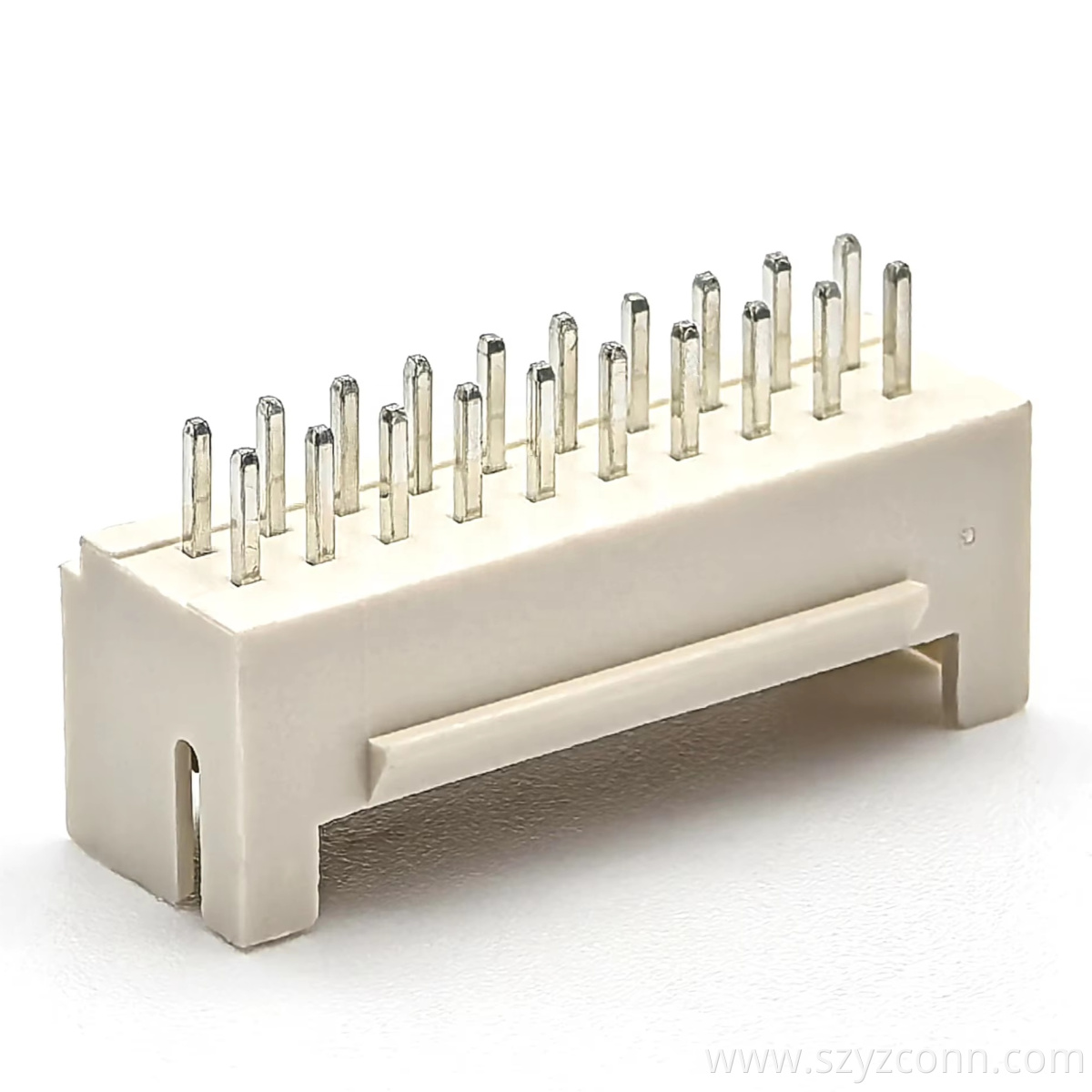

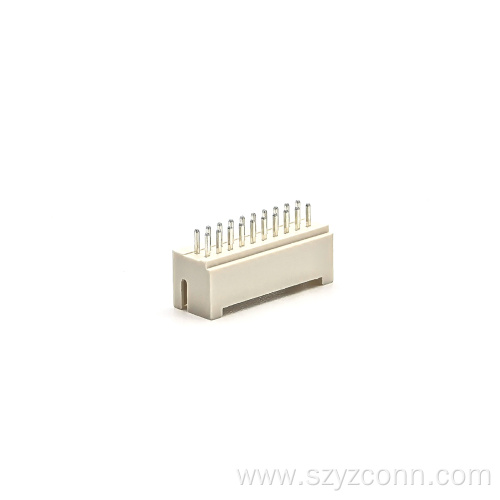

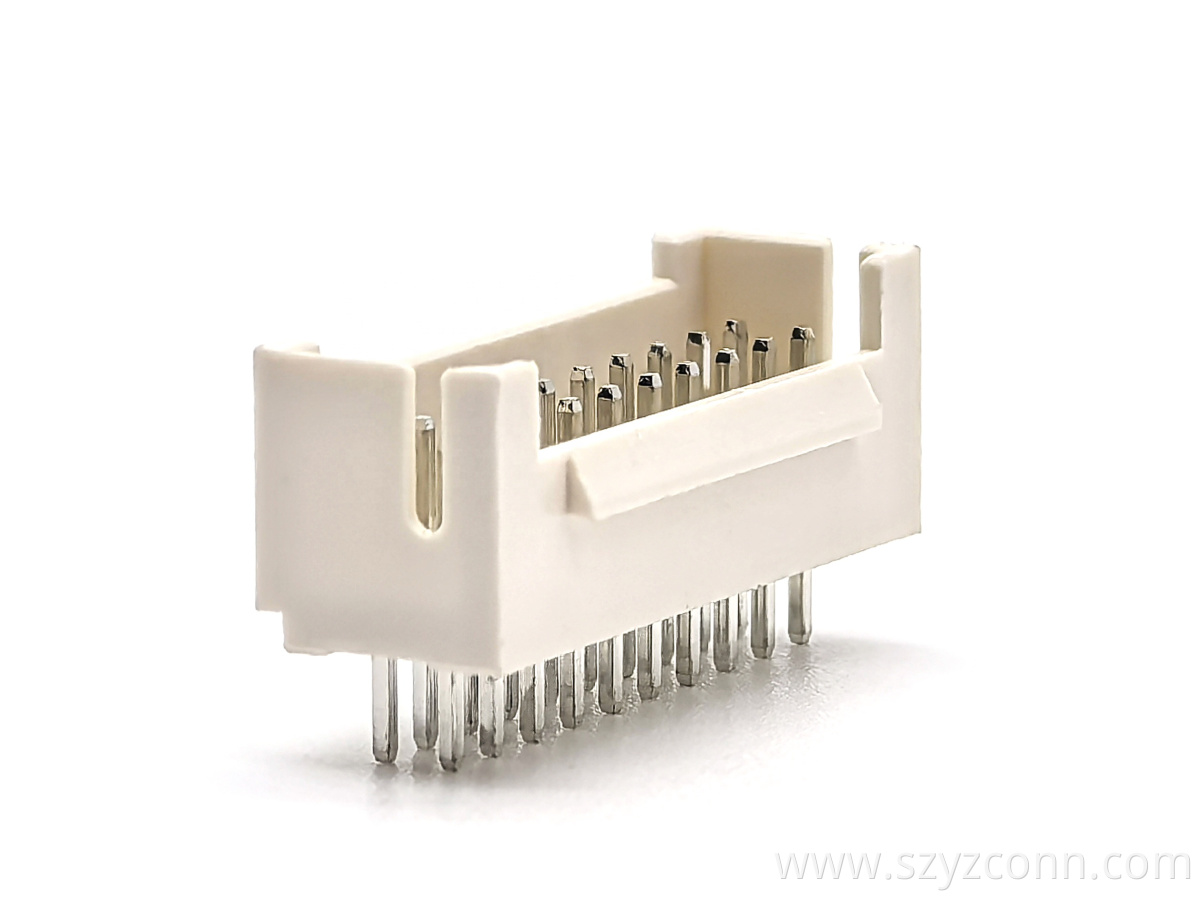

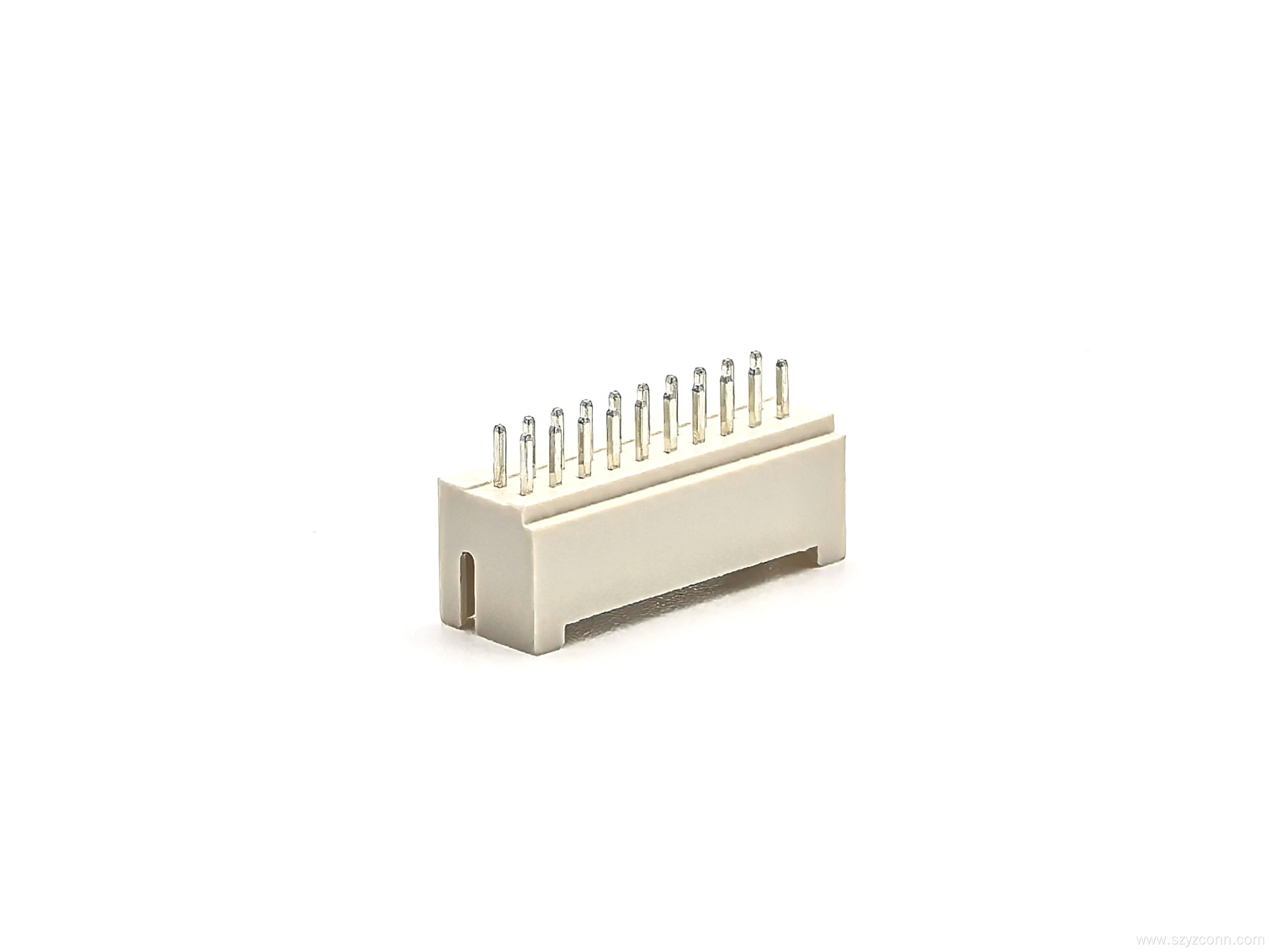

2.0mm PHK Wafer Pin header Connector 20P

20-Pin Double-Row Design for More Connections in Less Space

The 2.0mm Wafer Pin Header 20p uses a PHK 2.0mm pitch with a double-row, 20-pin layout. It gives you more connection points without making the Connector unnecessarily large, which can be useful when a PCB needs several signal or power connections in a limited area.

The white housing gives the connector a clean and easy-to-identify appearance, while the double-row layout keeps the terminals arranged in a straightforward way. For customers working on board-to-wire connections, this structure is a practical option when a higher pin count is needed.

Product Specifications

Brass Contacts with Tin Plating for Everyday PCB Connections

The contacts are made from brass and finished with tin plating, giving the connector a practical combination for regular electrical connection work. With a rated current of 2A and rated voltage of 250V, the part can be used across a variety of electronic and electrical equipment where a multi-pin connection is required.

The operating temperature range is -25°C to +85°C, covering many common indoor electronic devices and control applications. The connector is supplied in bag packaging, with 100 pieces as the minimum packing quantity, making it convenient for customers ordering components for regular production.

A Straightforward 2.0mm Solution for Multi-Pin Applications

If your project calls for a 2.0mm wafer pin header connector white with 20 positions, this model is worth considering for compact board-to-wire layouts. The double-row arrangement provides more terminals in one connector, helping simplify wiring compared with using several smaller connectors separately.

For customers looking for related components, our Wafer Housing Terminal range can be used as a starting point for Other wafer connection requirements. You can also check Buy Wafer Terminals options when you need different pin counts or terminal configurations. For matching housing and terminal solutions, the Housing Connector range provides additional choices for different PCB connection projects.

Why Choose Shenzhen Yangzhan Electronics?

Shenzhen Yangzhan Electronics, also known as YZTECH, was established in 2014 and focuses on precision connectors, industrial Terminal Blocks and cable assemblies. For products such as the 2.0mm wafer housing connector 20p, the company can handle multiple stages from plastic and metal terminal mold development to processing, assembly and inspection.

YZTECH uses production and testing equipment from Japan, Germany and Taiwan and maintains a quality-focused manufacturing process throughout production. The company also works closely with Taiwan-funded enterprises and has experience supporting customers who need connector products for different equipment and wiring projects. With production and shipping based in Shenzhen, YZTECH can provide flexible support for both domestic and overseas orders.
