ZH1.5mm Wafer Pin header Connector SMT 2P

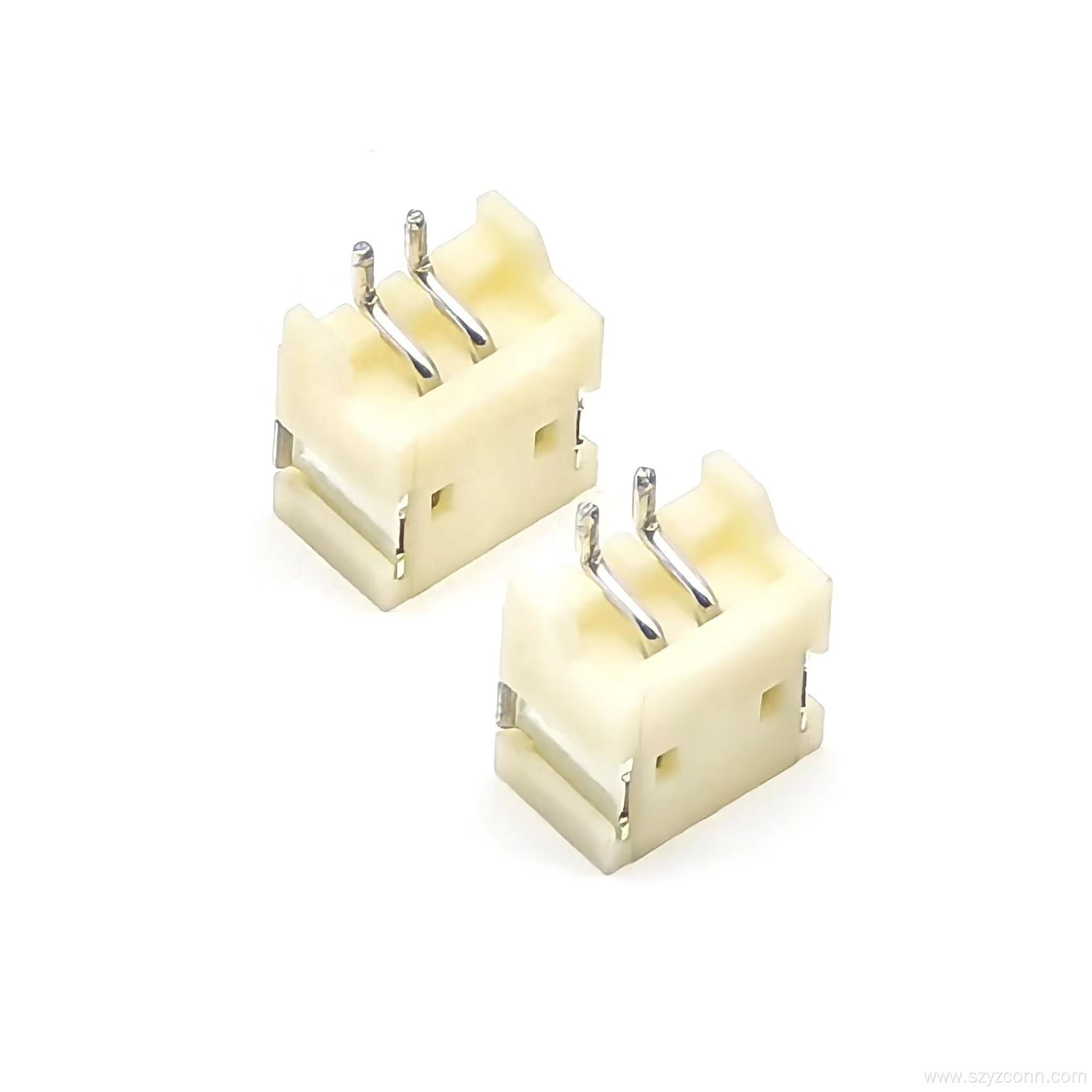

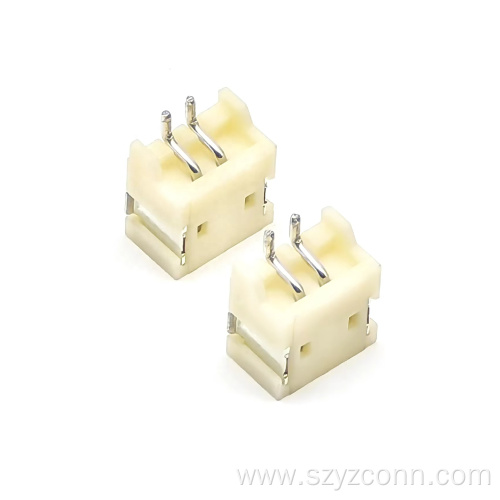

ZH1.5mm 2P Wafer Pin Header for Compact SMT Applications

The ZH1.5mm wafer pin header connector smt is a compact 2-position Connector designed for PCB applications requiring a small pitch and reliable electrical connection. With a 1.5mm pitch and SMT configuration, this connector is suitable for compact electronic modules, control boards, consumer electronics, instrumentation equipment, and Other applications where PCB space is limited. Its 2P configuration provides a simple and efficient connection option for low-current electronic circuits.

The connector features brass contacts with tin plating, supporting stable electrical contact and practical soldering performance in standard PCB assembly processes. With a rated current of 1A, rated voltage of 100V, and operating temperature range of -25℃ to +85℃, the ZH1.5mm Wafer Pin header connector SMT 2P can be applied to a variety of low-power electronic connection requirements. For complete connection assemblies, compatible Wafer Housing Terminal components can be selected according to the mating and installation requirements.

Product Specifications

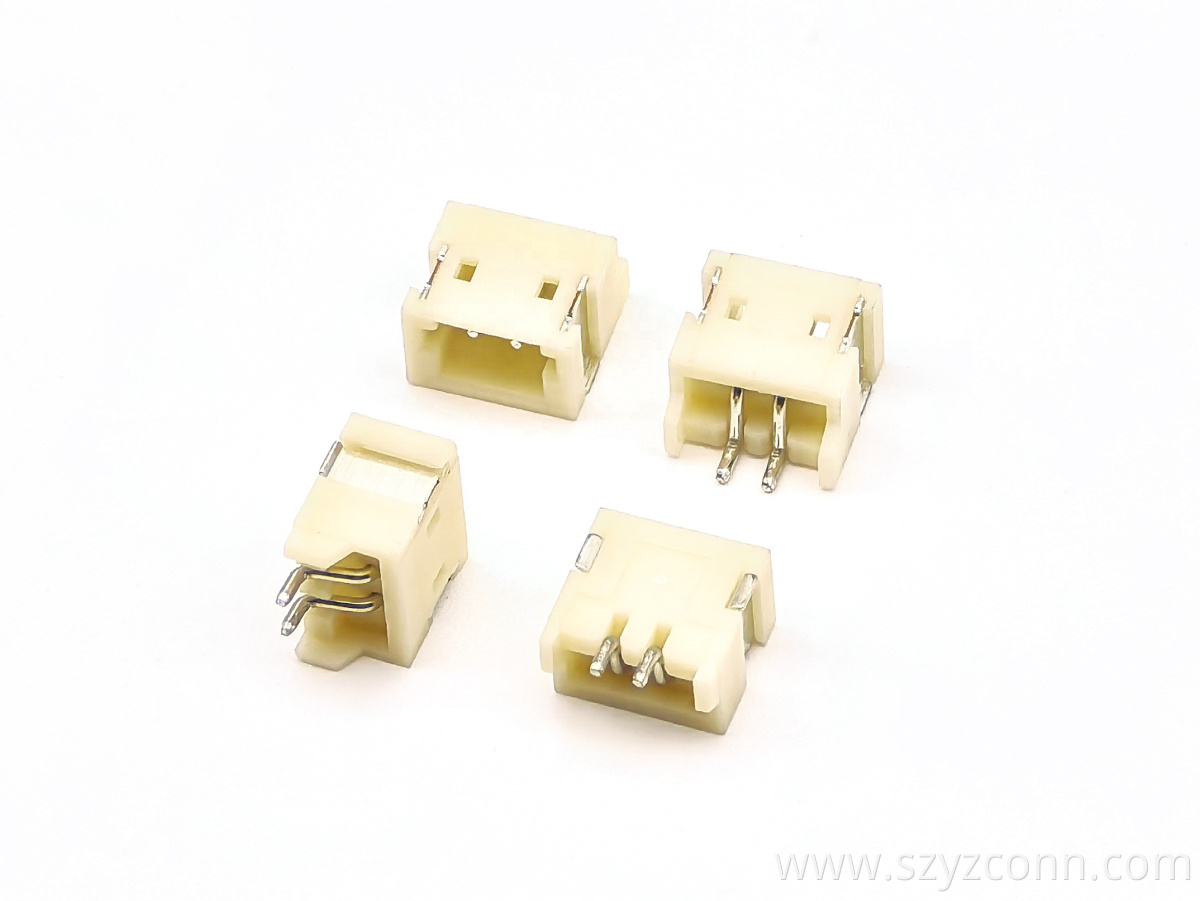

Right Angle SMT Design for ZH1.5mm Wafer Housing Connector

The wafer pin header right angle smt 2p configuration is designed for applications where a horizontal connection direction is required. The right-angle structure can help optimize the connection position between the PCB and mating component, making it suitable for compact assemblies and PCB layouts with limited vertical space. The SMT mounting method also supports automated pick-and-place and reflow soldering processes commonly used in modern electronics manufacturing.

The ZH1.5mm wafer housing connector can be incorporated into a matching wafer connection system according to the required housing and terminal configuration. For customers sourcing related connector components, Buy Wafer Terminals can provide a convenient route for identifying compatible terminal solutions. The compact 1.5mm pitch and 2P configuration make this connector suitable for applications that require a small footprint without sacrificing practical connection performance.

Why Choose Shenzhen Yangzhan Electronics

Shenzhen Yangzhan Electronics, under the YZTECH Electronics brand, was established in 2014 and specializes in the development and manufacturing of precision connectors, industrial Terminal Blocks, and cable assemblies. For products such as the ZH1.5mm Wafer Pin header Connector SMT 2P, YZTECH provides integrated manufacturing capabilities covering plastic and metal terminal mold development, precision processing, assembly, inspection, and delivery. This production model allows customers to obtain connector solutions with specifications tailored to different PCB structures and application requirements.

YZTECH Electronics works closely with Taiwanese enterprises and utilizes advanced production and inspection equipment from Japan, Germany, and Taiwan. The company's capabilities cover various Wafer Pin Header and Housing Connector requirements, while its quality management approach focuses on process control, continuous improvement, and consistent product performance. With Shenzhen as its shipping location, YZTECH can provide integrated product and service support for domestic and international customers seeking reliable wafer connector solutions.
