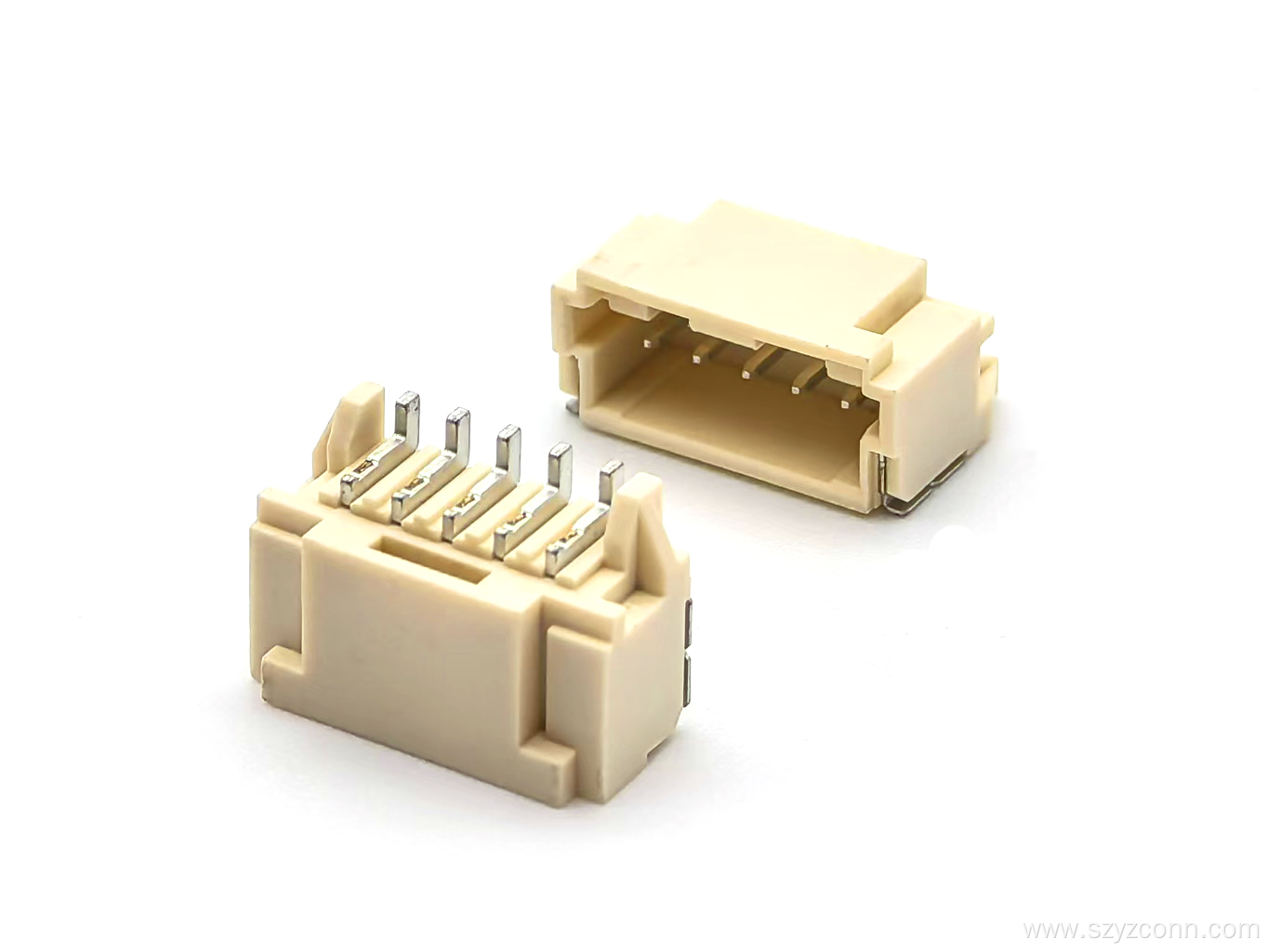

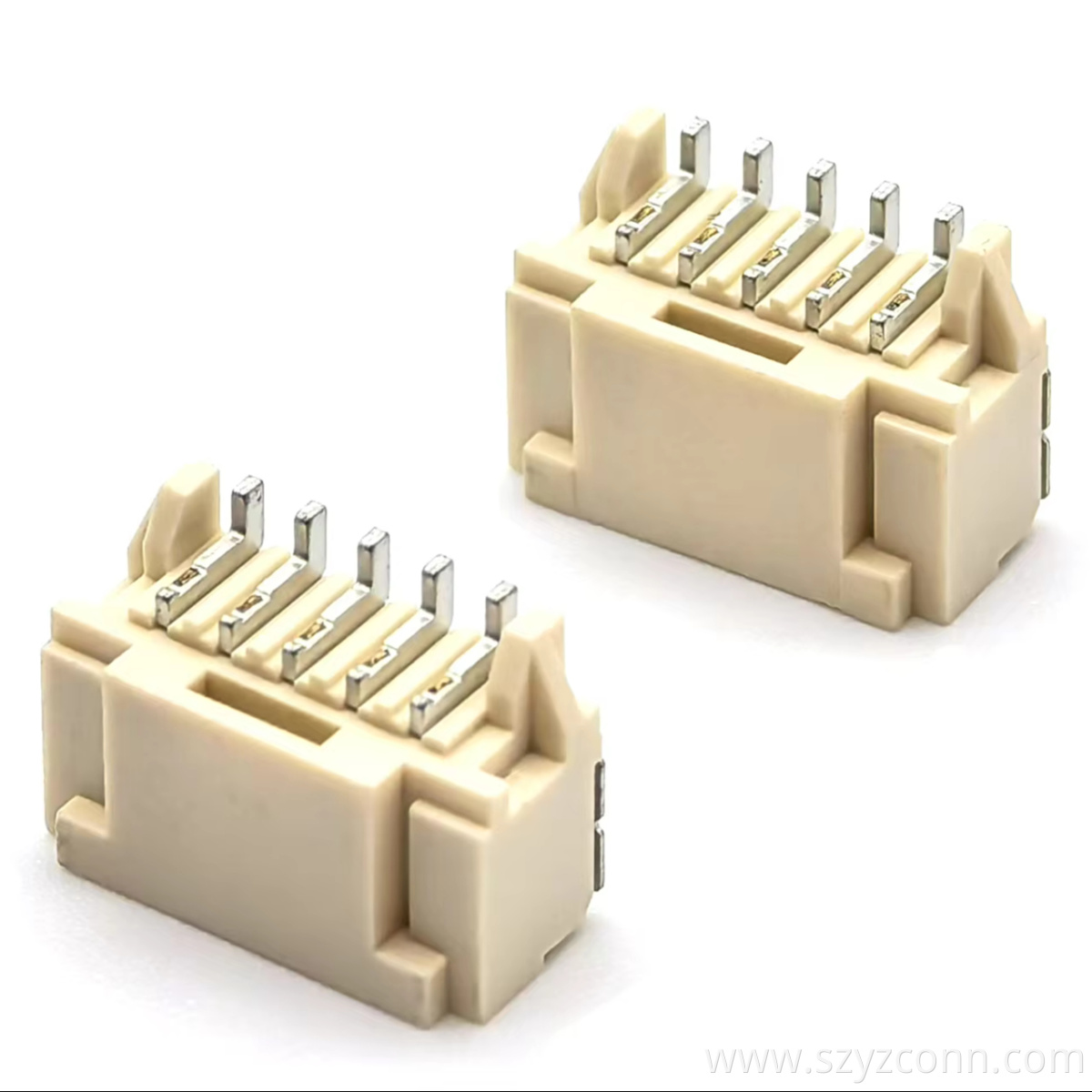

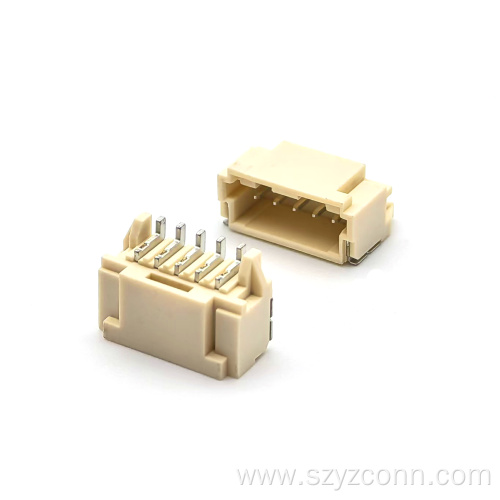

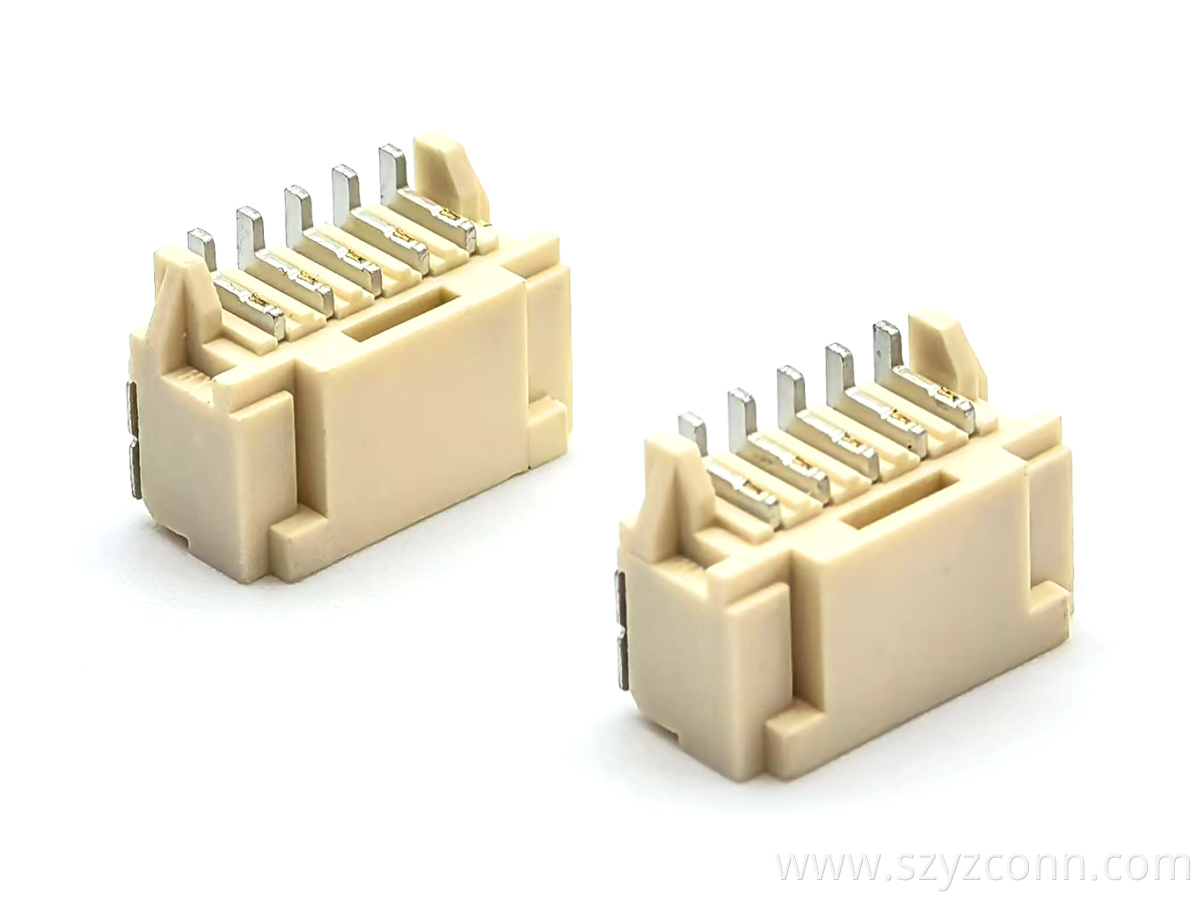

Vehicle Light Wafer Pin Header SMT Type 5P

Compact SMT Design for Automotive Lighting

The Vehicle Light Wafer Pin Header SMT Type 5P is designed for automotive lighting applications where a compact PCB connection and stable assembly are important. This automotive-grade wafer pin header uses an SMD structure with 5 positions, making it suitable for automated PCB assembly and compact vehicle light applications.

The Connector is rated at 3A and 125V, providing a practical connection option for automotive lighting circuits. Its compact structure also helps keep the PCB layout neat when installation space is limited. For projects that require a matching terminal solution, our Wafer Housing Terminal products can be selected according to the required mating structure.

Brass Contacts with Tin-Plated Surface

For vehicle lighting applications, the contact material and plating need to work well with the overall connection design. This product uses brass contacts with tin plating, offering a practical combination for electrical connection and SMT production. The contact structure is designed to provide a stable connection while keeping the connector suitable for compact PCB applications.

The working temperature range is -25℃ to +105℃, allowing the connector to handle temperature changes commonly found in automotive lighting environments. Customers who need compatible terminal components can also Buy Wafer Terminals from our product range and choose the specification based on the actual mating and assembly requirements.

Reel Packaging for Automated Production

The connector is supplied in reel packaging, with a minimum packing quantity of 600 PCS/R. This packaging method makes the component easier to feed into automated SMT equipment and is especially useful for customers handling continuous or higher-volume PCB assembly.

For a complete connection system, the product can be matched with a suitable Wafer Pin Header or Housing Connector depending on the mating design. The product batch is Vehicle Light 20038/20039 automotive-grade pin header, and the shipping location is Shenzhen, China.
