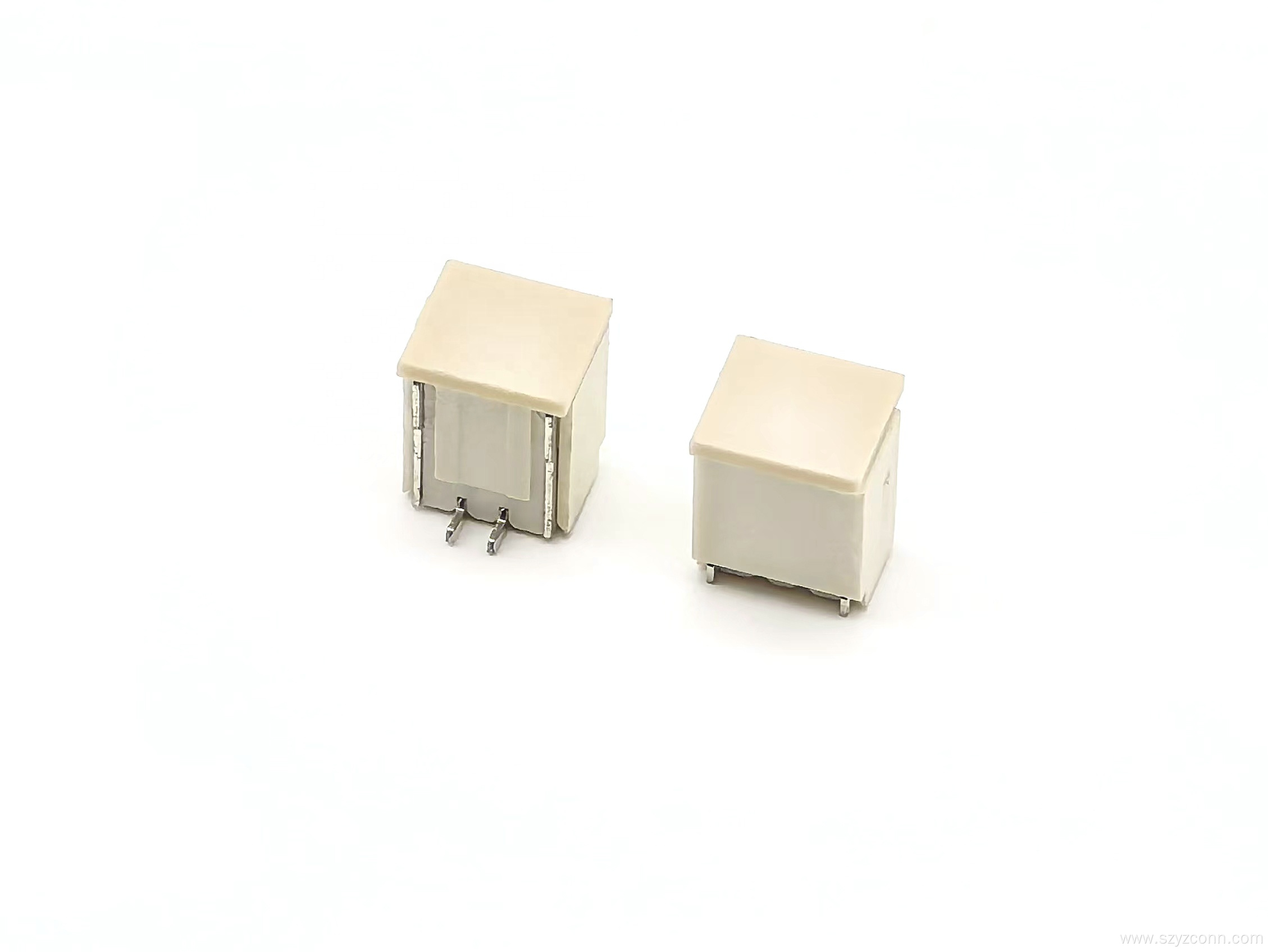

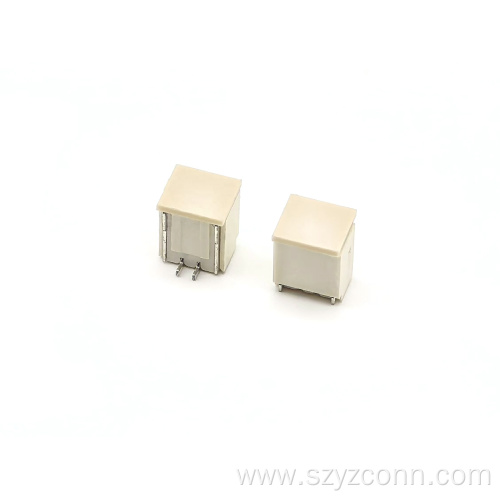

SH1.0mm Wafer Pin header Connector Vertical SMT

Vertical SMT Design for Compact PCB Connections

The SH1.0mm Wafer pin header connector Vertical SMT is made for PCB applications that use a vertical board-side connection. Its 1.0mm pitch keeps the contact arrangement compact, which can be useful when several components need to share a limited area on the board.

The SMT format also makes the Connector suitable for surface-mount production. If you are looking for an SH1.0mm Wafer Pin Header smt option, this model provides a simple combination of small pitch, vertical mounting, and a 1.0mm connection layout. A matching Wafer Housing Terminal can be selected according to the mating side and cable arrangement.

Phosphor Bronze Contacts with Tin Plating

The contacts are made from phosphor bronze and finished with tin plating. The connector is rated for 1A current and 125V voltage, with a working temperature range of -25°C to +85°C. These specifications give customers clear reference points when checking the electrical requirements of a new PCB assembly.

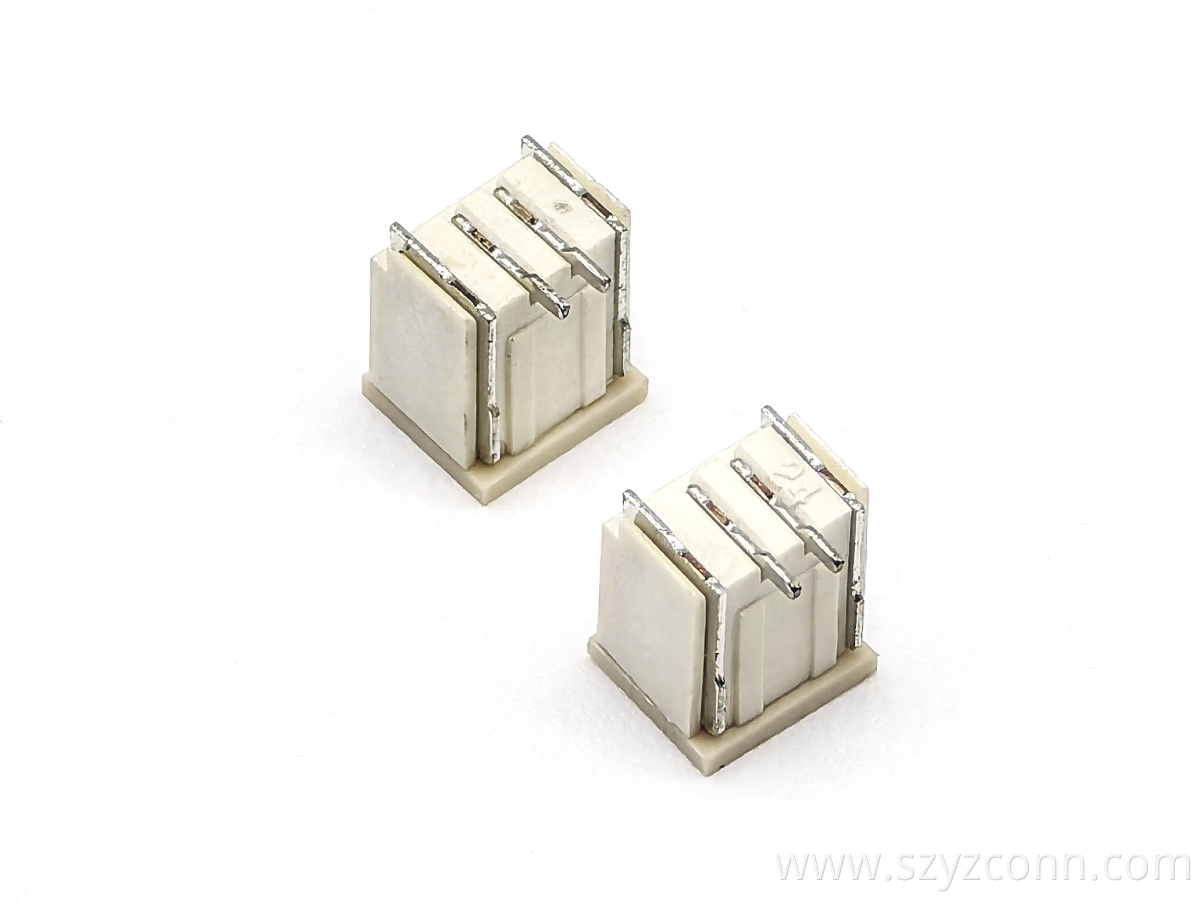

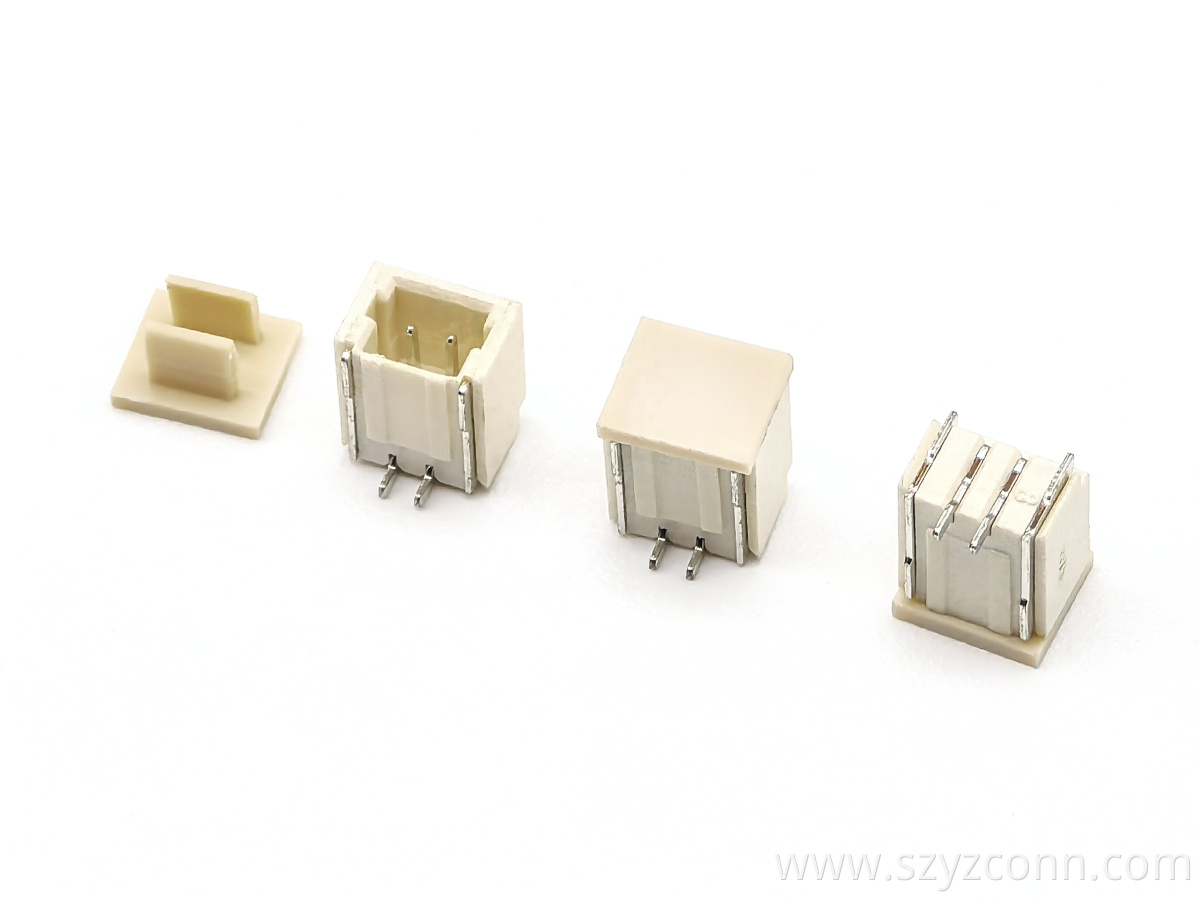

For applications using a compact two-position connection, the SH1.0mm wafer Pin Header 2p version can be considered when the required pin count matches the design. The contact material and plating are also worth checking together with the mating component, especially when the connector will be used repeatedly during assembly or service.

Reel Packaging for SMT Production

The connector is supplied in reel packaging, with a minimum packing quantity of 100 pieces. Reel supply is convenient for automated SMT lines because the components can be fed into production without changing the basic packaging format.

The lot is identified as an SH1.0 horizontal-mount pin header series, while this product model is specified as a vertical SMT version. Before production, customers should confirm the required mounting direction and PCB footprint against the final drawing. For related products, Buy Wafer Terminals can be used when comparing different terminal options, while a suitable Housing Connector can be selected for the mating assembly.

Product Specifications

Why Choose Shenzhen Yangzhan Electronics?

Yangzhan Electronics, also known as YZTECH Electronics, was established in 2014 and focuses on precision connectors, industrial Terminal Blocks, and cable assemblies. The company handles product development, tooling, processing, assembly, inspection, sales, and service, giving customers support across several stages of a connector project rather than only supplying the finished part.

For an SH1.0mm SMT connector, details such as pitch, mounting direction, contact material, plating, and production packaging all need to match the PCB design. YZTECH Electronics uses production and inspection equipment from Japan, Germany, and Taiwan and supports plastic and metal terminal tooling through final assembly. Customers working on a SH1.0mm wafer housing connector project can discuss the required pin count, structure, and production requirements with the Shenzhen-based team. Related Wafer Pin header Connector configurations can also be developed around different connection needs.
