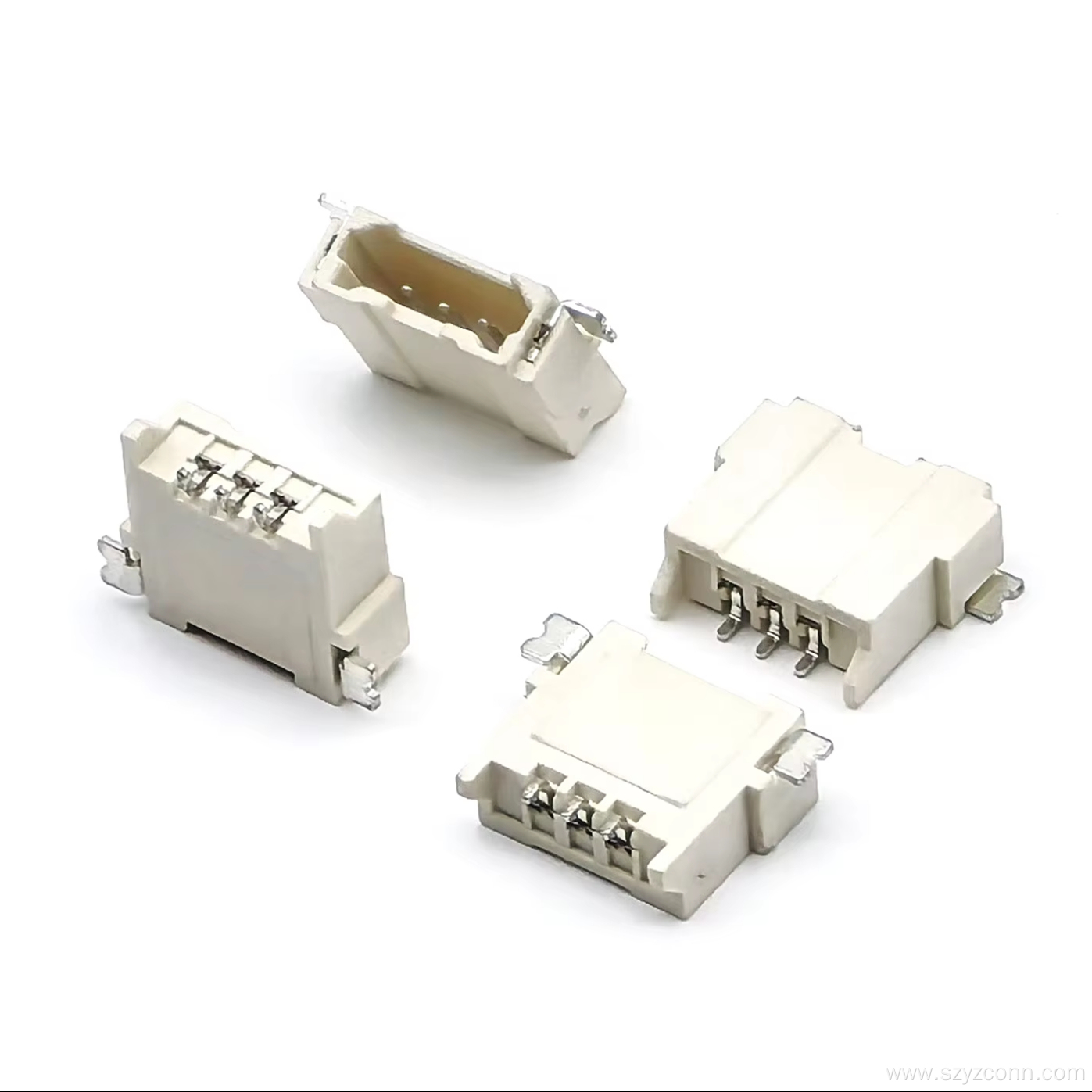

1.25mm Wafer Pin header Connector SMT Type

1.25mm Pitch for Neat PCB Connections

The 1.25mm Wafer pin header connector SMT Type is designed for PCB assemblies that need a compact connection without using an ultra-small pitch. The 1.25mm spacing gives the contacts a clear layout while keeping the Connector footprint relatively small.

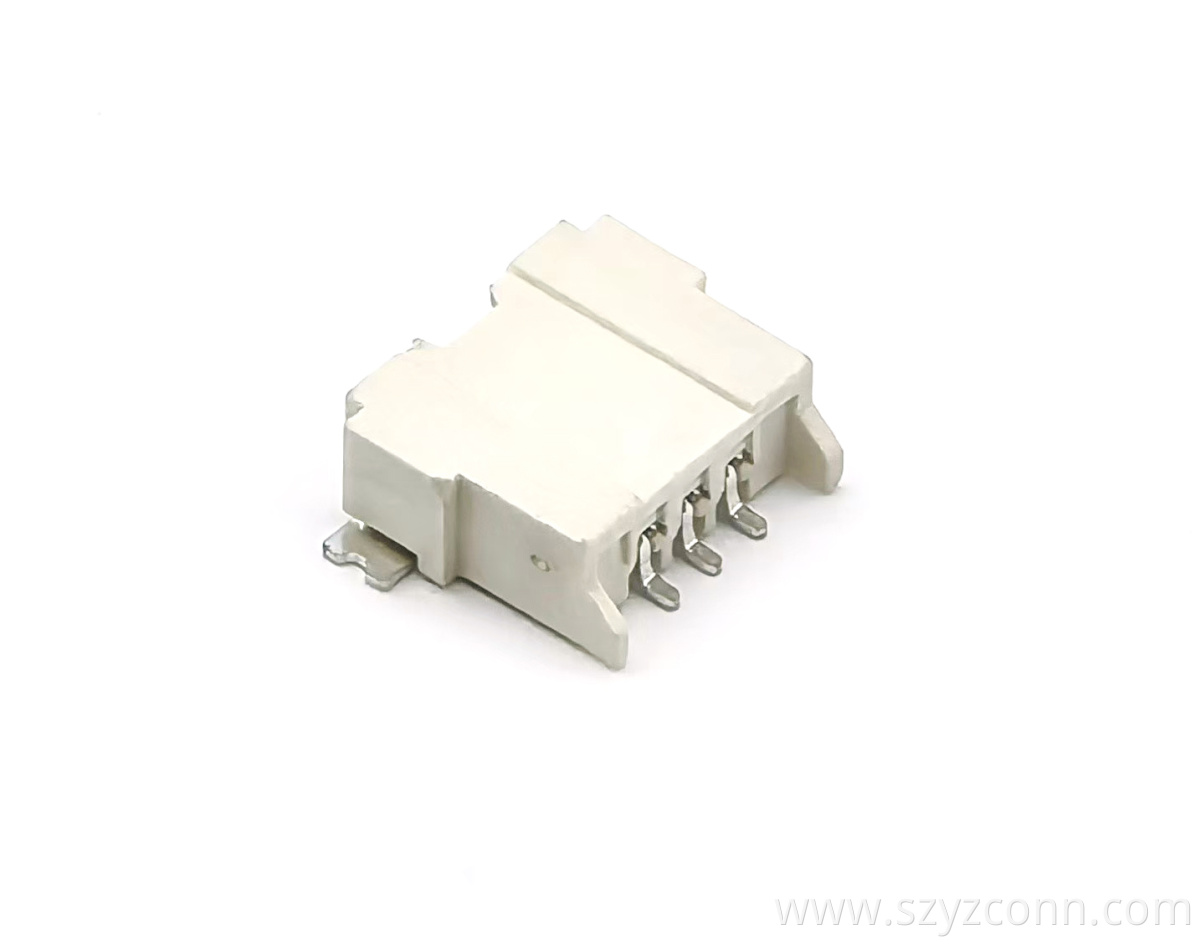

With an SMT mounting format, the connector can be placed directly onto the PCB during surface-mount assembly. If you are looking for a 1.25mm Wafer Pin Header horizontal smt option, the mounting direction should be checked against the PCB layout before production. A suitable Wafer Housing Terminal can also be selected according to the mating structure and cable arrangement.

Tin-Plated Phosphor Bronze Contacts

The contacts are made from phosphor bronze and finished with tin plating. The rated current is 1A and the rated voltage is 150V, giving designers clear electrical limits to work with when selecting the connector for an electronic assembly.

One of the notable specifications of this model is its -25°C to +130°C working temperature range. This wider temperature range can be useful for equipment where the connector may be exposed to higher operating temperatures. When comparing a 1.25mm wafer pin header connector smt, it makes sense to check the temperature rating together with the contact material and plating.

Reel Packaging for Consistent SMT Supply

The connector is supplied in reel packaging, with a minimum packing quantity of 100 pieces. This format is convenient for automated SMT assembly and also makes it easier for production teams to keep the components organized during regular manufacturing runs.

The product lot number is 12538, which can be used for order identification and production tracking. If you are comparing a 1.25mm wafer Housing Connector 3p, the exact pin count should be confirmed from the product drawing before ordering, as the specifications provided for this model do not list a position count. For Other related products, Buy Wafer Terminals can be used when comparing terminal options, while a suitable Housing Connector can be selected for the mating side.

Product Specifications

Why Choose Shenzhen Yangzhan Electronics?

Yangzhan Electronics, also known as YZTECH Electronics, was established in 2014 and focuses on precision connectors, industrial Terminal Blocks, and cable assemblies. The company covers product development, tooling, processing, assembly, inspection, sales, and service, giving customers support from the early development stage through regular production.

For a 1.25mm SMT connector, small details such as pitch, contact plating, temperature range, and assembly method all need to match the actual PCB design. YZTECH Electronics uses production and inspection equipment from Japan, Germany, and Taiwan and supports plastic and metal terminal tooling as well as final assembly. Customers looking for a related Wafer Pin header Connector can discuss different connection structures and production requirements with the Shenzhen-based team.
