PH1.5mm Wafer Pin header Connector SMT 10P

PH1.5mm Wafer Pin header Connector SMT 10P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: B15004-10AWB

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

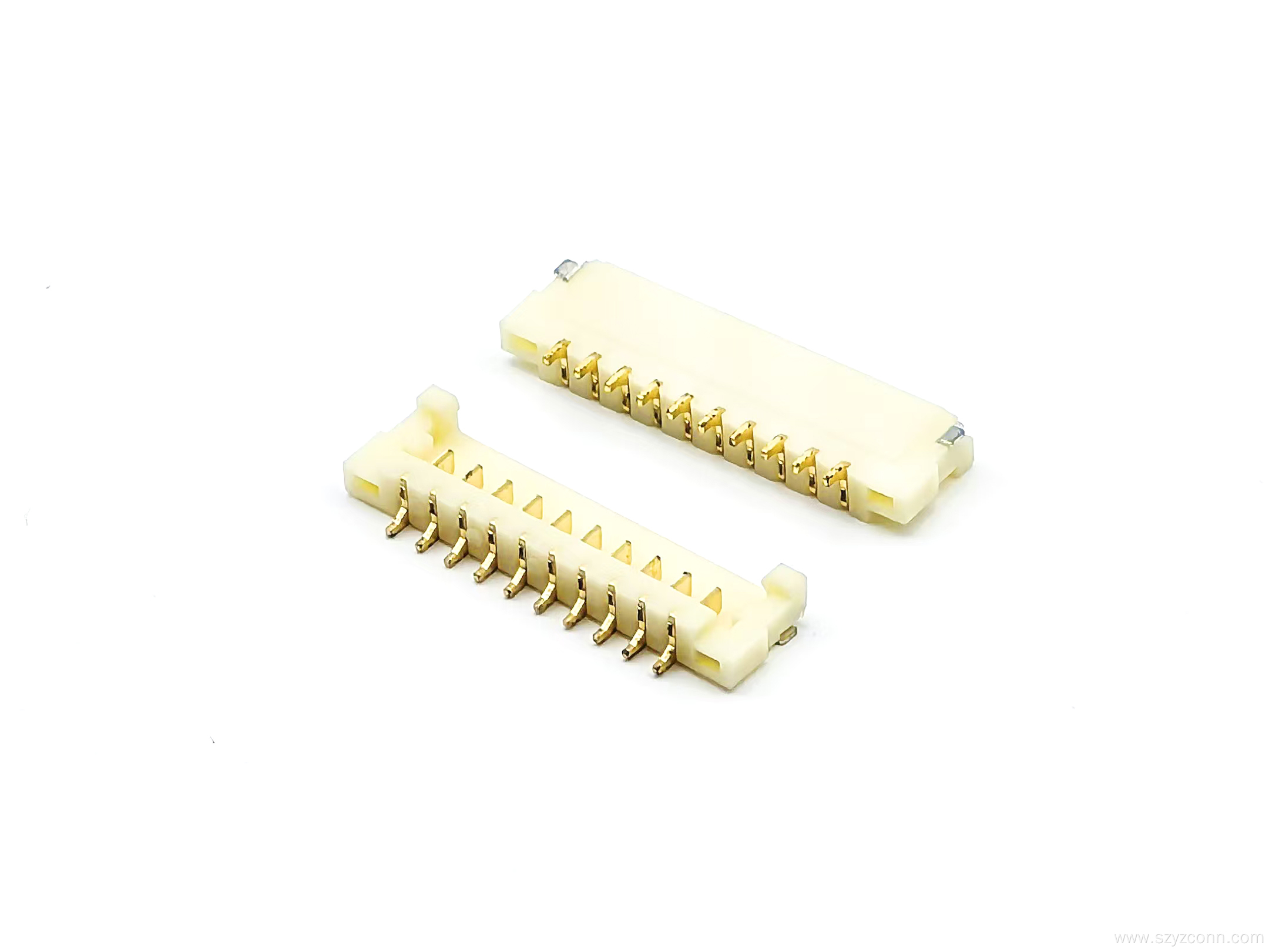

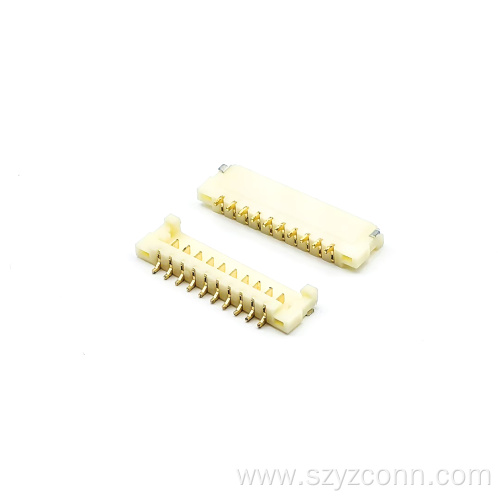

PH1.5mm Wafer Pin header Connector SMT 10P

Compact 10P Layout for Space-Limited PCB Designs

The PH1.5mm Wafer pin header connector SMT 10P is a practical choice for electronic products where PCB space is limited but several connection points are still needed.With 10 positions and a surface-mount structure,it keeps the connection area compact and gives designers more room to arrange Other components around the board.

The Connector uses brass contacts with gold plating and is rated for 3A current and 30V voltage.These specifications make it suitable for a range of low-voltage electronic assemblies.When the project needs a matching connection on the wiring side,a suitable Wafer Housing Terminal can be added to create a complete mating connection.

Product Specifications

Parameter	Details
Connector Type	Wafer Housing Terminal
Rated Current	3A
Rated Voltage	30V
Contact Material	Brass
Contact Plating	Gold Plated
Operating Temperature	-25°C to+85°C
Packaging	Tube
Minimum Package Quantity	100 pcs
Shipping Location	Shenzhen

Horizontal SMT Structure for Cleaner Board Assembly

The horizontal mounting style gives this connector an advantage when vertical PCB space is restricted.The wafer Housing Connector horizontal smt design keeps the connection closer to the board surface,making it a useful option for products with compact enclosures or components positioned around the connector area.

The SMT format also fits naturally into surface-mount PCB assembly processes.Instead of using several individual connection points,the 10P layout brings multiple contacts together in one compact component.A matching Wafer Pin Header and housing can then be used to keep the finished connection organized and easier to integrate into the overall product design.

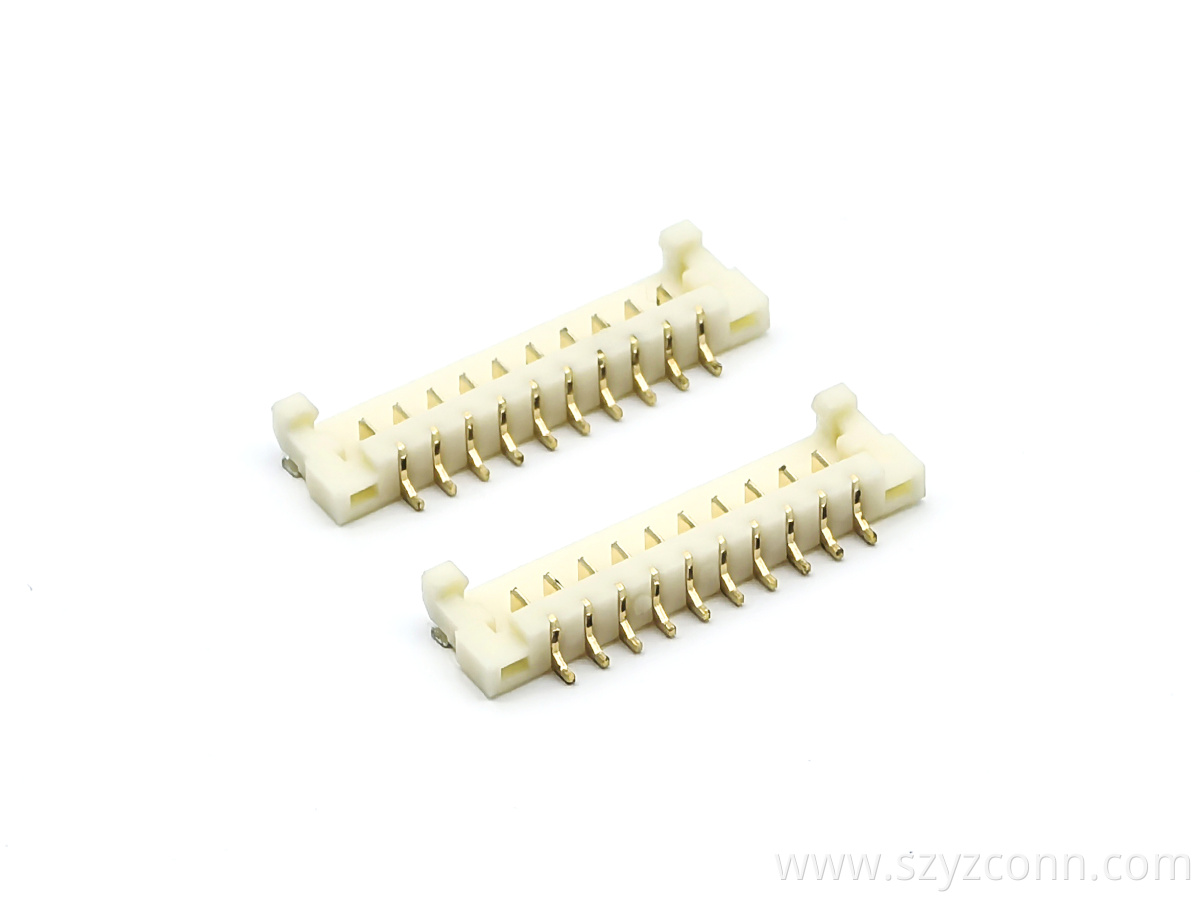

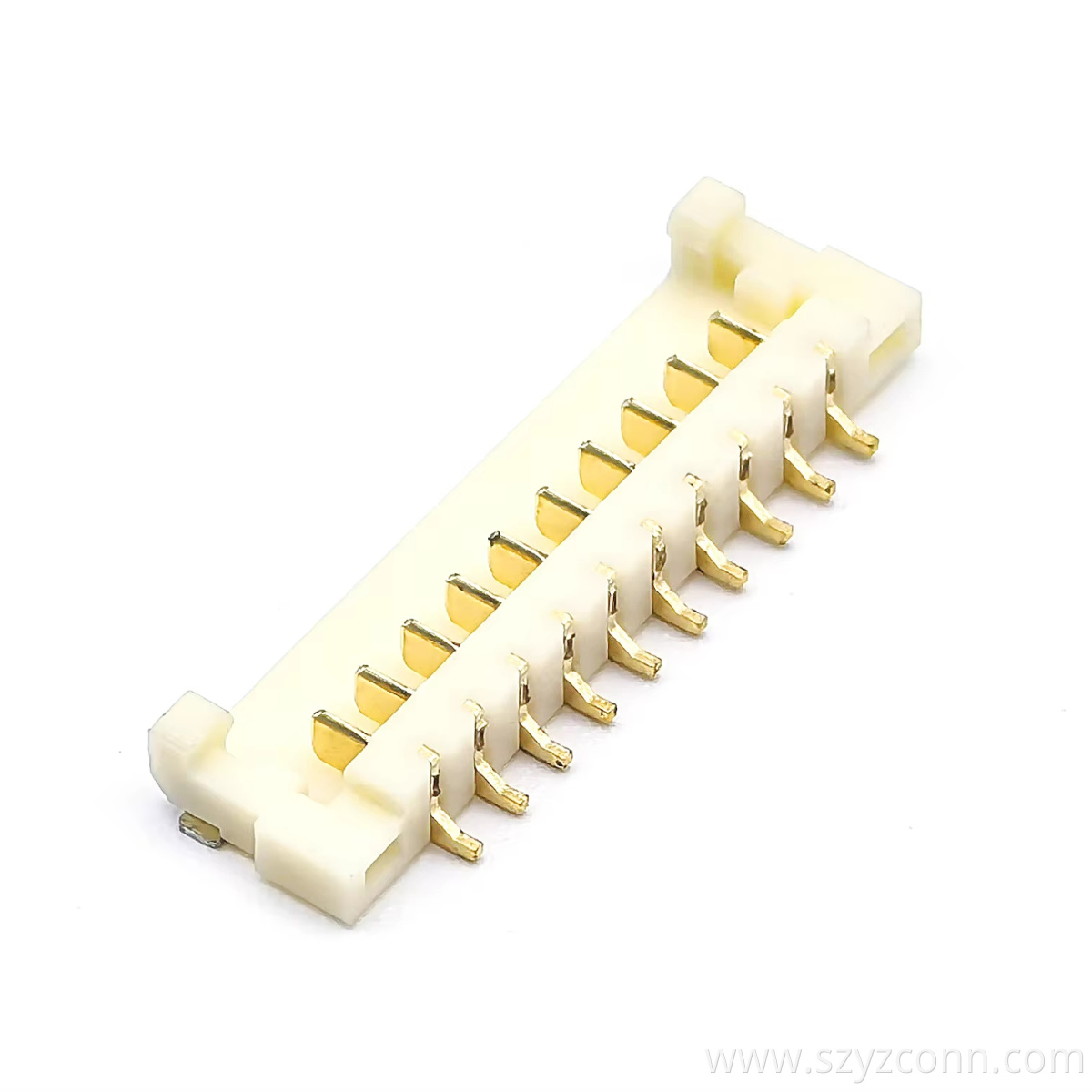

PH1.25mm Wafer Horizontal SMT Type Pin header Connector 10P

Gold-Plated Brass Contacts for Reliable Electronic Connections

The contacts are made from brass and finished with gold plating,providing a treated contact surface for electrical connection.With a rated current of 3A and rated voltage of 30V,the connector can be considered for control boards,compact electronic equipment,communication devices,and other low-voltage applications.

The operating temperature range is -25°C to+85°C,covering a broad range of typical electronic equipment environments.The model is B15004-10AWB and is supplied in tube packaging,with 100 pieces per package.Customers who Buy Wafer Terminals can also select matching terminal and housing components when building a complete wire-to-board connection.

Why Choose Shenzhen Yangzhan Electronics?

For a small-pitch connector such as the PH1.5mm Wafer Pin header connector SMT 10P,the details of the structure matter just as much as the basic electrical rating.Pitch,mounting direction,contact finish,pin count,and the fit with the mating housing all need to work together.Shenzhen Yangzhan Electronics has focused on precision connector development and manufacturing since 2014,with experience covering wafer connectors,pin headers,terminals,and related connection components.

YZTECH also handles plastic and metal terminal tooling,processing,assembly,and product inspection,with production and testing equipment selected from Japan,Germany,and Taiwan.For customers looking for a PH1.5mm wafer Pin Header connector 10p or PH1.5mm wafer pin header ivory,our team can help match the connector structure with the actual PCB and application requirements.If a complete mating solution is needed,the Housing Connector and Wafer Pin header Connector can also be developed and matched with the required terminal and housing components.
