ZH1.5 Wafer Pin header Connector SMT

Compact Horizontal SMT Design

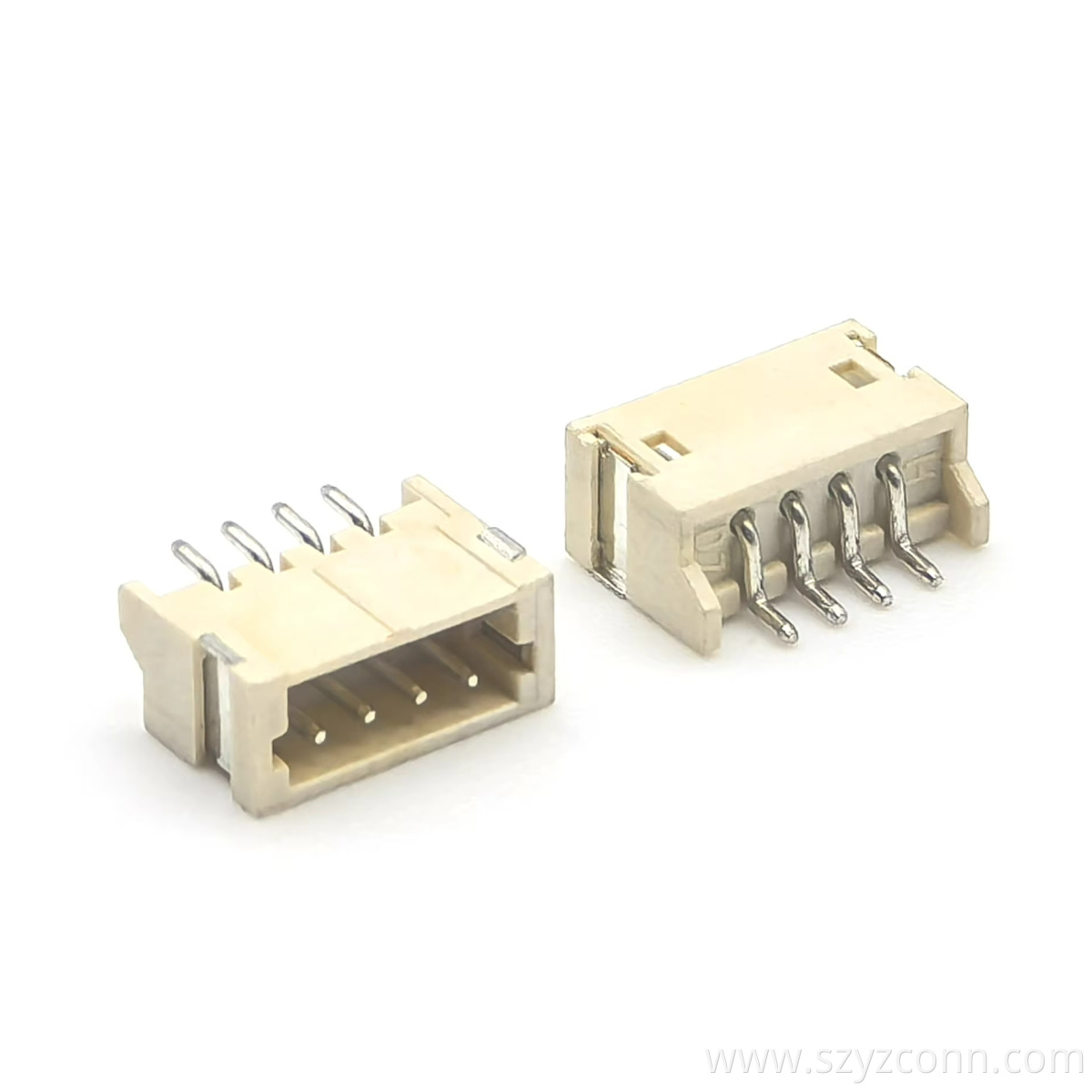

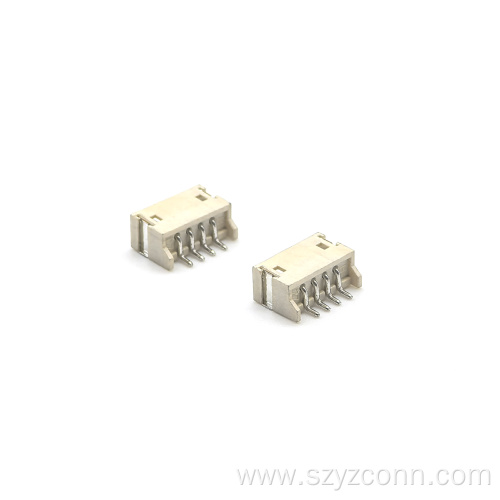

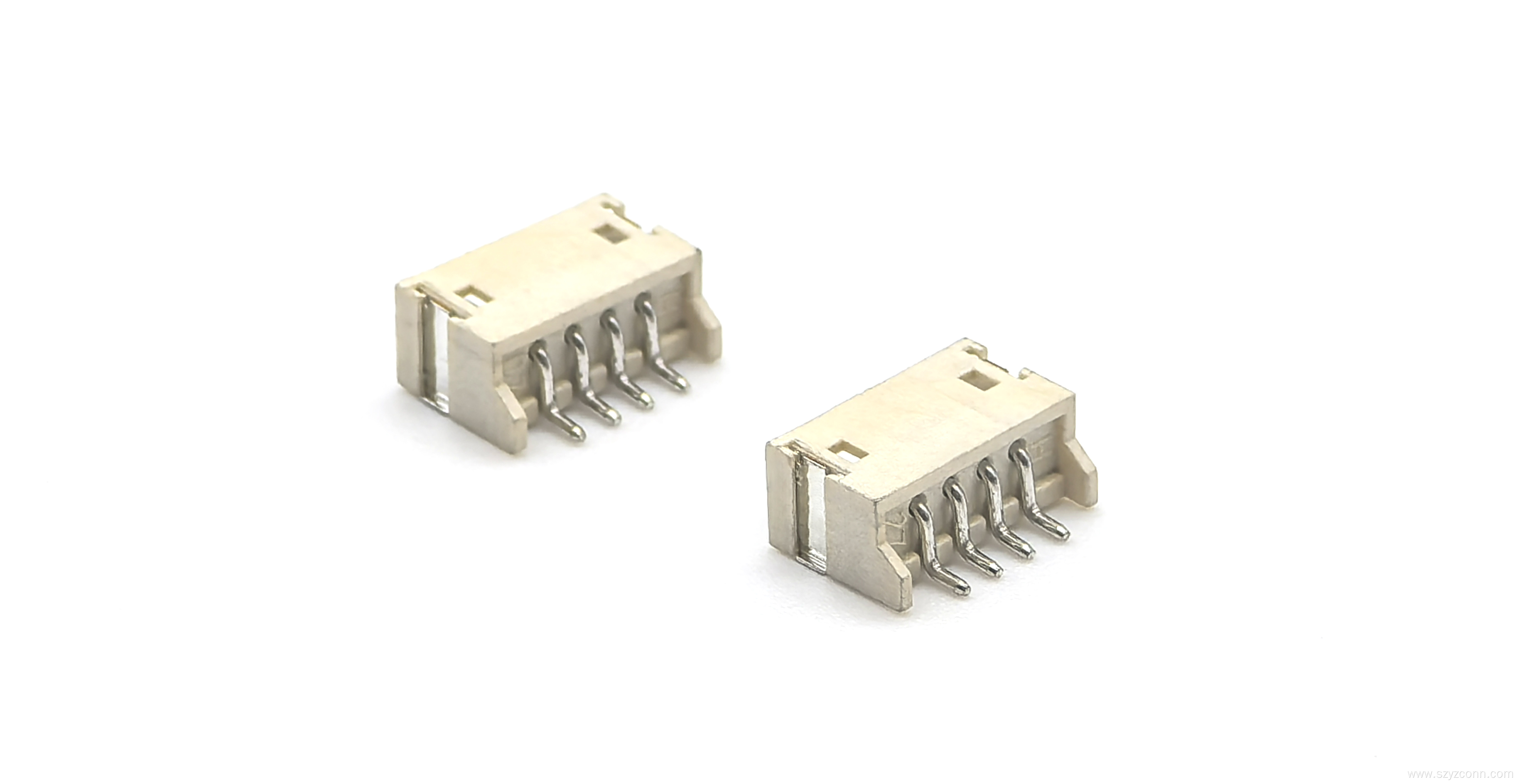

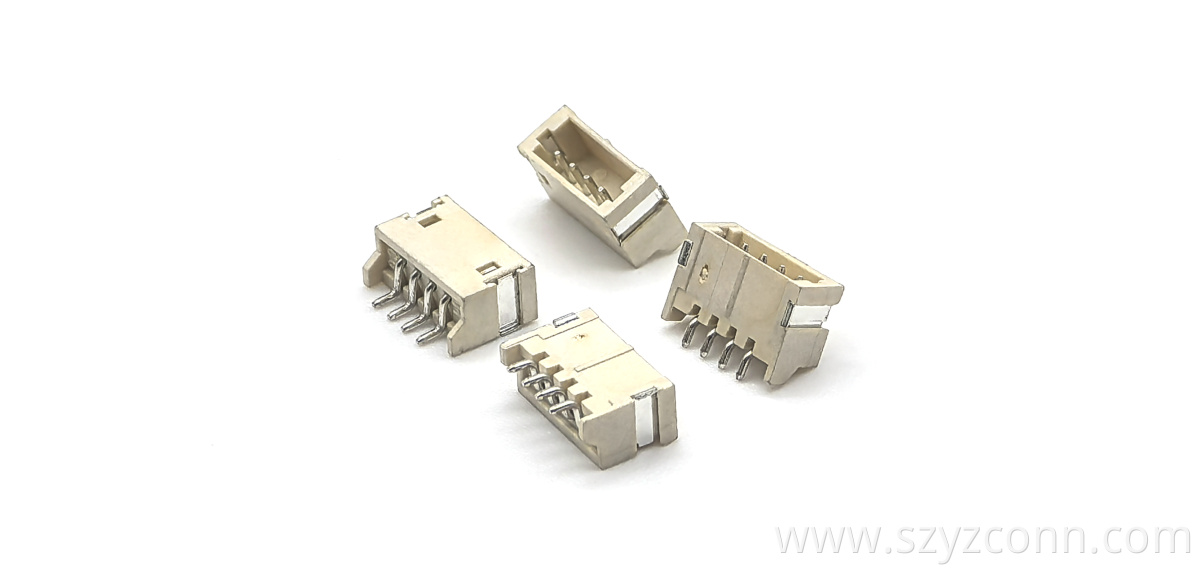

The ZH1.5 Wafer pin header connector SMT is a compact horizontal SMT Connector designed for space-efficient PCB layouts and automated assembly. As a wafer pin header connector horizontal smt solution, it features a PA6T housing, brass contacts, and tin plating for stable electrical connection and reliable soldering performance.

With a rated current of 1A, rated voltage of 100V, and operating temperature of -25°C to +85°C, the connector is suitable for electronic equipment, PCB control boards, automation systems, and Other compact electrical applications.

Product Specifications & SMT Performance

The ZH1.5 connector is designed for efficient SMT production and is supplied in reel packaging with 1,000 PCS/R, making it suitable for automated component placement and volume manufacturing. The compact horizontal structure also helps optimize PCB space where vertical clearance is limited.

For projects requiring a Wafer Pin Header smt 4p or wafer Housing Connector 4p configuration, the ZH1.5 series provides a compact option for PCB connection. Compatible Wafer Housing Terminal components can be selected for related wire connection requirements, while Buy Wafer Terminals solutions are available for customers with volume sourcing needs.

Applications & Connection Solutions

The ZH1.5 series is suitable for consumer electronics, industrial control equipment, automation systems, communication devices, and compact PCB modules. Its horizontal SMT mounting is especially useful for applications requiring efficient board space utilization.

Customers can also select the appropriate Wafer Pin Header for different pin configurations and PCB layouts. For complete mating solutions, a compatible Housing Connector can be selected according to the application's mechanical and electrical requirements.

Why Choose Yangzhan Electronics?

Founded in 2014, Shenzhen Yangzhan Electronics specializes in precision connectors, industrial Terminal Blocks, and cable assemblies. The company provides integrated capabilities covering mold development, precision processing, molding, assembly, and product inspection, supported by production and testing equipment from Japan, Germany, and Taiwan.

For the ZH1.5 series, Yangzhan Electronics focuses on key requirements such as PA6T housing, brass contacts, tin plating, horizontal SMT mounting, and reel packaging. With integrated R&D, manufacturing, sales, and service capabilities, the company provides reliable connector solutions for customers worldwide.
