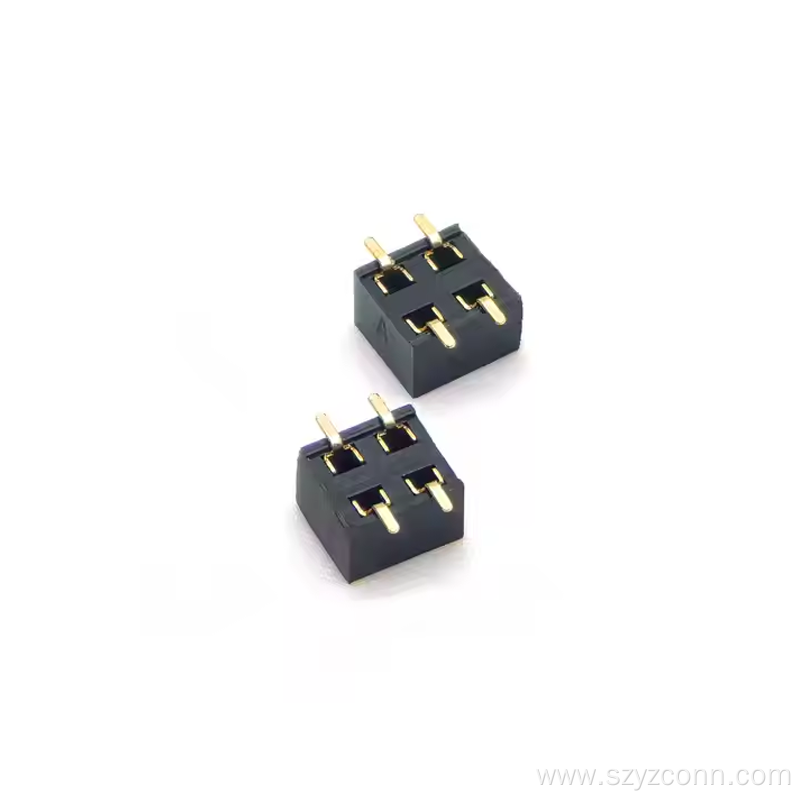

2.54mm Pitch Female Header Connector SMT 4P

2.54mm Pitch Female Header Connector SMT 4P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 4P

Contact Now

Product Description

Product Attributes

Model No.: 0530103

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

2.54mm Pitch female header connector SMT 4P

yztech’s newly launched 2.54mm Pitch Female header connector SMT 4P is the ideal choice for achieving flexible interconnection and space optimization in electronic devices. As an innovative product in the 2.54 mm pitch female header series,the standard 2.54mm pitch and unique U-shaped structure of 2.54mm Female Header smt 4p precisely meet the complex wiring requirements of PCB boards, standing out among 2.54 mm header products for its excellent three-dimensional layout capabilities and stable electrical performance.

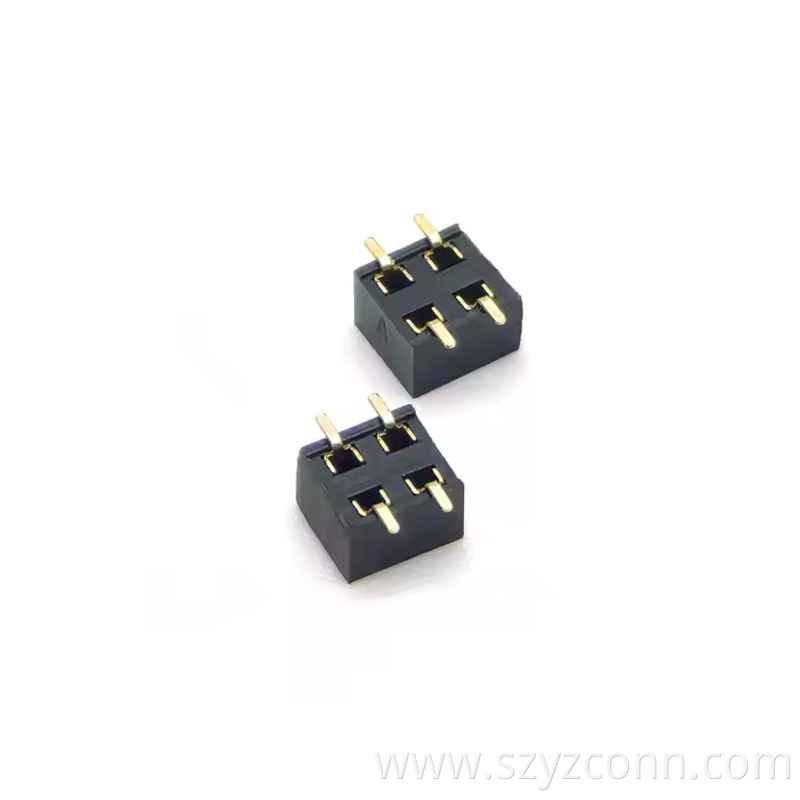

2.54mm Pitch Female Header Dual Row SMT H3.5 U TYPE (3)

This 4p 2.54mm Female Header Connector features high-purity phosphor bronze terminals (anti-oxidation gold-plated) paired with high-temperature-resistant PBT (UL94V - 0) insulation materials, soldered by advanced SMT technology. It can stably carry 3A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 15mΩ. The U-shaped design of 4p 2.54mm female to female header enables it to easily form three-dimensional interconnections with female header and male female Pin Header, effectively solving the problem of large space occupation by traditional straight pins. Customization services are available to meet the special requirements of different projects.

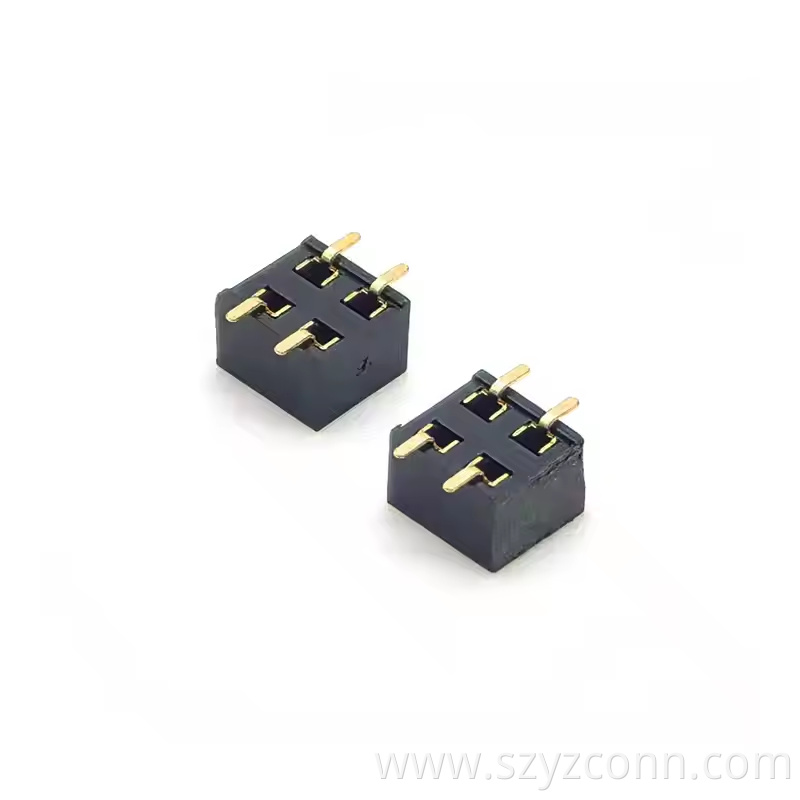

2.54mm Pitch Female Header Dual Row SMT H3.5 U TYPE (1)

Additionally, its 90° bend characteristic of 2.54 right angle provides more possibilities for compact circuit layouts. Widely used in communication devices, smart homes, etc. Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering reliable and efficient solutions for various electronic connection projects.
