2.54mm Pitch Female Header Connector 6P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 6P

Contact Now

Product Description

Product Attributes

Model No.: 0530109

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tape&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

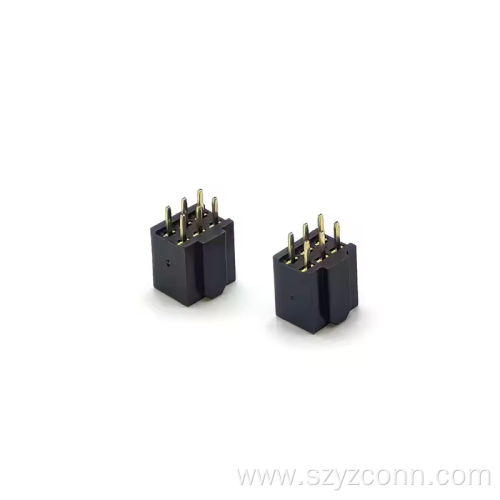

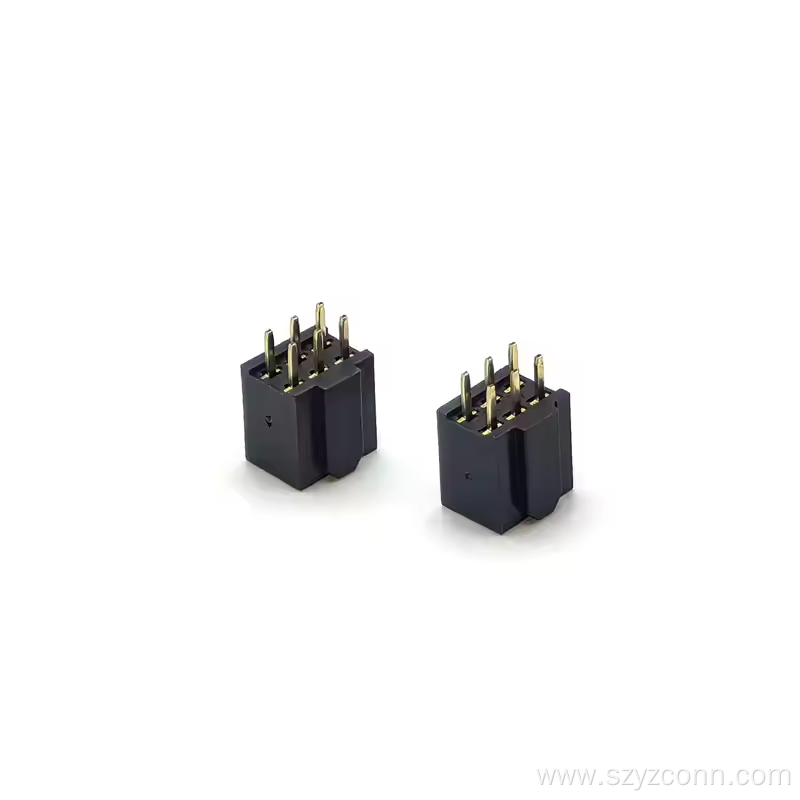

2.54mm Pitch female header connector 6P

yztech’s 2.54mm Pitch Female header connector 6P is specially designed to enhance the stability and reliability of electronic connections. As an innovative product in the 2.54 mm pitch female header series,the standard 2.54mm pitch combined with a unique convex design of 6p 2.54mm Female Header precisely meets the PCB board’s requirements for highly stable connections, giving it a competitive edge in the 2.54 mm header category.

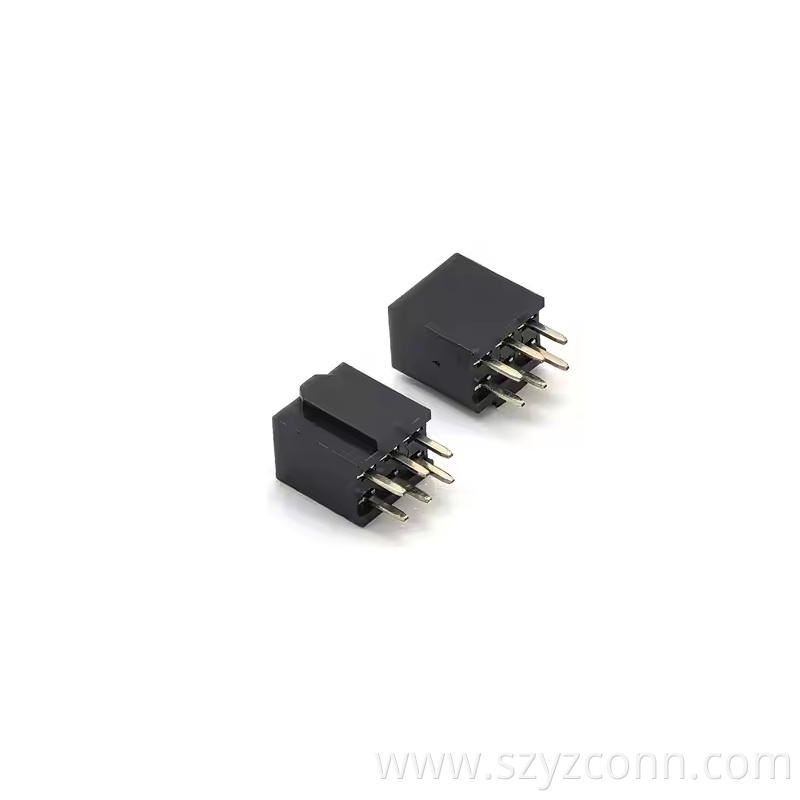

2.54mm Pitch Female Header Dual Row With Convex Points H8.5mm 23P (3)

This 6p 2.54mm Female Header connector features high-purity phosphor bronze terminals with anti-oxidation gold plating, paired with high-temperature-resistant PBT (UL94V - 0) insulation materials. It can stably carry 3.5A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 13mΩ. The convex structure effectively increases the contact area and friction with female header and male female Pin Header, creating a tight bite during plugging and unplugging. Even in high-demand scenarios such as industrial equipment and automotive electronics with frequent vibrations, it ensures a secure and non-loose connection.

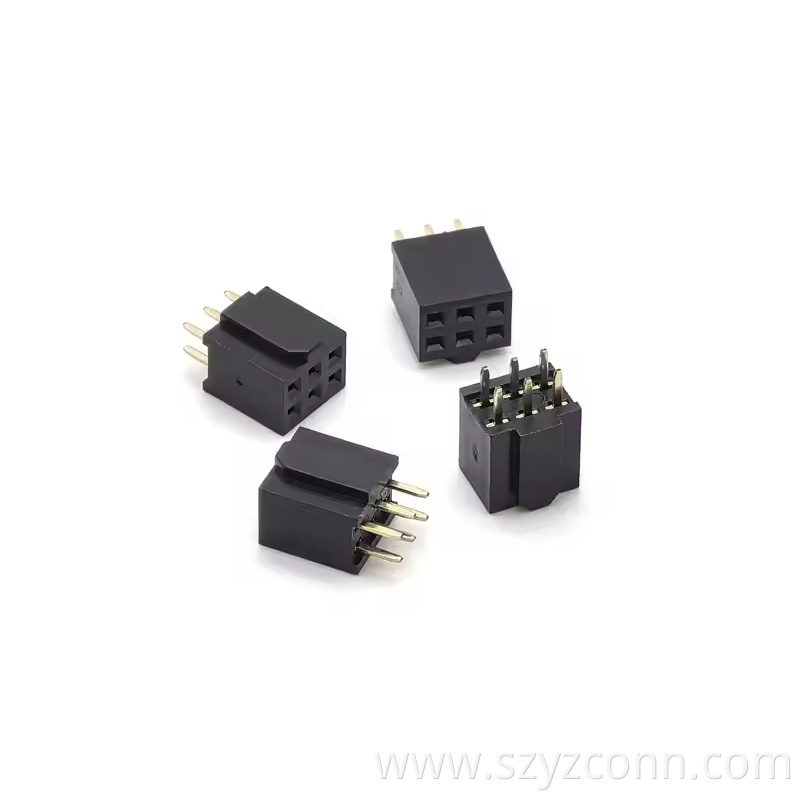

2.54mm Pitch Female Header Dual Row With Convex Points H8.5mm 23P (4)

Additionally,the 6p 2.54mm header female supports 2.54 right angle installation, providing more flexibility for complex circuit layouts. Customization services are available to adjust the number and position of convex points and pin specifications according to customer needs. Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging offers personalized services, laying a reliable foundation for various electronic connection projects.
