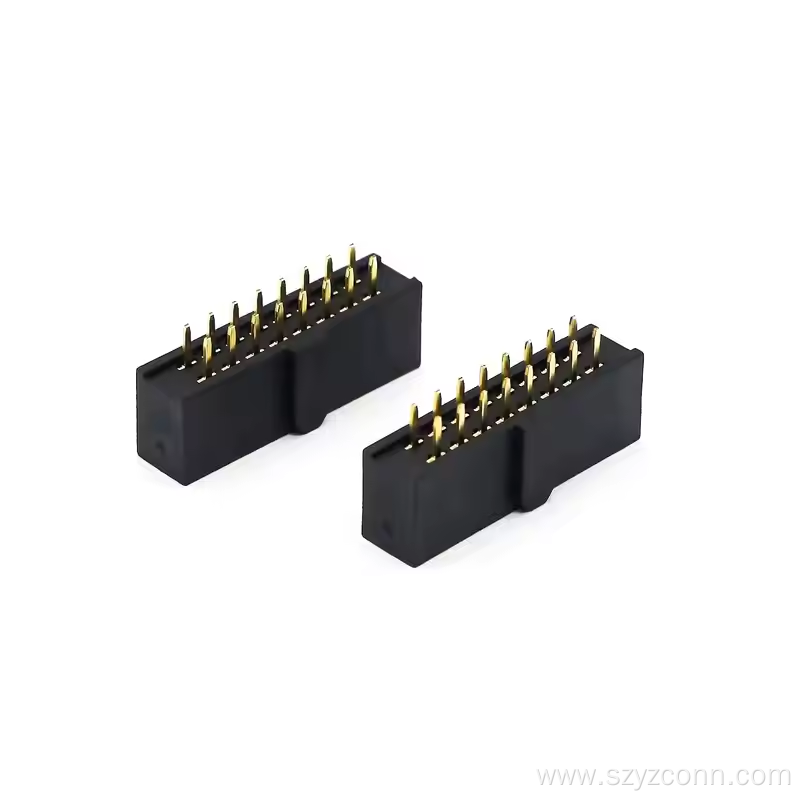

2.54mm Pitch Female Header Connector 22P

2.54mm Pitch Female Header Connector 22P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 22P

Contact Now

Product Description

Product Attributes

Model No.: 0530114

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tape&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

2.54mm Pitch female header connector 22P

yztech’s meticulously developed 2.54mm Pitch Female header connector 22P is designed to meet the high-density connection and efficient signal transmission requirements of electronic devices. As a core product in the 2.54 mm pitch female header series,the standard 2.54mm pitch and dual-row layout design of 22p 2.54mm Female Header connector precisely adapt to the complex wiring scenarios of PCB boards, standing out in the 2.54 mm header category for its excellent pin density and stable performance.

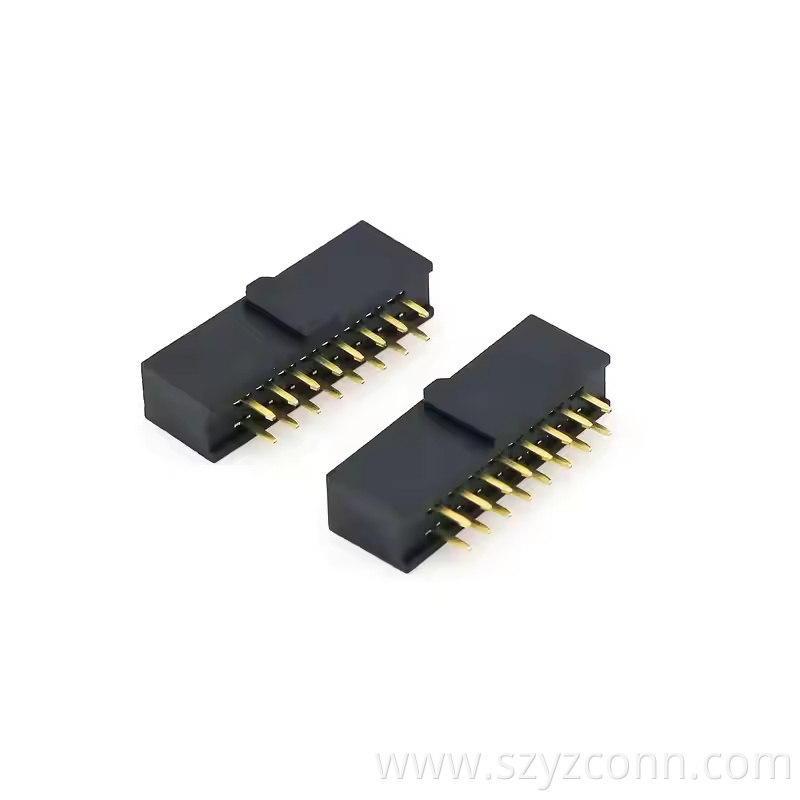

2.54mm Pitch Female Header Dual Row H8.5 22P-240P (1)

This 22p 2.54mm Female Header features high-purity phosphor bronze terminals (anti-oxidation gold-plated) paired with high-temperature-resistant PBT (UL94V - 0) insulation materials, stably carrying 3A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 12mΩ. The 22-pin dual-row structure significantly increases the number of pins, supporting parallel transmission of multiple signals. Whether quickly docking with female header or used in conjunction with male female Pin Header, it enables efficient interconnection. Additionally,the 22p 2.54mm header female supports 2.54 right angle installation, providing more flexibility for compact circuit layouts. Customization services are available to adjust pin specifications and functions according to customer needs.

2.54mm Pitch Female Header Dual Row H8.5 22P-240P (2)

Widely used in communication base stations, server motherboards, etc., certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering solid and reliable support for various electronic connection projects.
