2.54mm Female Header Connector Side Entry 8P

2.54mm Female Header Connector Side Entry 8P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 8P

Contact Now

Product Description

Product Attributes

Model No.: 0530115

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tape&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

2.54mm female header connector Side Entry 8P

yztech’s 2.54mm Female Header Connector Side Entry 8P is an innovative solution to overcome wiring space limitations and optimize connection layouts in electronic devices. As a featured product in the 2.54 mm pitch female header series,the standard 2.54mm pitch and single-side entry design of 2.54mm pitch Female Header 8p precisely meet the single-side wiring requirements of PCB boards, attracting attention in the 2.54 mm header category for its unique installation flexibility and stable performance.

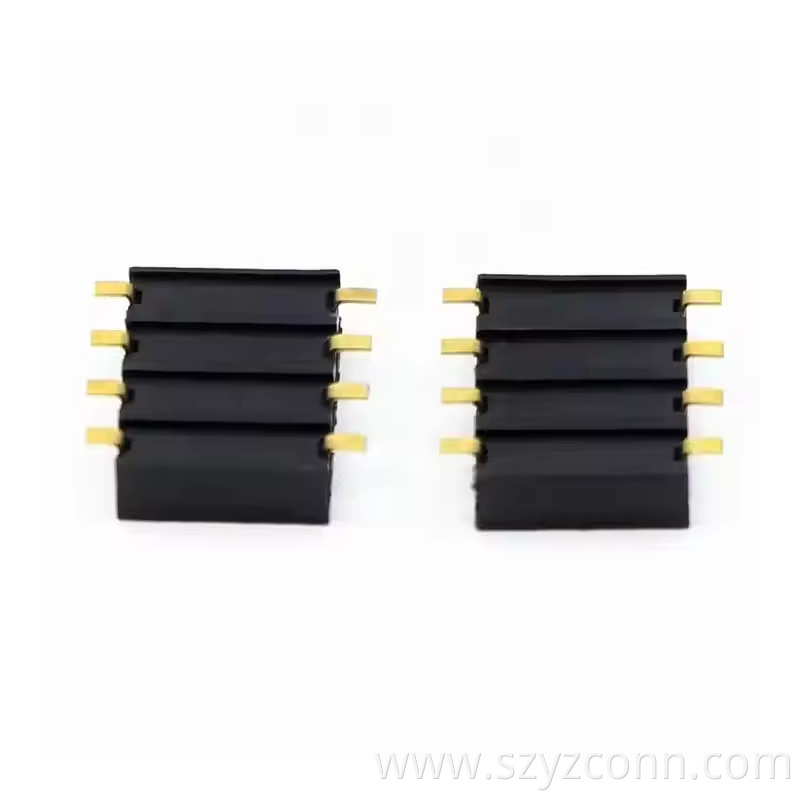

2.54mm Pitch Female Header Single Side Entry SMT H8.1mm 12P-140P (2)

This 8p 2.54mm female to female header features high-purity phosphor bronze terminals (anti-oxidation gold-plated) paired with high-temperature-resistant LCP (UL94V - 0) insulation materials, stably carrying 3A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 15mΩ. The single-side entry structure effectively avoids spatial conflicts with Other components, ensuring concise and orderly wiring. It can quickly and securely dock with female header and efficiently cooperate with male female Pin Header to achieve stable signal transmission. Additionally, the 8p 2.54mm female header supports 2.54 right angle installation, further enhancing adaptability to complex circuit layouts. Customization services are available to adjust pin counts and entry directions according to customer needs.

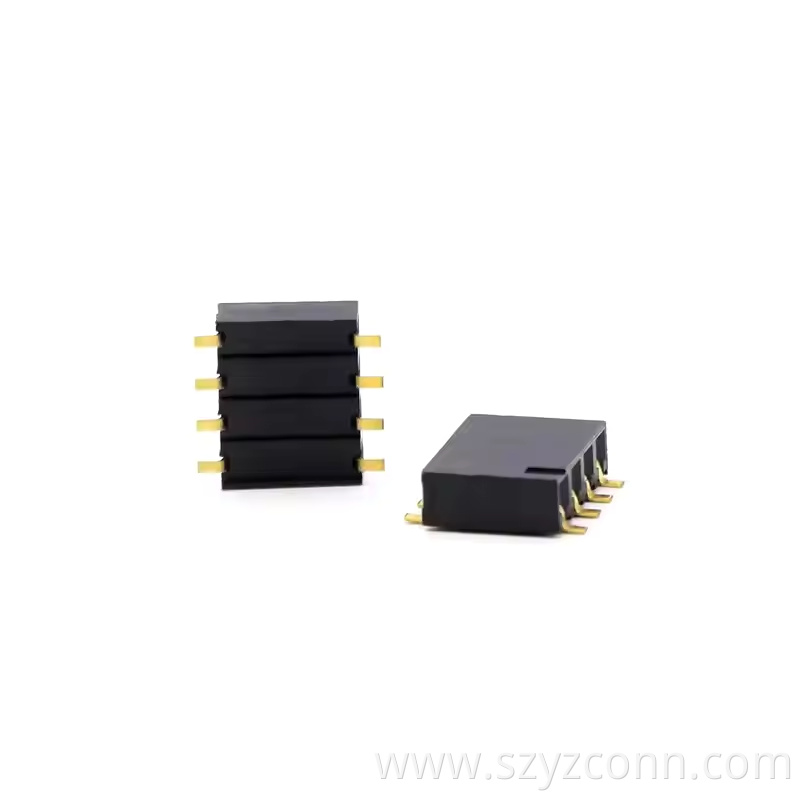

2.54mm Pitch Female Header Single Side Entry SMT H8.1mm 12P-140P (4)

Widely used in smart home devices, portable electronics, etc., certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering reliable solutions for diverse electronic connection scenarios.
