2.54mm Pitch Female Header Connector Straight 20P

2.54mm Pitch Female Header Connector Straight 20P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 20P

Contact Now

Product Description

Product Attributes

Model No.: 0530117

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tape&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

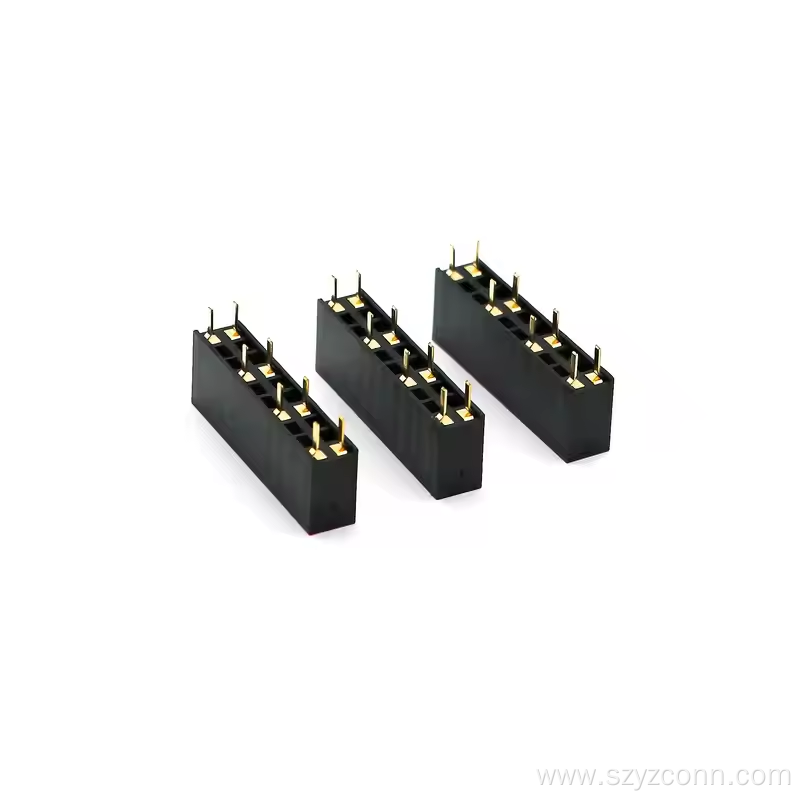

2.54mm Pitch female header connector Straight 20P

yztech’s 2.54mm Pitch Female header connector Straight 20P is designed to meet the high-density and stable connection requirements of electronic devices. As a flagship product in the 2.54 mm pitch female header series,the dual-row straight pin structure and standard pitch of 2.54mm Female Header empty pins precisely adapt to complex wiring scenarios of PCB boards, winning wide favor in the 2.54 mm header category for excellent pin density and reliable performance.

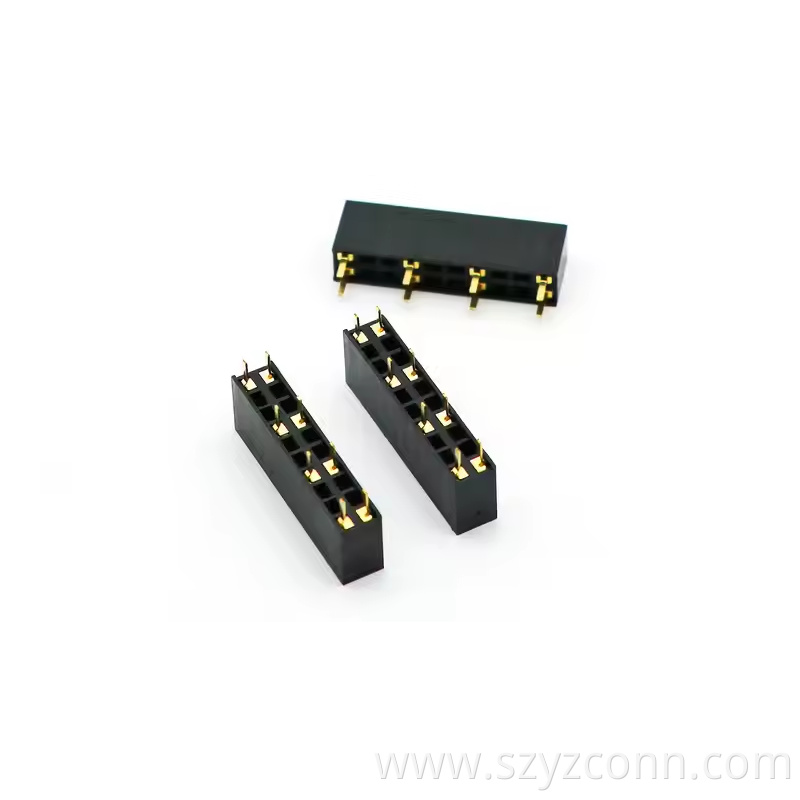

2.54mm Pitch Female Header Dual Row Straight H8.5mm 22P-240P (3)

This 20p 2.54mm Female Header Connector features high-purity phosphor bronze terminals (anti-oxidation gold-plated) paired with high-temperature-resistant PBT (UL94V - 0) insulation materials. It can stably carry 4A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 12mΩ. The dual-row design significantly increases the number of pins, supporting parallel transmission of multiple signals. Whether quickly docking with female header or used in conjunction with male female Pin Header,this 20p 2.54mm female to female header enables efficient interconnection.

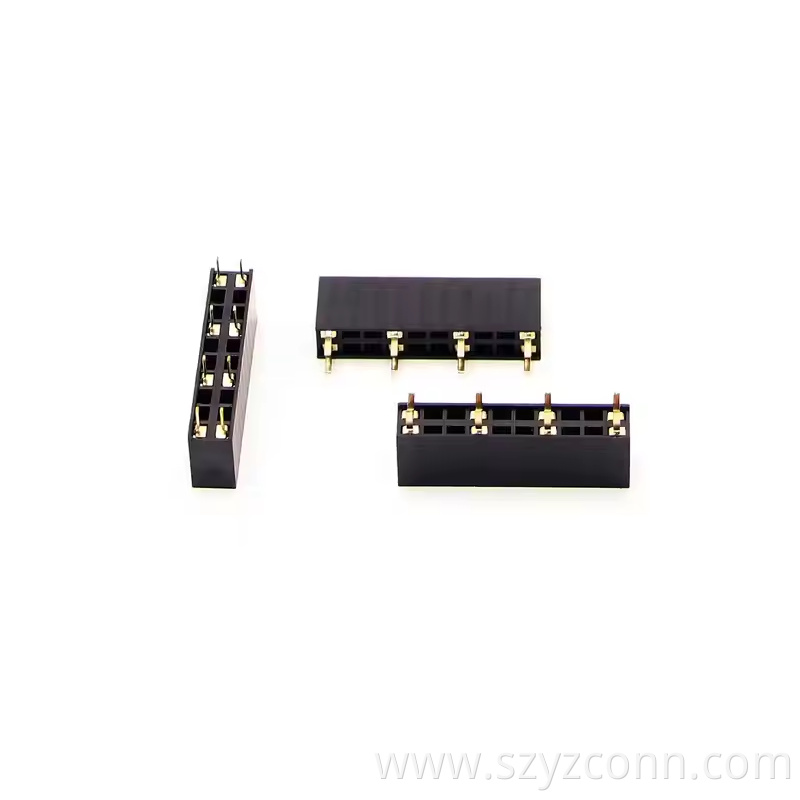

2.54mm Pitch Female Header Dual Row Straight H8.5mm 22P-240P (4)

Additionally, it supports 2.54 right angle installation, providing more flexibility for compact circuit layouts. Customization services are available to adjust pin specifications and functions according to customer needs. Widely used in communication devices, industrial control motherboards, etc., certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, laying a solid foundation for various electronic connection projects.
