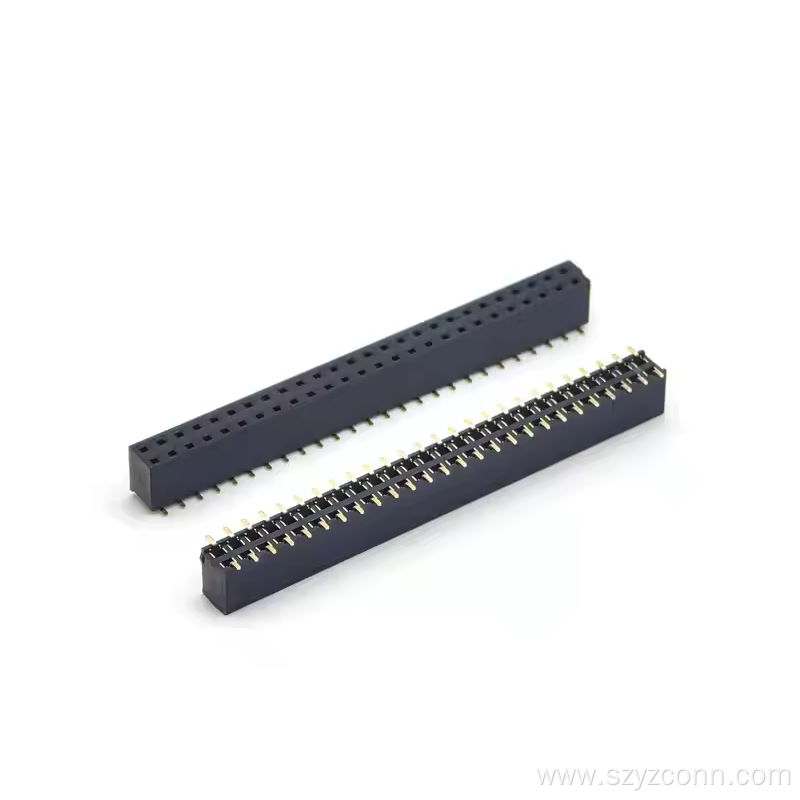

2.54mm Pitch Female Header Connector 52P

2.54mm Pitch Female Header Connector 52P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core

Contact Now

Product Description

Product Attributes

Model No.: 0530106

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tape&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

2.54mm Pitch female header connector 52P
yztech’s 2.54mm Pitch Female header connector 52P is a core component designed to provide flexible interconnection for complex circuit layouts. As a featured product in the 2.54 mm pitch female header series,the classic standard 2.54mm pitch and unique U-shaped structure of 52p 2.54mm Female Header precisely meet the three-dimensional wiring requirements of PCB boards, standing out in the 2.54 mm header category for its excellent space optimization capabilities and stable electrical performance.

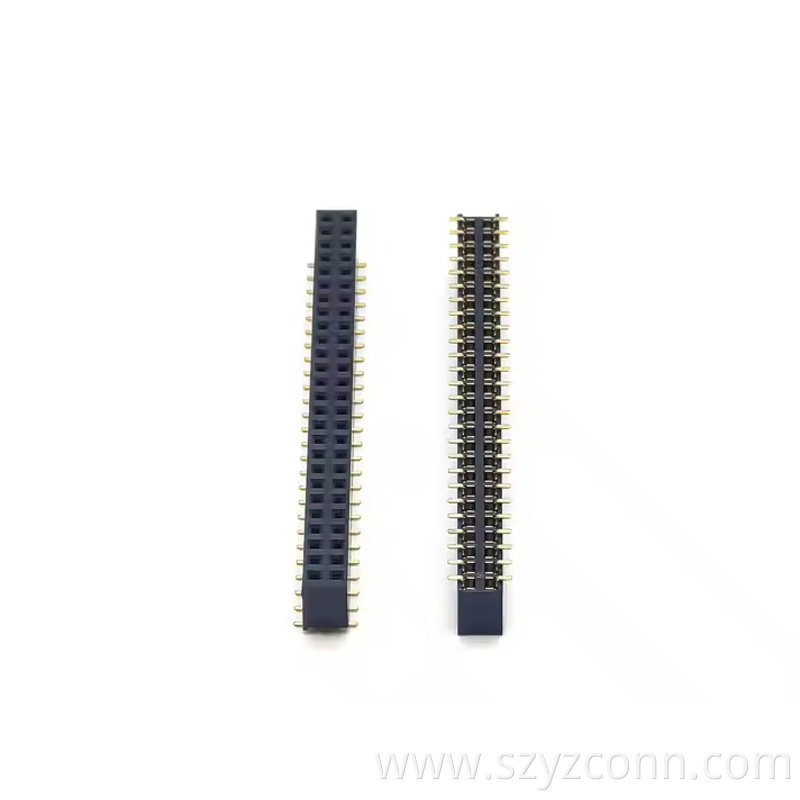

2.54mm Pitch Female Header Connector Dual Row SMT H8.5mm U Type 226P (3)

Featuring high-purity phosphor bronze terminals (anti-oxidation gold-plated) and high-temperature-resistant PBT (UL94V-0) insulation materials,the 52p 2.54mm Female Header connector stably carries 3A current in -40°C to +125°C environments with a contact resistance as low as 15mΩ. The U-shaped design enables 90° three-dimensional interconnection with female header and male female Pin Header, effectively saving PCB board space—particularly suitable for wiring needs in compact devices.The 2.54 right angle feature of 2.54mm header female connector 52p supports right-angle installation, offering flexibility to avoid Other components. Customization services are available to adjust pin counts and U-shaped opening sizes according to project requirements. Widely used in smart terminals, industrial control equipment, etc.

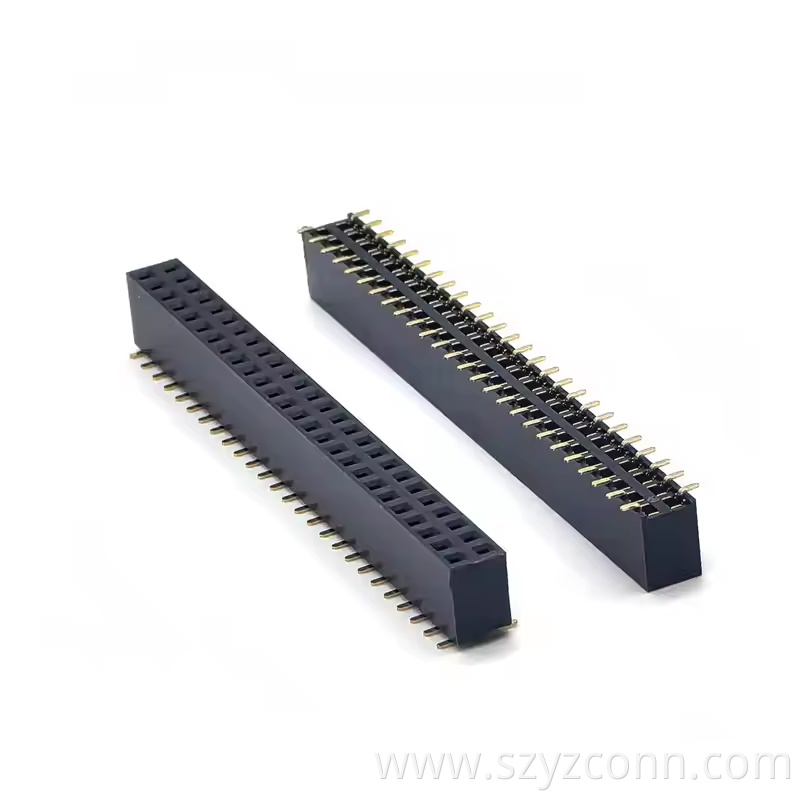

2.54mm Pitch Female Header Connector Dual Row SMT H8.5mm U Type 226P (1)

Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering reliable and efficient solutions for diverse electronic connection scenarios.
