2.54mm Machined Female Header Connector 12P

2.54mm Machined Female Header Connector 12P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 18102-H7.0-1*12P

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Bag&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

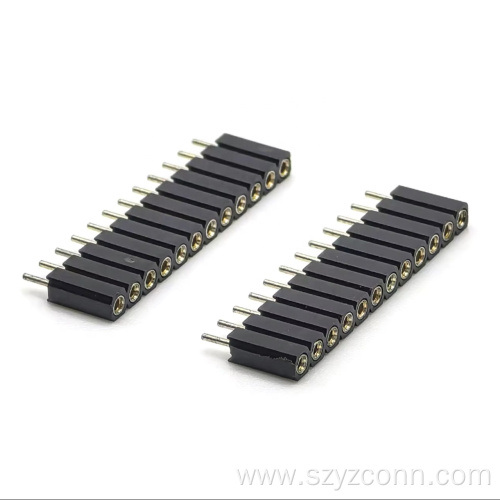

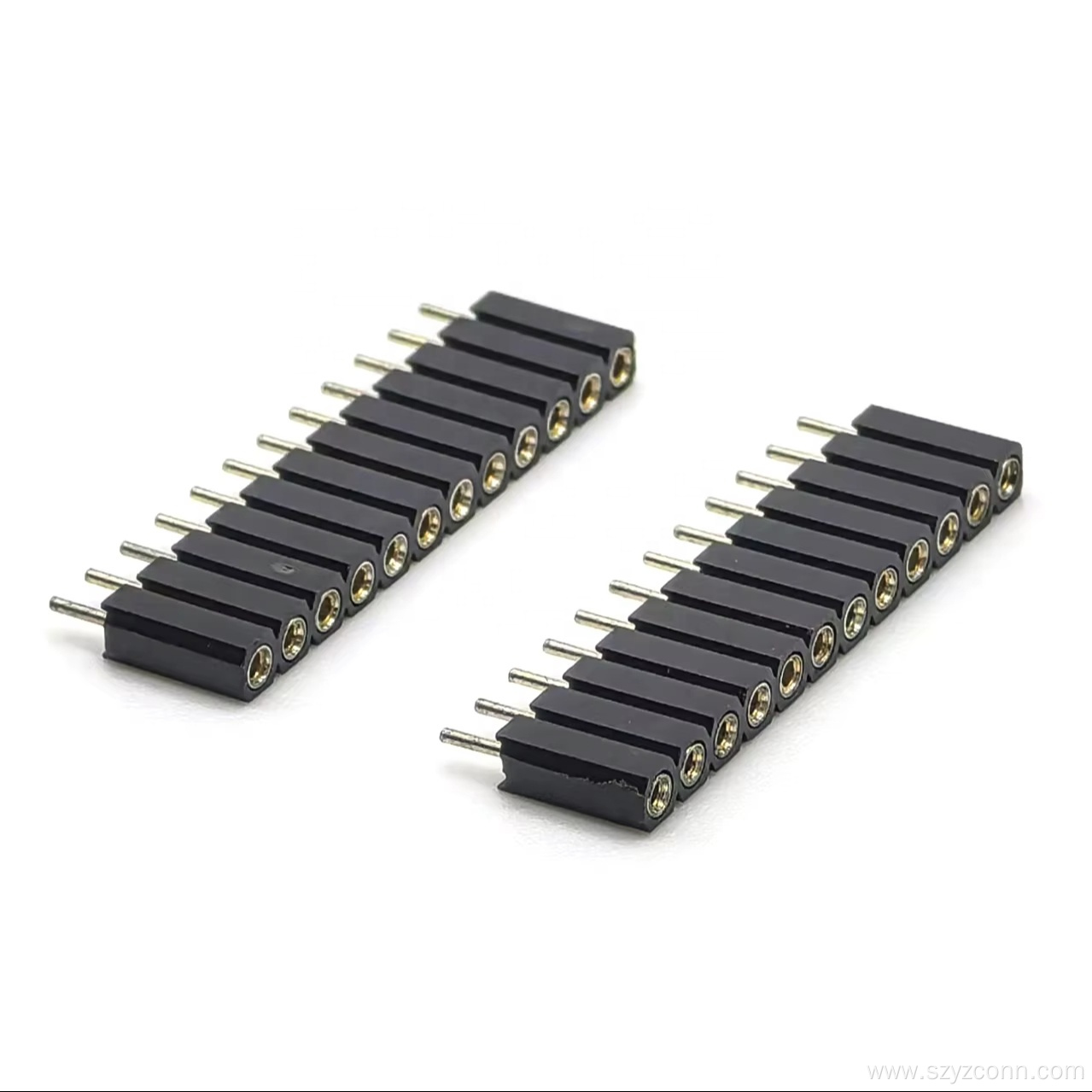

2.54mm Machined female header connector 12P
The YZTECH 2.54mm Machined Female header connector 12P is a premium interconnect solution designed for demanding applications that require superior electrical and mechanical performance. This 12-position,single-row 2.54mm machined Female Header 12p in a straight plug design ensures easy and reliable integration into printed circuit boards.This 2.54mm machined female header L12.4mm stands out with an impressive rated capacity of 3A and 600V,providing robust power delivery and signal integrity.Its distinctive round pin receptacles,precision-machined for optimal contact,guarantee a secure and stable connection with male pin headers.The straight-through design simplifies the PCB layout process and offers a straightforward vertical mounting solution,enhancing assembly efficiency.

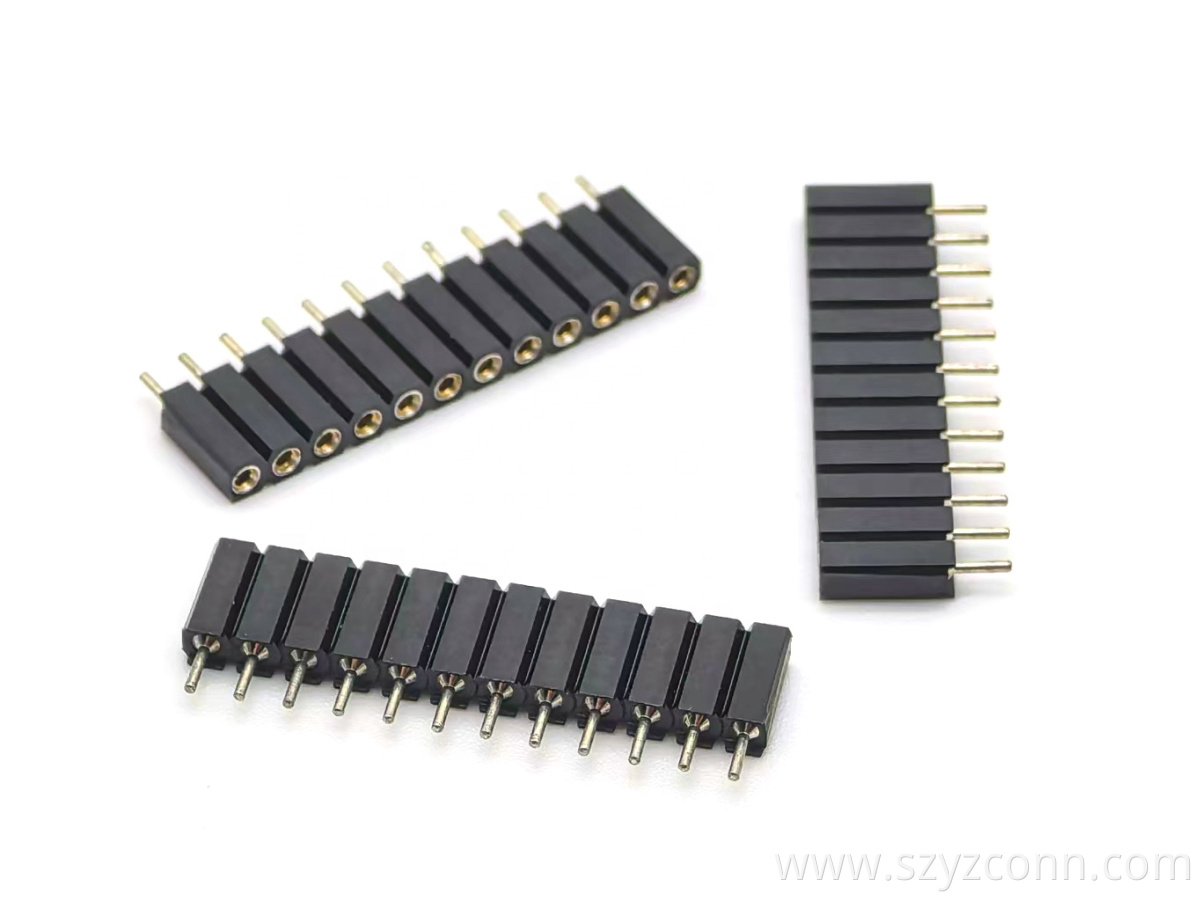

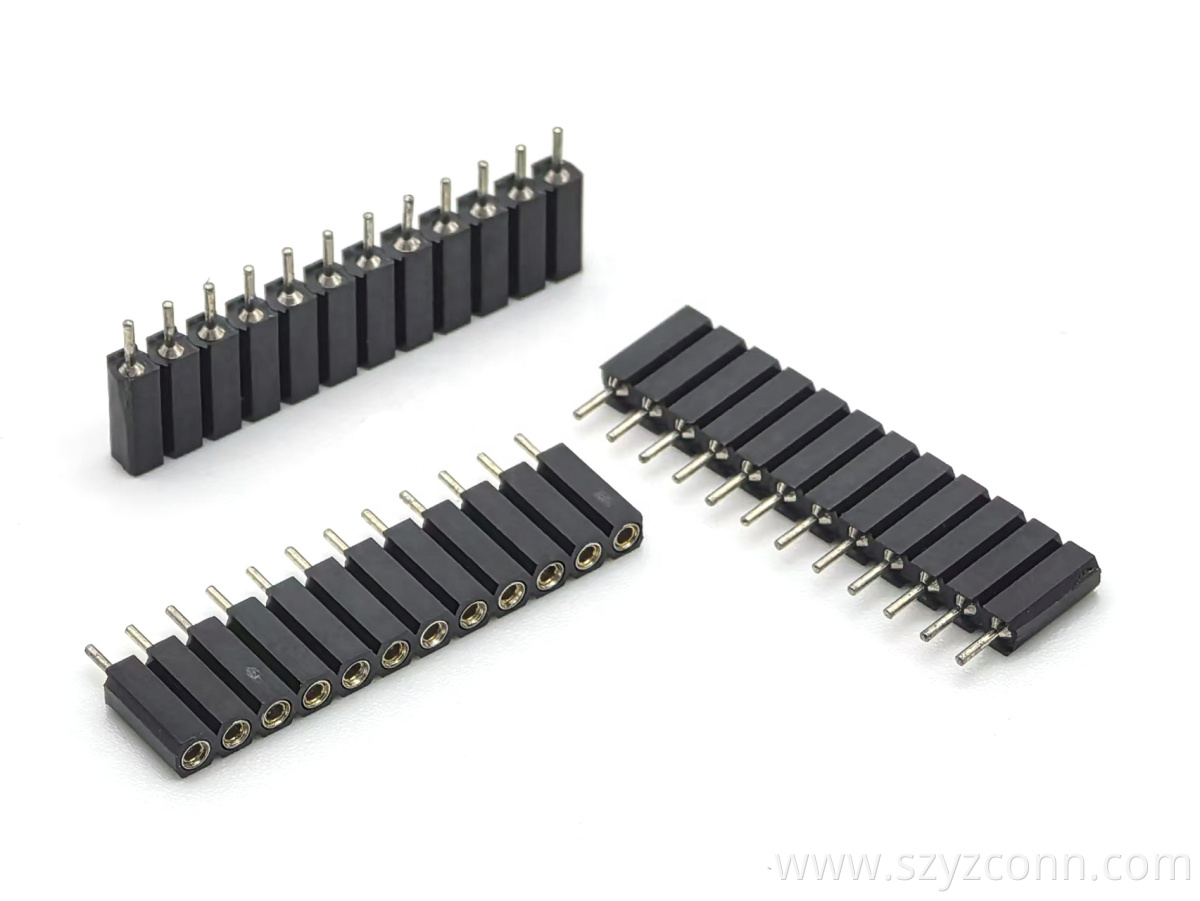

2.54mm Pitch Machined Female Header Connector H7.0mm L12.4mm 1*12P

This 12p 2.54mm machined header female is built for exceptional durability and long-term reliability.The contacts are crafted from brass and feature a specialized dual-surface treatment:selective gold plating on the mating area ensures low contact resistance and superior corrosion resistance for a stable electrical connection over countless mating cycles,while the solder tails are coated with tin for excellent solderability to the PCB.The insulator is molded from high-performance nylon,a material chosen for its outstanding dielectric strength,mechanical rigidity,and ability to perform flawlessly across a broad operating temperature range from -40℃ to +105℃.This construction allows it to withstand wave soldering processes at temperatures up to 260℃ for 10 seconds.

Packaged conveniently in bags for secure handling and storage,this 2.54mm Female Header is an ideal component for a wide spectrum of industrial,automotive, and high-reliability consumer electronics.Its high-temperature resilience and robust electrical ratings make it suitable for systems exposed to harsh environments.
