Product Description

Product Attributes

Model No.: 1102S.2*9P-H:8.5-F-04

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

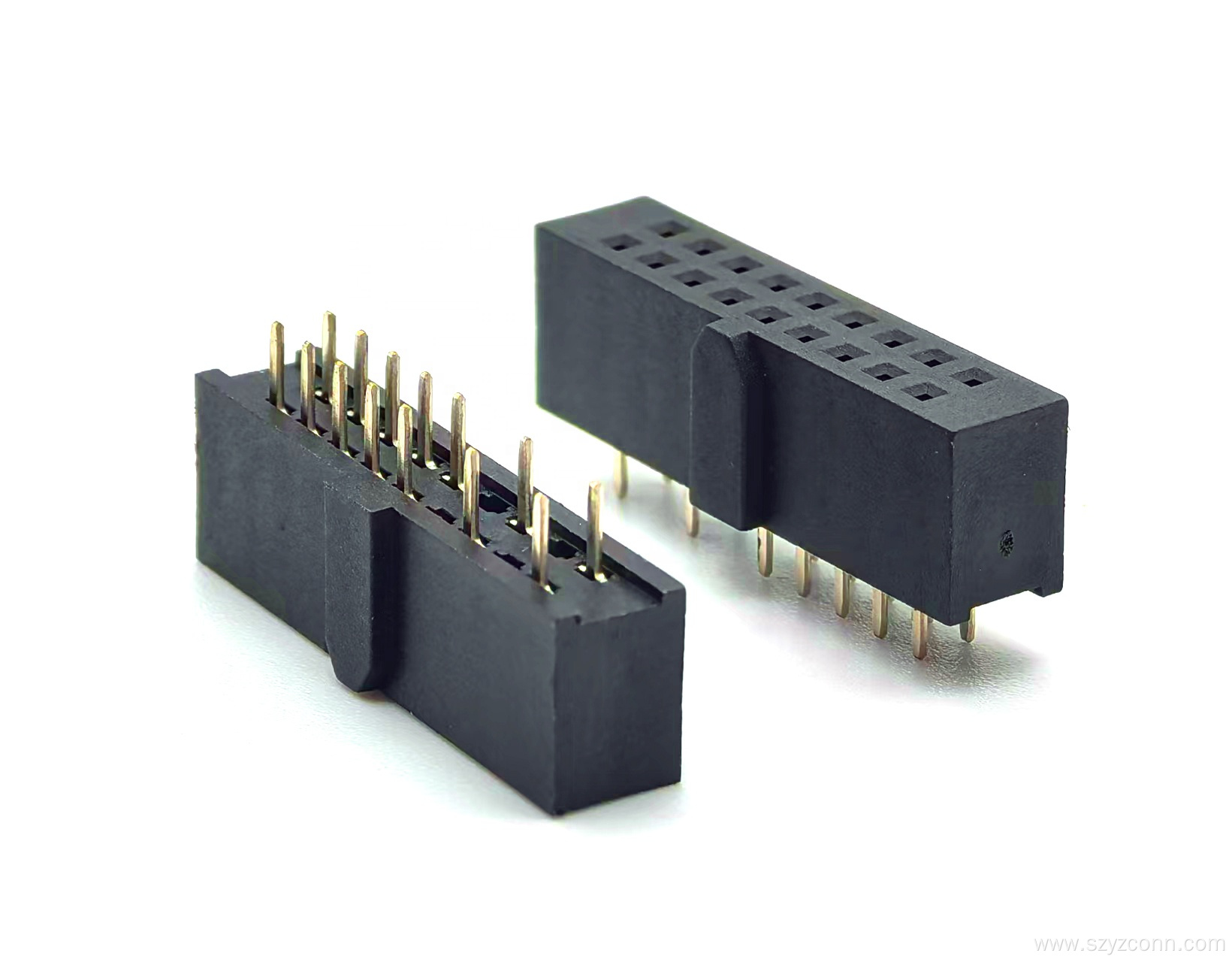

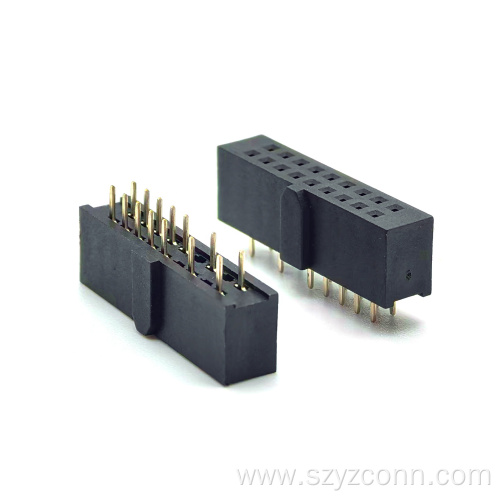

2.54mm Pitch female header connector Straight 22P

YZTECH’s 2.54mm Pitch Female header connector Straight 22P,redefines reliability in PCB applications.Designed with a straight-plug installation method,this 2.54mm Female Header straight 22p ensures seamless integration into dense circuit layouts while maintaining optimal signal integrity.The dual-row configuration incorporates strategically placed non-contact pins at positions 1,2,5,6,9,10,21,and22—a thoughtful design that enhances electrical isolation and prevents short-circuit risks in high-density mounting scenarios.

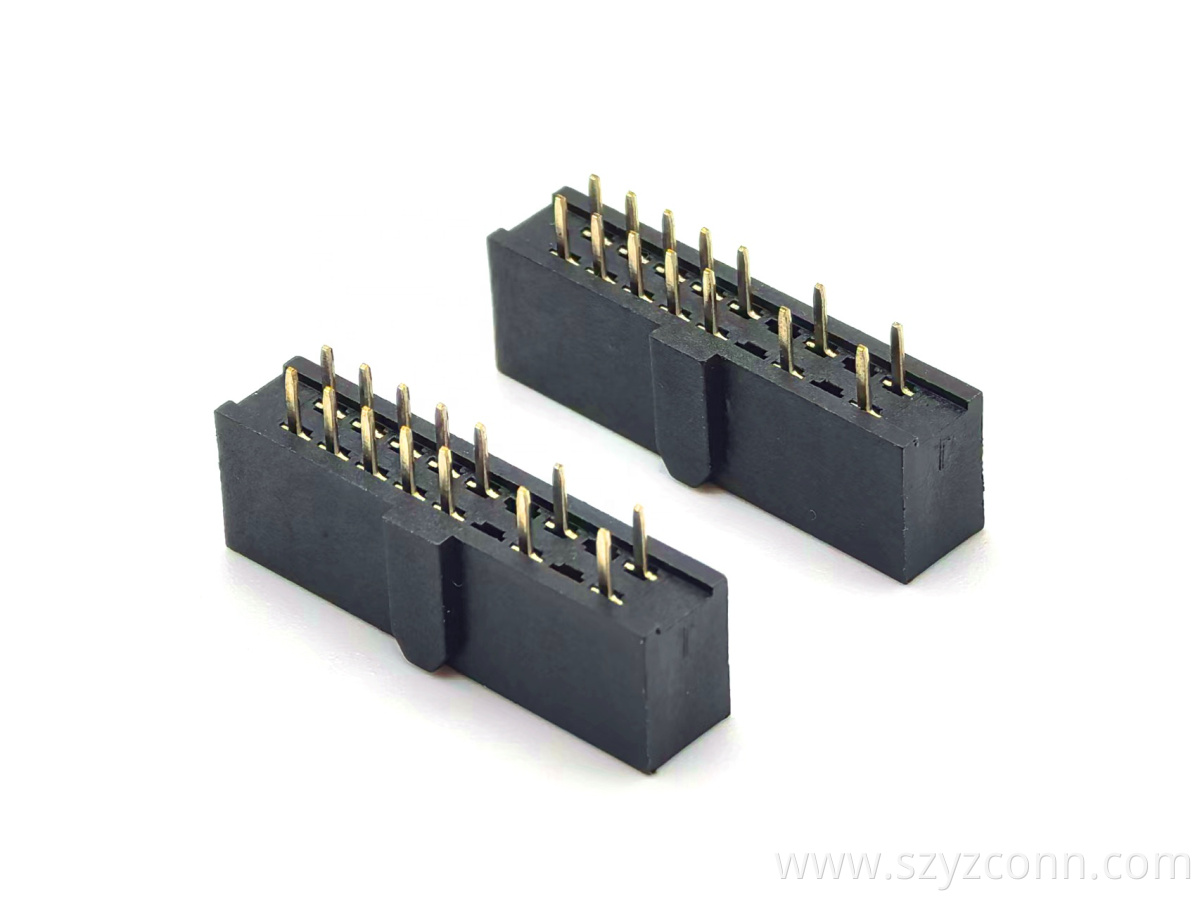

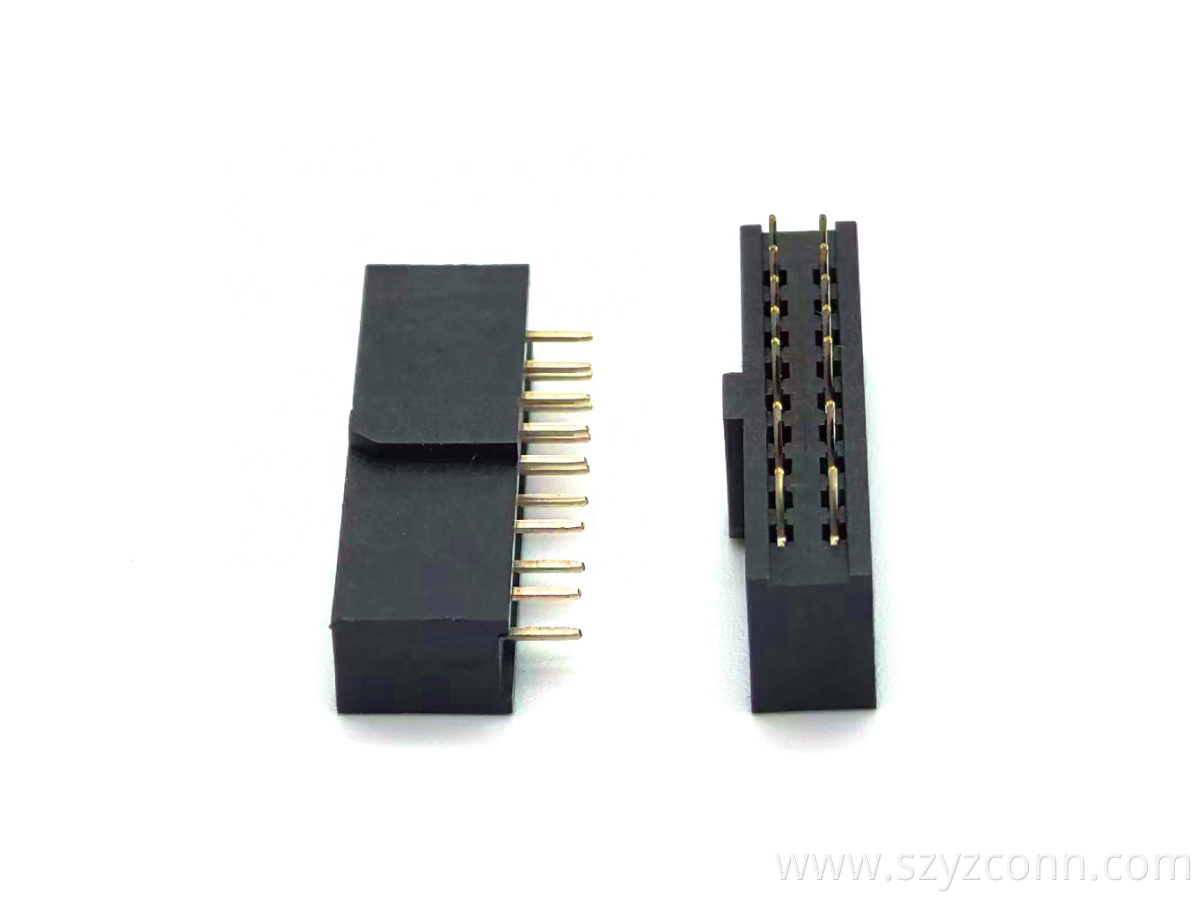

2.54mm Pitch Female Header Connector Dual Row Straight H8.5mm 2*11P Pins 1, 2, 5, 6, 9, 10, 21, 22: No Connect

Crafted with high-grade brass contacts coated in durable gold plating,it guarantees low contact resistance and exceptional corrosion resistance,ensuring long-term performance in demanding environments.The 2.54mm female to female header 22p adheres to DIN standards,making it universally compatible with industry-standard PCB layouts.Rated for 3A current and 600V voltage,it operates flawlessly across a wide temperature range of -40°C to +105°C,making it ideal for industrial, automotive,and consumer electronics applications.

Constructed with PA6T colloidal material,this 2.54mm header female connector 22p boasts superior heat resistance and mechanical strength,withstanding maximum soldering temperatures of 260°C for 10 seconds without deformation—critical for modern reflow soldering processes.The gold-plated brass contacts not only enhance conductivity but also minimize signal loss,ensuring stable performance in high-speed data transmission.The tube packaging further streamlines production workflows by protecting components during transportation and automated assembly.Engineered for straight-plug installation,it offers effortless mating with male headers while maintaining a low-profile footprint.Its robust design is further reinforced by a rectangular shape that optimizes space utilization on PCBs,catering to compact device designs without compromising functionality.
