2.54mm Pitch Female Header Connector Straight 18P

2.54mm Pitch Female Header Connector Straight 18P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 1102S-2*9P-H8.5-Y-F-05

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

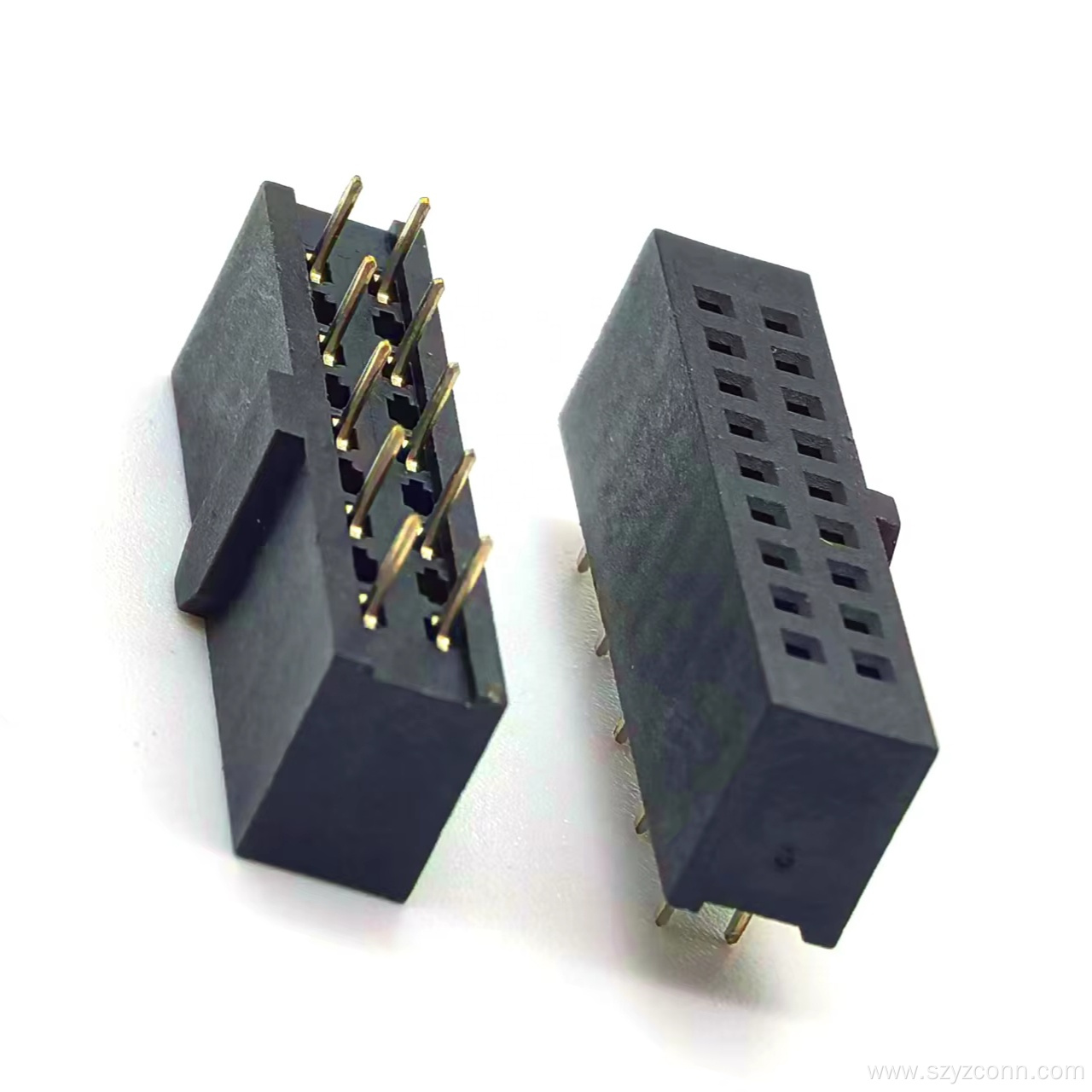

2.54mm Pitch female header connector Straight 18P

This YZTECH 2.54mm Pitch Female header connector Straight 18P features an innovative pin configuration with even columns unpopulated,delivering enhanced design flexibility for specialized PCB applications.The straight-plug 2.54mm Female Header y-type maintains an 18-position interface while strategically reducing material usage without compromising performance.

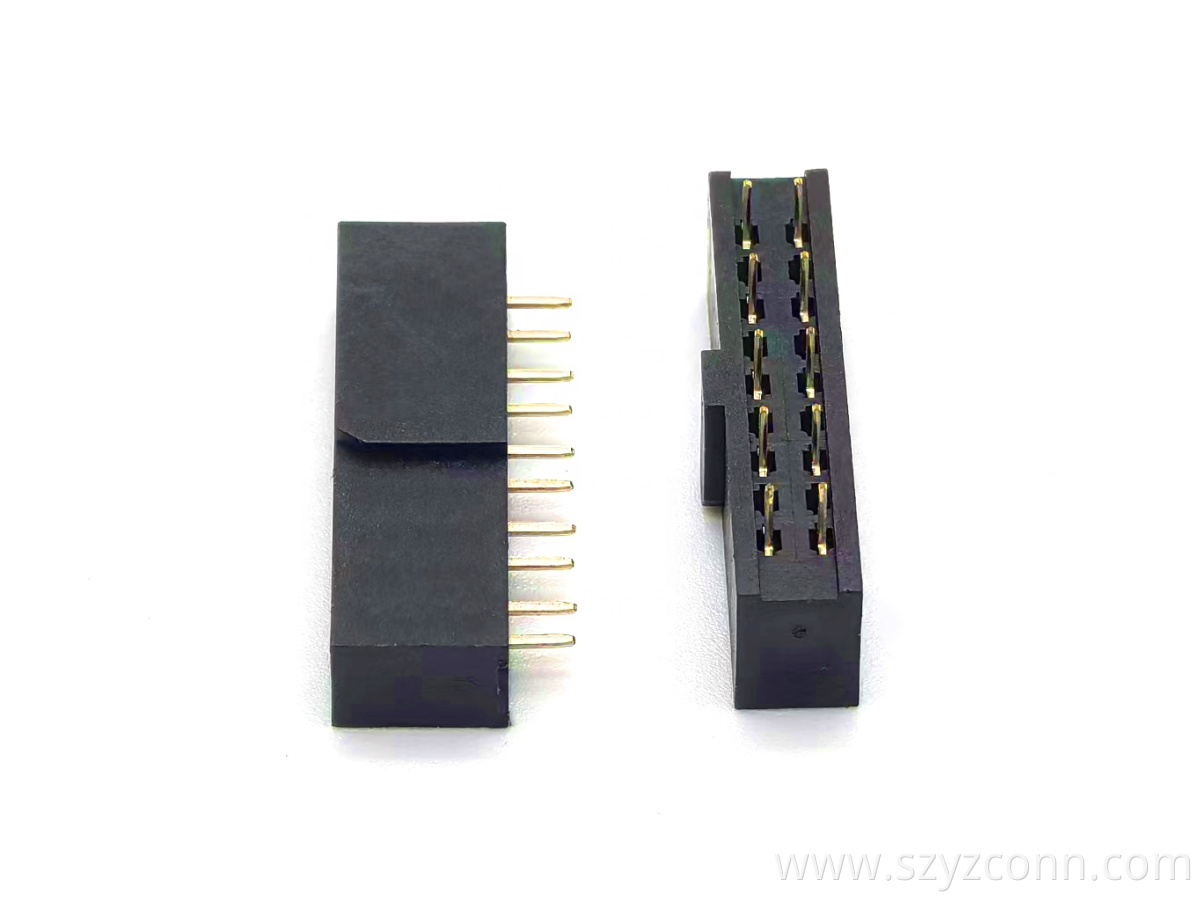

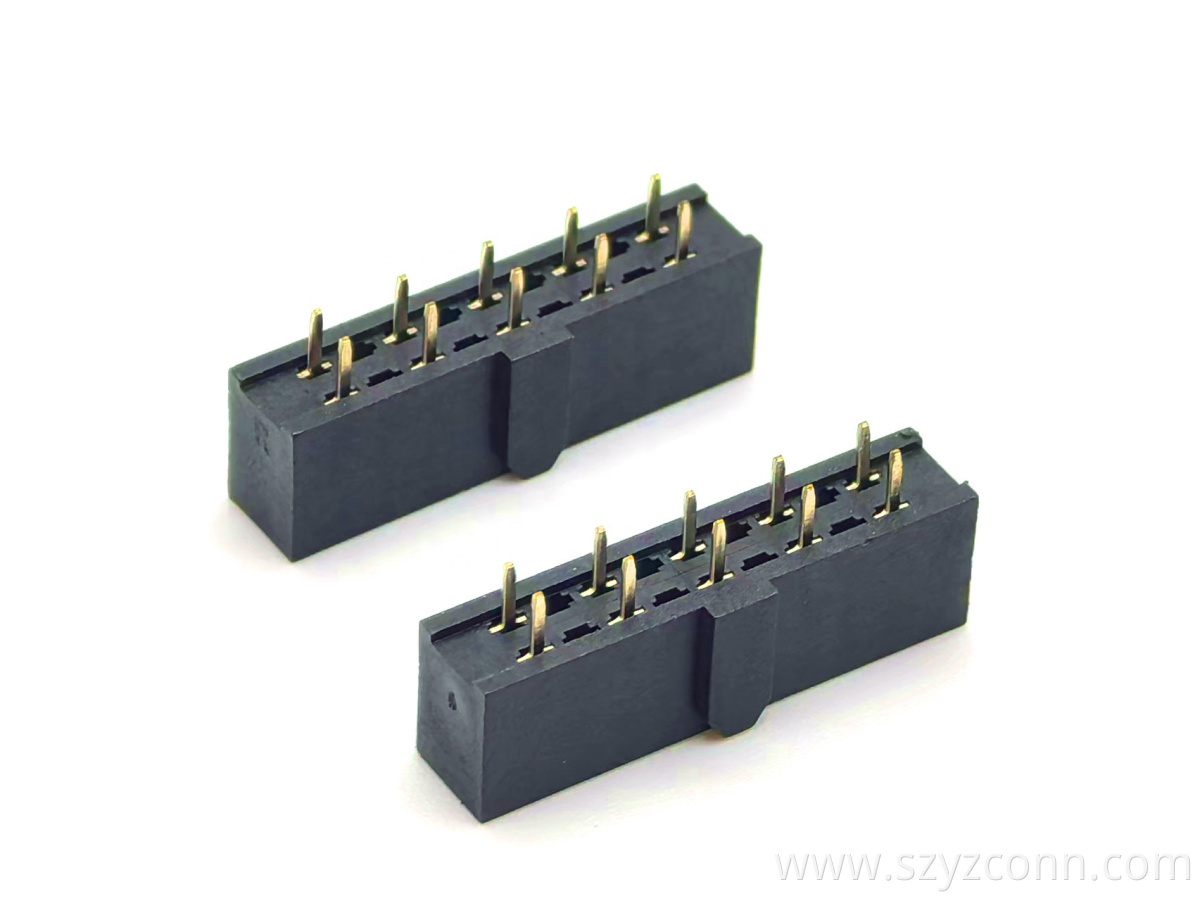

2.54mm Pitch Female Header Connector Dual Row Straight H8.5mm With Even Columns Unpopulated Y-type 2*9P

Engineered for manufacturing excellence, this 2.54mm Female Header demonstrates remarkable durability across an operating temperature range of -40℃ to +105℃.The hybrid contact plating creates an optimal balance between performance and cost,ensuring reliable connectivity while maintaining competitive pricing.The high-temperature PA6T insulation material withstands deformation and maintains structural integrity under thermal stress.The brass contacts employ a strategic half gold tin plating,combining the superior corrosion resistance of gold in critical contact areas with the cost-effectiveness of tin plating.With an impressive 3A current rating and 600V voltage capacity,this 2.54mm header female 18p handles both power and signal transmission requirements with reliability.

Compatible with automated assembly processes,the 2.54mm female header connector 18p endures maximum welding temperatures of 220℃ for 10 seconds and arrives in protective tube packaging that facilitates efficient handling and installation while minimizing damage during transportation and storage.
