2.54mm Pitch Female Header Connector 20P

2.54mm Pitch Female Header Connector 20P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 1102R.2*10P-H5.7mm

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tray

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tray&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

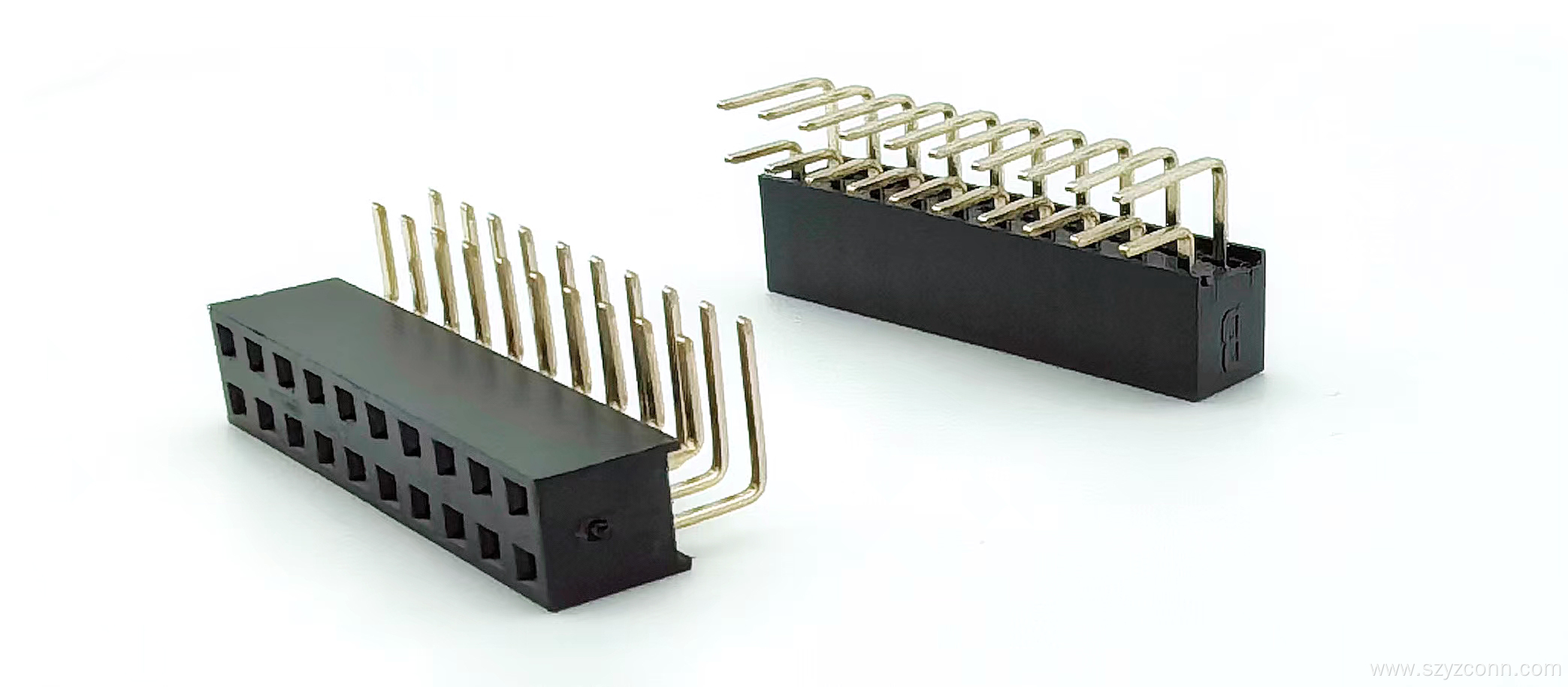

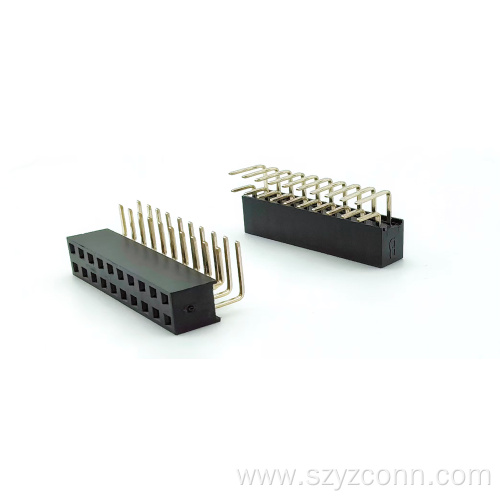

2.54mm Pitch female header connector 20P

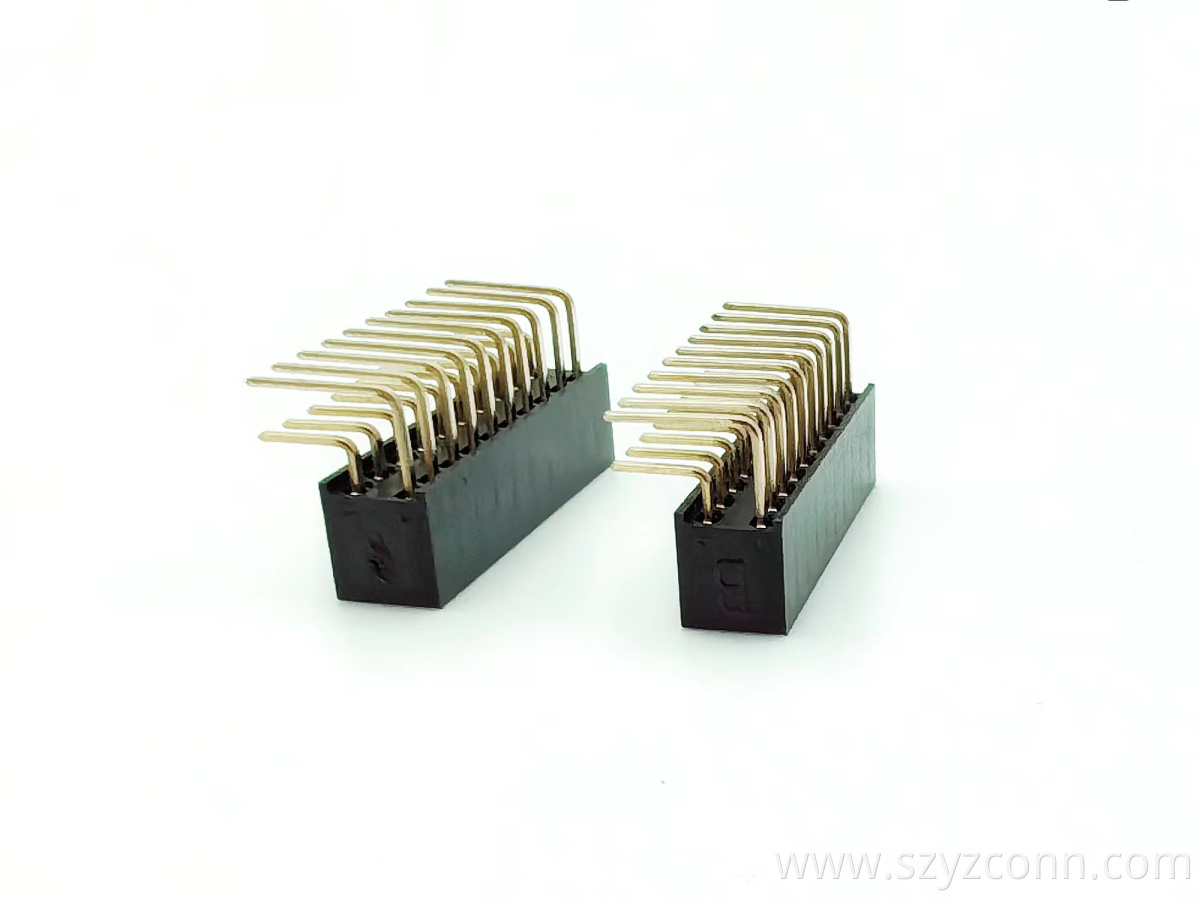

YZTECH presents a high-performance 2.54mm Pitch Female header connector 20P engineered for reliability in demanding electronic applications.This right-angle,Y-type 2.54mm Female Header 20p facilitates efficient PCB stacking and parallel board-to-board connections,optimizing space in complex layouts.Constructed with a brass base and finished with selective gold plating on the contacts,it ensures excellent electrical conductivity and resistance to wear.The housing,made from high-temperature PBT material,provides superior insulation and mechanical strength,maintaining stable performance across an extensive operating temperature range from-40°C to+105°C.

Designed for seamless integration into modern production lines,this DIN-standard 2.54mm header female 20p features a bending insertion design for secure mounting and strain relief.Its tray packaging is optimized for automated pick-and-place equipment,significantly boosting assembly efficiency and minimizing handling errors.The electronic component withstands a maximum soldering temperature of 220°C for 10 seconds,ensuring integrity through reflow processes.With a robust rating of 3A current and 600V voltage,this 2.54mm Female Header connector 20p delivers dependable power and signal transmission for industrial controls,automotive electronics,and telecommunications infrastructure,meeting stringent international quality and safety standards.

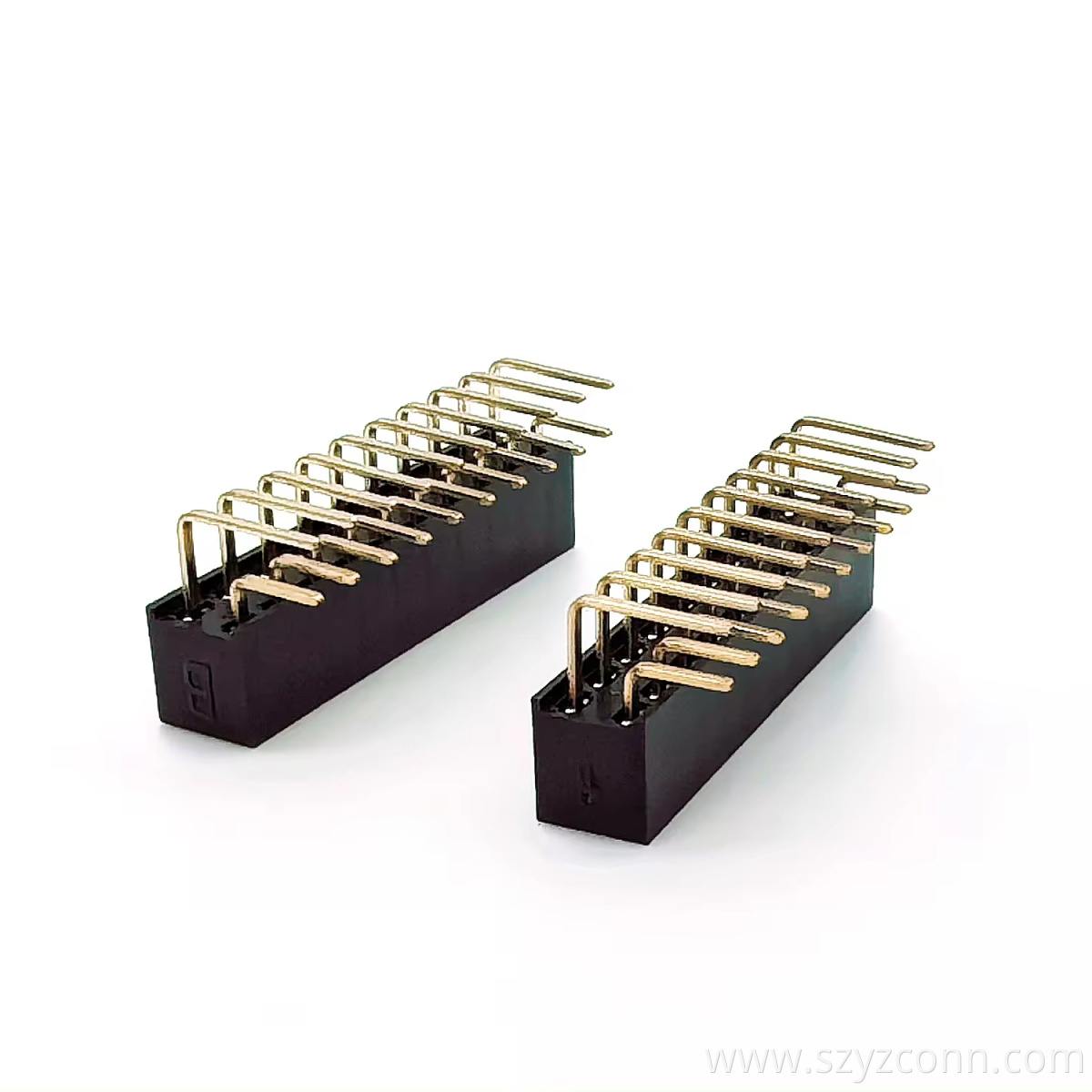

2.54mm female header dual row

YZTECH is committed to supporting global partners with a reliable supply of high-quality interconnection components.This 2.54mm female header is part of a certified product line designed for consistent performance and longevity,reducing the total cost of ownership.We offer flexible order quantities and streamlined logistics,ensuring timely delivery for both prototyping and mass production needs.
