2.54mm Female Header Connector Straight 22P

2.54mm Female Header Connector Straight 22P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 1102S.2*9P-H:8.5-U-F-04

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

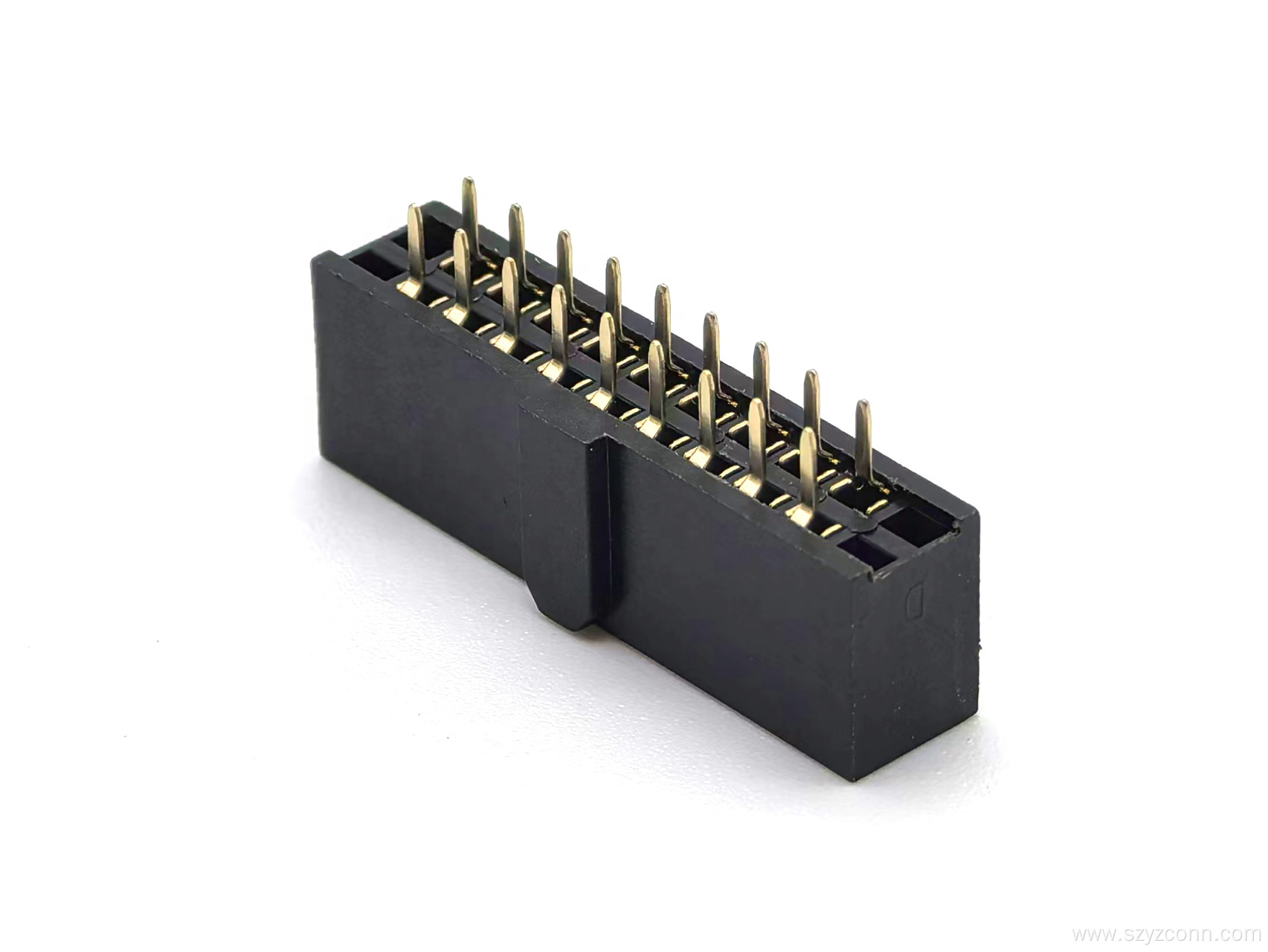

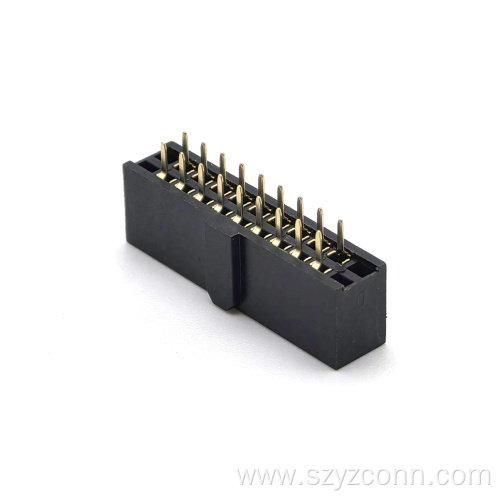

2.54mm female header connector Straight 22P
Engineered for specialized circuit configurations,the YZTECH 2.54mm Female Header Connector Straight 22P delivers superior connectivity with a unique design feature: pins 1, 2, 21, and 22 are intentionally omitted.This strategic pin-out configuration serves as an integrated anti-mis-mating mechanism,preventing incorrect insertion and safeguarding your PCB assemblies during maintenance or module swapping.Designed for straight plug installation,this 2.54mm Female Header 22p maintains a high power rating of 3A and 600V,ensuring robust performance for both power and signal transmission in complex electronic systems.

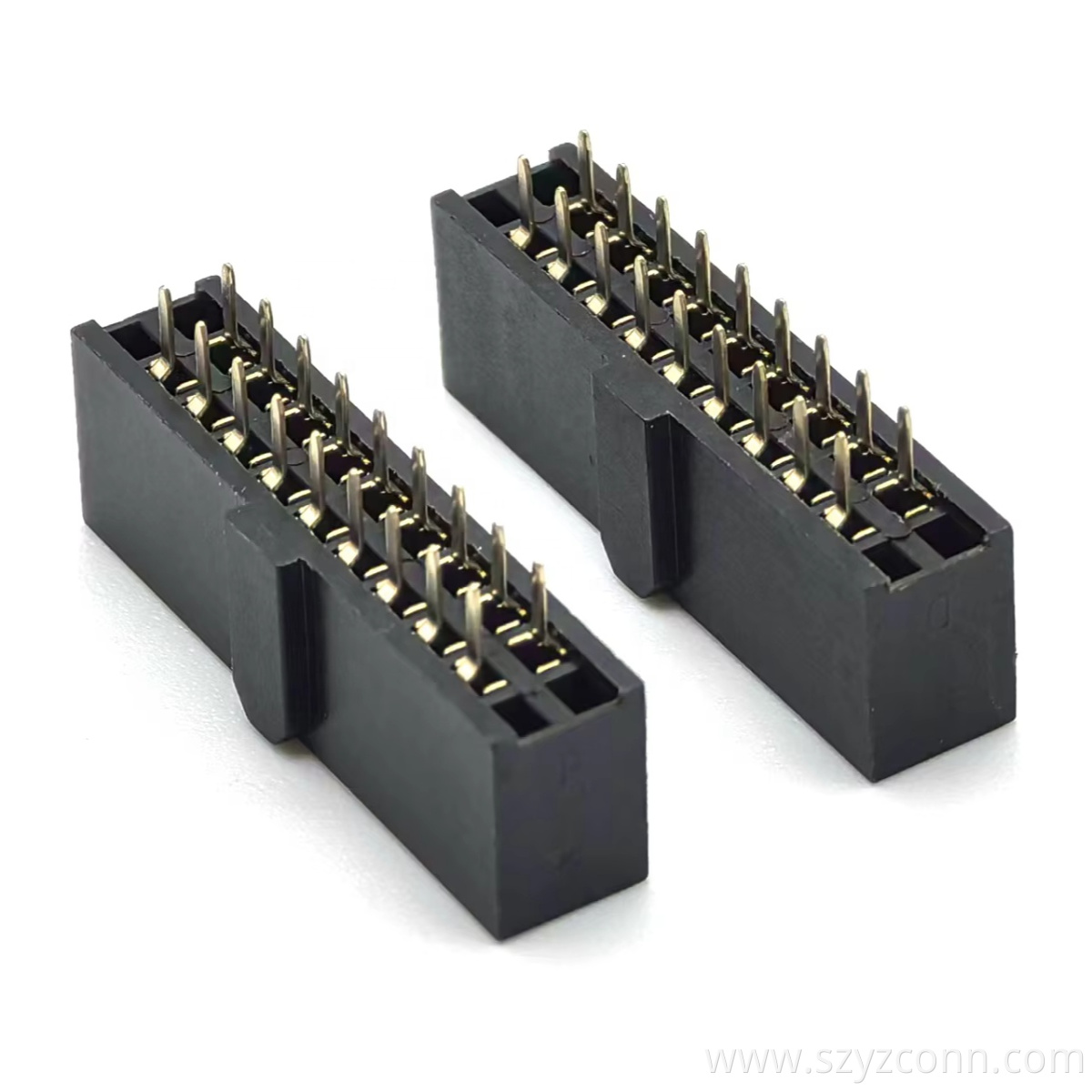

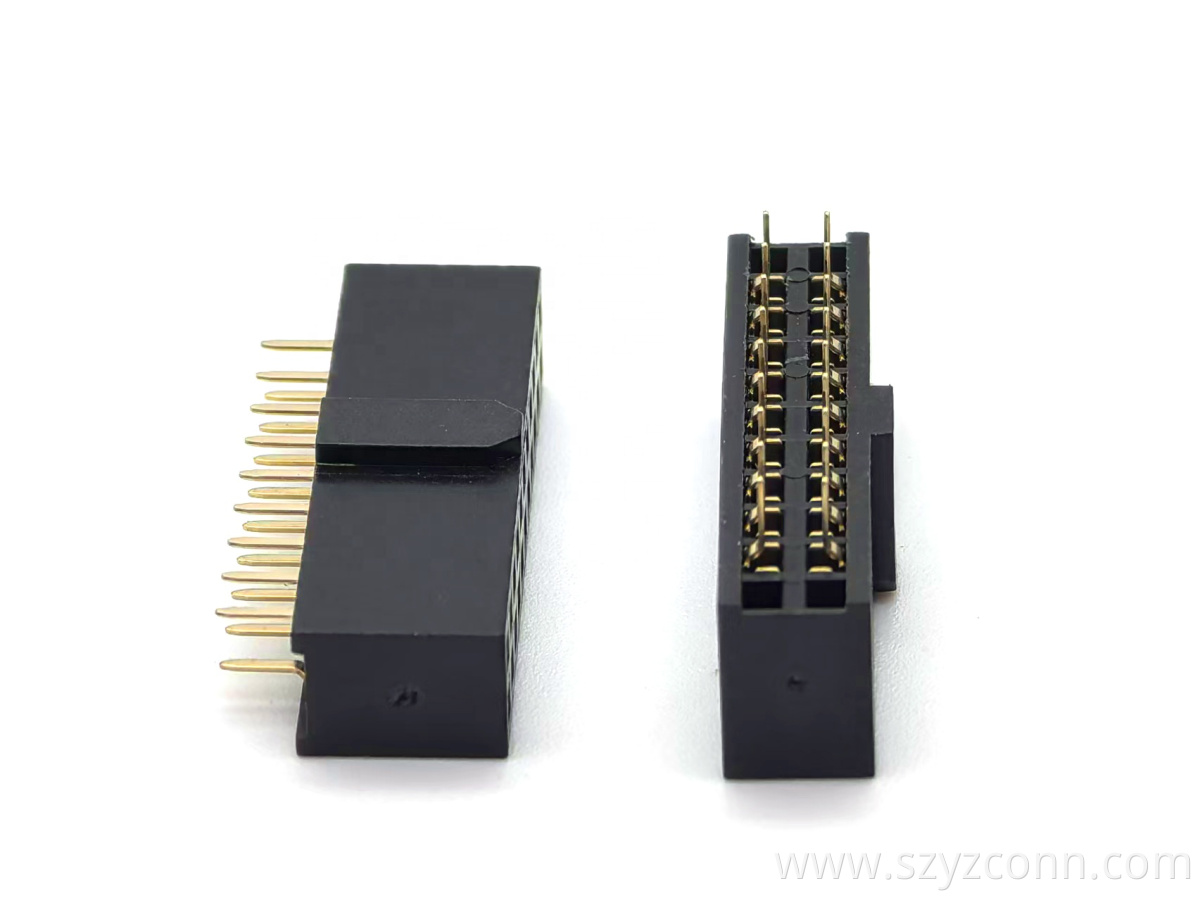

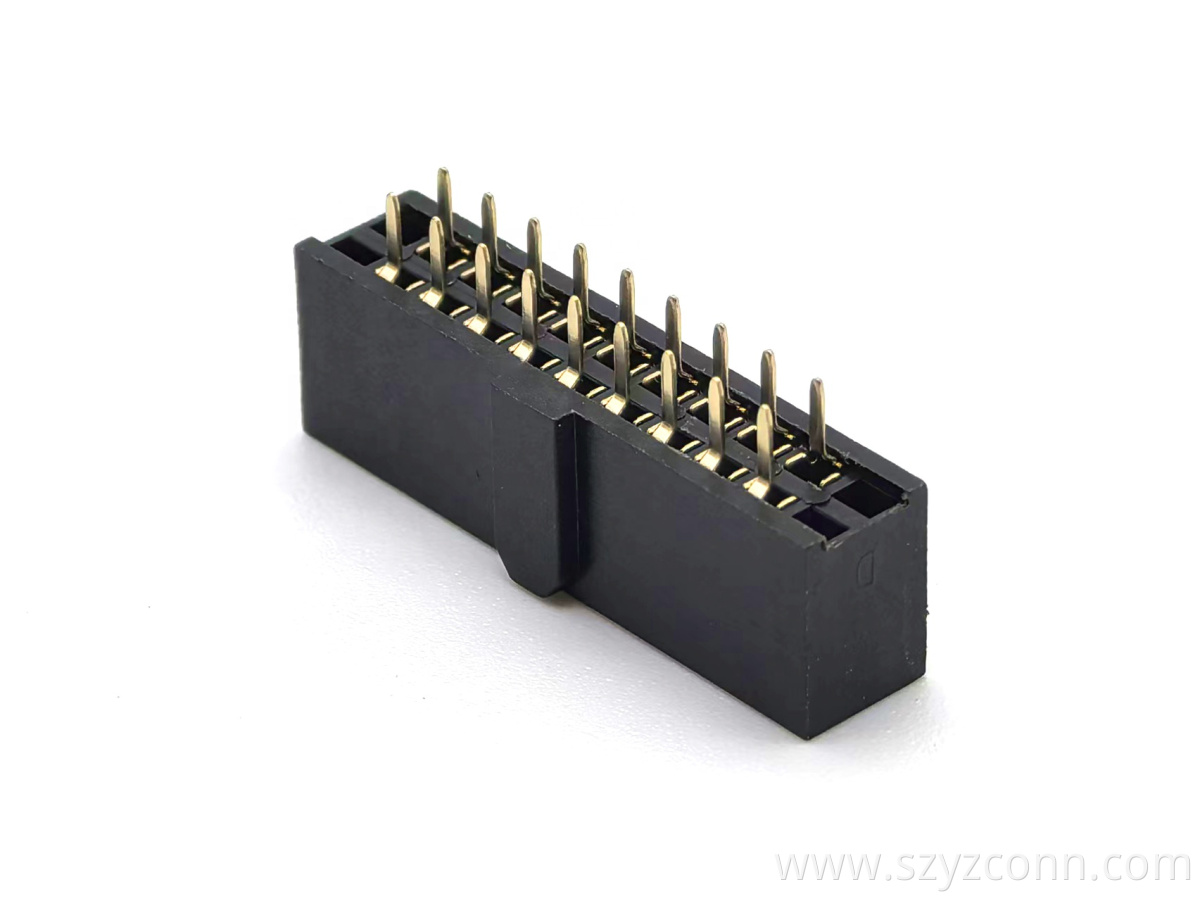

2.54mm Pitch Female Header Connector Dual Row Straight Pin numbers 1, 2, 21, and 22 are left open H:8.5mm U-TYPE 2*11P

Durability is ensured through a premium material selection.The 2.54mm female header connector 22p contacts are precision-formed from brass and feature a full-body gold plating, providing excellent conductivity, corrosion resistance,and a reliable mating connection with male pins over numerous cycles.The connector housing is molded from advanced PA6T, a high-temperature thermoplastic that offers exceptional thermal stability,mechanical strength, and resistance to solvent absorption.This construction allows the 2.54mm header female 22p to withstand an operating temperature range of -40℃ to +105℃ and endure wave soldering processes up to 200℃ for 10 seconds without degradation.

Packaged in protective tubes for secure storage and handling,this 2.54mm female header is ideal for manual or semi-automated assembly lines.Its unique missing-pin design is critical for applications requiring foolproof connectivity,such as in modular industrial controllers, telecommunications infrastructure,and sophisticated automotive control units.By integrating this YZTECH connector,you achieve not only a dependable electrical interface but also a built-in safeguard that enhances assembly accuracy and long-term system reliability.
