SH1.0mm Wafer Pin header Connector SMT 3P

SH1.0mm Wafer Pin header Connector SMT 3P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

White 1-core 3P

Contact Now

Product Description

Product Attributes

Model No.: 29001.SH100R-SMT-3P-R

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Other

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

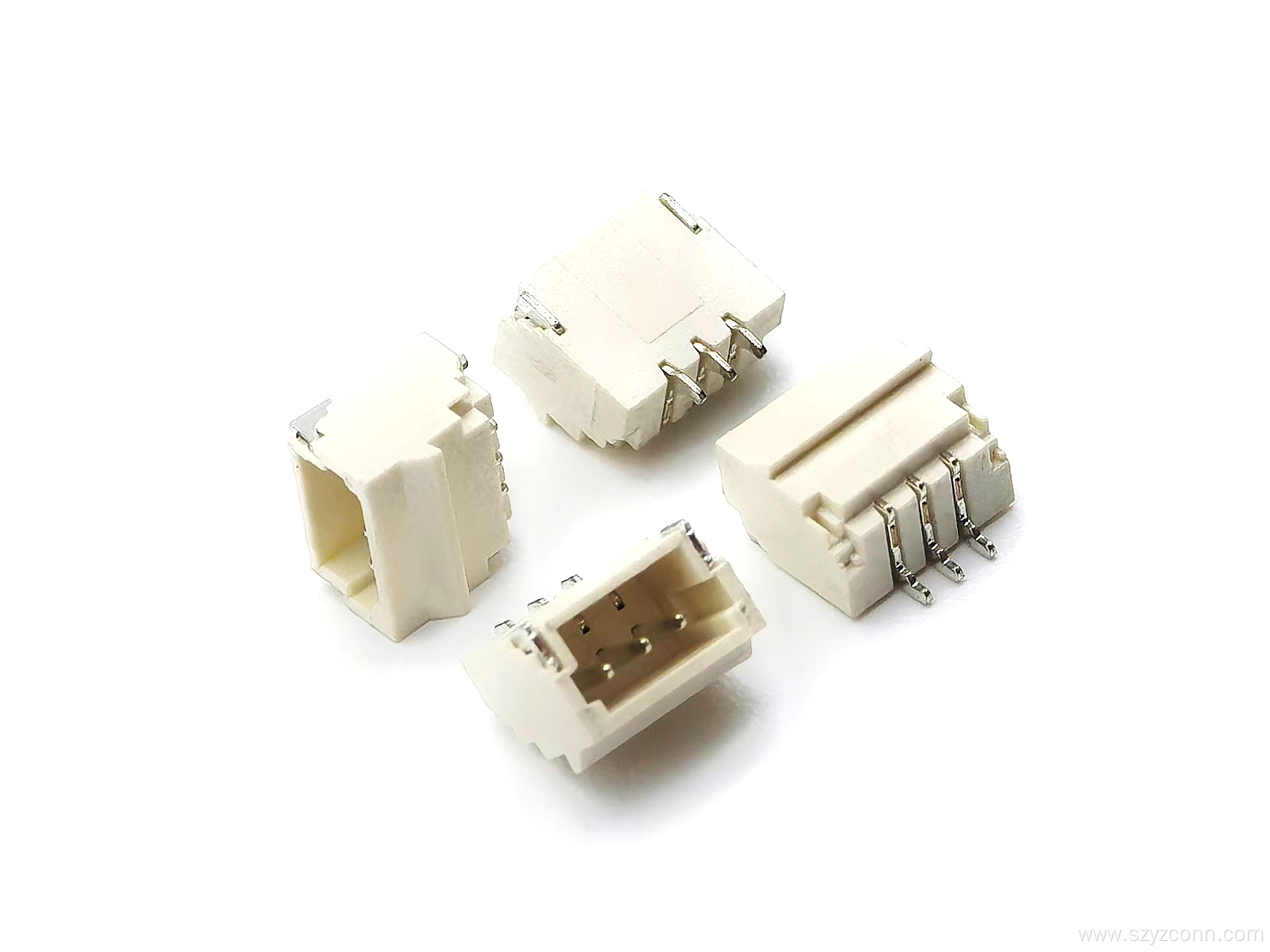

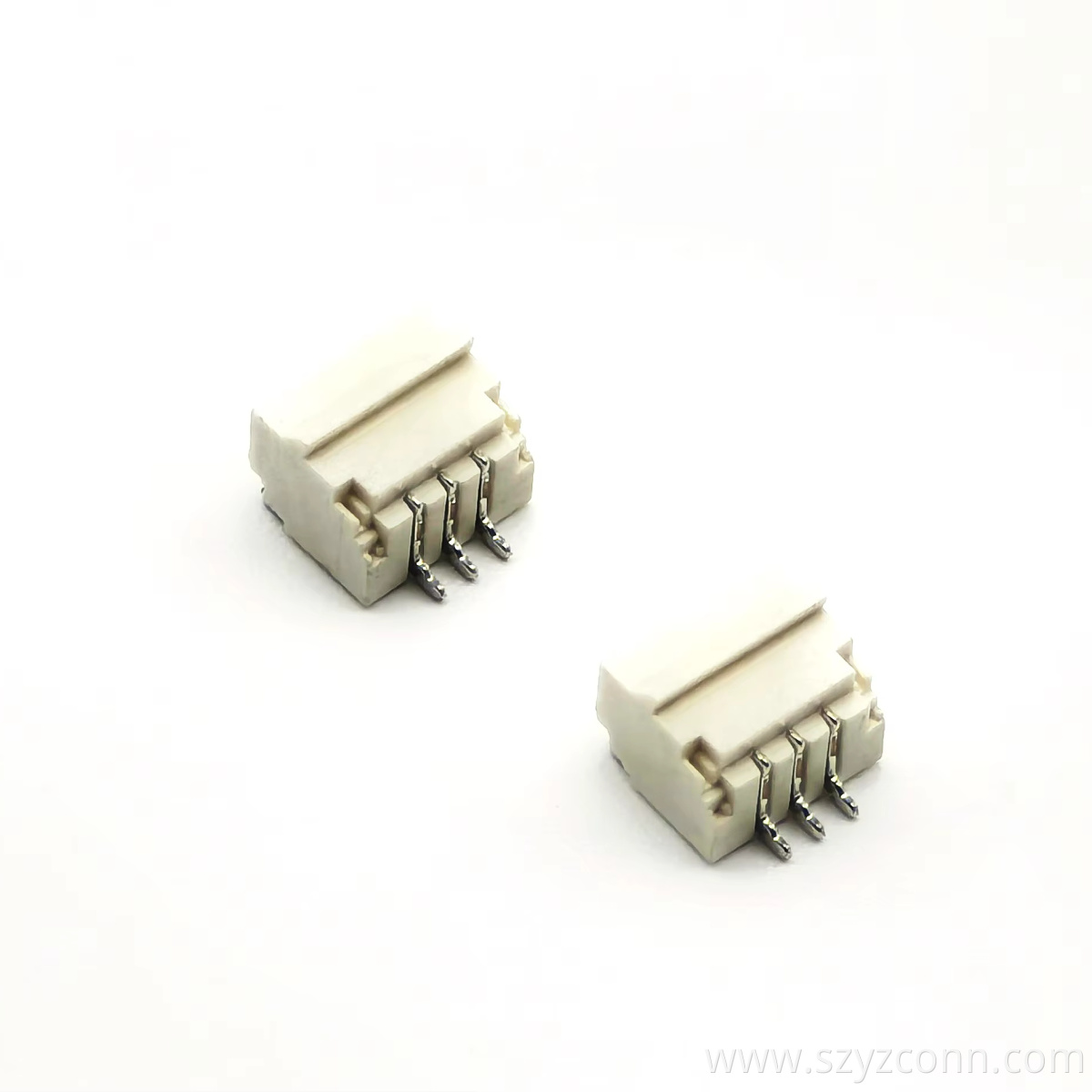

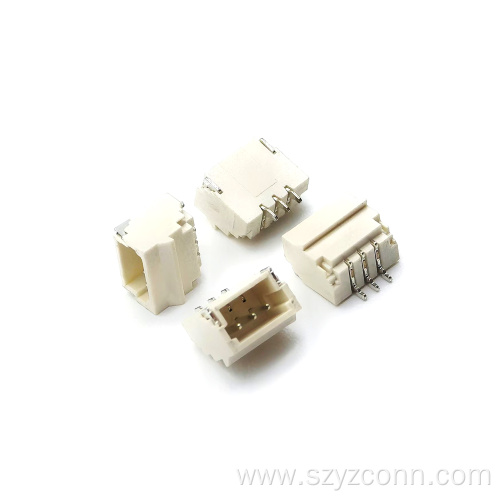

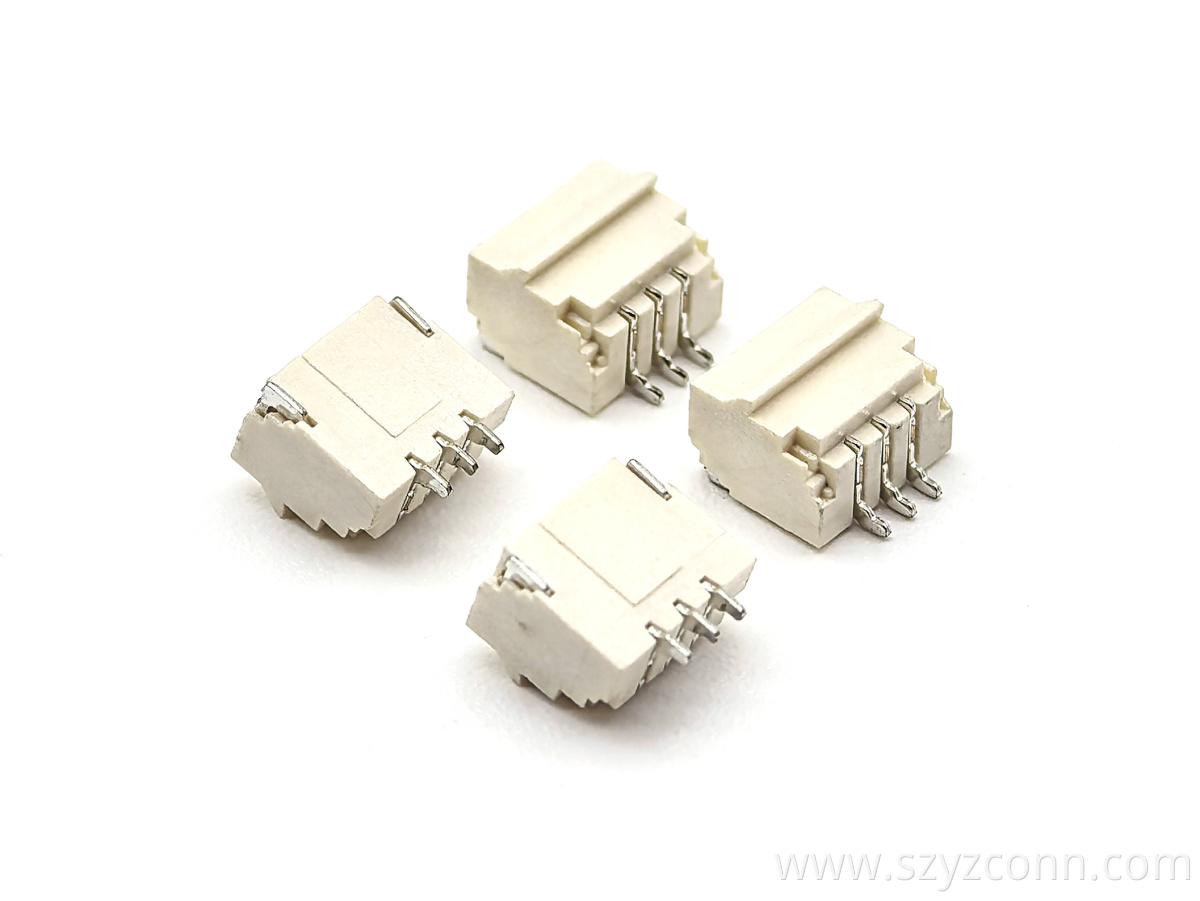

SH1.0mm Wafer Pin header Connector SMT 3P

The YZTECH SH1.0mm Wafer pin header connector SMT 3P is a miniature Connector specifically designed for high-density electronic assembly,belonging to Wafer Housing Terminal. With its compact single-row, three-pin structure and rectangular shape,the SH1.0mm Wafer Pin Header 3p serves as an ideal choice for PCB integration. Featuring male-pin design, this wafer pin header connector smt can be securely paired with corresponding female sockets, providing reliable connections for various electronic devices.

In terms of materials and craftsmanship, this wafer housing terminal with hook demonstrates exceptional technical standards. The wafer Housing Connector is made of highly conductive phosphor bronze as the contact material, ensuring efficient signal transmission with low loss while offering excellent wear and corrosion resistance. The tin-plated surface not only enhances solderability for convenient SMT mounting but also further improves oxidation resistance. The insulator is made of LCP, which features high-temperature resistance, dimensional stability, and high mechanical strength, ensuring stable operation within an environmental range of -25℃ to +85℃. With rated performance specifications of 1A current and 50V voltage, it is widely applicable to various medium- and low-power scenarios.

This connector exhibits broad applicability across multiple industries. Packaged in tubular form, it facilitates production, transportation, and storage, fully ensuring product quality and supporting the continuous development of electronic devices towards thinner, lighter, and higher-performance directions.
