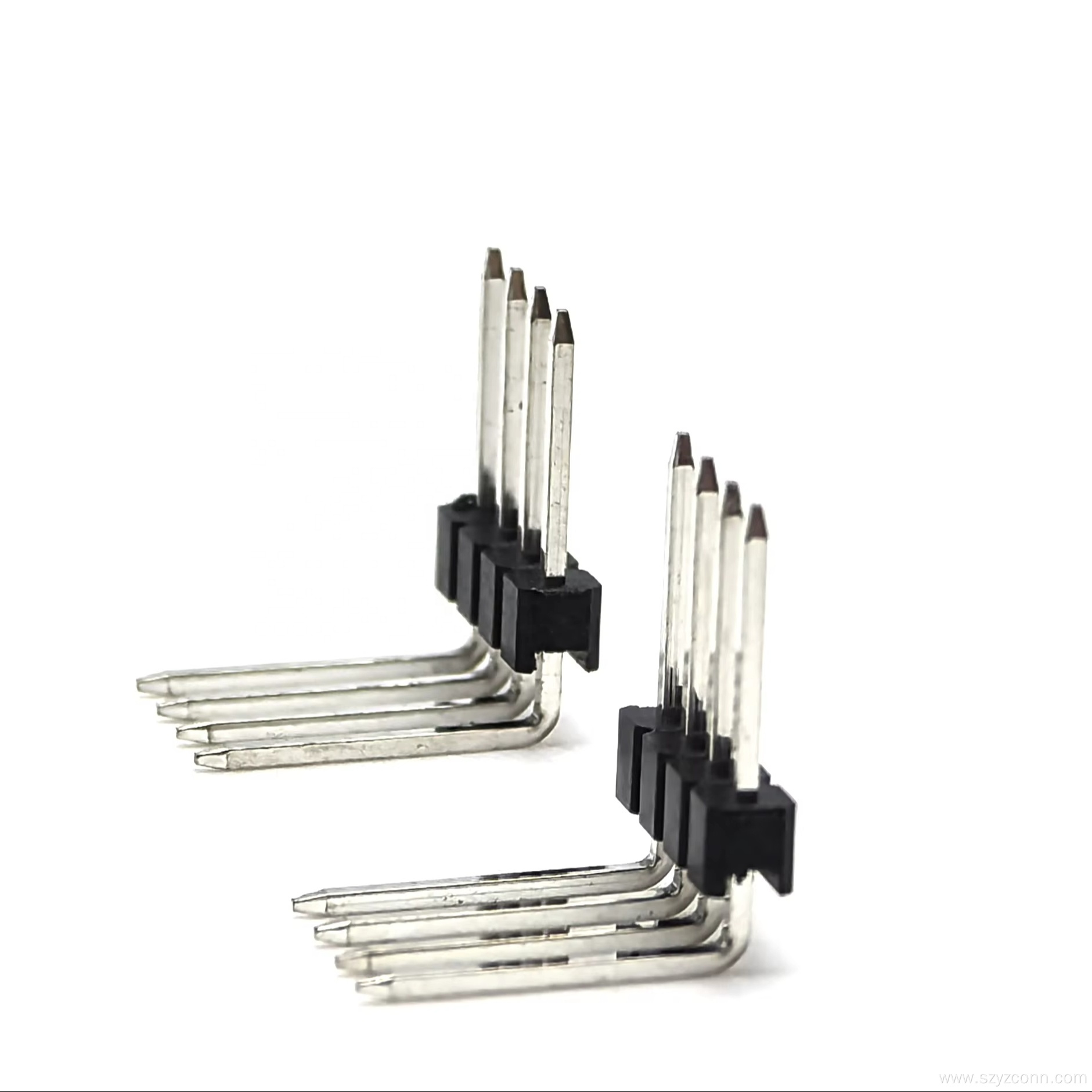

2.54mm Pin header Connector Right Angle 4P

2.54mm Pin header Connector Right Angle 4P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 1-core 4P

Contact Now

Product Description

Product Attributes

Model No.: 1101R.1*4P-0180-S-04

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Supply Type: Original Manufacturer

Place Of Origin: China

Species: Headers And Pcb Receptacles

Package: Other

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Bag&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

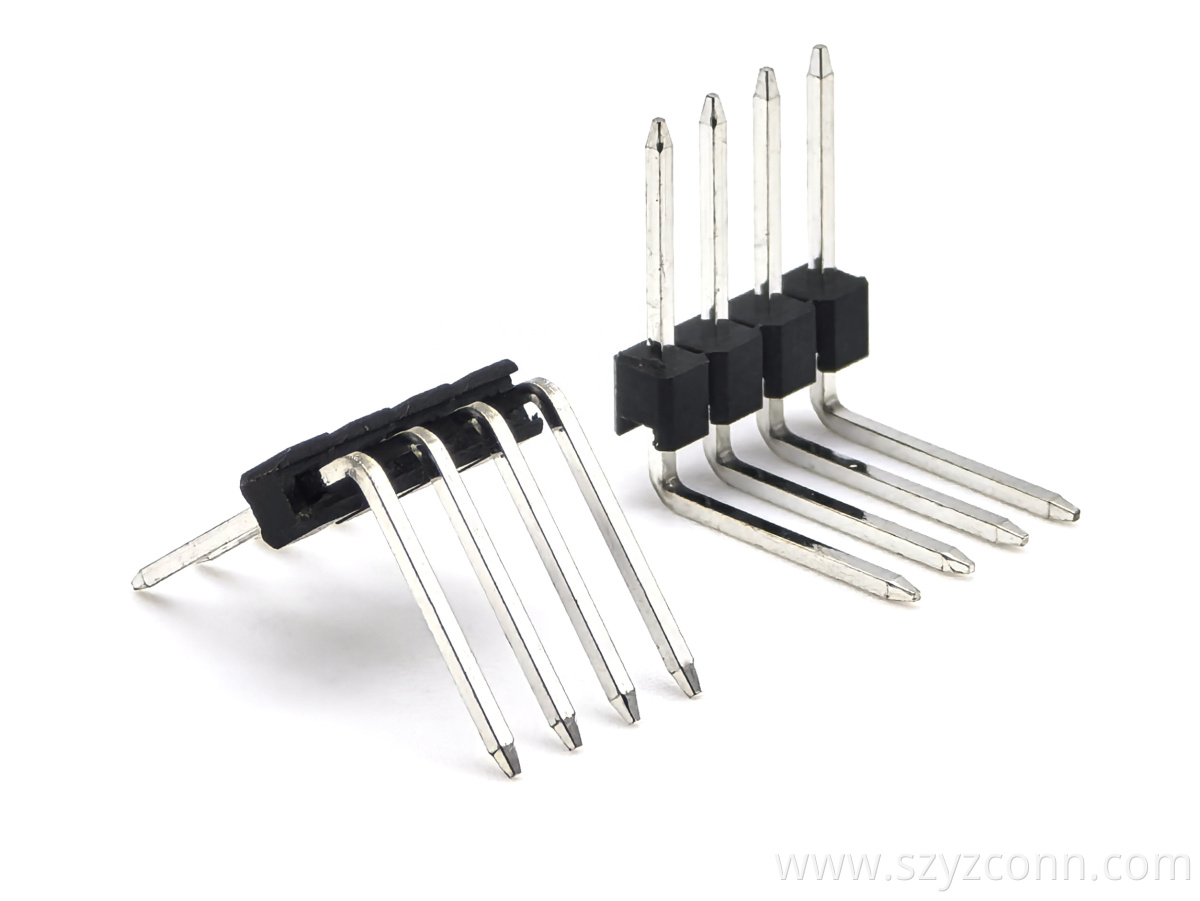

2.54mm Pitch Pin header Connector Single Row Right Angle



Product Description

2.54mm pin header connector Right Angle 4P

YZTECH 2.54mm Pin Header Connector Right Angle 4P delivers board-to-board and wire-to-board versatility in a footprint.Milled brass pins, selectively tin-plated 3 µm min., carry 3A per contact at 600V while keeping contact resistance below 10 mΩ.The high-flow PA6T insulator withstands 200 °C for 10 s during lead-free wave or selective soldering, and remains mechanically stable from –40 °C to +105 °C, making the 2.54mm Pin Header H2.5mm black equally at home in reflow, wave or hand-solder processes.Supplied in anti-static boxes, parts are pick-and-place compatible and ready for immediate high-volume assembly.

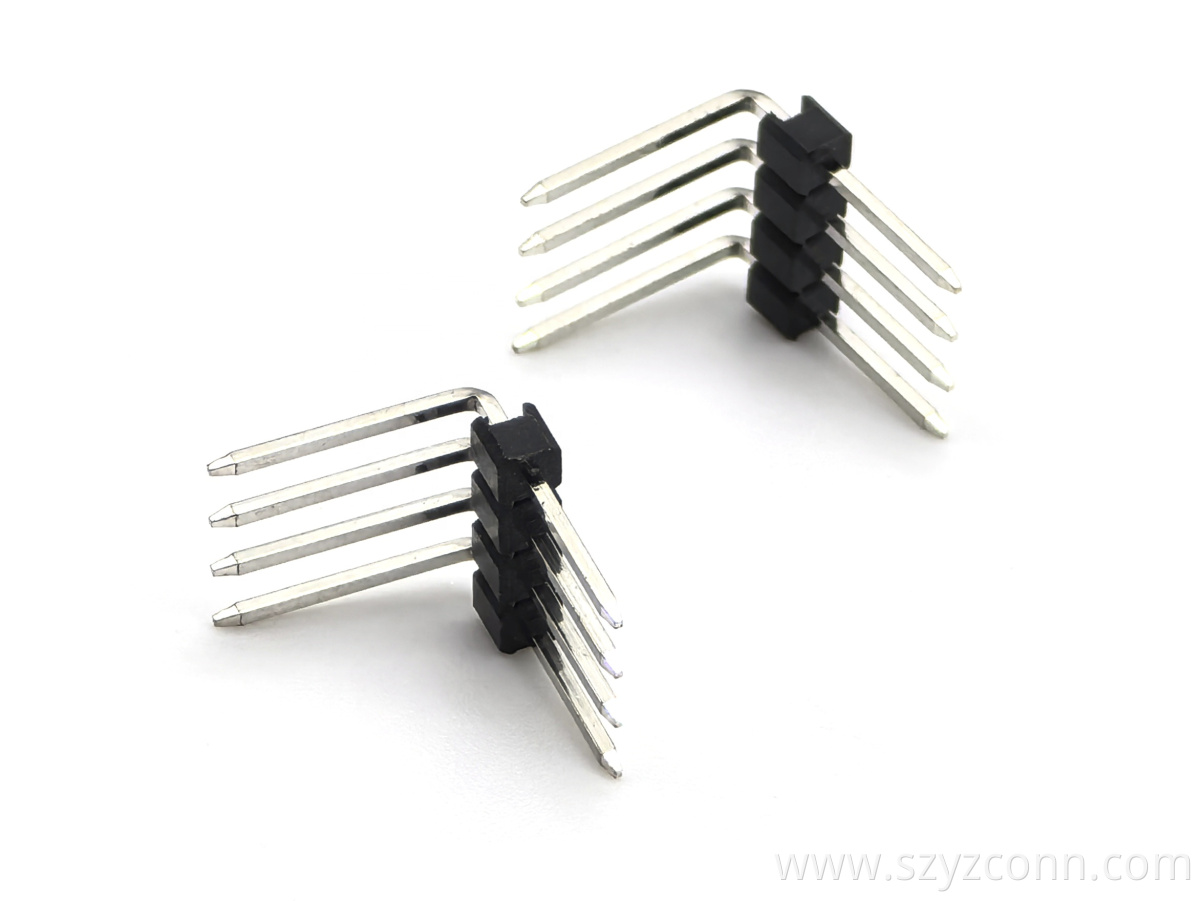

2.54mm Pitch Pin header Connector Single Row Right Angle

Target markets span industrial drives,building automation,smart-metering,security controls,12V/24V automotive peripherals, battery-management systems, and cost-sensitive consumer white goods.The 90° structure of this PA6T 2.54mm header connector keeps cable bundles flat against the PCB, saving vertical space inside drones, robotic arms, dashboard clusters and IoT gateways.Positive locking headers mate with shrouded or unshrouded receptacles, enabling field-replaceable sensor harnesses, LED strip interlinks, programmer ports and modular power rails without tooling.

With DIN footprint compliance and UL94V-0 flammability rating,the YZTECH 2.54mm pin header simplifies global BOM approval.Engineers gain a future-proof interconnect that scales from prototype to mass production, shortens assembly time and drives down total installed cost.Choose this pin header 2.54mm PC8.0 solution for reliable, maintenance-free connections that keep tomorrow’s compact, power-efficient designs running at peak performance.
