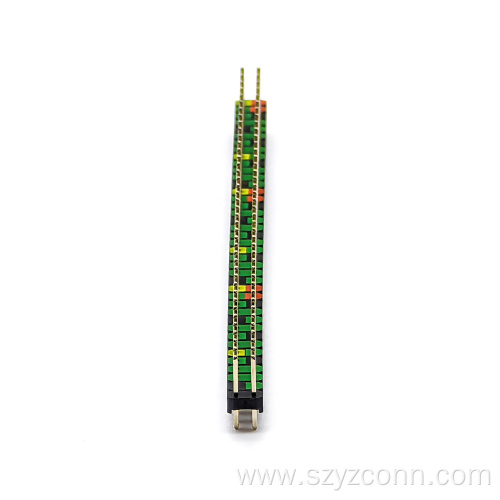

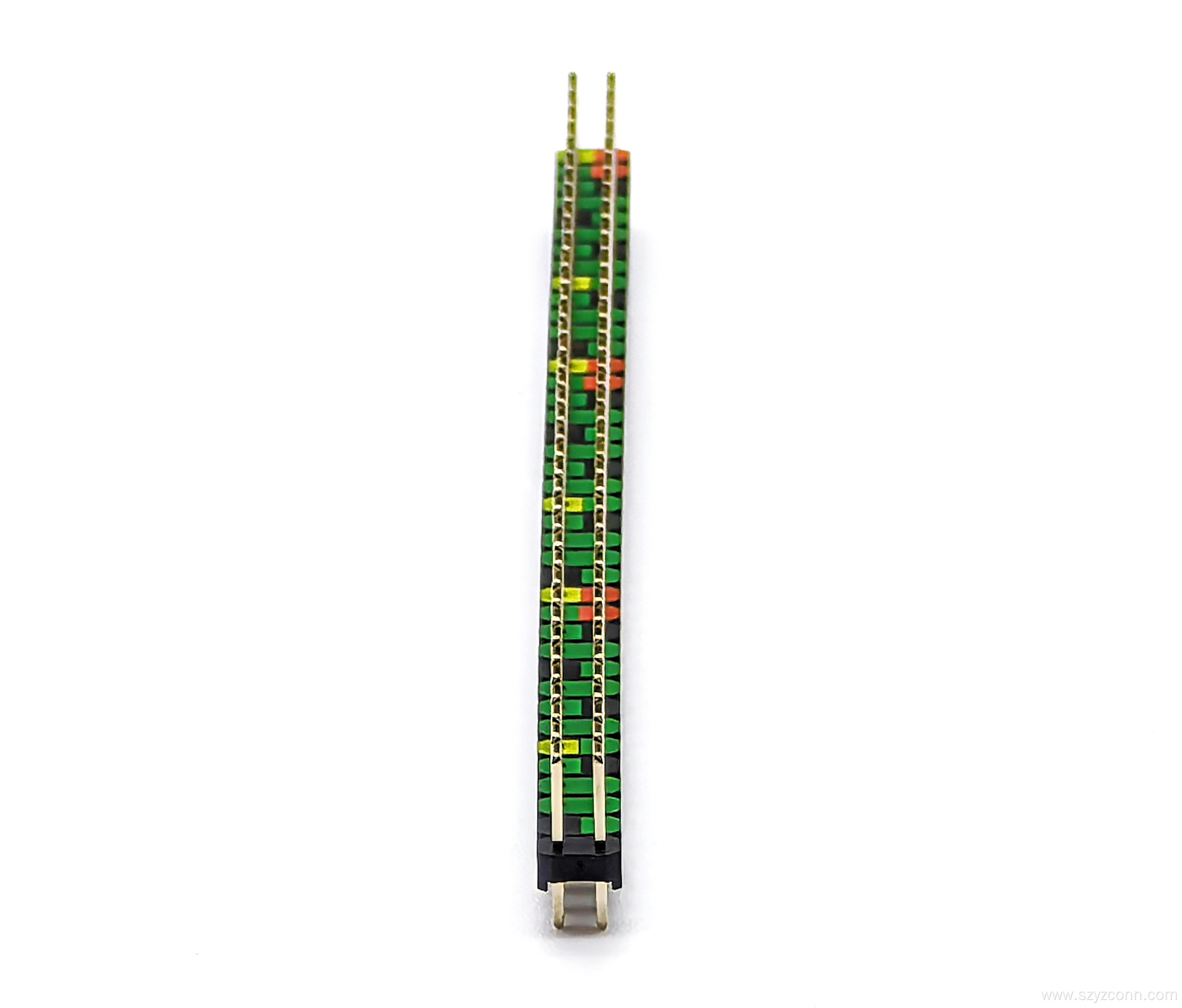

2.54mm Pin Header Connector Dual Row Straight

2.54mm Pin Header Connector Dual Row Straight

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black/Colored 2-core 80P

Contact Now

Product Description

Product Attributes

Model No.: 1101S-2*40P-0115

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Supply Type: Original Manufacturer

Place Of Origin: China

Package: Other

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Bag&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

2.54mm Pitch Colored Pin Header Connector Dual Row Straight SQ0.64mm



Product Description

2.54mm pin header connector Dual Row Straight

Engineered for robust performance in high-power and multi-signal applications,the YZTECH 2.54mm Pin Header Connector Dual Row Straight delivers exceptional reliability.This male 2.54mm Pin Header colored/black features a 40-position interface in a standard rectangular shape, providing a dense yet manageable I/O solution for complex PCB designs.Its straight plug installation method ensures straightforward vertical mounting,simplifying the board assembly process.Adhering to DIN standards,this pin header 2.54mm straight H2.5mm is built to establish a secure and stable bridge between printed circuit boards and various cable harnesses or sockets.

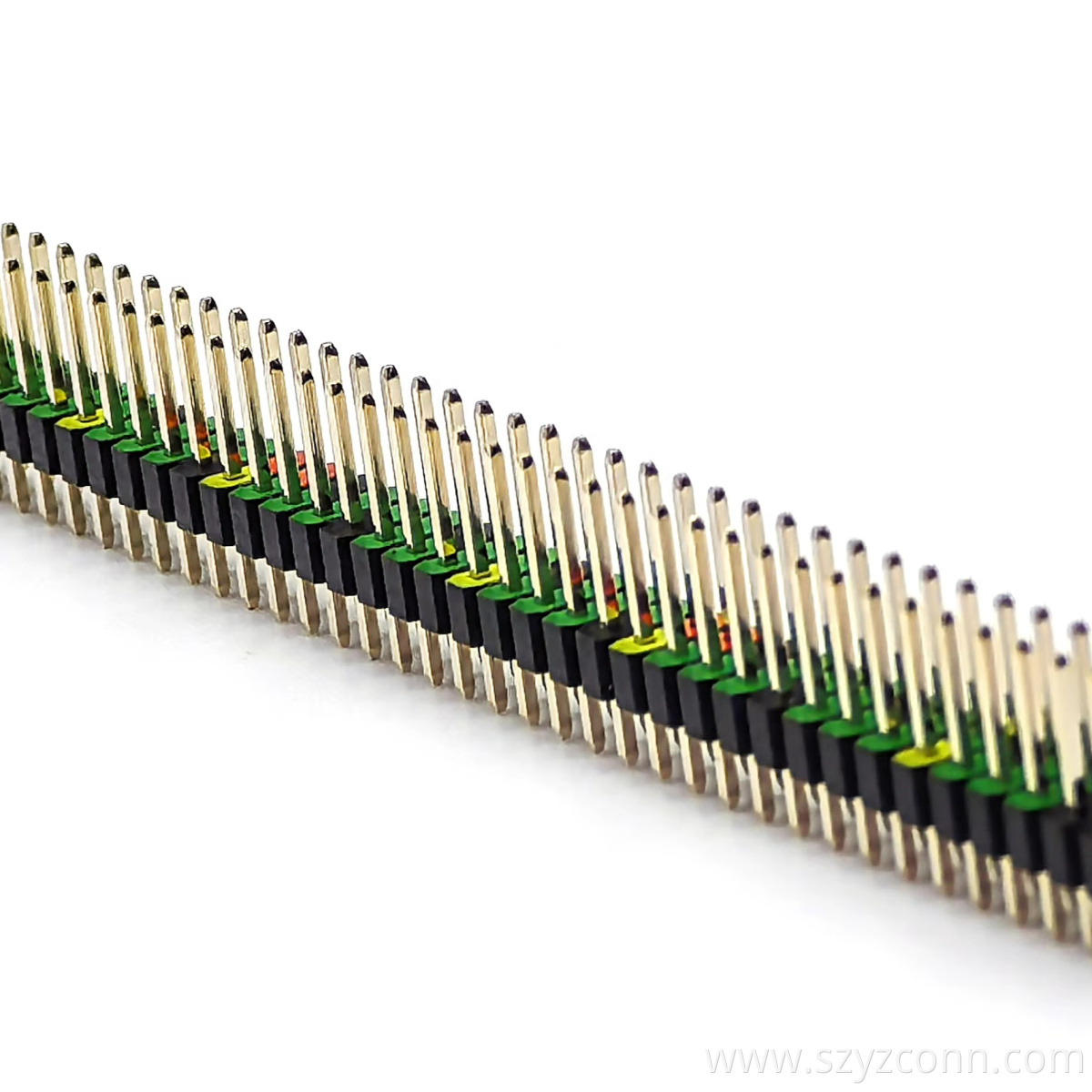

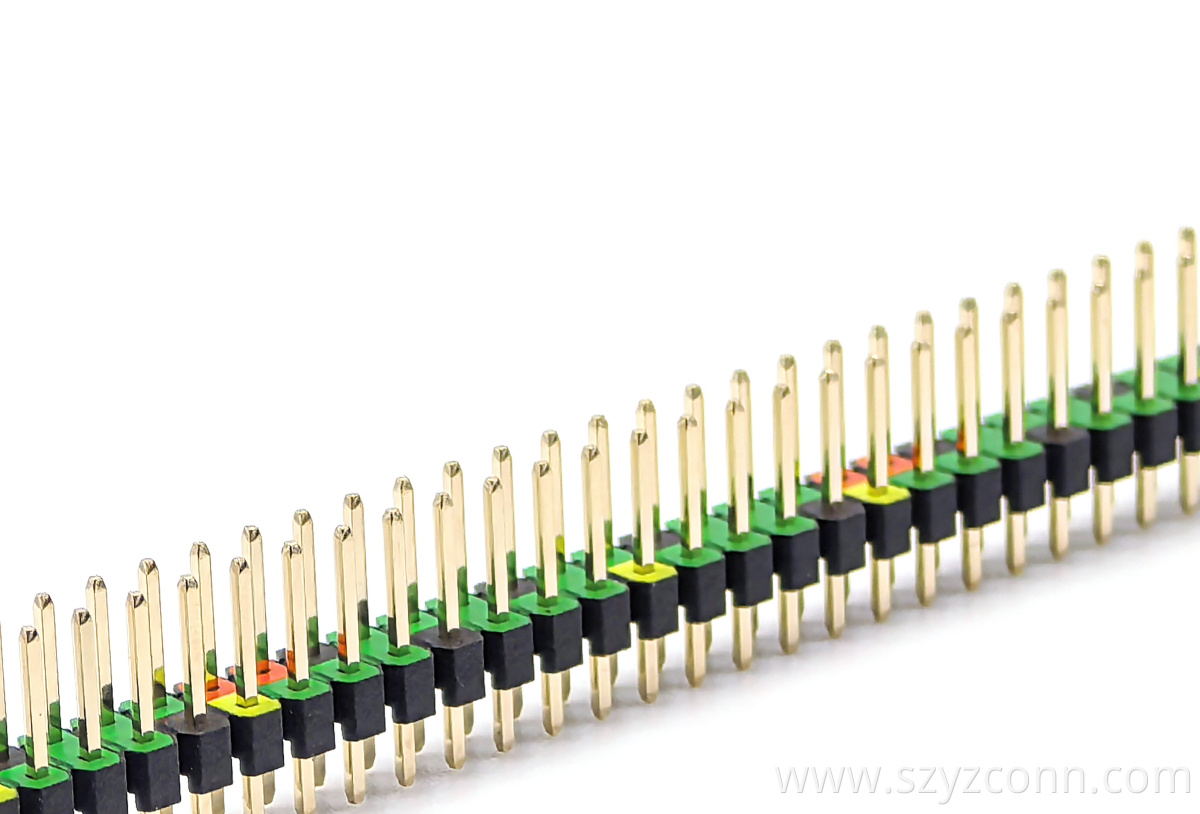

2.54mm Pitch Colored Pin Header Connector Dual Row Straight SQ0.64mm H:2.5mm 2*40P

This pin header 2.54mm straight 80p is constructed to handle elevated electrical demands,with a impressive rated capacity of 3A and 600V.The signal pins are precision-made from brass,offering optimal conductivity,and are finished with a high-quality gold plating.This superior contact coating ensures low contact resistance,excellent corrosion resistance,and stable signal integrity over countless mating cycles.The housing utilizes PA6T,a high-temperature thermoplastic that provides superior mechanical strength,excellent resistance to solder heat,and long-term stability across an operating range of -40°C to 105°C.

Designed for manufacturing resilience,this connector withstands the rigors of automated assembly.It can endure a maximum welding temperature of 260°C for 10 seconds,making it fully compatible with lead-free soldering processes.Supplied in secure box packaging,the connectors are protected from physical damage and contamination until they reach the production line.YZTECH's commitment to quality ensures this 2.54mm pin header is a dependable and high-performance choice for power supplies,industrial controls,and telecommunications infrastructure worldwide.
