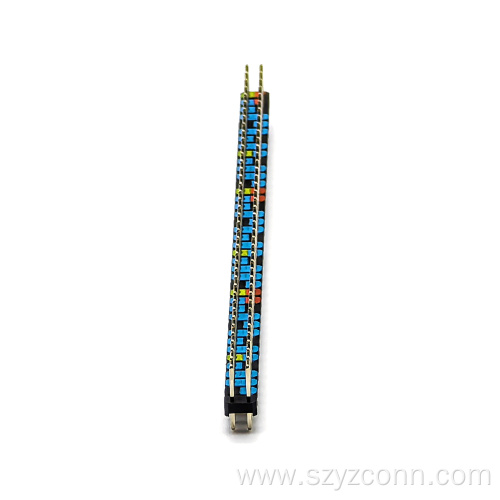

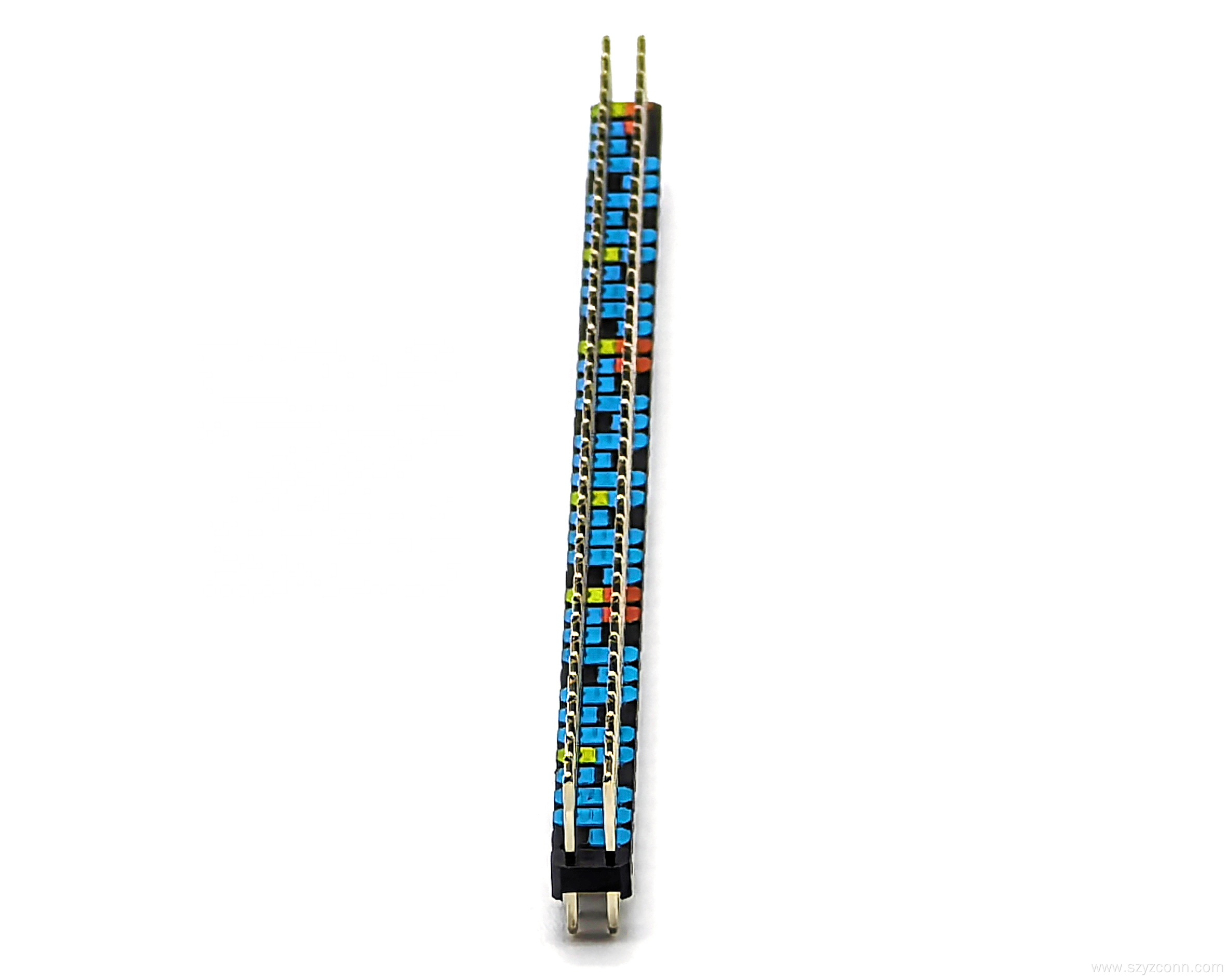

2.54mm Pitch Pin Header Connector Straight 80p

2.54mm Pitch Pin Header Connector Straight 80p

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Colored/Black 2-core 80P

Contact Now

Product Description

Product Attributes

Model No.: 1101S-2*40P-0115

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Supply Type: Original Manufacturer

Place Of Origin: China

Package: Other

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

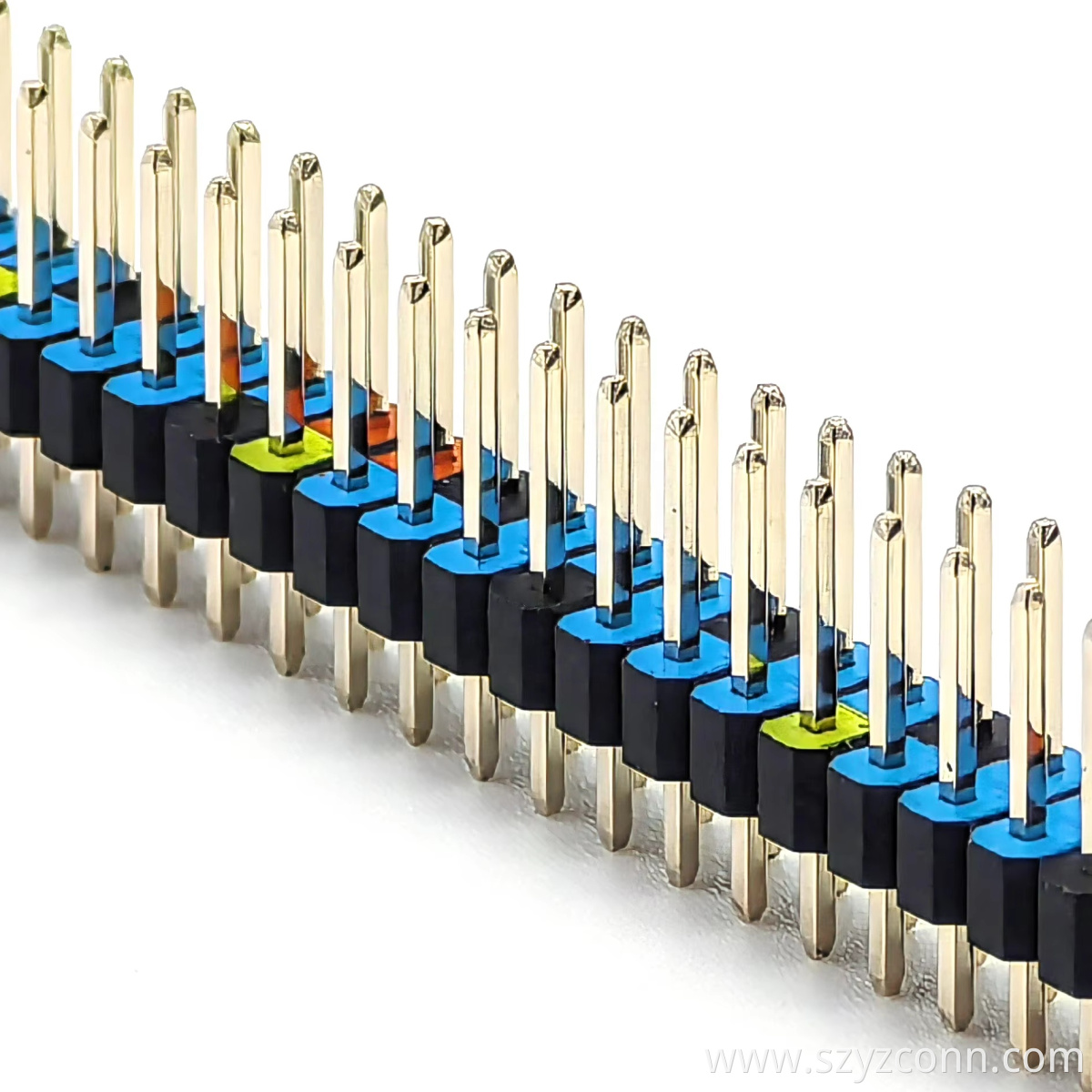

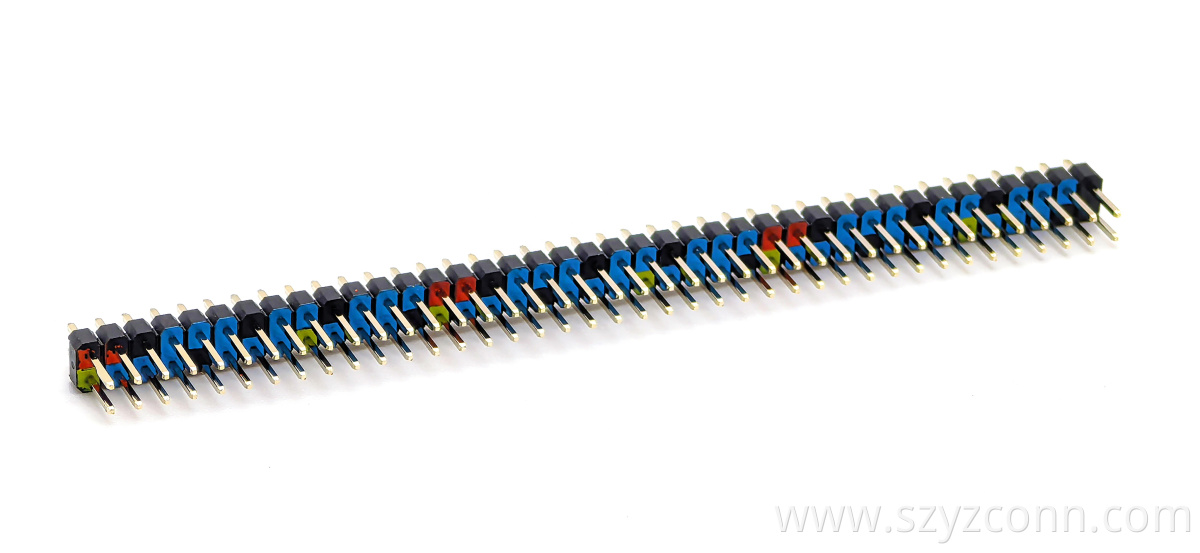

2.54mm Pitch Colored Pin Header Connector Dual Row Straight SQ0.64mm H:2.5mm 2*40P



Product Description

2.54mm Pitch pin header connector Straight 80P

YZTECH’s 2.54mm Pitch Pin header connector Straight 80P offers unmatched reliability for PCB integration in industrial and consumer electronics.Engineered with a robust rectangular male form factor,this 2.54mm Pin Header black/colored features 40P per row across dual rows,ensuring optimal signal transmission at rated 3A/600V performance.Designed for straight plug installation,it aligns perfectly with DIN standards,making it ideal for automated assembly lines.The box packaging guarantees safe transit and storage,with a maximum welding temperature tolerance of 260℃/10S to prevent thermal damage during soldering.

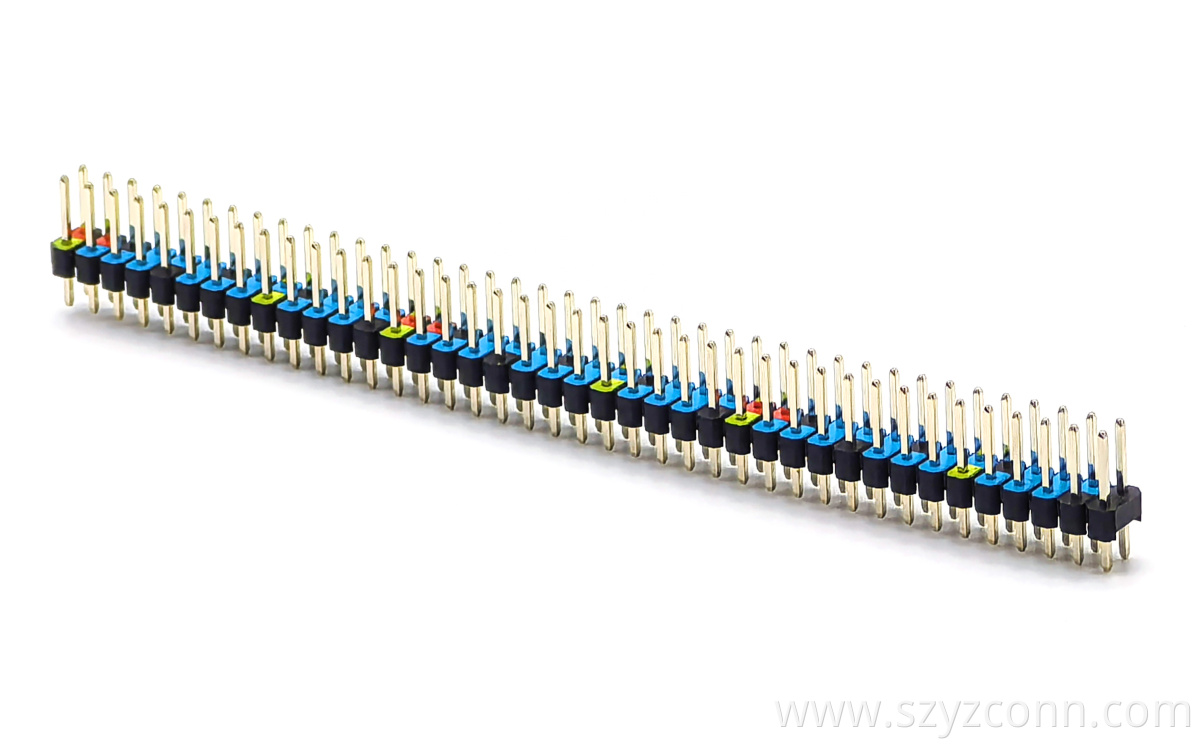

2.54mm Pitch Colored Pin Header Connector Dual Row Straight SQ0.64mm H:2.5mm 2*40P

Beyond standard specifications,YZTECH’s pin header 2.54mm 80p incorporates cutting-edge material science.The PA6T material demonstrates superior flame retardancy and dimensional stability, outperforming conventional plastics in harsh environments.Gold-plated brass contacts,reducing signal loss in high-speed digital circuits.The dual-row 80-pin total configuration accommodates complex circuit designs without compromising signal integrity.Operating temperature resilience from -40℃ to +105℃ enables deployment in outdoor equipment,automotive systems,and industrial controllers.The straight-plug design simplifies installation with zero-degree insertion force, minimizing PCB strain during mating cycles.

Compatibility with reflow soldering processes ensures seamless integration into mass production workflows,while the box packaging supports automated pick-and-place machinery for efficient logistics.This 2.54mm header connector 80p is globally certified for compatibility with diverse PCB layouts and supports rapid prototyping for high-mix production environments.
