2.54mm Pitch Box Header Connector Straight 40P

2.54mm Pitch Box Header Connector Straight 40P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 1103S-2DL-2*2*20P-H34.8

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Supply Type: Original Manufacturer

Place Of Origin: China

Package: Other

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

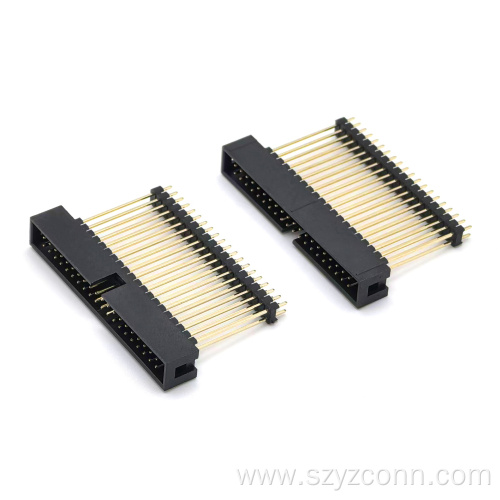

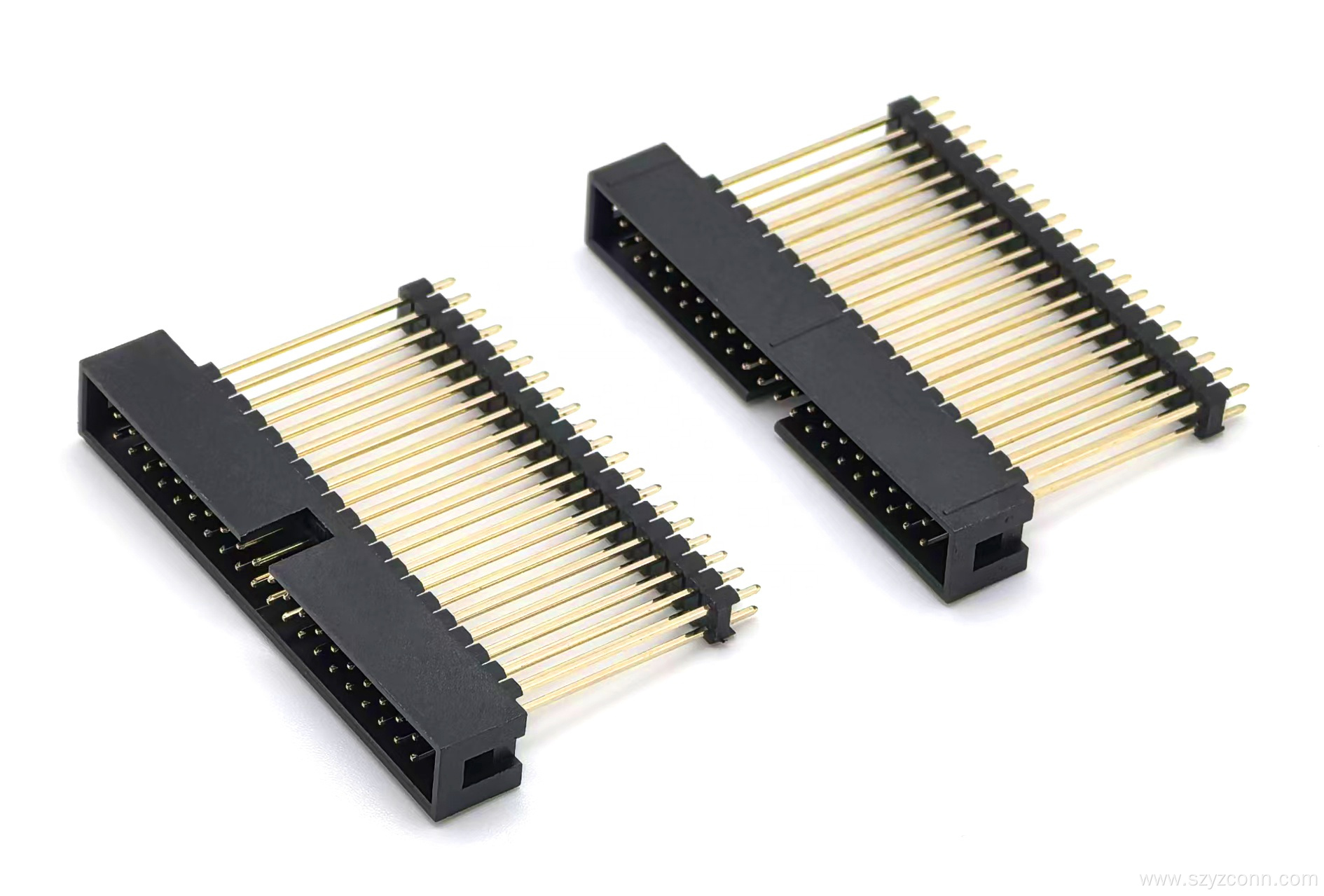

2.54mm Pitch Box Header Connector Straight 40P

Engineered for precision PCB integration,YZTECH’s 2.54mm Pitch Box header connector Straight 40P delivers uncompromised performance in compact circuit designs.Featuring a DIN-standard 2.54mm pitch,this 2.54mm Box Header Connector 40p ensures reliable electrical connections with its gold-plated brass contacts and robust PBT colloidal material.The straight-plug installation method optimizes space efficiency on crowded PCBs while maintaining a low-profile footprint.Rated for 3A current and 600V voltage,it operates flawlessly from -40°C to +105°C, catering to industrial automation,automotive systems,and consumer electronics.

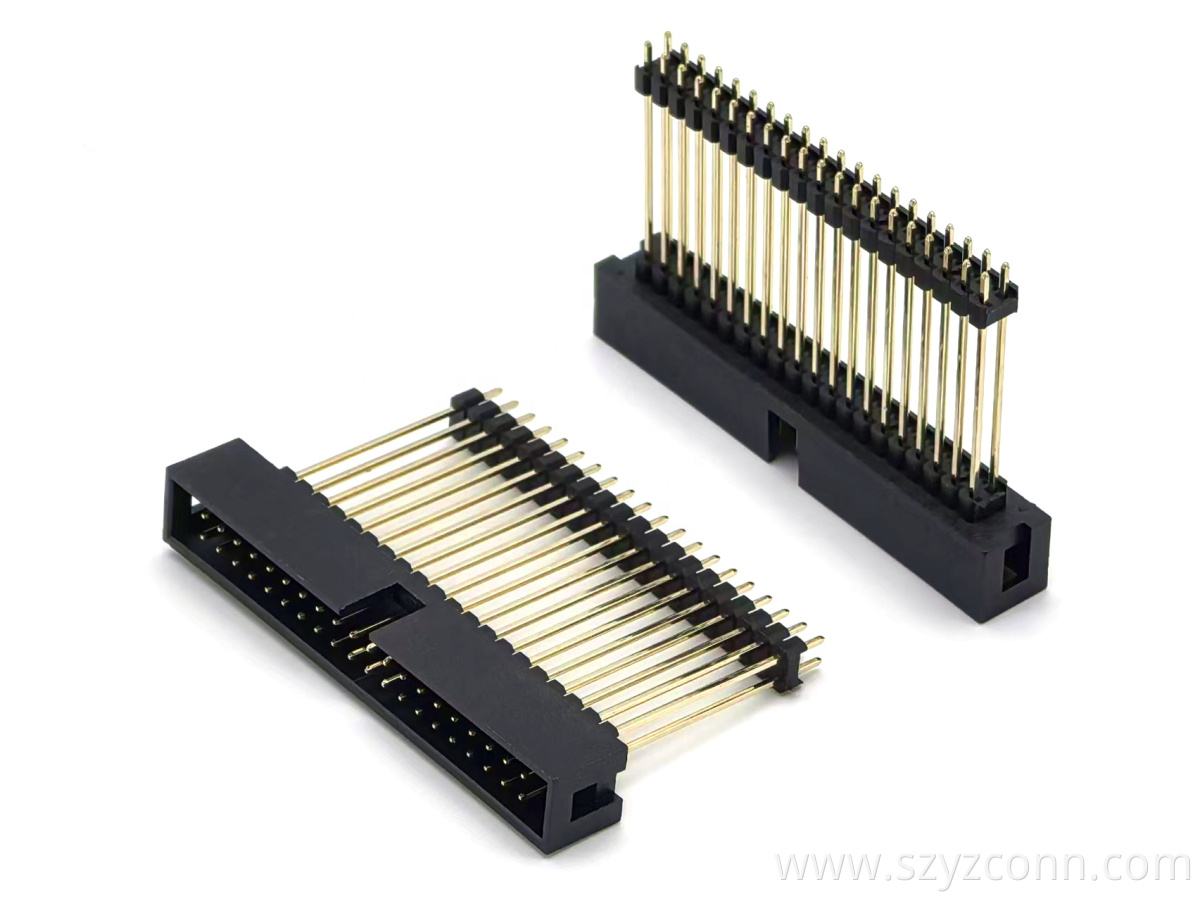

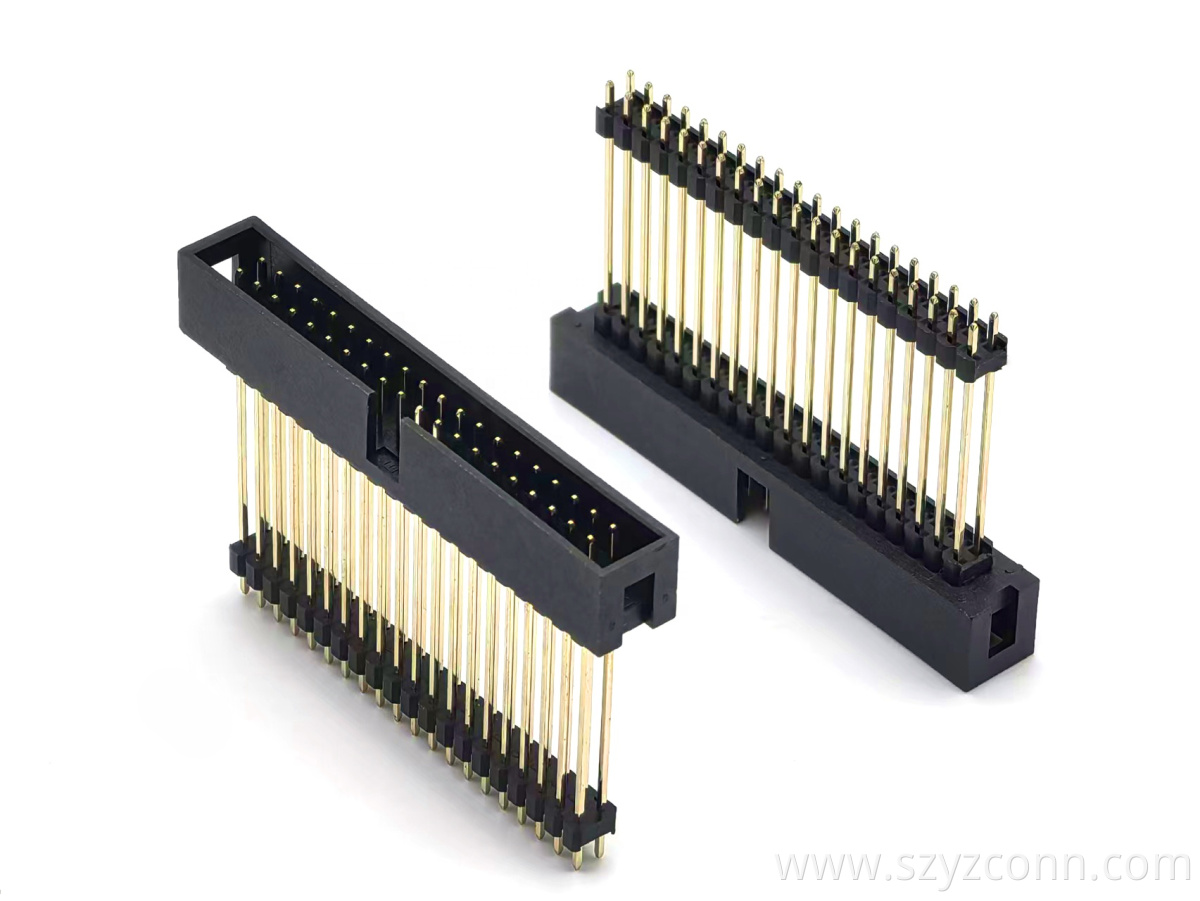

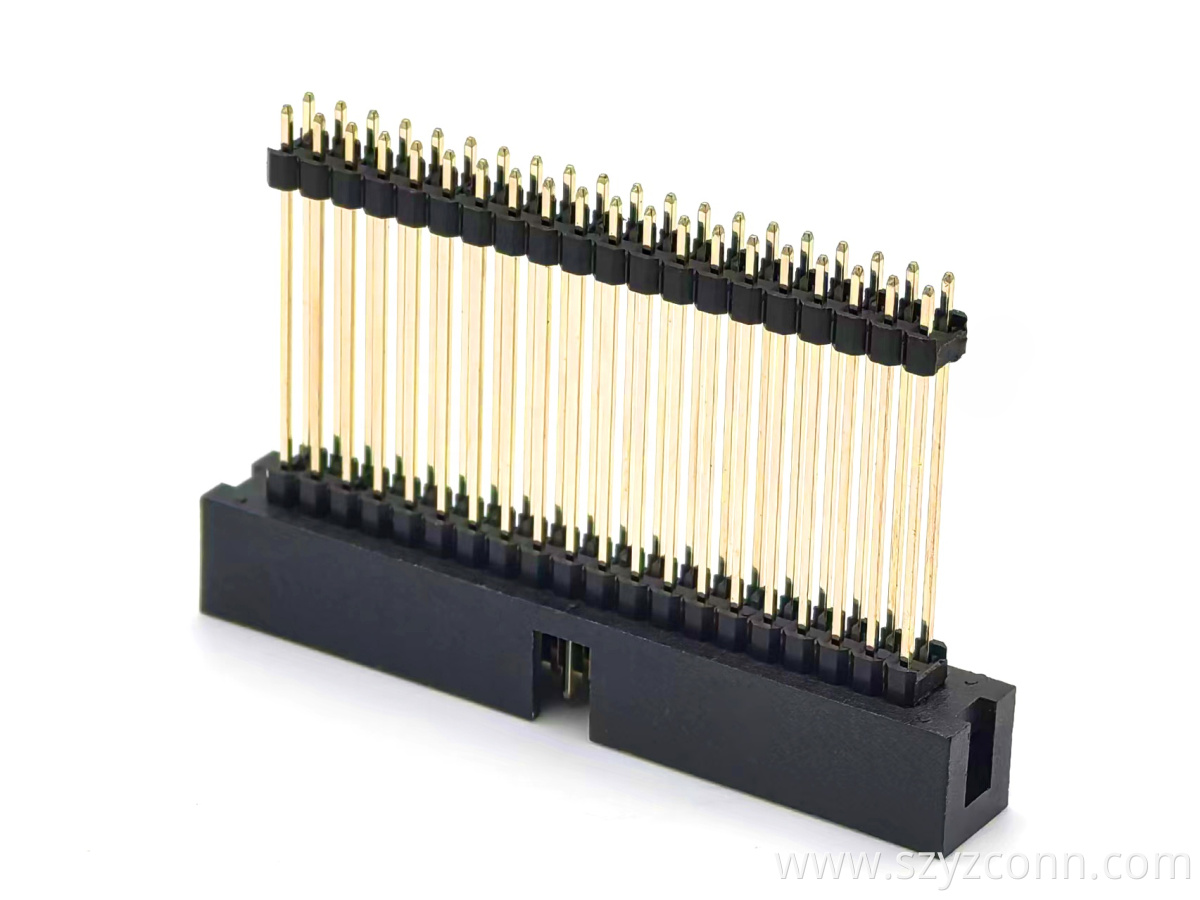

2.54mm Pitch Box Header Connector Straight Add Pin Header Plastic H13.8mm 2*20P

UL-certified for safety,this 2.54mm box header 40p guarantees compliance with global regulatory standards, enhancing its suitability for international markets.Its rectangular,male-gendered design supports effortless mating with female headers,ensuring secure connections in high-vibration environments.Box packaging protects components during transportation and storage,aligning with automated assembly line requirements.

Constructed with high-grade PBT colloidal material,this box header 2.54mm 40p exhibits superior heat resistance and mechanical durability, withstanding maximum soldering temperatures of 260°C for 10 seconds without deformation—critical for reflow soldering processes.Gold-plated brass contacts ensure low contact resistance and stable signal transmission,minimizing signal loss in high-speed data applications.The dual-row configuration with 20 pins per row enhances electrical isolation,reducing short-circuit risks in dense PCB layouts.PBT’s inherent flame-retardant properties align with UL94 V-0 standards,providing an added layer of safety in fire-sensitive applications.
