2.54mm Box Header Connector Straight 26P

2.54mm Box Header Connector Straight 26P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 26P

Contact Now

Product Description

Product Attributes

Model No.: 052969

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

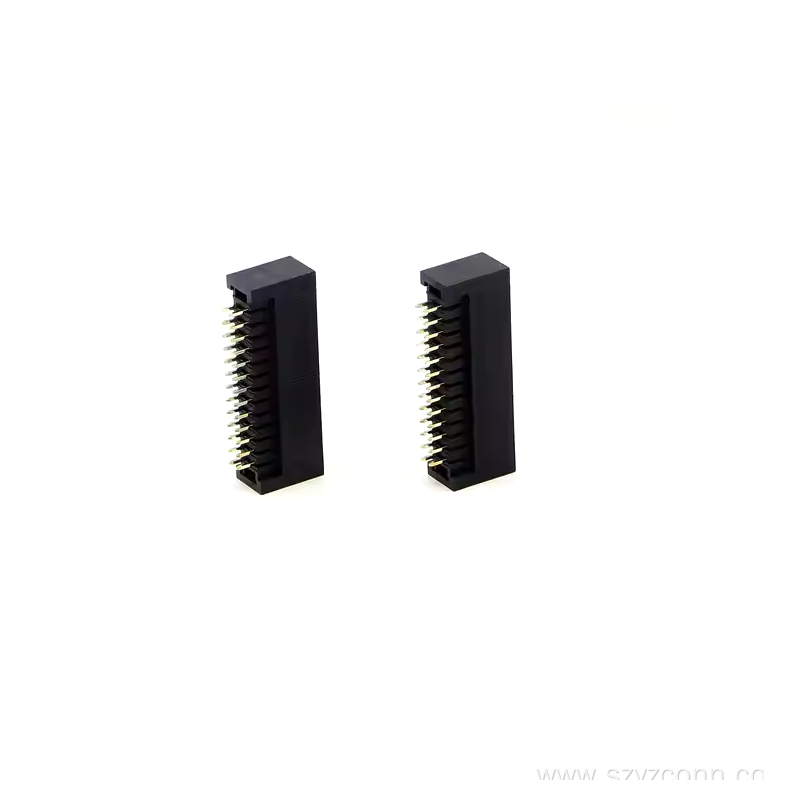

2.54mm Box Header Connector Straight 26P

yztech’s 2.54mm Box Header Connector Straight 26P,with a height of 13.6mm, is a professional solution for complex three-dimensional wiring and high-current transmission in high-specification electronic devices. As a flagship model in the box header series,the standard 2.54mm pitch and 13.6mm heightened design of 26p 2.54mm Box Header Straight precisely meet the multi-layer vertical interconnection needs of PCB boards, standing out in the 2.54mm box header category for its excellent space expansion capability and stable performance.

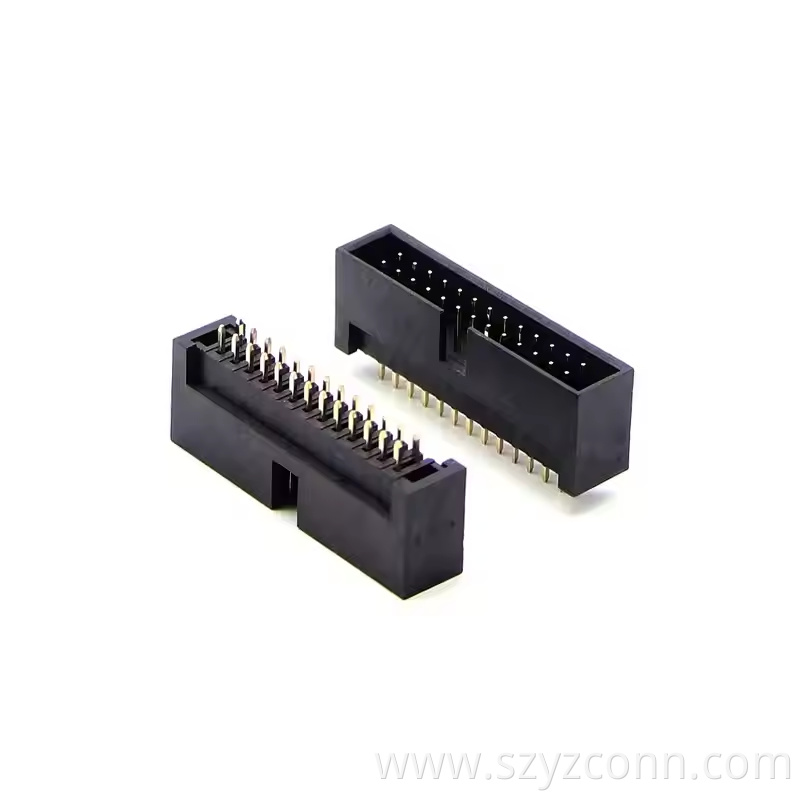

2.54mm Pitch Box Header Straight H13.6 6P-64P (2)

Featuring phosphor bronze terminals (gold plating thickness ≥50u") and high-strength PBT (UL94V-0) housings, the 26p 2.54mm box header connector stabilizes 6A/pin high current in -40°C to +125°C environments with contact resistance ≤10mΩ. The 13.6mm three-dimensional structure supports multi-layer cross-wiring with Right Angle Box Header, effectively improving heat dissipation and reducing signal loss while being compatible with high-power expansion needs of idc box header Connector. The 16-100 PIN ultra-large pin configuration of these 26p 2.54mm Box Header Connectors is suitable for server racks, industrial power modules, etc., forming a high-low combination with the smt box header product line.

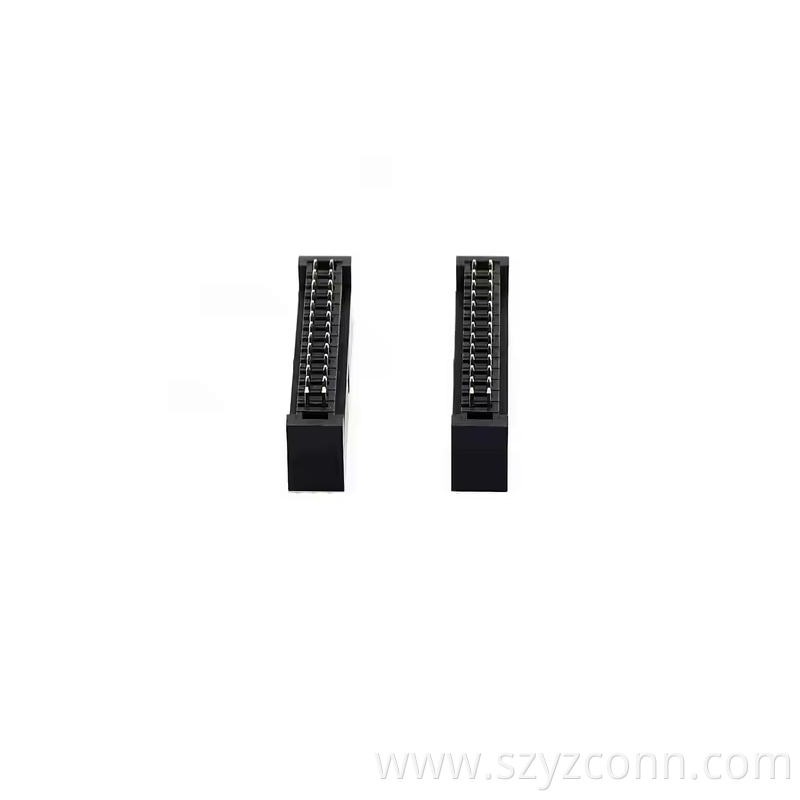

2.54mm Pitch Box Header Straight H13.6 6P-64P (4)

Certified to IPC-A-610 and RoHS-compliant, anti-static carrier box packaging supports customized length cutting services, providing integrated solutions with both strength and precision for high-end applications of 2.54mm box header connector.
