2.54mm Pitch Box Header Connector Straight 50P

2.54mm Pitch Box Header Connector Straight 50P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 1103S.2*25P-H8,8

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Supply Type: Original Manufacturer

Place Of Origin: China

Package: Other

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

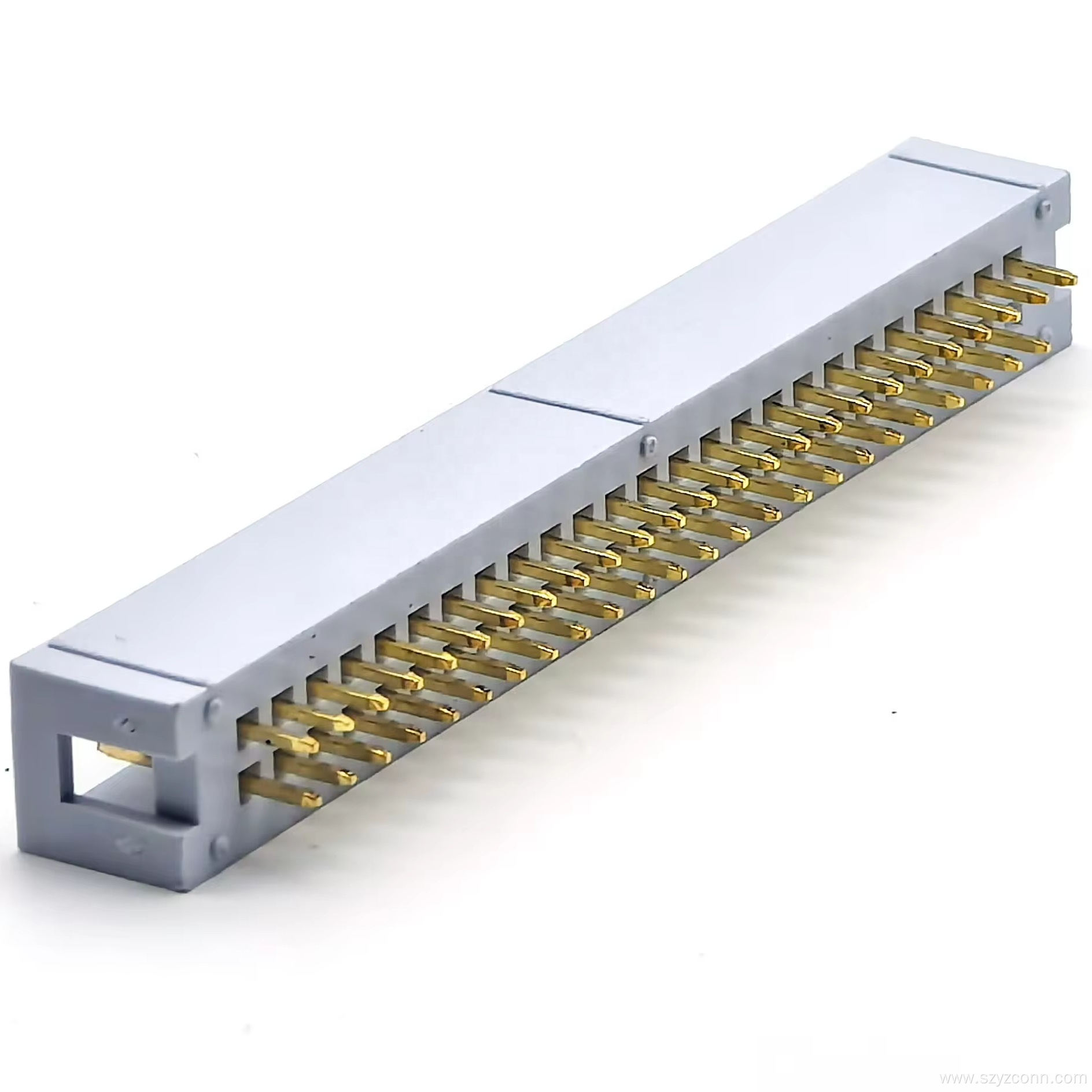

2.54mm Pitch Box header connector Straight 50P

The YZTECH 2.54mm Pitch Box Header Connector Straight 50P redefines PCB connectivity with its dual-row, 25P-per-row architecture engineered for precision automotive and industrial applications.This male-gendered 2.54mm Box Header Connector 50p features a robust brass contact system plated with gold for optimal signal integrity and long-term durability.Its straight-plug installation method ensures secure mating in high-vibration environments.The box packaging includes ESD-safe materials, protecting components during global logistics and storage.

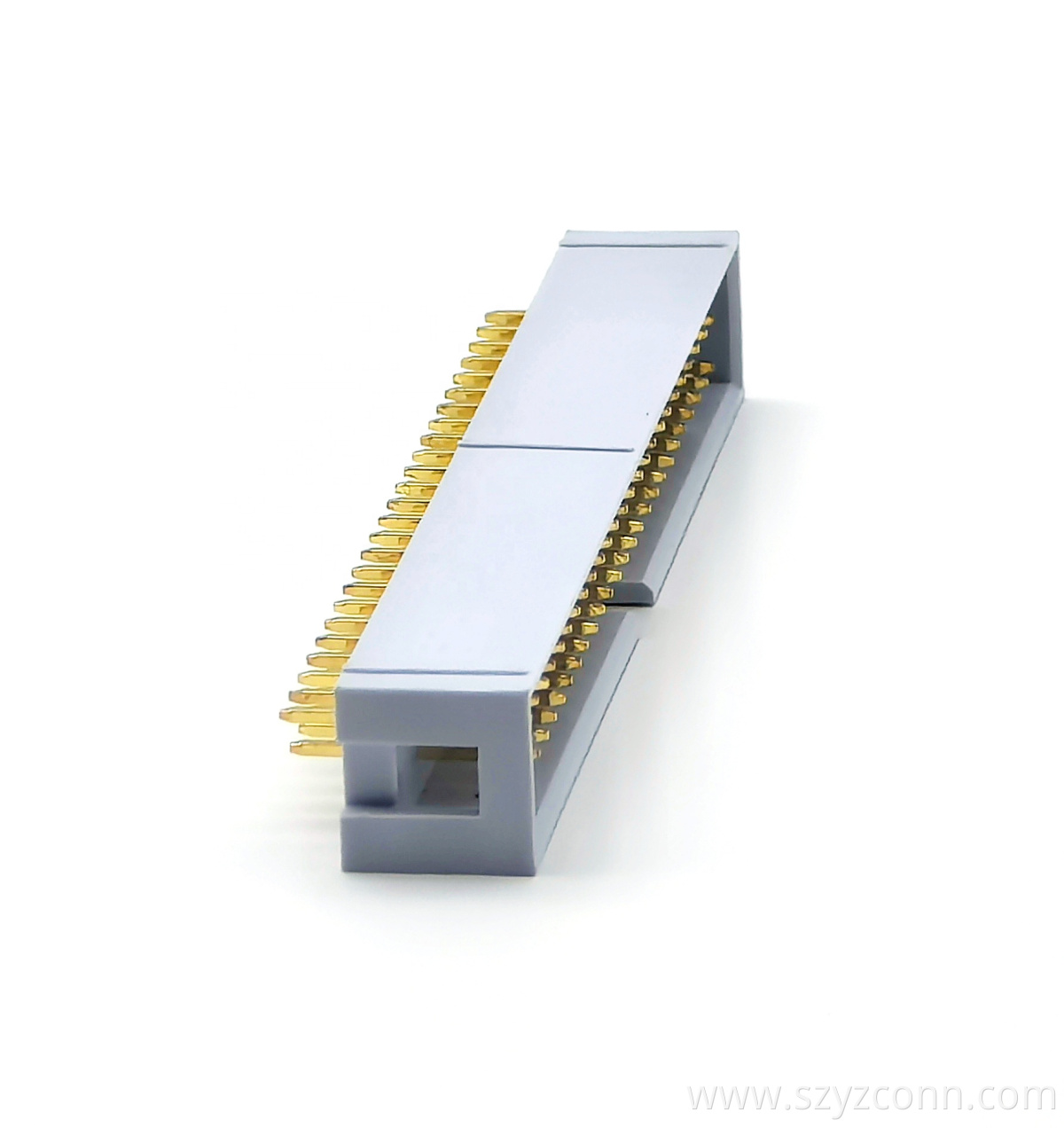

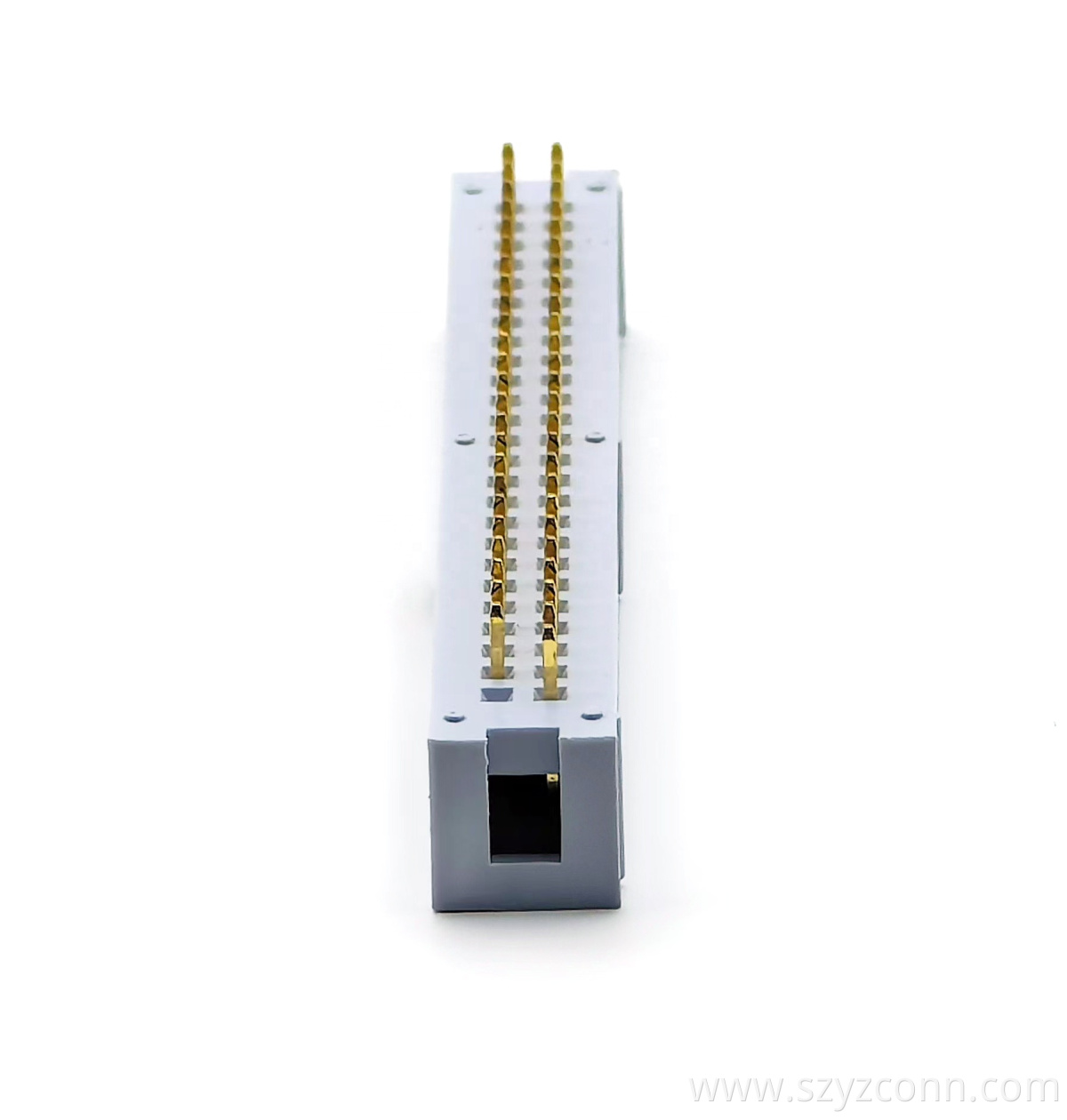

2.54mm Pitch Box header Connector one pin Missing Straight H:8.8mm 2*25P

With a 3A/600V rating, this 2.54mm Box Header Straight 50p supports high-current applications while gold-plated contacts minimize insertion loss and corrosion risk.The PBT colloidal material exhibits low water absorption and high thermal stability,operating reliably within -40°C to +105°C while maintaining UL certification for safety compliance.Welding parameters are optimized for industrial assembly lines,accommodating 200°C for 5-10 seconds or 180°C for 30-60 seconds without compromising joint integrity.Dual-row configuration maximizes pin density while maintaining a compact 2.54mm pitch,enabling efficient PCB layout design.The connector’s straight-angle orientation simplifies automated assembly and reduces signal path length,enhancing electromagnetic compatibility in dense electronic systems.

Certified by UL for automotive and industrial safety standards,this 2.54mm Box Header Connector exceeds IEC 60664-1 insulation requirements and withstands rigorous environmental testing including thermal cycling and salt spray resistance.With a 10,000+ mating cycle lifespan and comprehensive technical documentation,YZTECH provides end-to-end support for global manufacturers.The 2.54mm Box Header Connectors 50p exemplifie YZTECH’s commitment to precision engineering,combining UL-certified safety with scalable customization for automotive,industrial automation, and consumer electronics applications worldwide.
