1.27mm Pin Header Dual Row SMT 4P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 052811

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

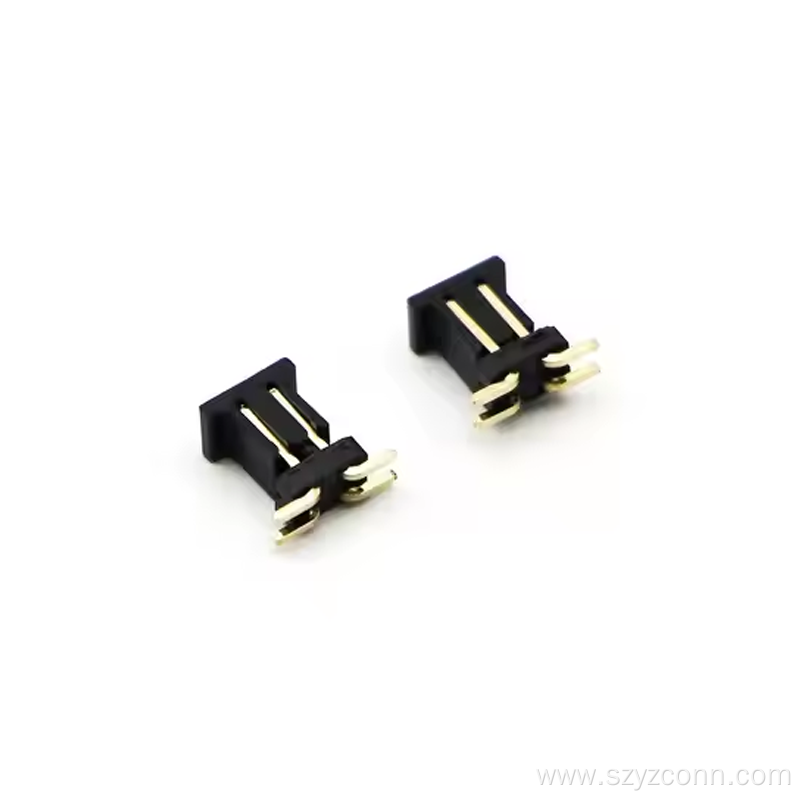

1.27mm Pin Header Dual Row SMT 4P

yztech’s 1.27mm Pin Header Dual Row SMT 4P is an innovative solution for high-density electronic connections, designed for compact PCB layouts and automated production. As a flagship model in the Pin Header series,the standard 1.27mm pitch and dual-row design of this 1.27mm pitch header 4p perfectly meet the dense wiring needs of PCB Pin Header, doubling signal transmission efficiency compared to single-row structures and setting a benchmark for performance and reliability in the 1.27mm pitch header category.

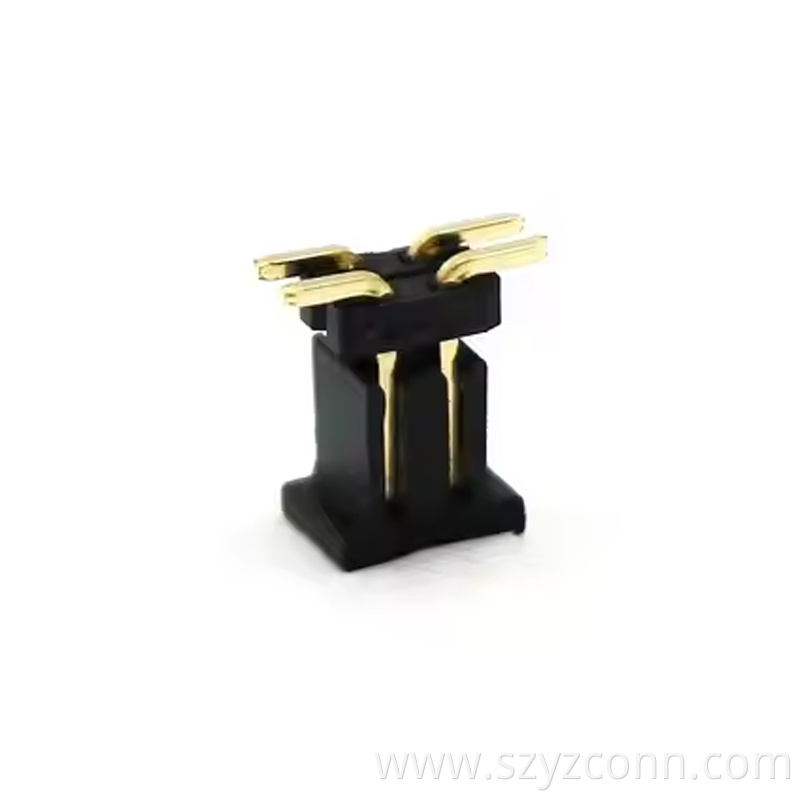

1.27mm Pitch Pin Header Dual Row SMT SQ0.40.46 H1.51.61.72.02.5mm 21P-250P (1)

Featuring SMT surface-mount technology, the 1.27mm pin header connector smt supports fully automated pick-and-place production with positioning errors within 0.1mm, significantly enhancing assembly efficiency. High-quality C2680 phosphor bronze terminals (gold-plated) and black LCP (UL94V-0) insulators ensure stable 3A/pin current transmission from -40°C to +105°C, with contact resistance controlled below 20mΩ. The Gold Flash plating, combined with a ≥50u" nickel base of pin header 1.27mm pitch dual row, resists oxidation and ensures low-loss transmission of high-frequency signals. The 6-64 PIN configuration is compatible with Female Header Pins, widely used in consumer electronics, industrial motherboards, and communication devices.

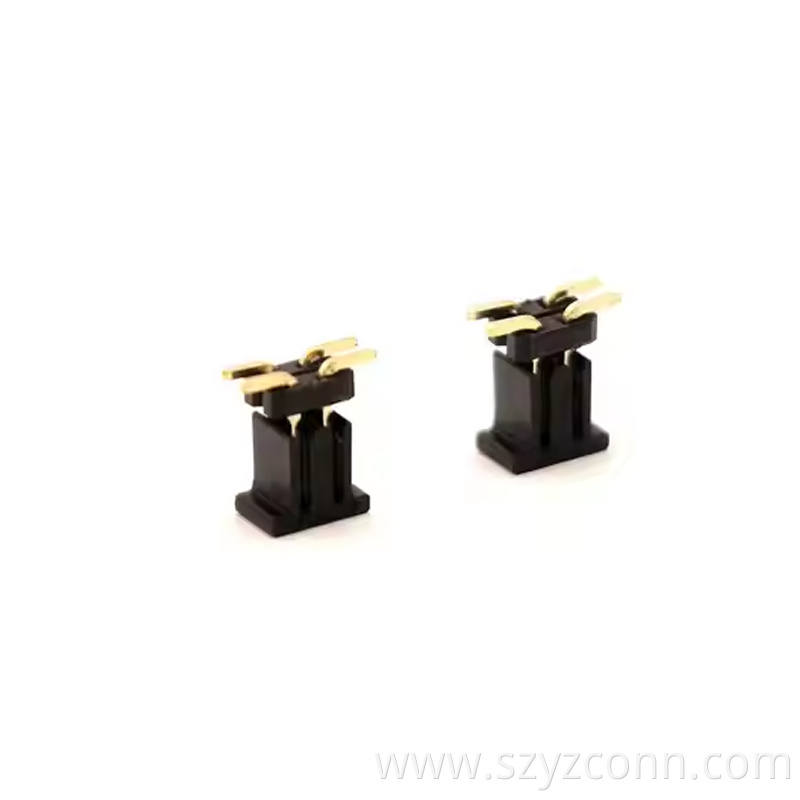

1.27mm Pitch Pin Header Dual Row SMT SQ0.40.46 H1.51.61.72.02.5mm 21P-250P (4)

Certified to IPC-A-610 and RoHS-compliant, standard anti-static carrier reel packaging supports ODM/OEM customization to meet all-scenario connection needs for 1.27mm pin Header.
