1.27mm Pitch Machined Pin header Straight 23P

1.27mm Pitch Machined Pin header Straight 23P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 18101.361422123SG108101

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Supply Type: Original Manufacturer

Place Of Origin: China

Species: Headers And Pcb Receptacles

Package: Other

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Bag&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

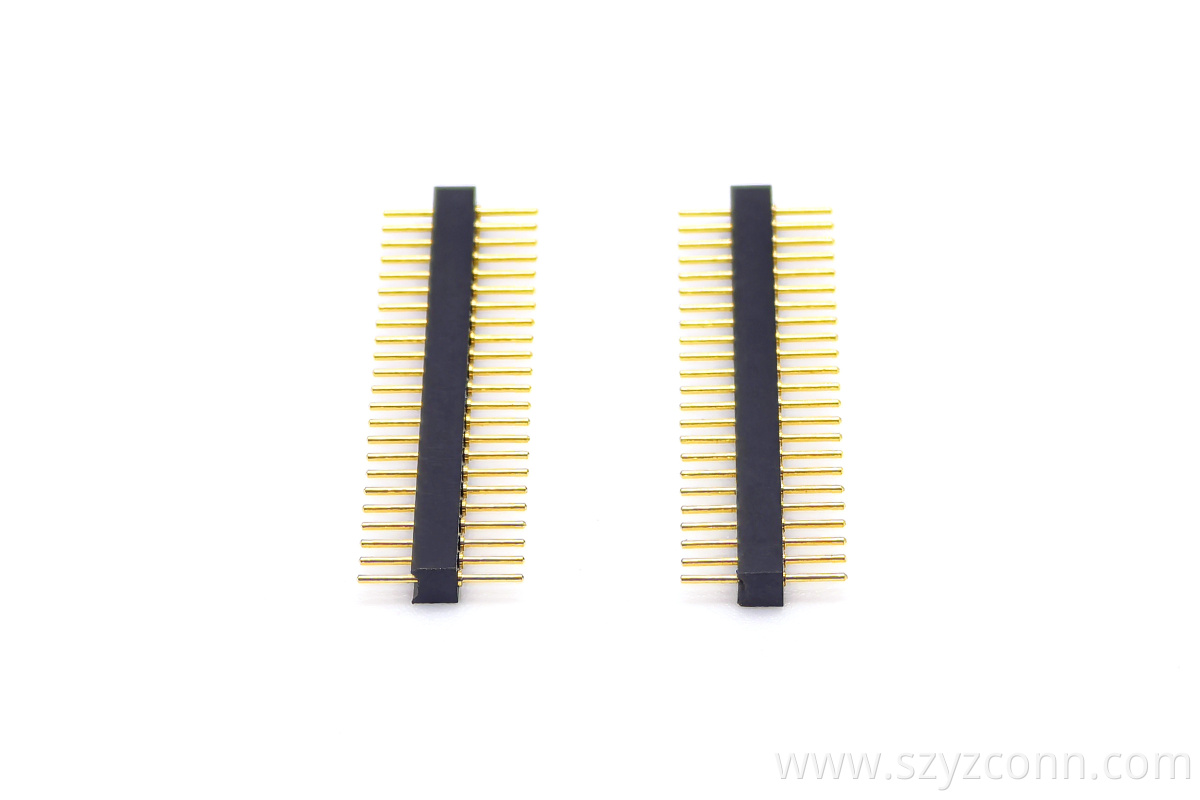

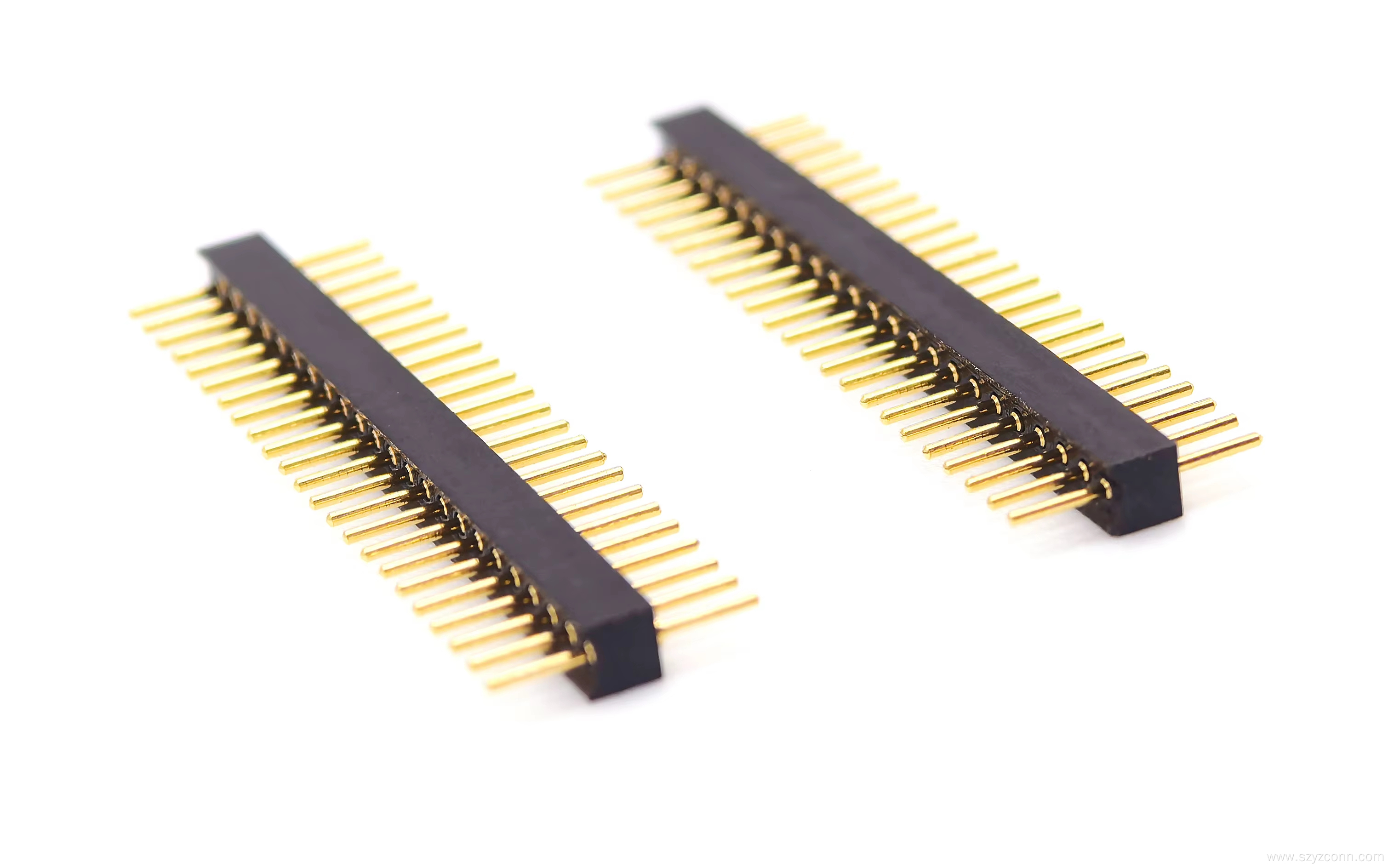

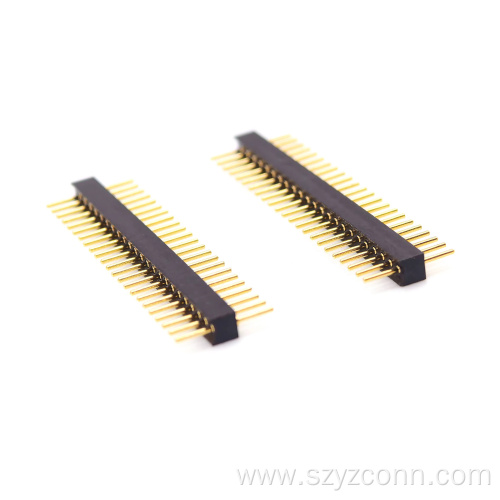

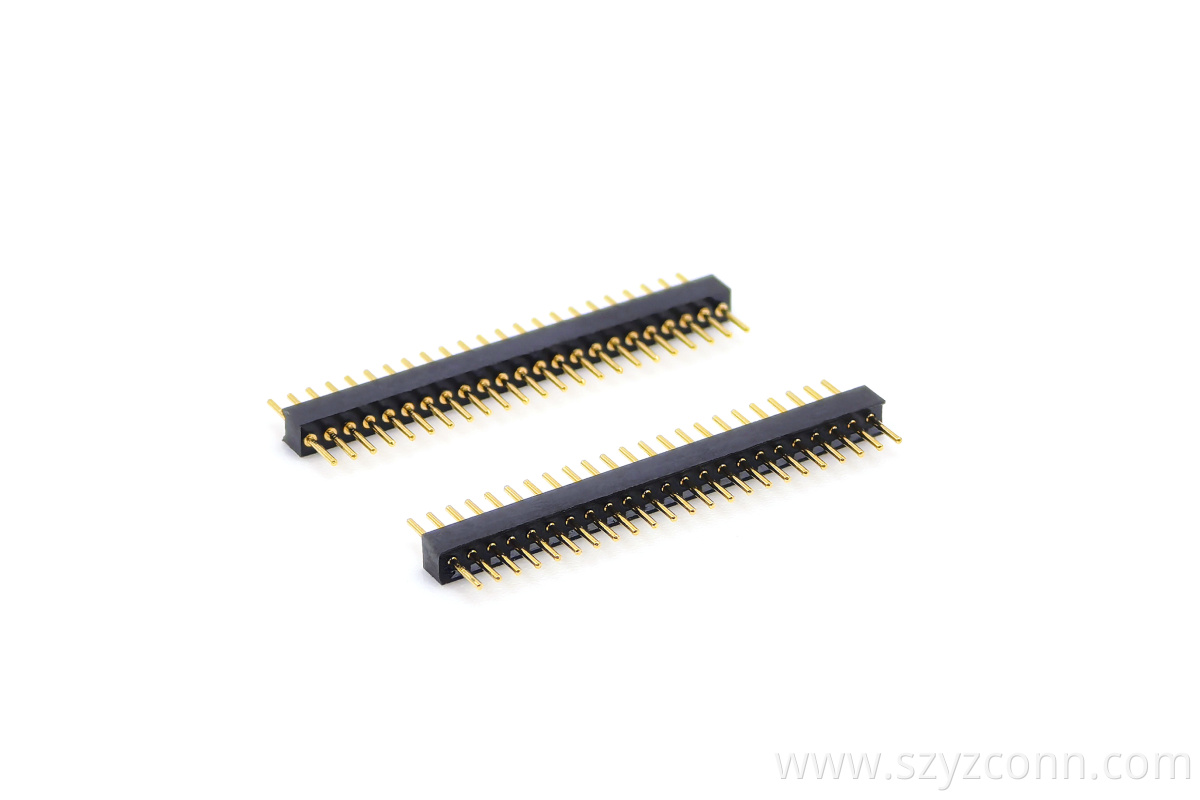

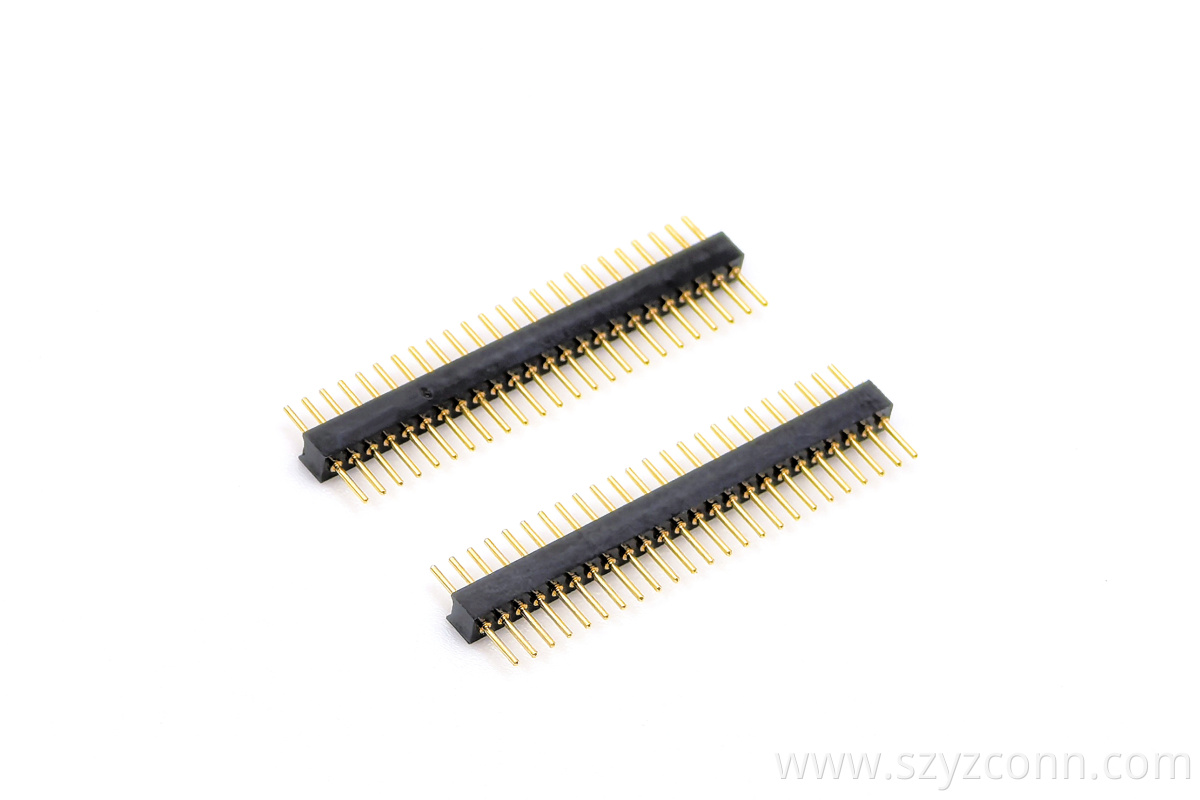

1.27mm Pitch Machined Pin Header Straight 23P

YZTECH's 1.27mm Pitch Machined Pin header Straight 23P is meticulously engineered with a 23 - pin single - row configuration, specifically designed for applications that require high - density printed circuit boards . This straight male pin header 1.27mm 23p, fabricated from precision - machined brass contacts with gold plating, guarantees superior signal integrity and stable connectivity. The ultra - fine pitch design enables space - efficient integration while maintaining precise alignment, making it appropriate for advanced electronics, communication systems, and compact industrial controls where board space is limited.

This machined 1.27mm Pin Header 23p is rated with a current capacity of 1A and a voltage tolerance of 300V. It operates reliably within a wide temperature range from - 45℃ to + 105℃. The gold - plated machined contacts exhibit excellent conductivity and corrosion resistance, and the straight pin configuration simplifies PCB mounting and ensures secure mating. With a maximum welding temperature tolerance of 260℃ for a duration of 10 seconds, it is compatible with automated reflow soldering processes while preserving both mechanical and electrical integrity.

Packed in protective bags for safe handling and storage, the round 1.27mm pin header straight is optimized for high - volume production environments. Complying with industry standards, YZTECH's 1.27mm pin header represents an ideal combination of high - density connectivity, stable performance, and manufacturing efficiency, meeting the requirements of complex electronic applications that demand precision and durability.
