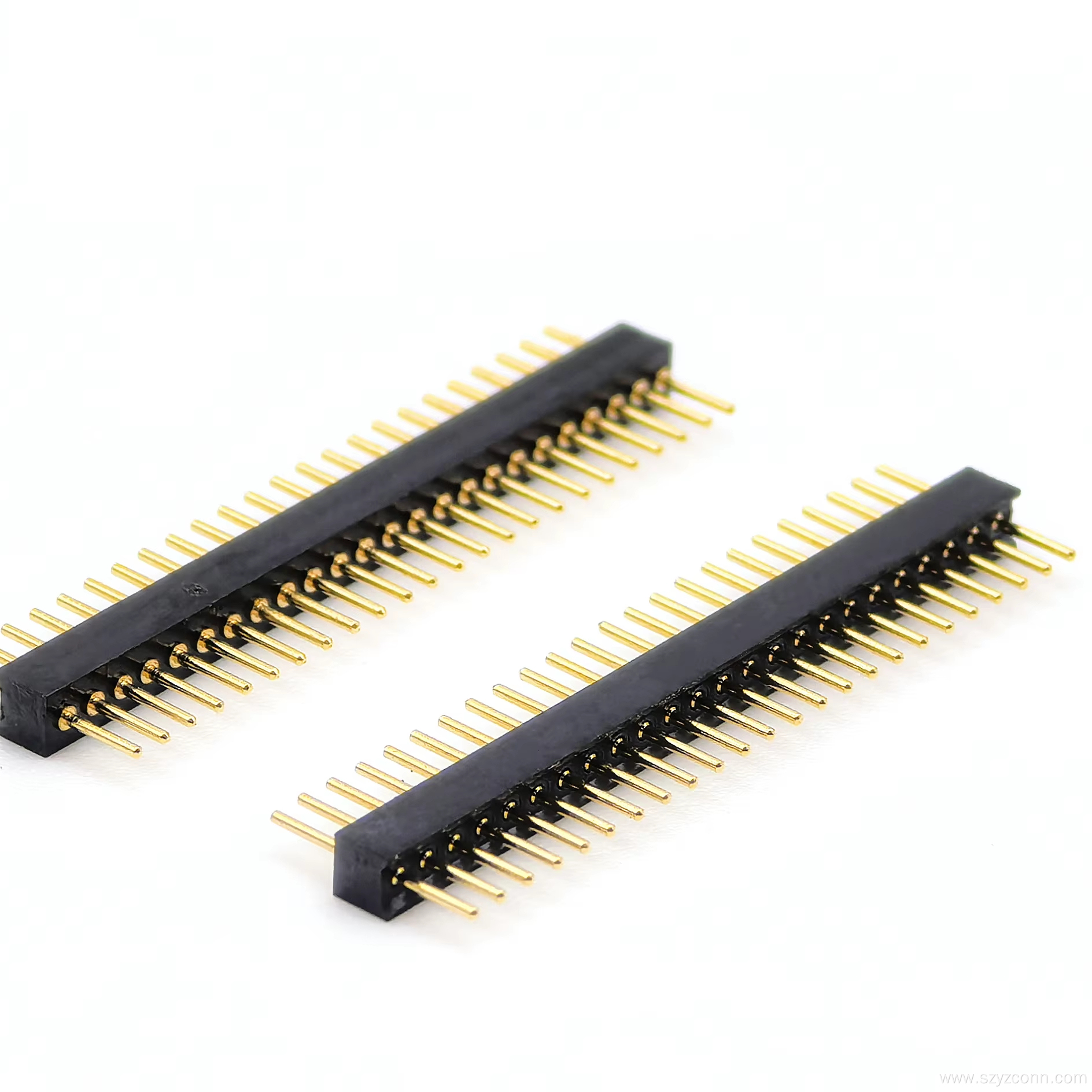

1.27mm Pitch Machined Pin header Connector Straight

1.27mm Pitch Machined Pin header Connector Straight

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	S,h,e

Contact Now

Product Description

Product Attributes

Model No.: 18101.361422124SG108101

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

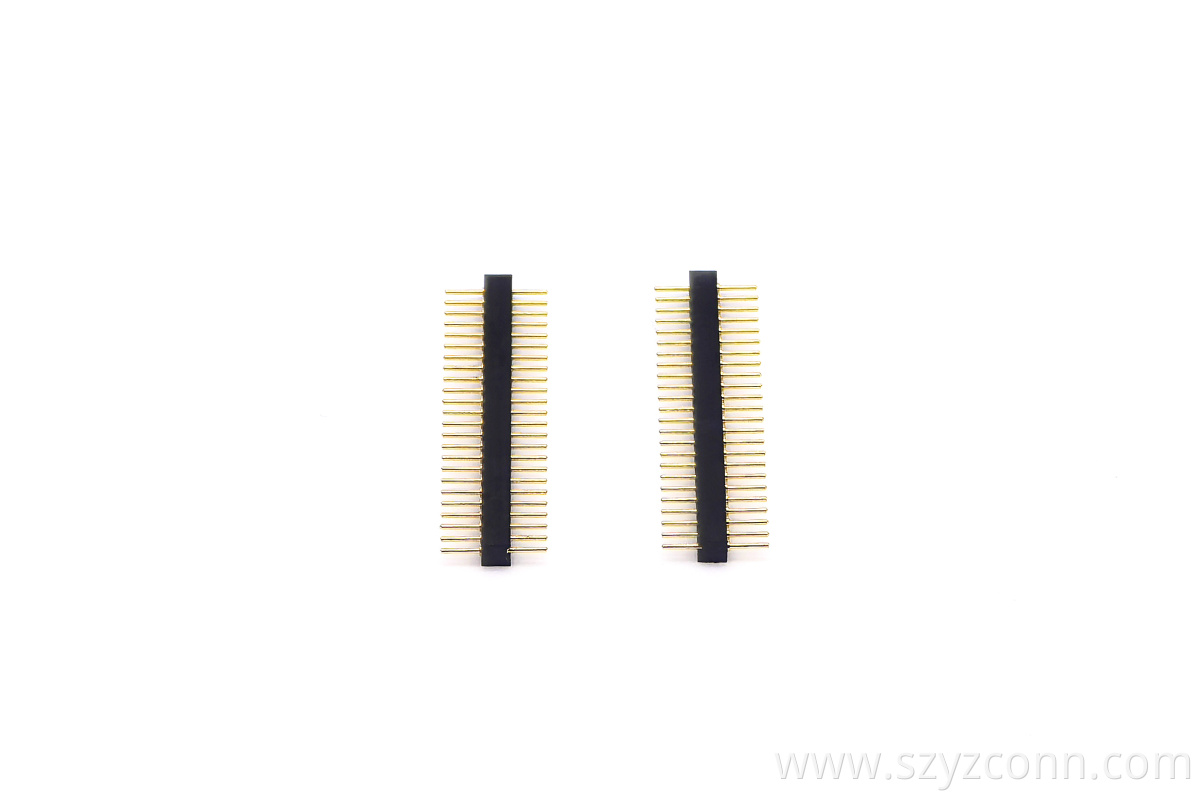

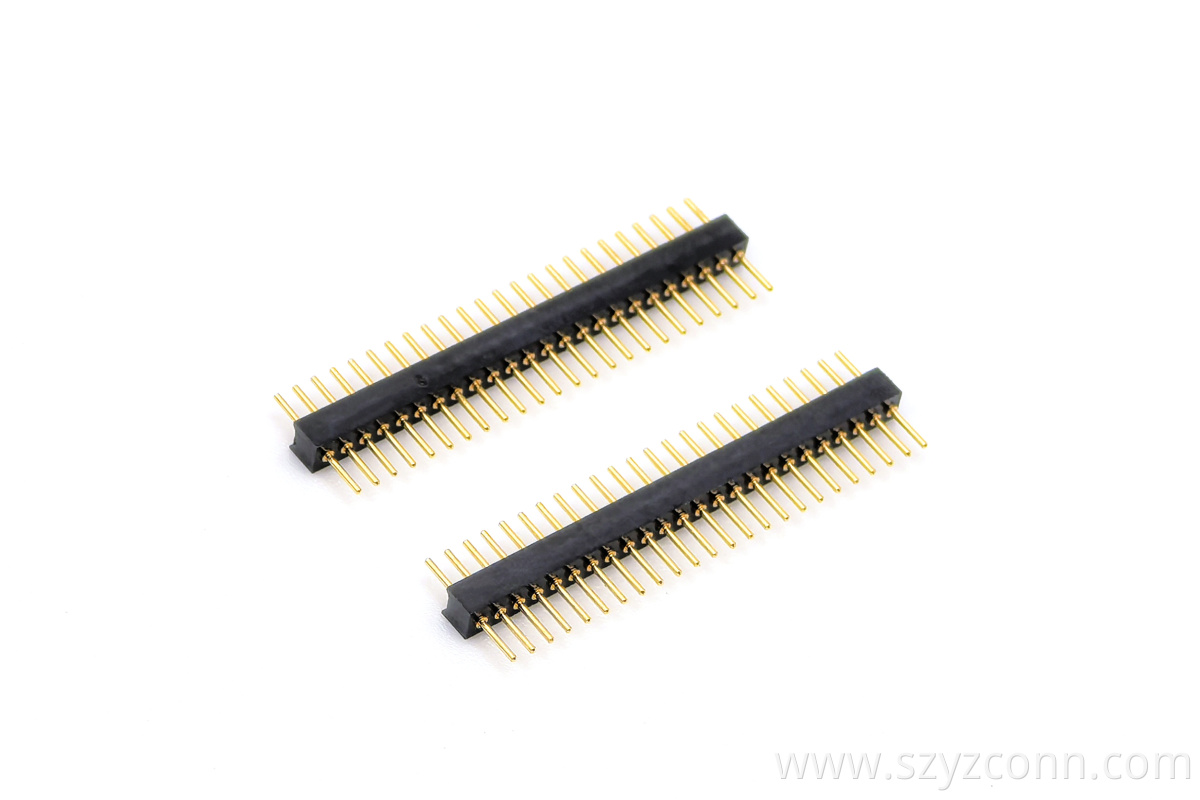

1.27mm Pitch Machined Pin header Connector Straight H2.2mm 1*24P



Product Description

1.27mm Pitch Machined pin header connector Straight

In the "space-critical" scenarios of precision PCB applications, YZTECH's 1.27mm Pitch Machined Pin header connector stands out as the preferred solution for efficient interconnection. Featuring a single row of 24 pins paired with a straight plug configuration, the 1.27mm pitch header machined 24p enables stable board-to-board connections effortlessly in space-constrained electronic designs, resolving interconnection challenges in compact layouts. Meanwhile, compliant with DIN standards, its robust round-pin structure maintains consistent performance in automated and high-volume manufacturing, balancing production efficiency and product uniformity.

To ensure reliable performance, the pin header 1.27mm machined h2.2mm adopts gold-plated brass contacts, which not only prevent oxidation and reduce resistance but also guarantee stable signal transmission. It supports a current rating of 1A and a voltage rating of 300V, with a wide operating temperature range from -40℃ to +105℃, making it suitable for diverse applications such as industrial controllers, automotive electronics, medical devices, and communication equipment. Additionally,the pin header 1.27mm pitch machined is compatible with wave soldering processes, capable of withstanding a high temperature of 220℃ for 10 seconds without any performance degradation, further adapting to various production scenarios.

In terms of logistics and application value, the 1.27mm Pin Header is packaged in protective tubes to avoid damage during transportation and handling, meeting the requirements of global supply chains. With its compact pitch, durable quality, and excellent environmental adaptability, it has become a preferred component for high-end electronic devices. Especially in scenarios where space utilization and signal integrity are prioritized, it can play a stable and core role.
