0.3mm Pitch FPC Connector H1.0mm

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 1-core 21P

Contact Now

Product Description

Product Attributes

Model No.: 0.3FPC-21P

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

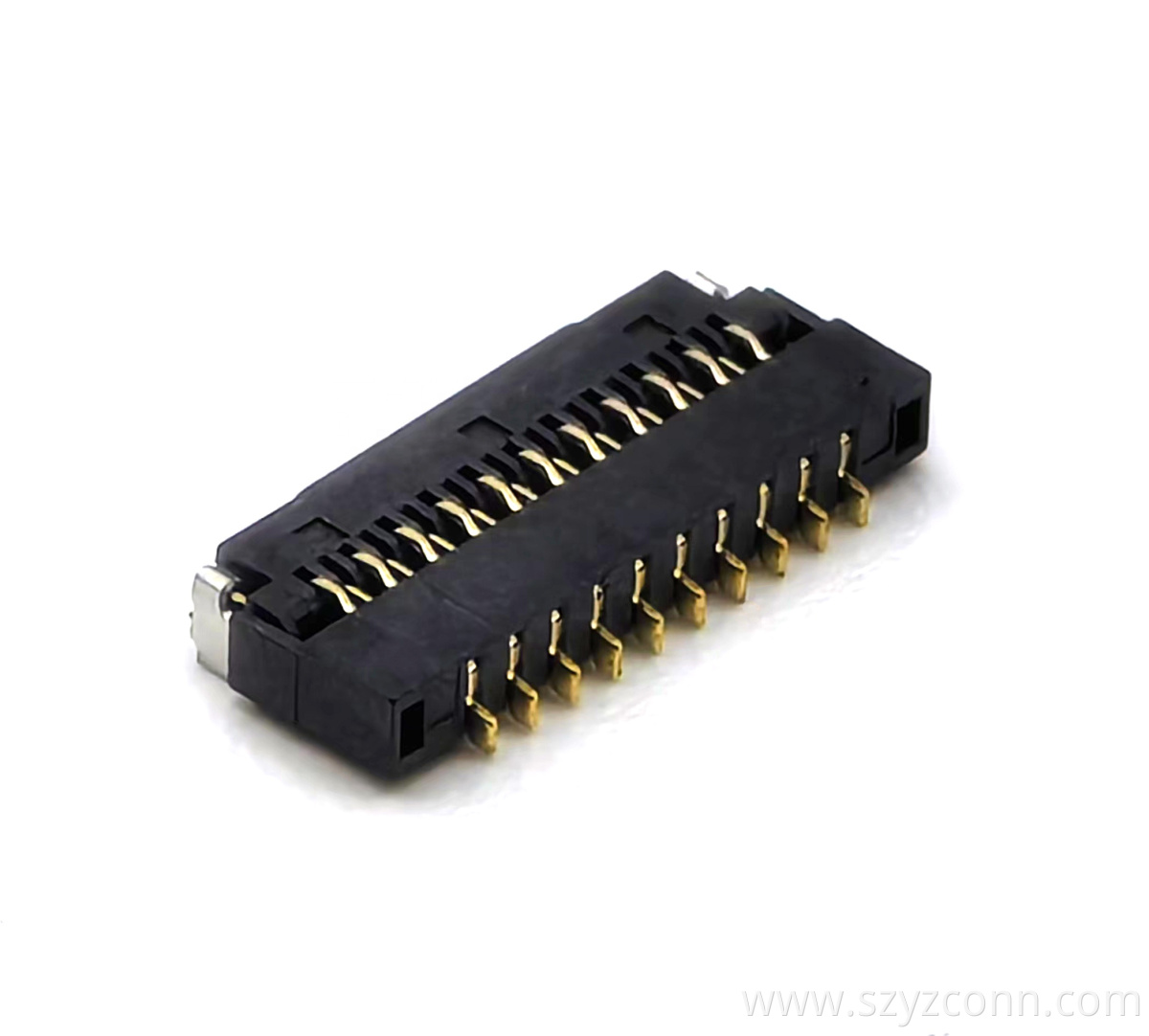

0.3mm Pitch FPC Connector Top-Entry Bottom-Actuated H1.0mm 21P



Product Description

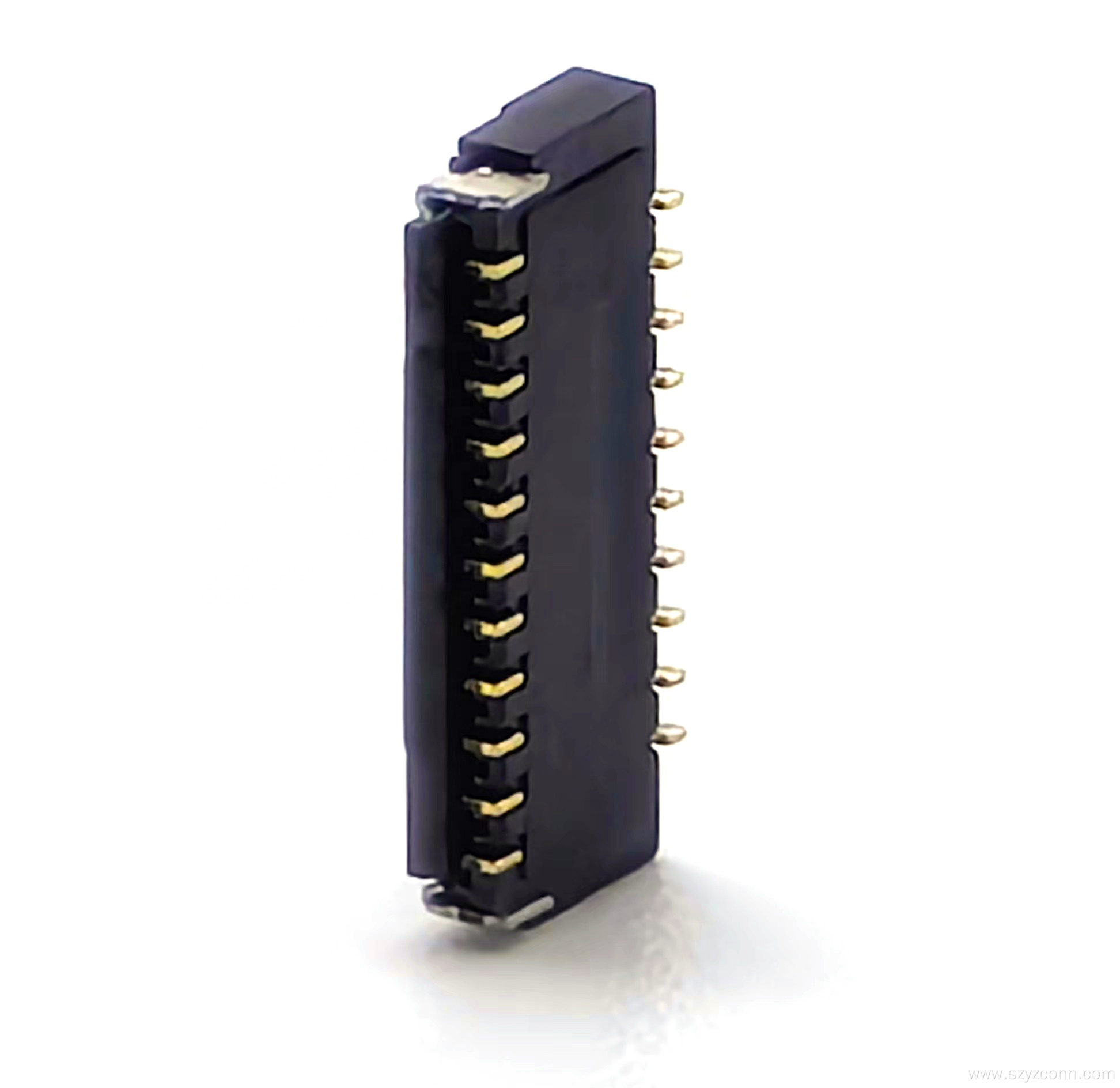

0.3mm Pitch FPC Connector H1.0mm

YZTECH’s 0.3mm Pitch FPC Connector H1.0mm redefines flexible circuit connectivity with its 0.3mm pitch design,optimized for seamless integration with Flat Flexible Cable and FFC Connector.This Flexible Flat Cable Connector top-entry features gold-plated copper contacts for ultra-low signal loss and nylon colloidal housing with V0 flame rating,ensuring durability in compact wearable devices, medical implants, and automotive displays. The snap-in installation method enables tool-free assembly while maintaining reliable mechanical retention for FFC/FPC cables.UL-certified and DIN-compliant, this 0.3mm pitch fpc connector bottom-actuated operates from -55°C to +85°C,making it ideal for cryogenic medical equipment and high-temperature industrial automation.

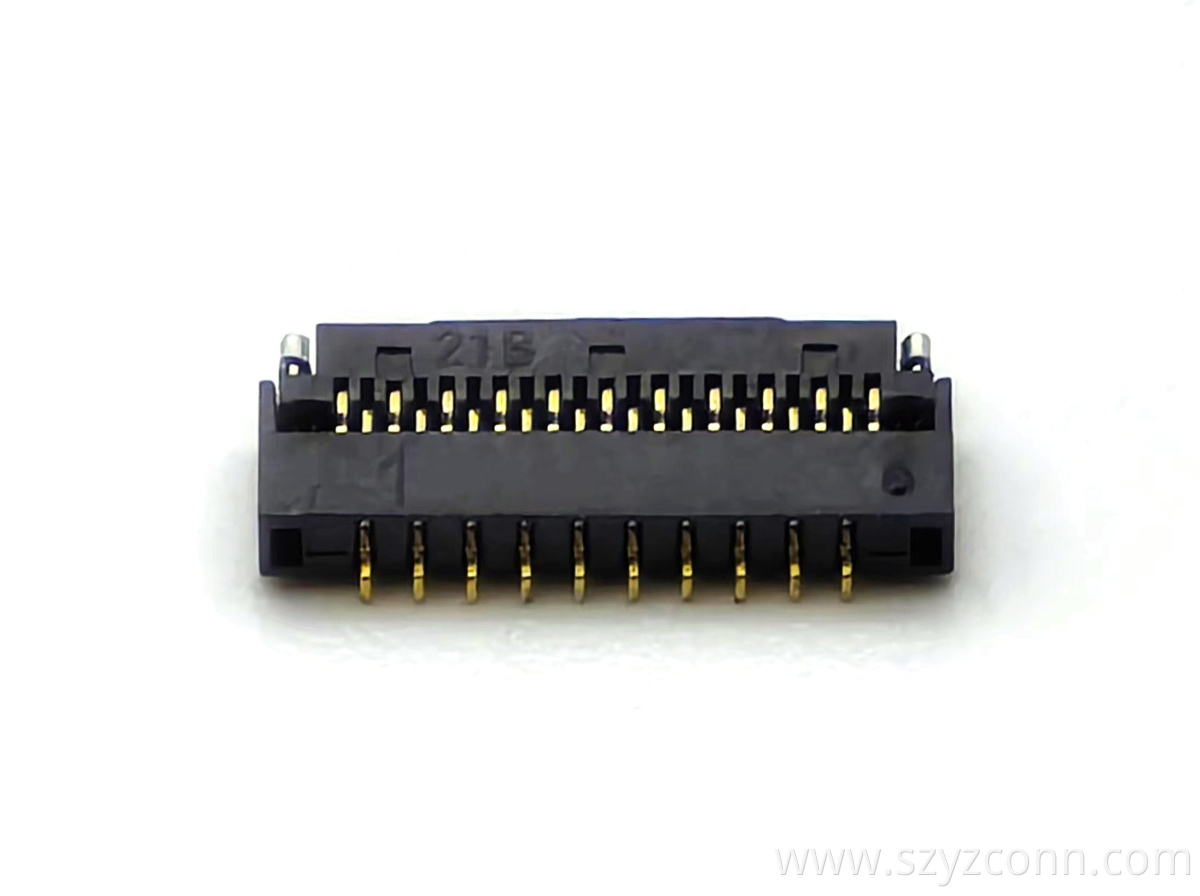

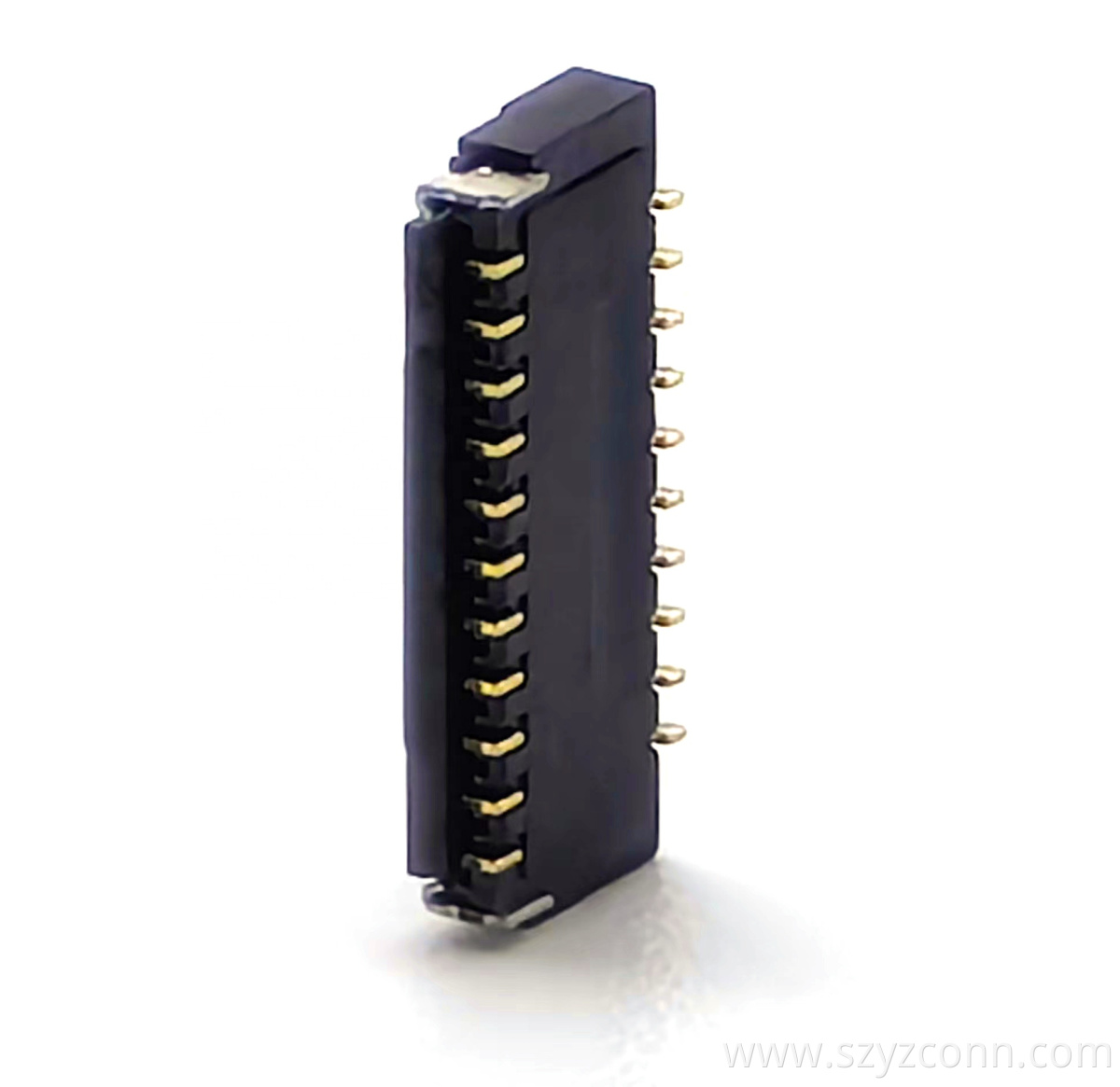

0.3mm Pitch FPC Connector Top-Entry Bottom-Actuated H1.0mm 21P

Engineered for FFC and FPC applications,this 0.3mm pitch fpc connector 21p leverages gold-plated copper contacts to minimize insertion loss and maximize signal integrity at 21-pin density.The nylon housing provides superior dimensional stability under thermal cycling,critical for flexible cable bending cycles.The 0.3mm pitch design enables direct connection to FFC＆FPC connector without additional adapters,reducing assembly complexity and cost.The bottom-actuated mechanism ensures secure cable retention while allowing easy insertion/extraction—essential for field-replaceable FFC modules.

Reel packaging supports automated SMT lines,ensuring precision placement for high-volume production of FFC-compatible PCBs.Unlike rigid connectors, this design accommodates cable thickness variations, ensuring reliable connections in dynamic environments.UL certification and DIN standards compliance guarantee global regulatory acceptance,while the -55°C to +85°C range addresses extreme environmental demands in aerospace and outdoor telecom systems.
