0.5mm Pitch FPC Connector SMT 30P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Ivory&Black 1-core 30P

Contact Now

Product Description

Product Attributes

Model No.: 6305S.SMT-30P-04

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Ffc-Fpc Connector

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

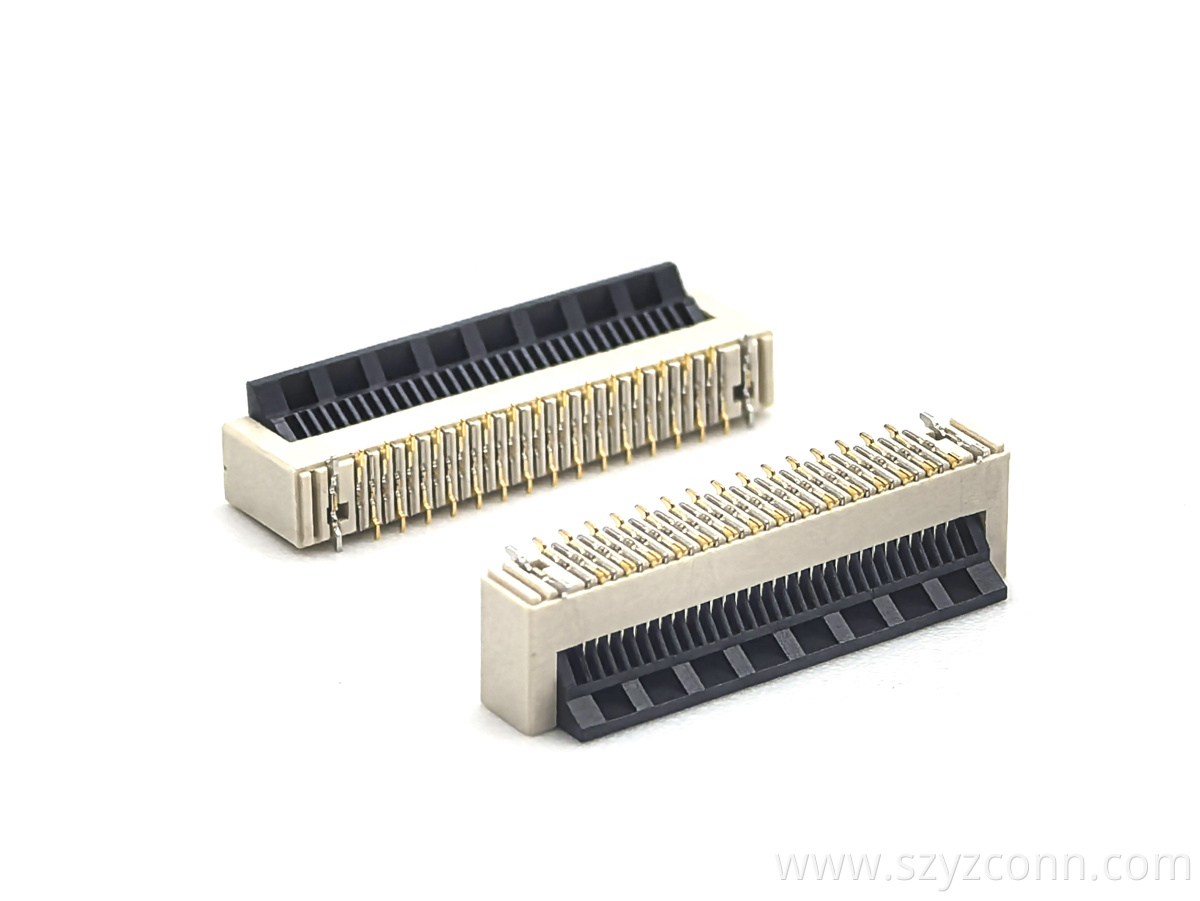

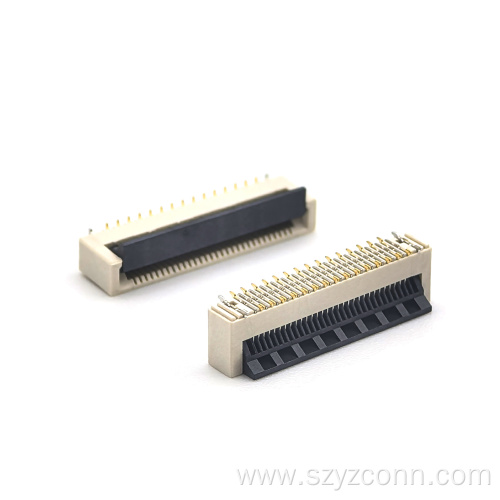

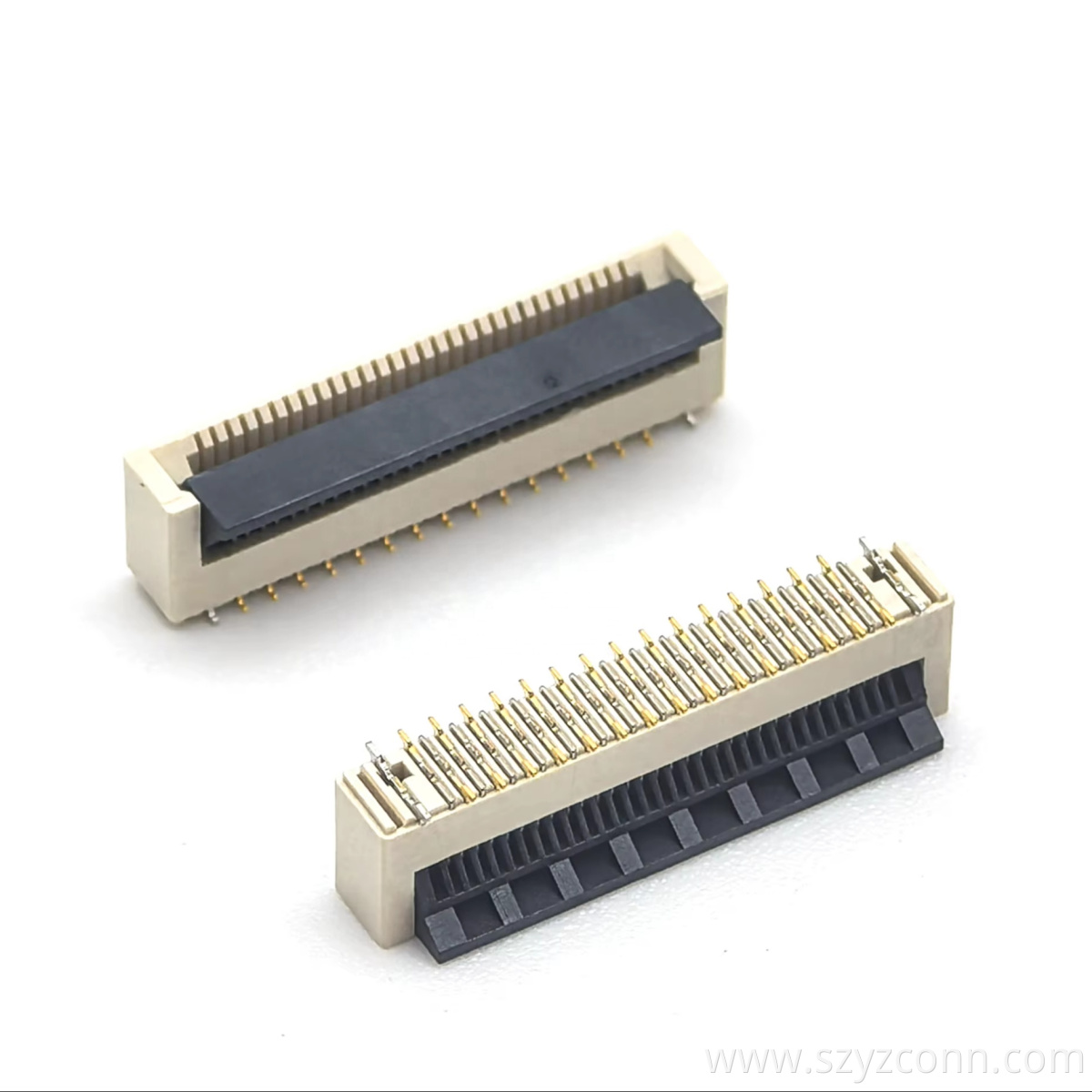

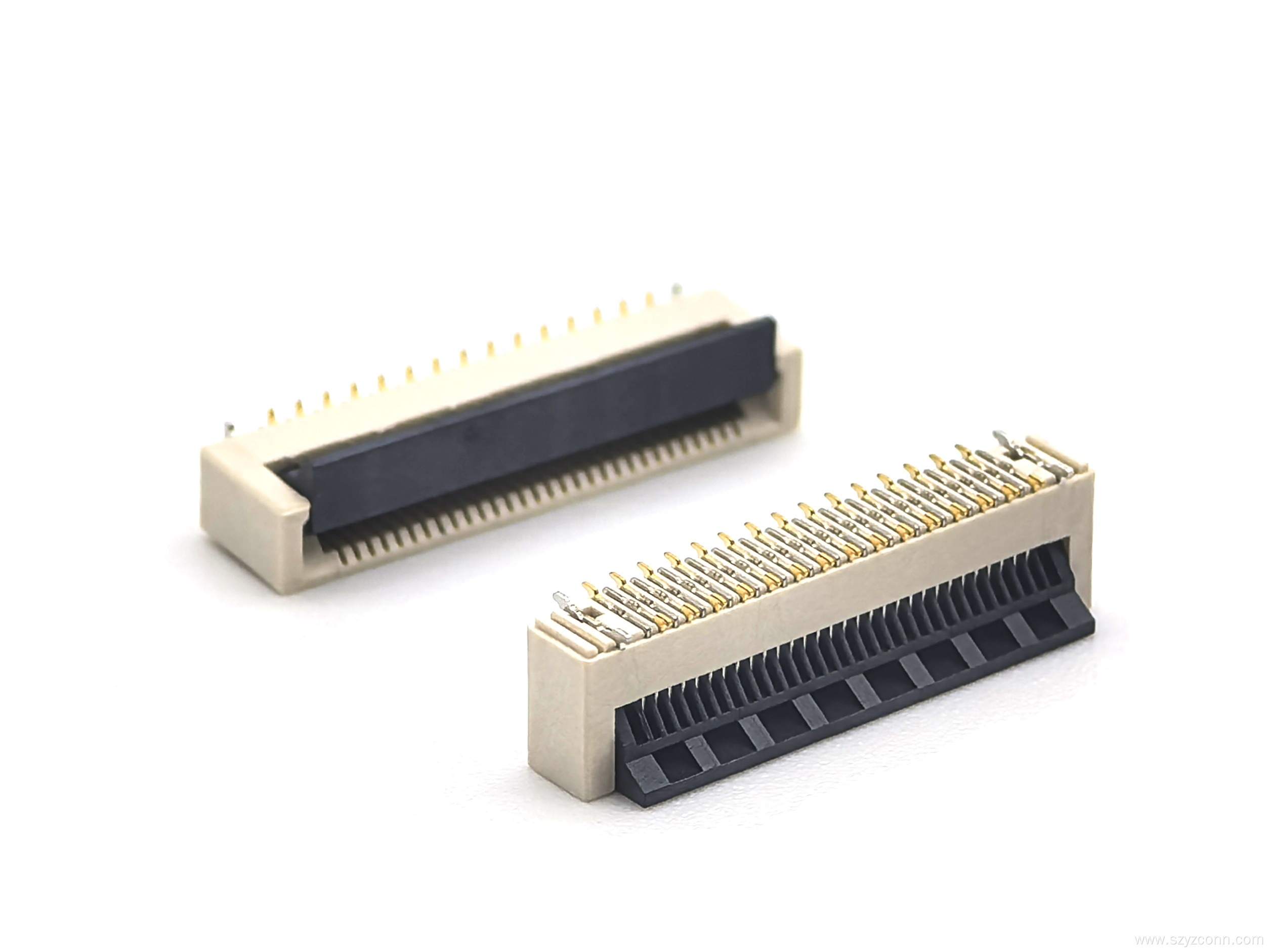

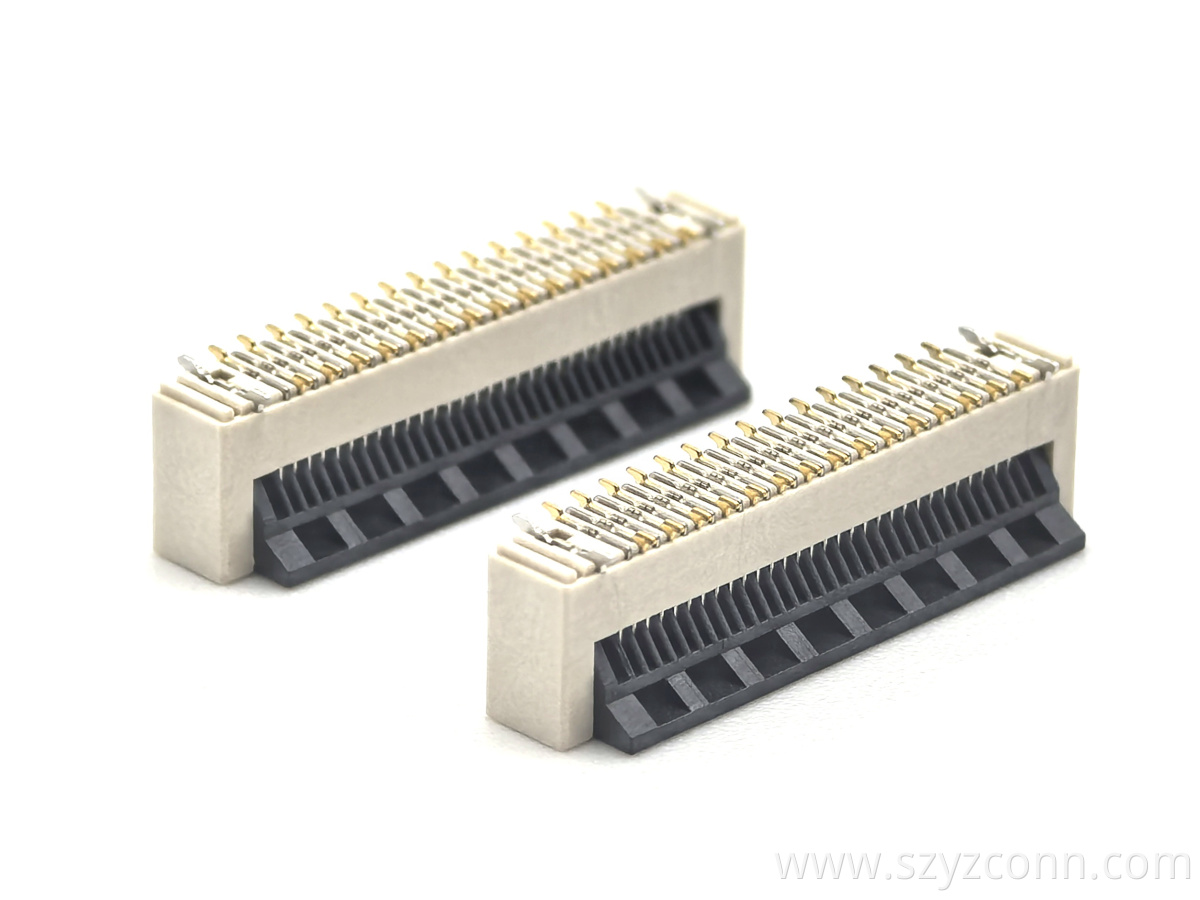

0.5mm Pitch FPC Connector SMT 30P

YZTECH's 0.5mm Pitch FPC Connector SMT 30P is a high-density surface-mount solution engineered for precision connections in advanced electronic assemblies,which can be connected to a Flexible Flat Cable Connector. Designed in a single-row 30-position configuration, this 0.5mm pitch fpc connector 30p facilitates secure interconnections between PCBs and flexible printed circuits .Its rectangular form factor, combined with a locking mechanism, ensures stable mating compatibility with standard FFC connectors and cables. Compliant with DIN standards and delivered in reel packaging, the FPC FFC Connector supports efficient automated placement and high-volume production.

Constructed with phosphor bronze contacts and tin plating, the 0.5mm pitch fpc connector pull-type offers superior conductivity and corrosion resistance. The housing, manufactured from Liquid Crystal Polymer, exhibits high thermal stability, performing reliably within an operating temperature range of -40°C to +85°C. The integrated lock mechanism provides robust mating retention with FFC cables, mitigating disconnection risks under mechanical stress. Its SMT design promotes streamlined PCB assembly and compatibility with reflow soldering processes.

This 0.5mm fpc connector smt is suited for a diverse range of applications, including medical instrumentation, automotive electronics, telecommunications equipment, and portable consumer devices where space-efficient FPC/FFC interconnections are essential. It is RoHS compliant and designed to operate seamlessly with industry-standard FFC cables and connectors. YZTECH ensures global interoperability and performance consistency, meeting stringent international requirements for quality and environmental adaptability.
