3.96mm Pitch Pin Header Right Angle 8P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 1-core 8P

Contact Now

Product Description

Product Attributes

Model No.: 052940

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Bag&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

3.96mm Pitch Pin Header Right Angle 8P

yztech’s newly developed 3.96mm Pitch Pin Header Right Angle 8P is a key solution for space constraints and complex wiring in electronic devices. As a featured product in the Pin Header series,the standard 3.96mm pitch and single-row right-angle design of 3.96mm pin header male 8p perfectly fit the compact layout scenarios of PCB Pin Header, optimizing space while enhancing wiring flexibility. It sets a model for balancing space optimization and efficient transmission in the 3.96mm pitch header category.

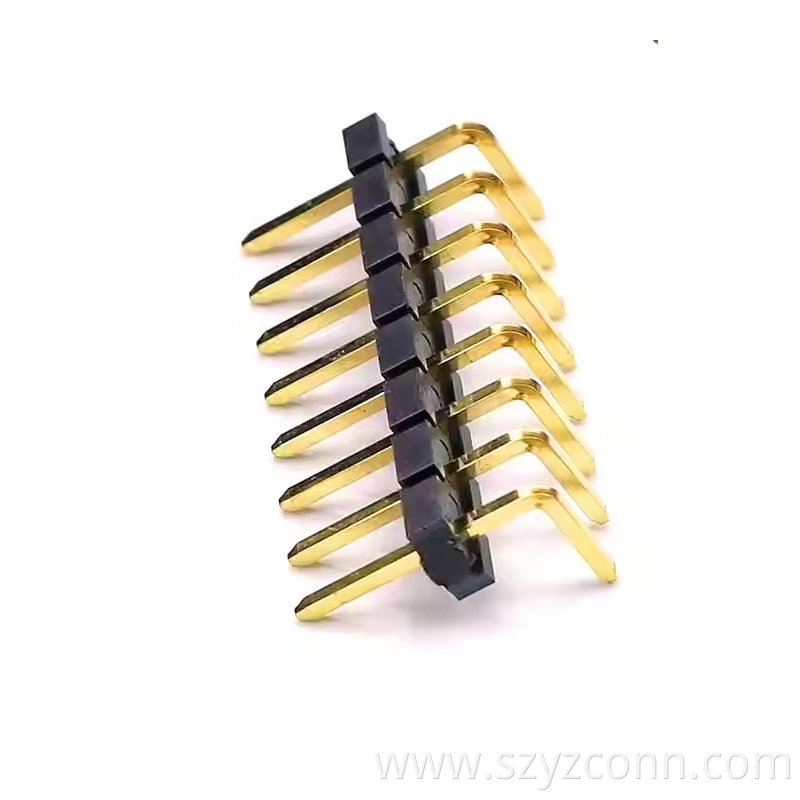

3.96mm Pitch Pin Header Single Row Right Angle SQ1.14mm H3.2mm 11P-120P (5)

This 3.96mm pin header connector 8p features high-quality C2680 phosphor bronze terminals (gold-plated) paired with black LCP (UL94V - 0) insulators, stably transmitting signals at a rated current of 3A/pin in harsh environments ranging from -40°C to +105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, strictly controls the contact resistance within 20mΩ, ensuring low-loss and zero-delay signal transmission. The flexible 2-40 PIN configuration is widely used in consumer electronics, industrial control, communication devices, etc., and is highly compatible with Female Header Pins.

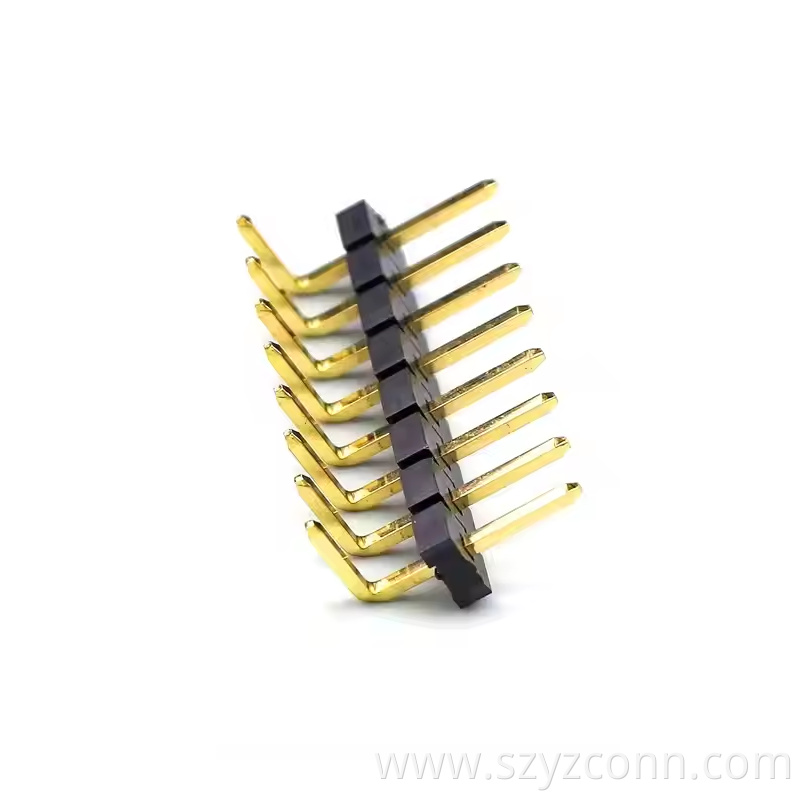

3.96mm Pitch Pin Header Single Row Right Angle SQ1.14mm H3.2mm 11P-120P (2)

Certified by ISO9001, ISO14001 and RoHS-compliant,the 3.96mm pcb header connector 8p comes in standard anti-static carrier tape + carton packaging. Offering flexible ODM and OEM customization services, it provides suitable 3.96mm Pin Header connector solutions for both conventional applications of 3.96mm pin Header and complex requirements in special scenarios.
