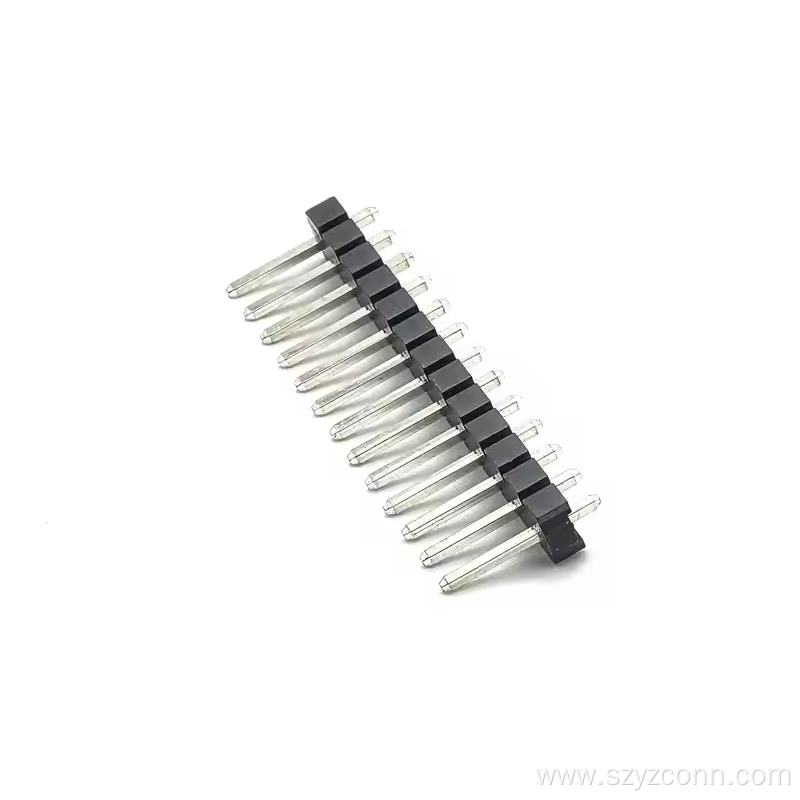

3.96mm Pitch Pin Header Connector 13P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 1-core 13P

Contact Now

Product Description

Product Attributes

Model No.: 052939

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tape&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

3.96mm Pitch pin header connector 13P

yztech’s 3.96mm Pitch Pin header connector 13P is a professional connection solution designed for high pin density and ultra-thin space requirements. As an innovative product in the Pin Header series, its standard 3.96mm pitch and 3.2mm ultra-thin height design of 3.96mm Pin Header 13p precisely meet the compact layout needs of PCB Pin Header, setting a model for balancing space-saving and high-performance transmission in the 3.96mm pitch header category.

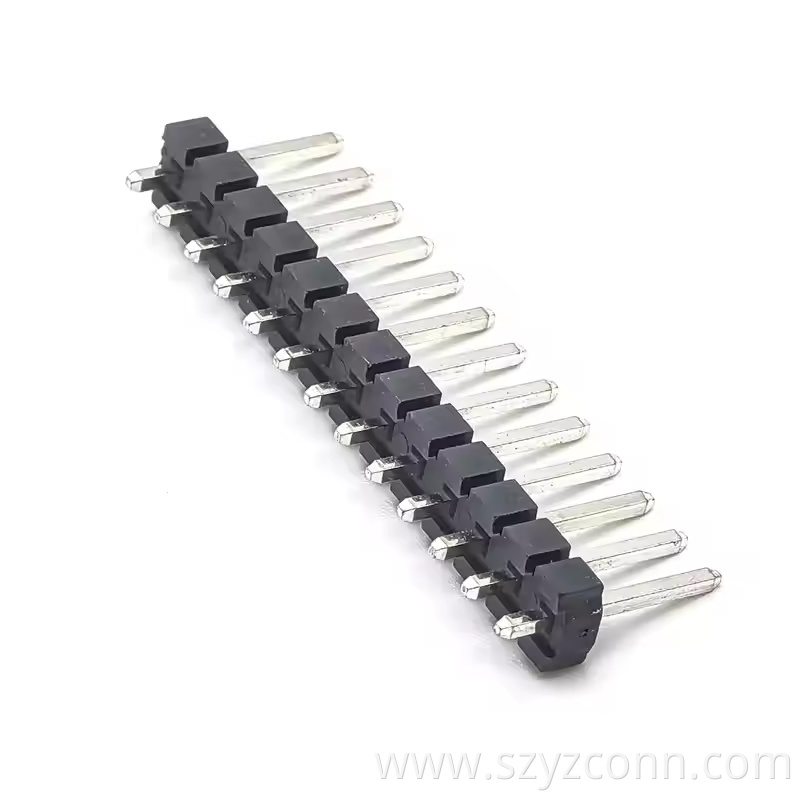

3.96mm Pitch Pin Header Single Row Straight SQ1.14mm H3.2mm 113P LCP (1)

This 3.96mm pin header Connector 13p features high-quality C2680 phosphor bronze terminals (gold-plated) and black LCP (UL94V - 0) insulators, operating stably at a rated current of 3A/pin in environments ranging from -40°C to +105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, strictly controls the contact resistance within 20mΩ, ensuring efficient and stable signal transmission. The high-density 13-pin configuration is specifically designed for scenarios with extremely high requirements for connection quantity and reliability, such as communication base stations and industrial control motherboards, and is highly compatible with Female Header Pins.

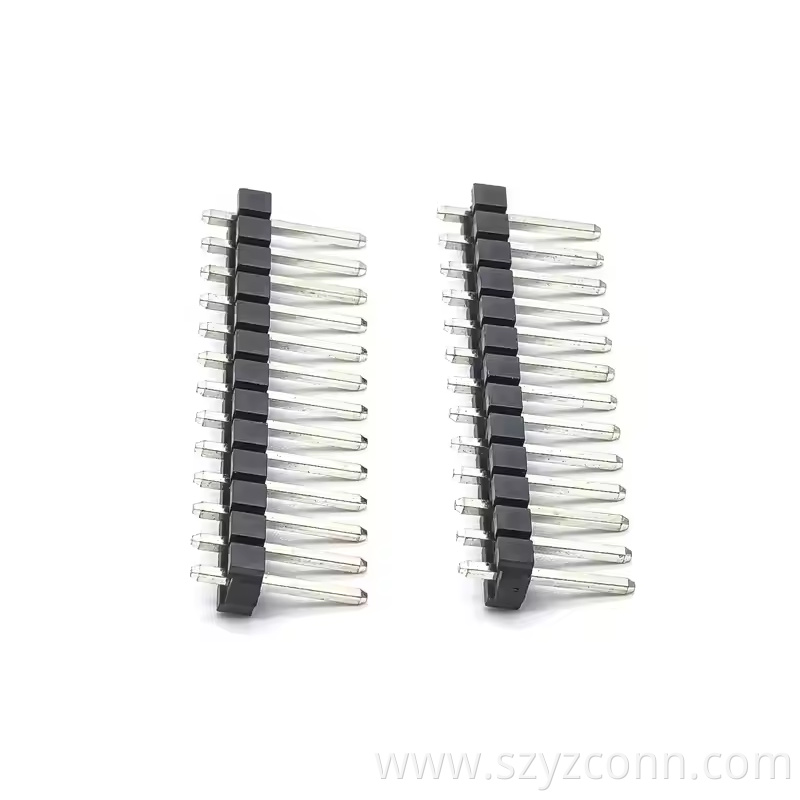

3.96mm Pitch Pin Header Single Row Straight SQ1.14mm H3.2mm 113P LCP (3)

Certified by ISO9001, ISO14001 and RoHS-compliant,this 3.96mm pin header pcb 13p comes in standard anti-static carrier tape + carton packaging. Offering flexible ODM and OEM customization services, it provides precisely tailored 3.96pin header connector solutions for both conventional applications of 3.96mm pin Header and complex requirements in special scenarios.
