3.5mm Pin Header Connector SMT 20P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 1101.350SMT-2*10P

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

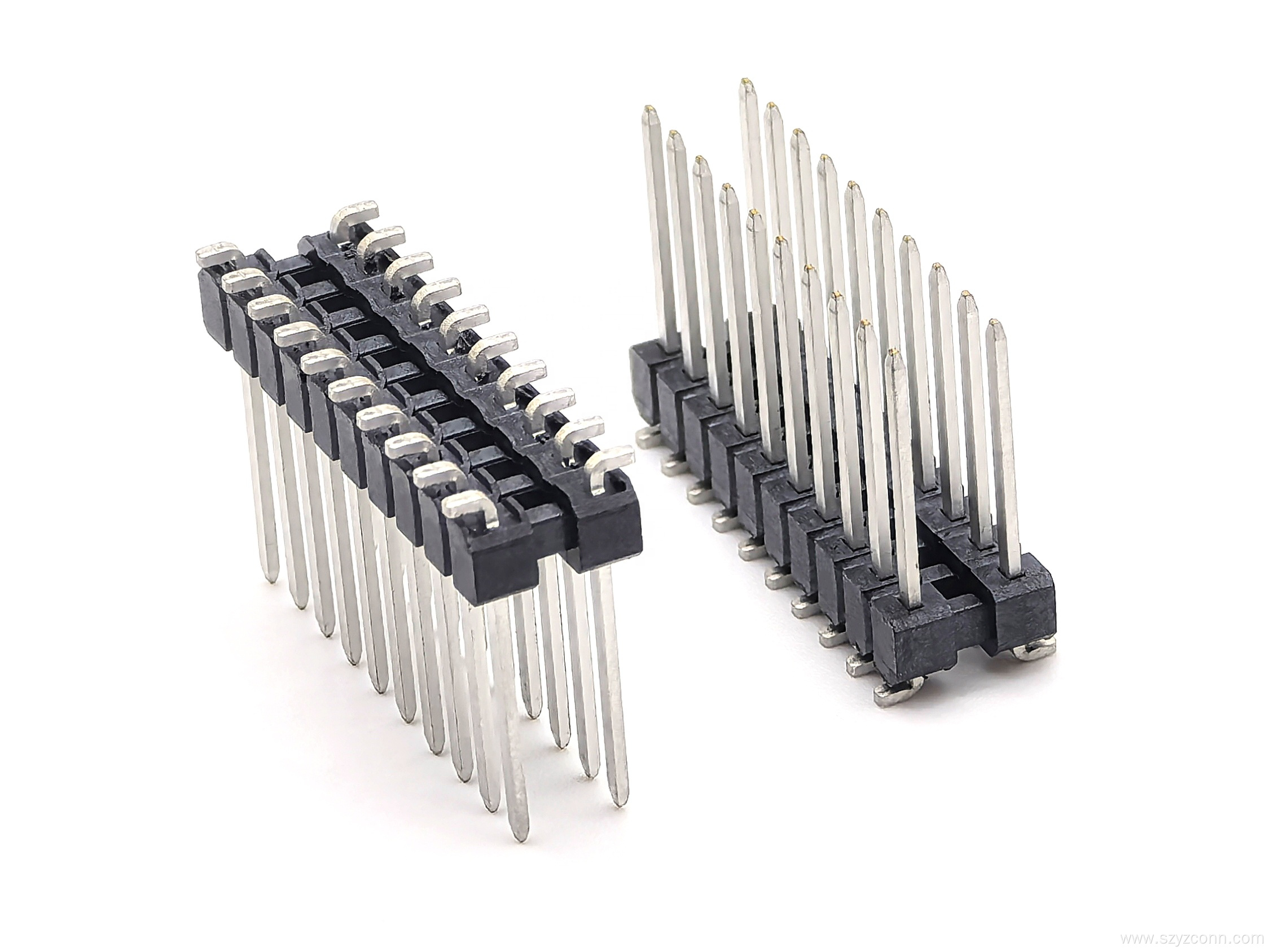

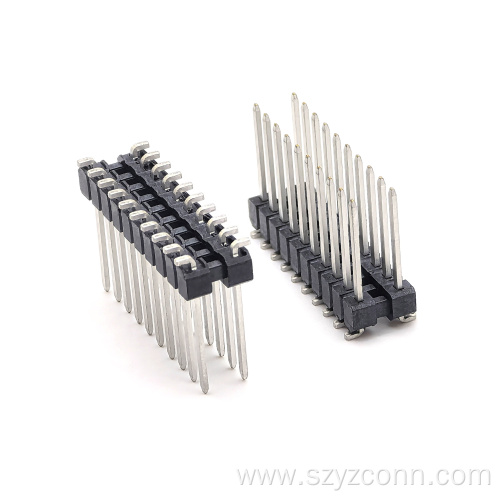

3.5mm pin header connector SMT 20P
YZTECH introduces a high-power interconnect solution with its 3.5mm Pin Header Connector SMT 20P,engineered for applications demanding superior current-carrying capacity and board-level stability.This male 3.5mm pin header connector LCP utilizes a generous pitch to ensure safe voltage isolation and reliable performance under high electrical loads,supporting up to 7A current and 500V voltage.Its vertical mount Surface Mount Technology design provides a robust mechanical footprint on the PCB,offering enhanced stability against board flexure and vibration compared to conventional through-hole headers,making it ideal for power supplies, industrial drives, and automotive systems.

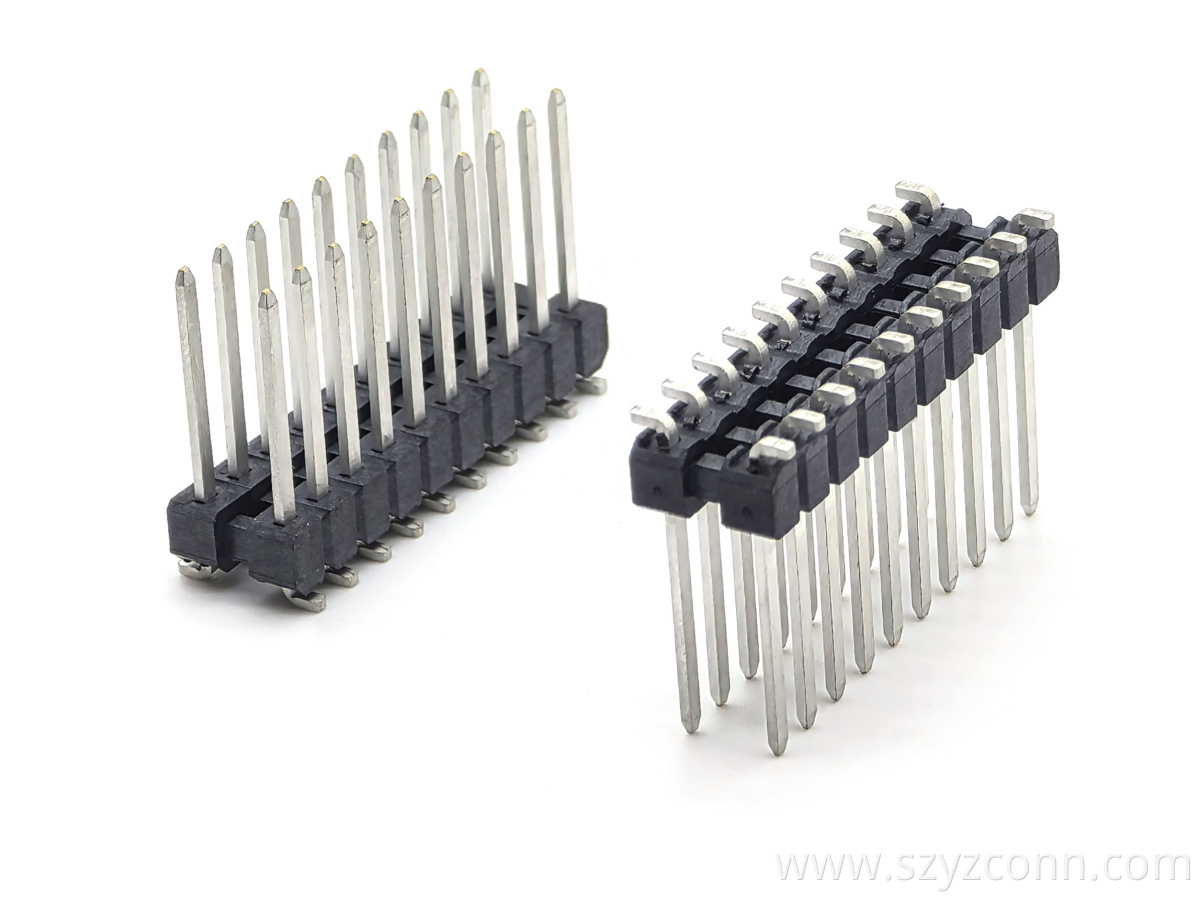

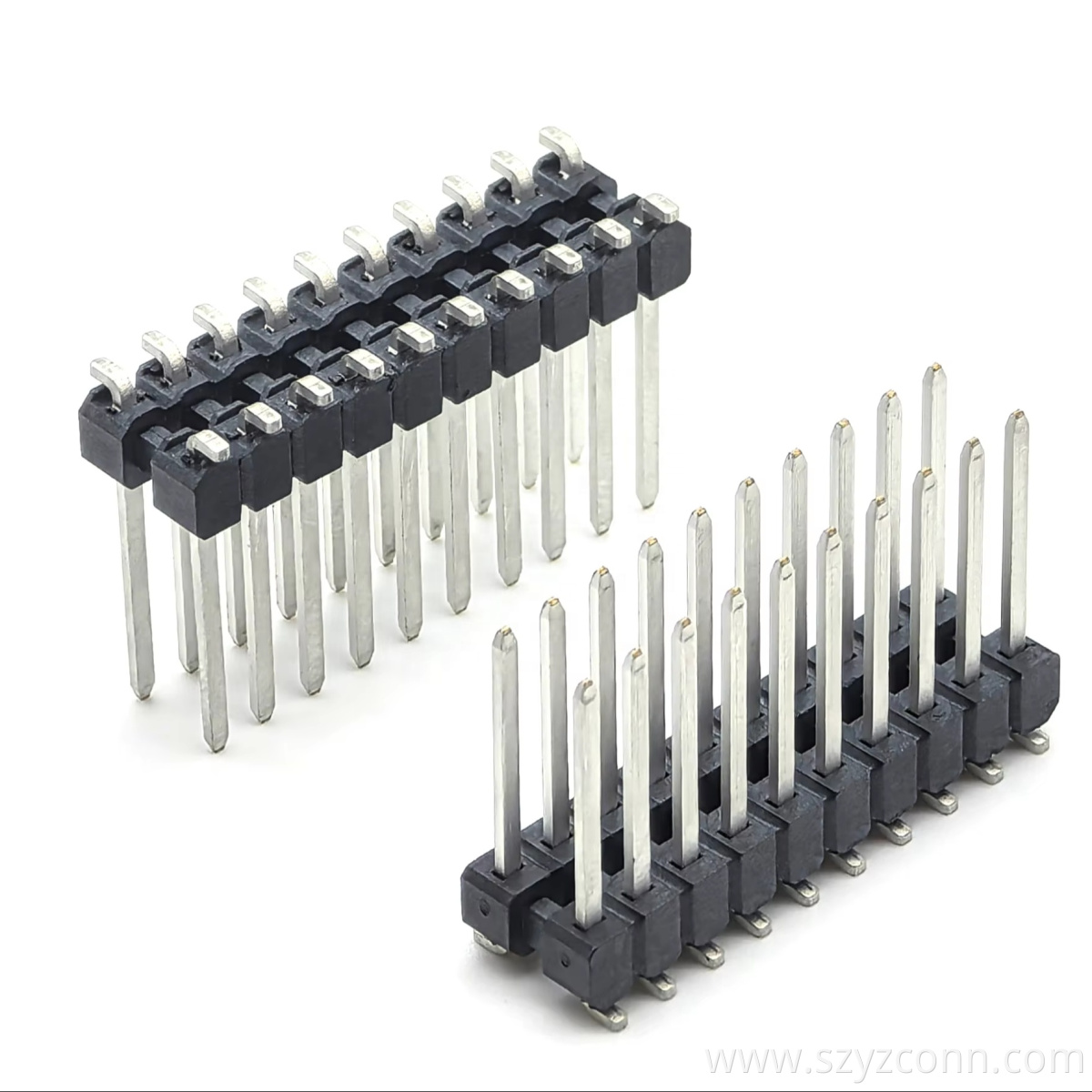

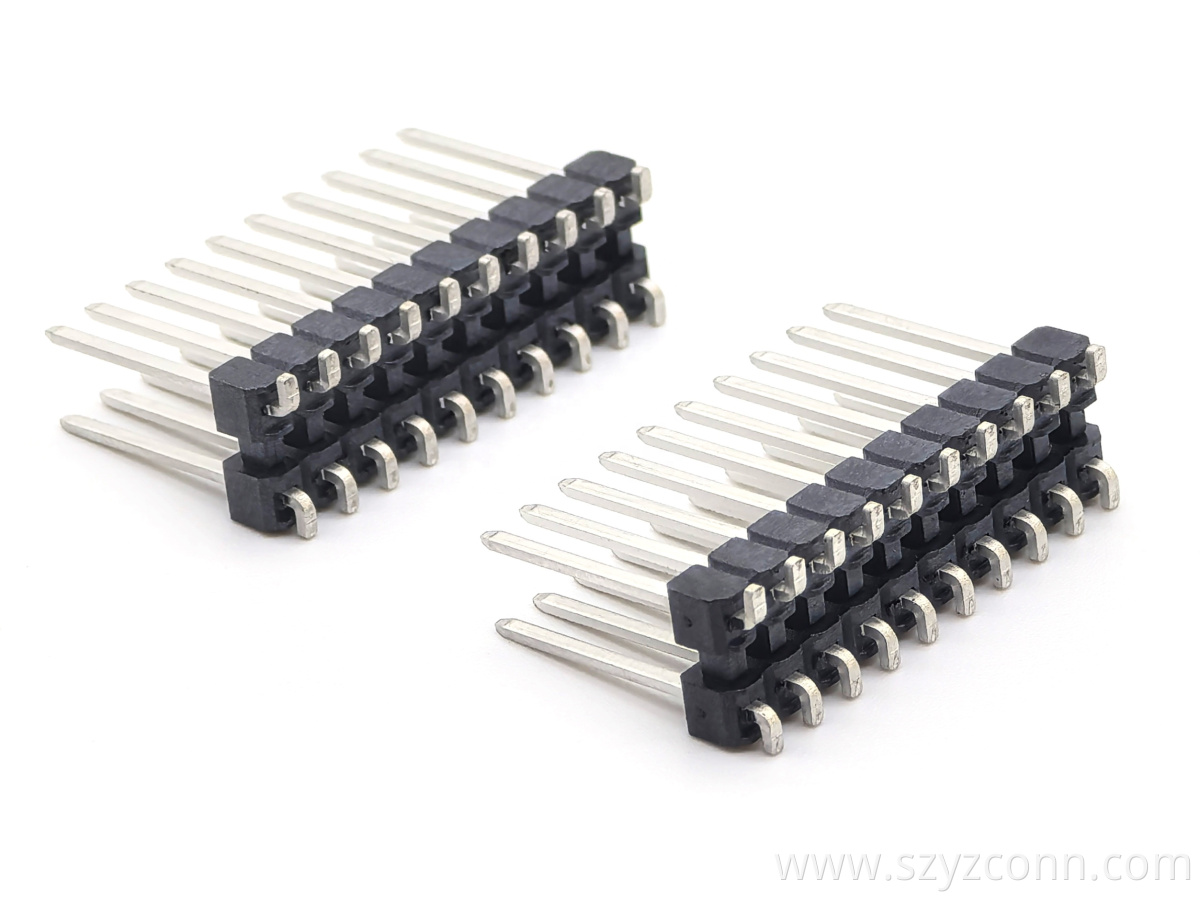

3.5mm Pitch Pin Header Connector Dual Row SMT LCP H4.2mm 2*10P

The connector's construction is optimized for resilience in demanding environments.The contact pins are manufactured from solid brass with a durable tin plating, delivering excellent conductivity and strong solder joint integrity during reflow processes.The insulator is molded from Liquid Crystal Polymer,a material chosen for its exceptional thermal resistance,high dimensional stability,and flame-retardant properties.This material synergy ensures the 3.5mm Pin Header smt 20p maintains its structural and electrical integrity across a wide operating temperature range of -40°C to +105°C and withstands maximum soldering temperatures of 260°C for 10 seconds.

Packaged in secure tubes to protect the 3.5mm pin header connector h4.2mm and ensure alignment,this 3.5mm pin header is tailored for efficient handling in both automated and manual assembly processes.Its dual-row configuration and high-power rating make it a critical component for creating reliable power distribution buses,motor controller interfaces,and connection points in renewable energy systems.
