3.5mm Pitch Pin header Connector 20P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 1101S-3,5-2*10P-H2,4

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Supply Type: Original Manufacturer

Place Of Origin: China

Package: Other

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

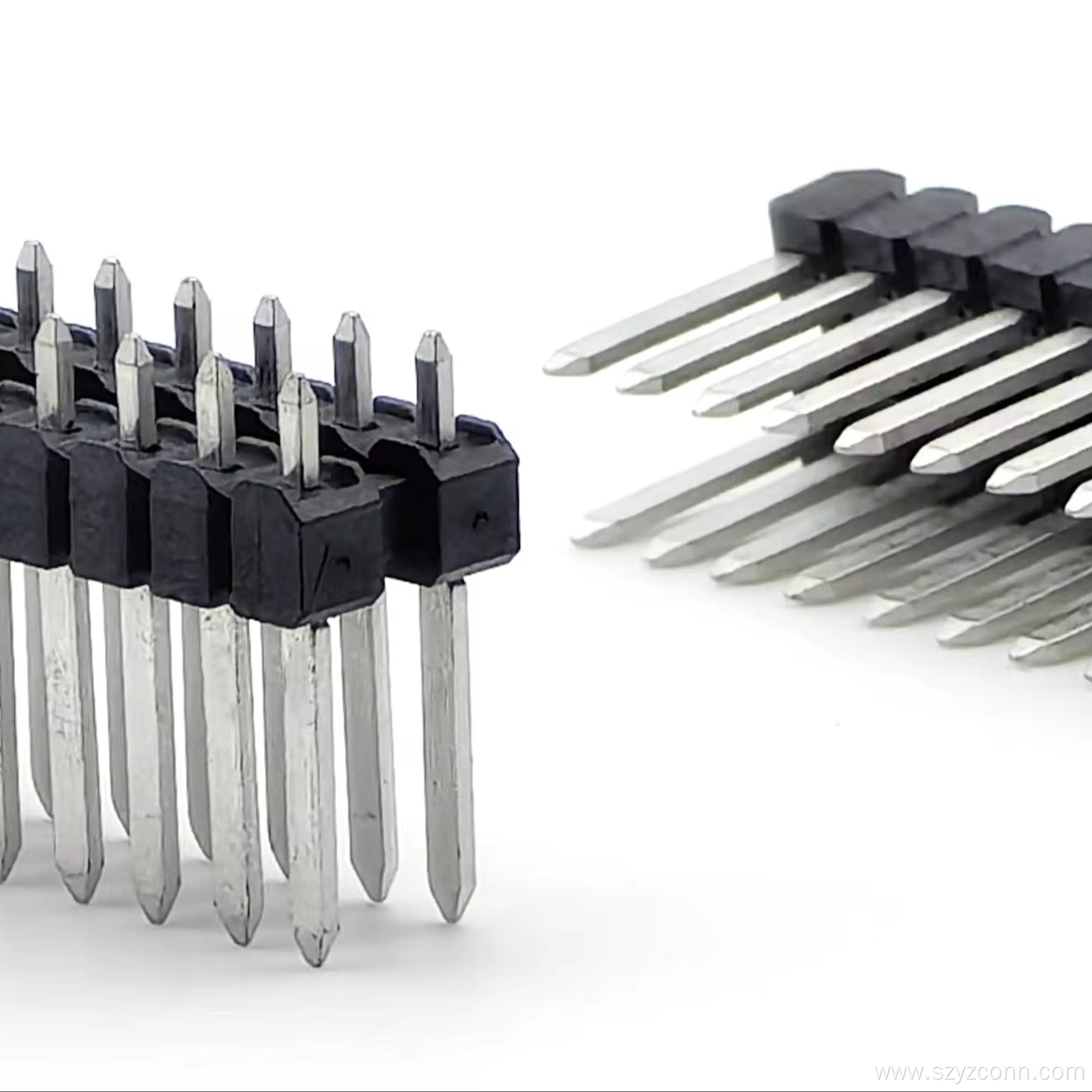

3.5mm Pitch pin header connector 20P

Engineered for demanding applications, this 3.5mm Pitch Pin header connector 20P delivers robust performance in industrial settings.Featuring a straight-plug male DIN design, it guarantees stable signal transmission under high-current conditions.The 3.5mm Pin Header h2.4mm incorporates brass contacts with tin plating for superior conductivity and corrosion resistance, housed within a nylon body that offers high mechanical strength and a wide operating temperature range of -40℃ to +105℃.

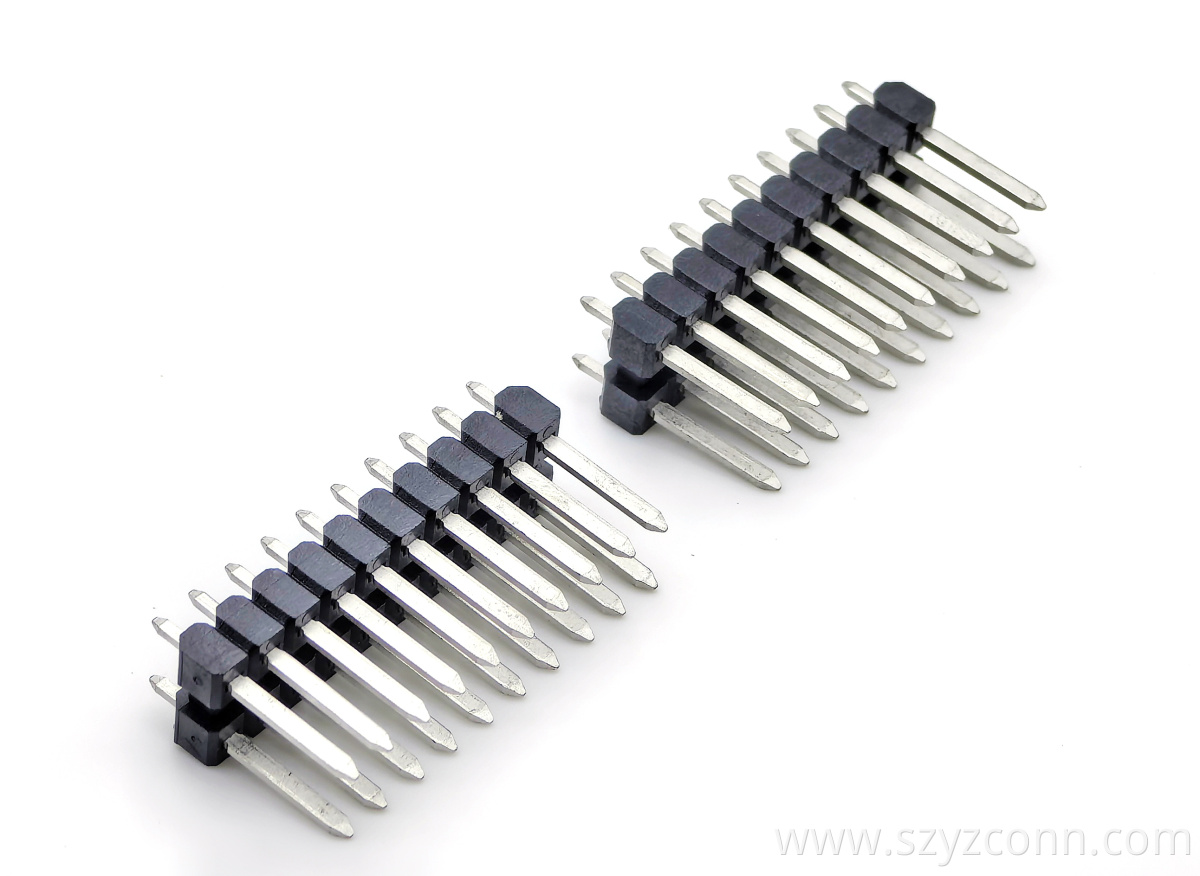

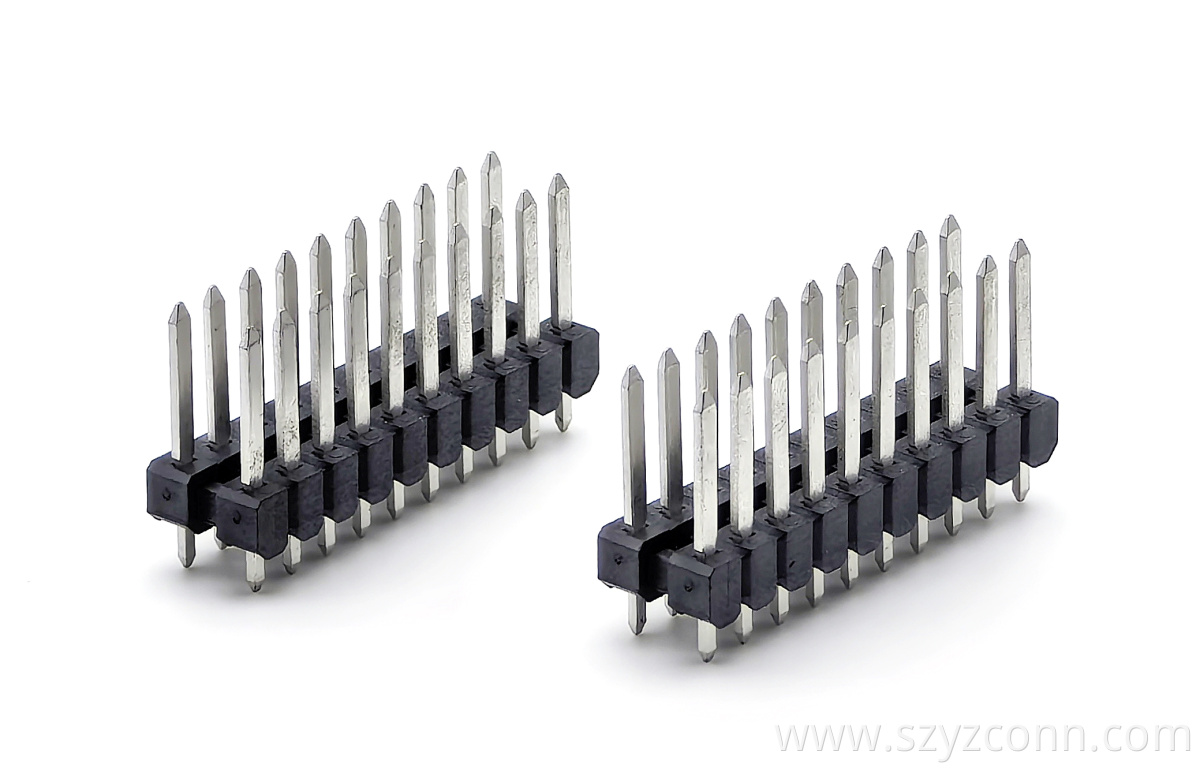

3.5mm Pitch Pin Header Connector Dual Row Straight H:2.4mm 2*10P

With a low profile of 2.4mm and a compact rectangular form,it saves valuable PCB space,making it suitable for power distribution modules,industrial automation, and renewable energy systems.The 3.5mm Pin Header connector 20p comes in secure box packaging, which lowers the risk of shipping damage by 30% compared to loose alternatives.Built to endure harsh conditions, the pin header supports a lead-free soldering profile of 220℃ for 10 seconds, aligning with modern SMT assembly requirements. Its dual-row 3.5mm pitch layout minimizes cross-talk, making it ideal for high-speed digital circuits.

Additional benefits include a 50% reduction in PCB space compared to single-row designs,QR-coded batch traceability for quality control, and a 500V voltage rating for high-voltage industrial use.Its straight-plug configuration enables faster automated assembly, cutting production time by 15%,convenient to connect to Female Header, while the heat-resistant nylon construction helps reduce PCB defects by 20%. Backed by 24/7 technical support, this 3.5mm pin header black helps manufacturers accelerate time-to-market for internationally certified products.
