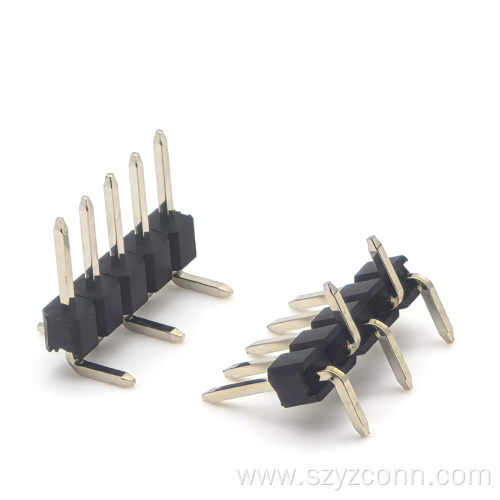

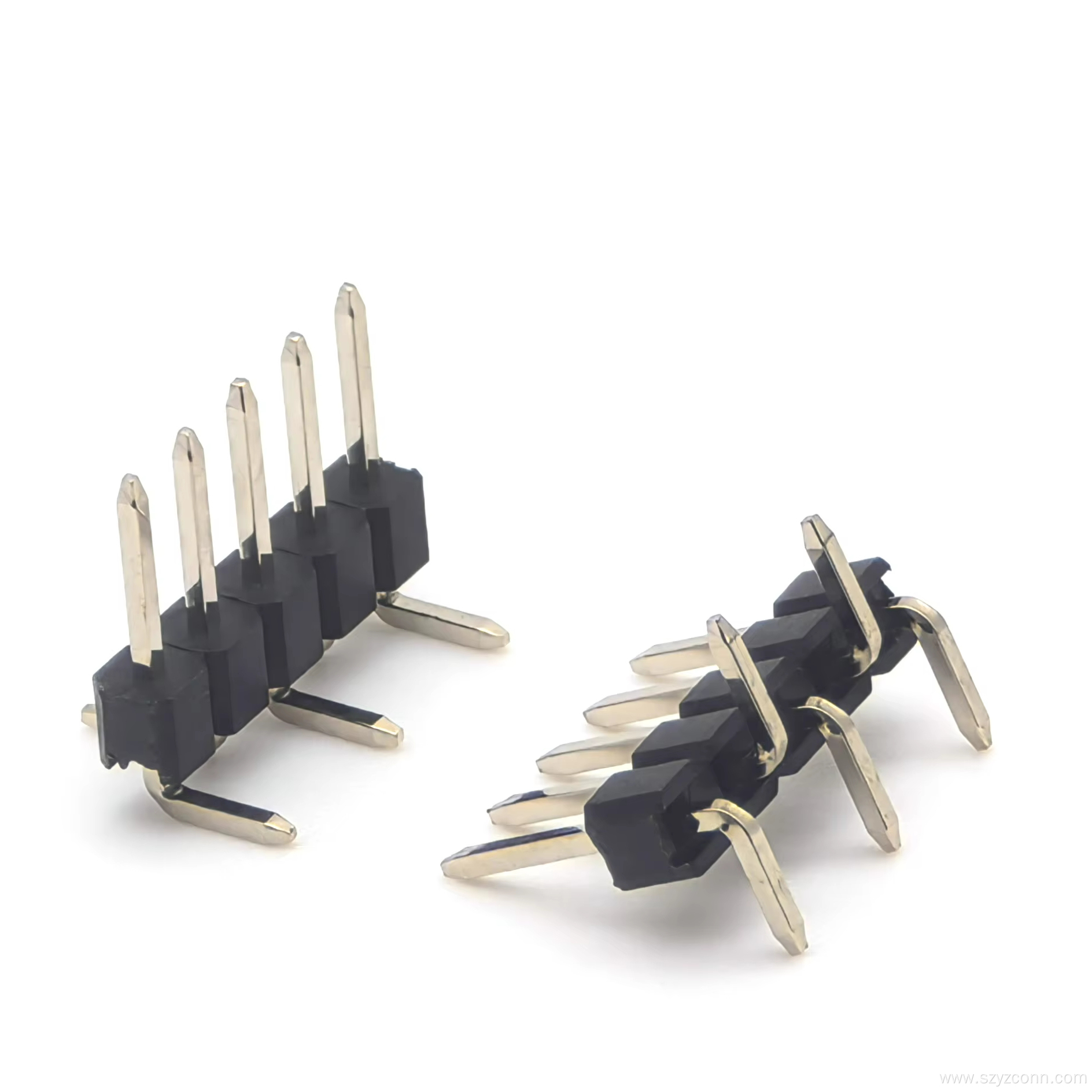

2.54mm Pin header Connector H2.5mm 5P

2.54mm pin header connector H2.5mm 5P

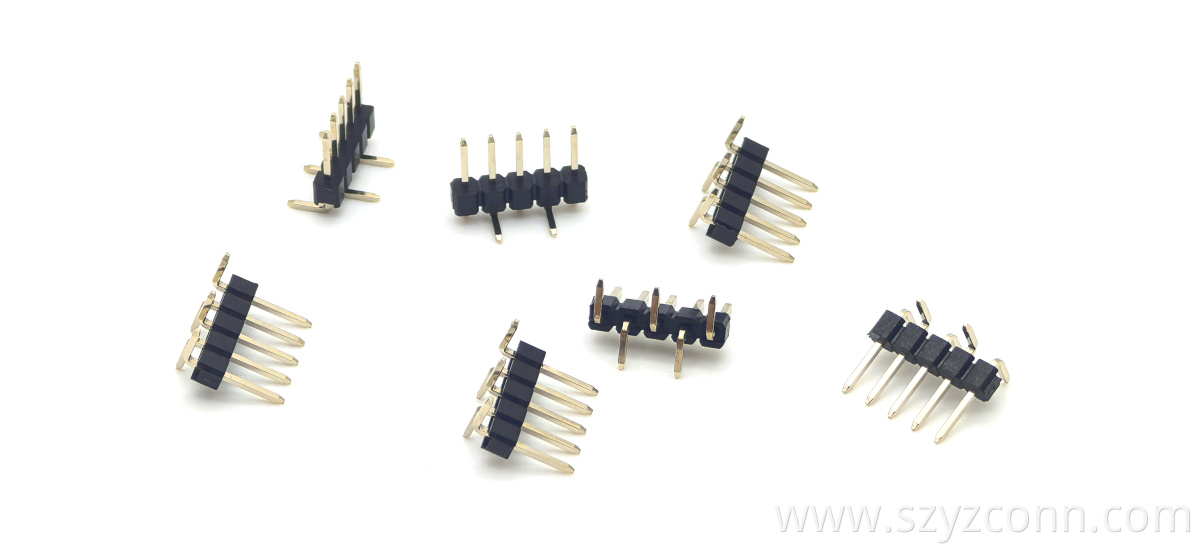

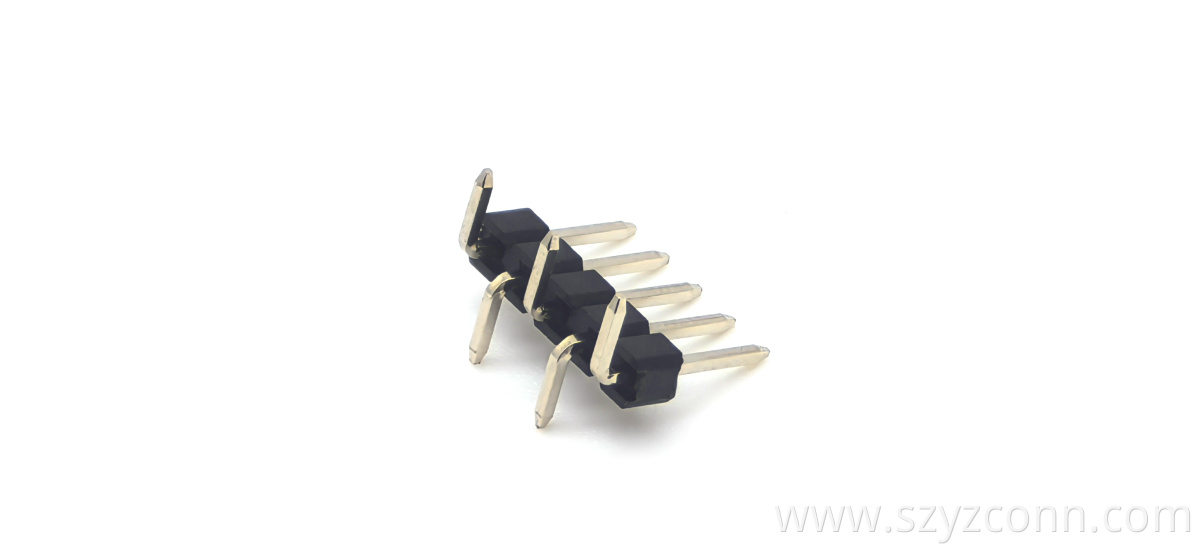

Engineered for reliable board-to-board and wire-to-board connections,the YZTECH 2.54mm Pin Header Connector H2.5mm 5P offers a compact rectangular male interface designed specifically for horizontal surface-mount technology placement.This single-row configuration with 5 pins per row delivers a space-saving solution on PCBs,ideal for applications where vertical clearance is limited.It belongs to 2.54mm Pin Header of the catalog.

The insulator housing of this 2.54mm pin header connector smt  is molded from PA6T,a high-temperature thermoplastic known for its superior mechanical strength,low moisture absorption,and exceptional thermal stability.This material choice enables the connector to withstand peak reflow temperatures up to 260°C for 10 seconds during soldering without deformation or degradation.Electrical ratings include 3A continuous current per contact and 600V AC/DC rated voltage,suitable for control panels,power supplies,and instrumentation equipment.The rectangular shape and single-row layout facilitate easy polarization and keying in assembly lines.Operating reliably from -40℃ to +105℃,this 2.54mm pin header male 5p ensures stable interconnection in both freezing environments and elevated-temperature industrial settings.

The YZTECH 2.54mm pin header stands out through its precision-engineered contact system:each pin is crafted from high-conductivity brass and finished with a gold plating layer,providing excellent corrosion resistance,low contact resistance,and reliable mating cycles.The 2.54mm pin pcb header is supplied in reel&box packaging,supporting high-volume pick-and-place operations with consistent orientation and anti-static protection.
