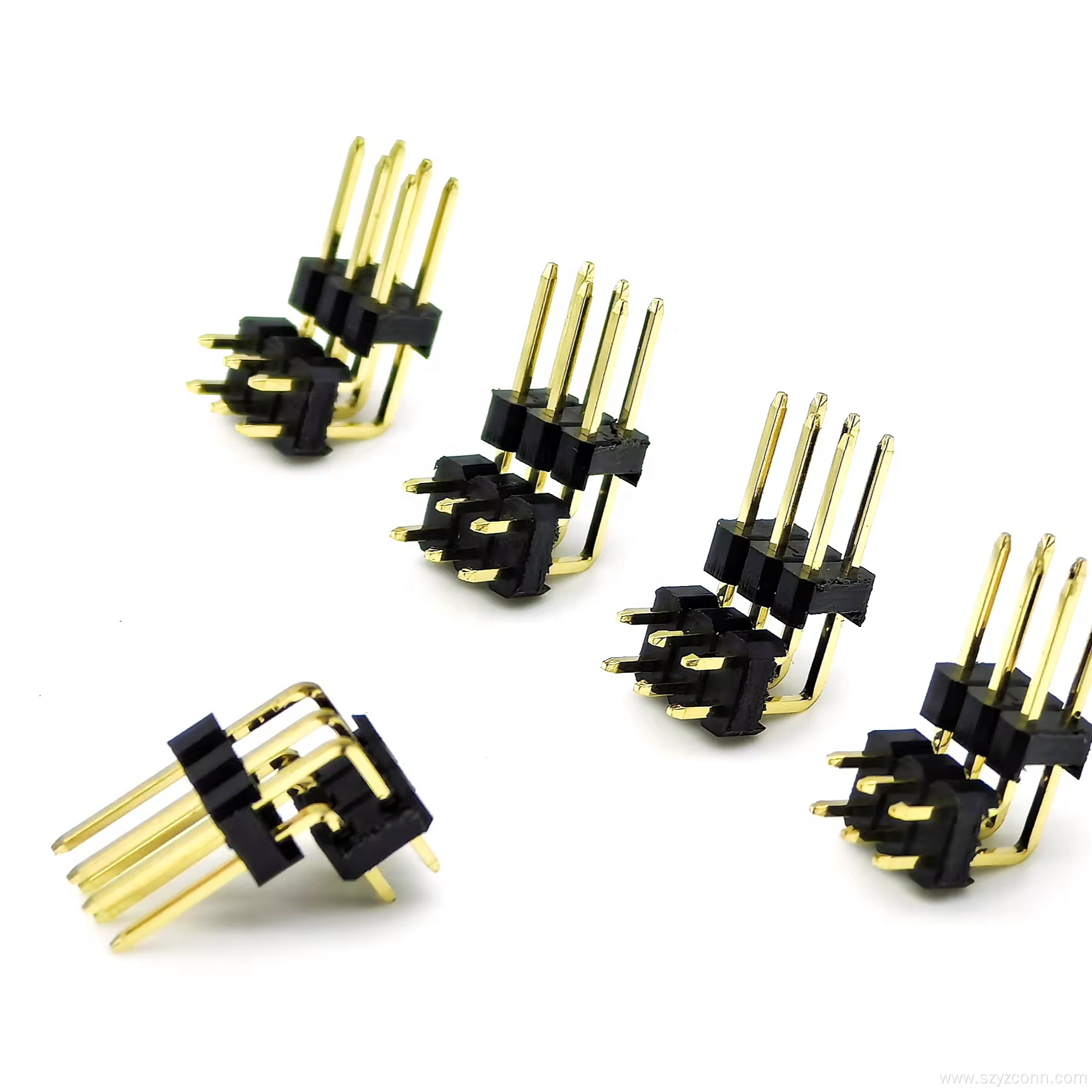

2.54mm Pin header Dual Row H5.0mm 6P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 6P

Contact Now

Product Description

Product Attributes

Model No.: 1101R.2DL-2*2*3P

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Supply Type: Original Manufacturer

Place Of Origin: China

Package: Tray

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tray&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

2.54mm Pin header Dual Row H5.0mm 6P



Product Description

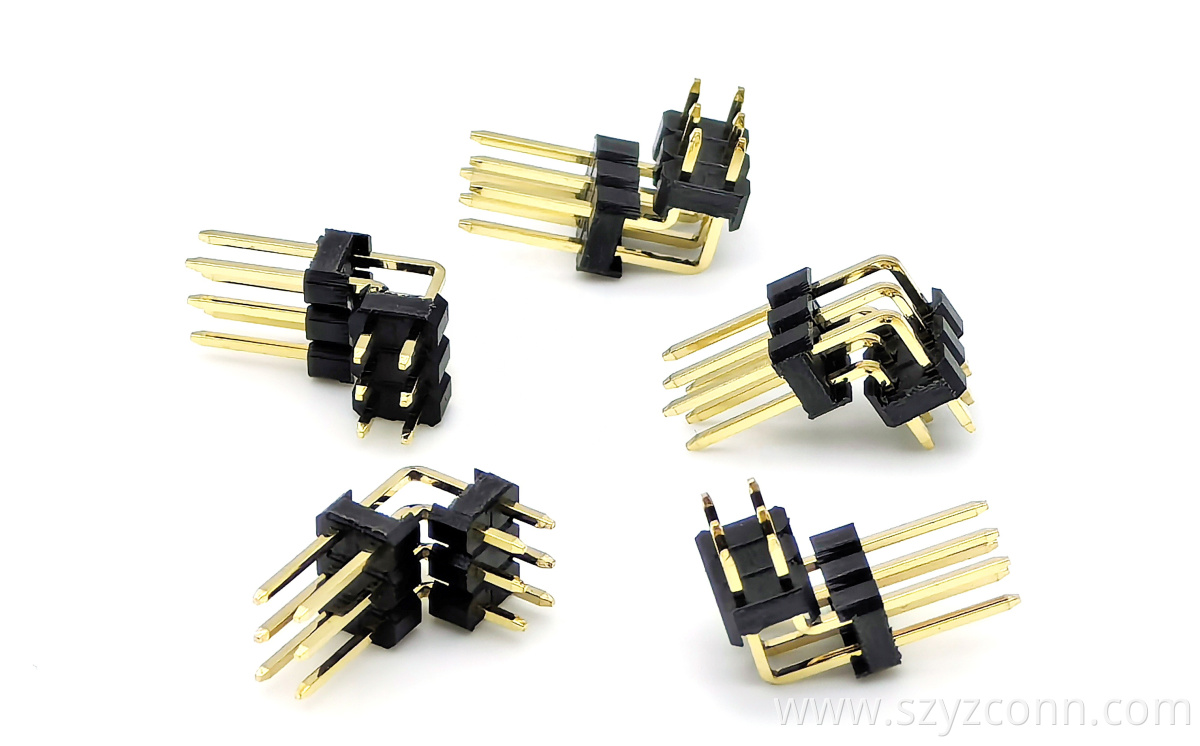

2.54mm Pin Header Dual Row H5.0mm 6P

YZTECH's 2.54mm Pin Header Dual Row H5.0mm 6P excels in high-density PCB environments with its unique bending insertion installation,ensuring flexible and secure board integration.Featuring a dual-row male configuration,this DIN-standard 2.54mm pin header double plastic boasts a compact rectangular shape for space optimization.The gold-plated brass contacts deliver superior conductivity and corrosion resistance,while the robust PA6T colloidal material enhances mechanical strength and insulation.Ideal for dynamic applications,the 2.54mm header connector h5.0mm 6p streamlines assembly processes,reducing errors and improving reliability in demanding electronic systems.

This pin header 2.54mm right angle 6p supports a 3A current rating and 600V voltage capacity,with pin dimensions of SQ0.64mm and a low-profile height of 10.0mm.Engineered for resilience,the PA6T housing withstands extreme temperatures from-40°C to 105°C,ensuring stable performance in harsh conditions.It complies with maximum welding specifications of 220°C for 10 seconds,facilitating robust PCB mounting.The dual-row bending insertion design minimizes stress on connections,enhancing longevity and signal integrity across industrial and automotive sectors.

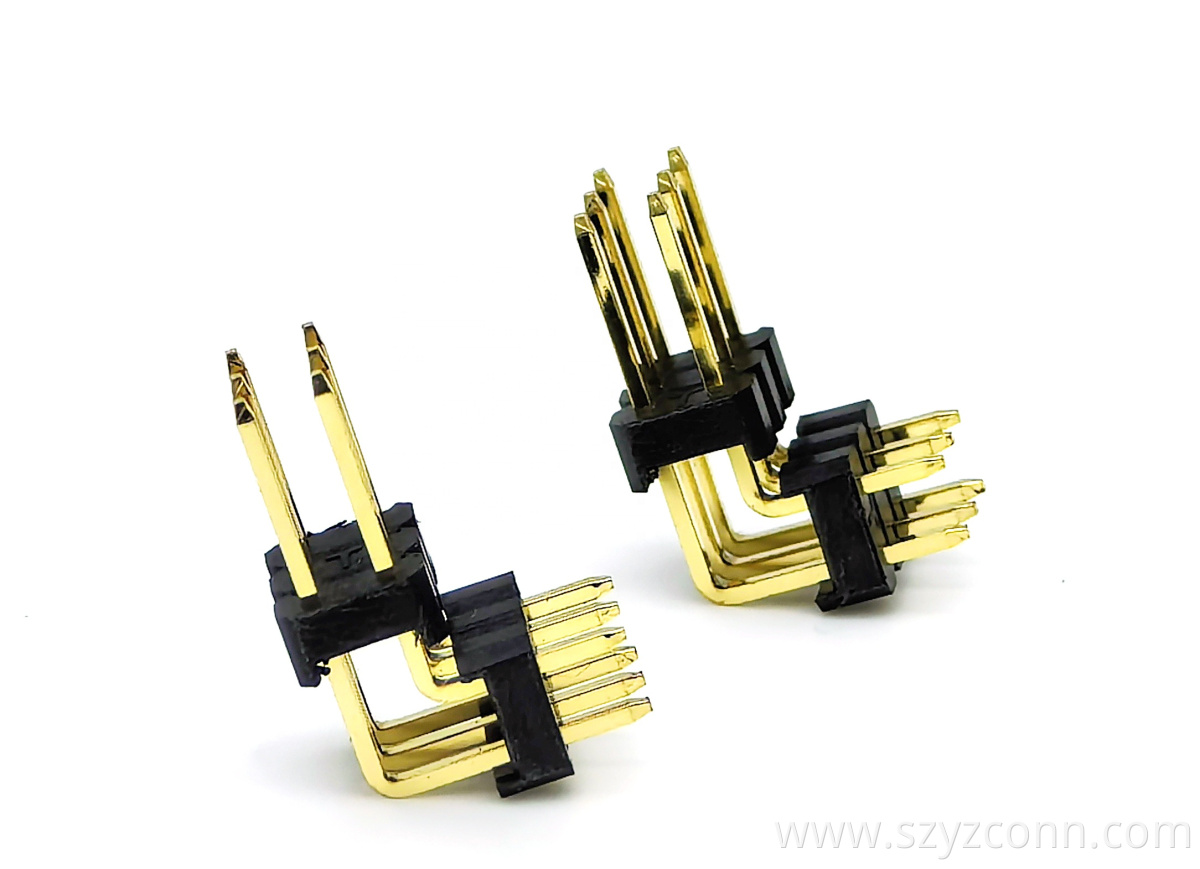

2.54mm pin header double plastic
Widely adopted in PCB-intensive fields like automation,consumer electronics,and IoT devices,this 2.54mm pin header guarantees consistent connectivity in vibration-prone setups.Packaged in protective trays,it prevents damage during transit and handling.YZTECH's rigorous quality control ensures global compliance,making it a cost-efficient solution for supply chains.
