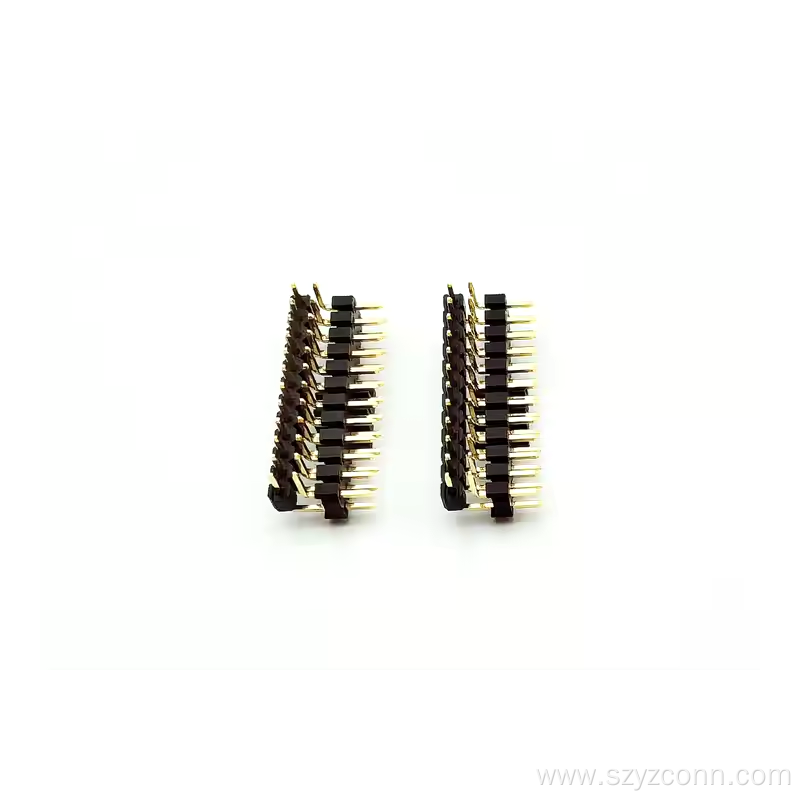

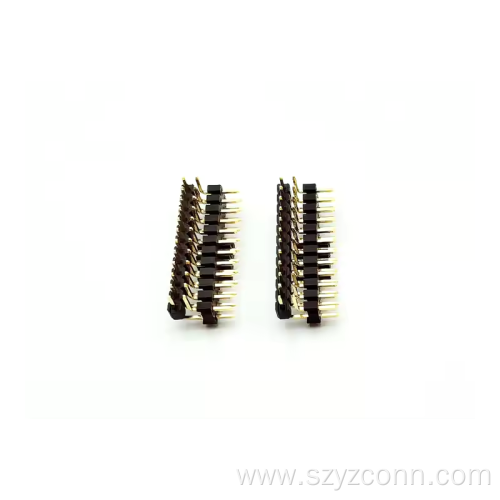

2.54mm Pin Header Connector Right Angle 24P

2.54mm Pin Header Connector Right Angle 24P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 24P

Contact Now

Product Description

Product Attributes

Model No.: 052965

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

2.54mm pin header connector Right Angle 24P

yztech’s meticulously crafted 2.54mm Pin Header Connector Right Angle 24P is a core component for achieving efficient and stable connections in electronic devices. As a classic product in the box header series,the standard 2.54mm pitch and dual-row design of 2.54mm Pin Header 24p precisely meet the wiring specifications of various PCB boards, becoming the first choice for engineers in the 2.54mm box header category due to its excellent electrical performance and structural strength.

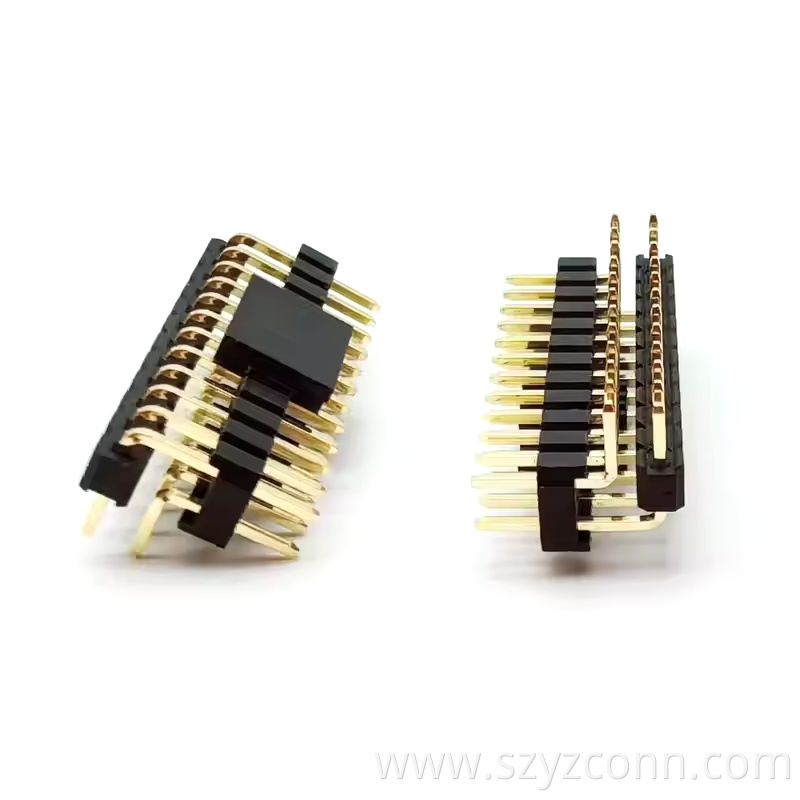

2.54mm Pitch Pin Header Dual Row Right2x1P~1x40P (1)

This 24p 2.54mm header connector features high-purity phosphor bronze terminals (gold-plated) paired with high-temperature-resistant LCP (UL94V - 0) insulators, stably carrying 5A current in extreme environments ranging from -40°C to +125°C, with a contact resistance as low as 12mΩ. The dual-row layout of 24p pin header 2.54mm effectively increases pin density, allowing for flexible combination with Right Angle Box Header to meet the three-dimensional wiring requirements of complex circuits and is compatible with idc Box Header Connector, widely used in industrial control motherboards, communication devices, smart homes, etc. The diverse 10 - 80 PIN configuration adapts to the connection needs of different functional modules.

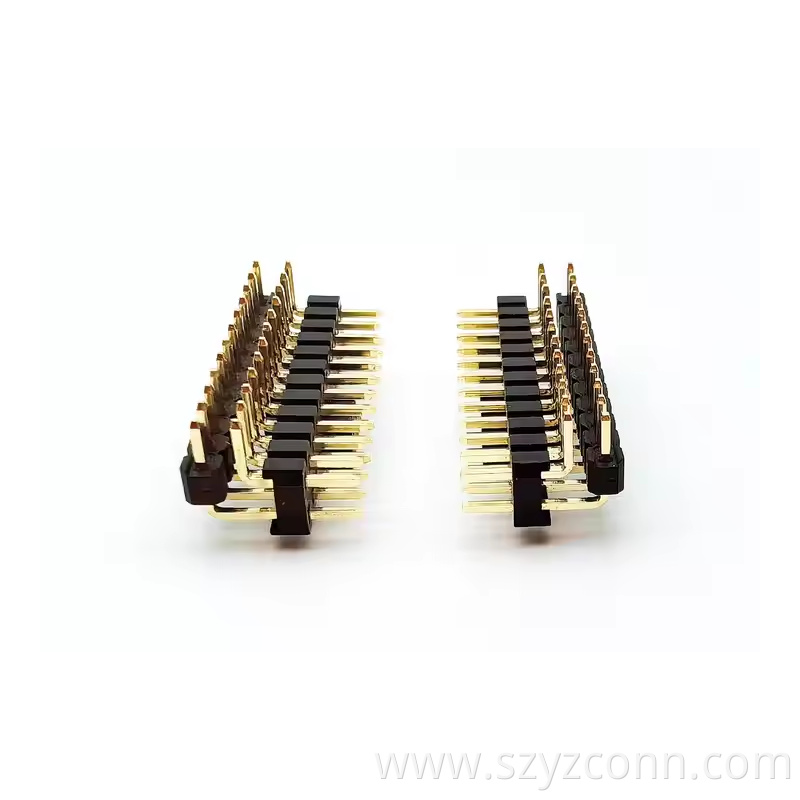

2.54mm Pitch Pin Header Dual Row Right2x1P~1x40P (2)

Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging supports customized cutting services. It provides reliable 2.54mm Box Header Connector solutions for both the supporting use of smt box header and the special specification requirements of independent projects.
