2.0mm Pitch Machined Female header Connector 40P

2.0mm Pitch Machined Female header Connector 40P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 18102.200S-1*40P-H2.8mm

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Bag&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

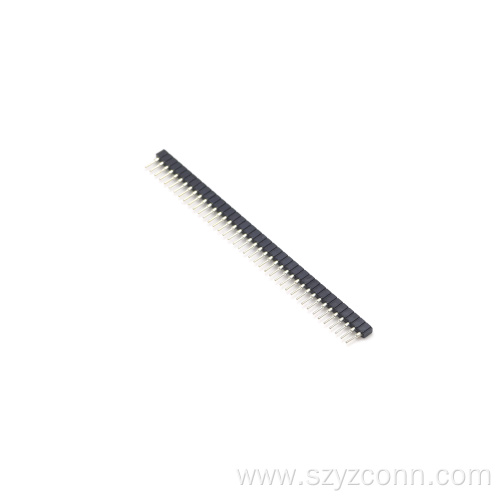

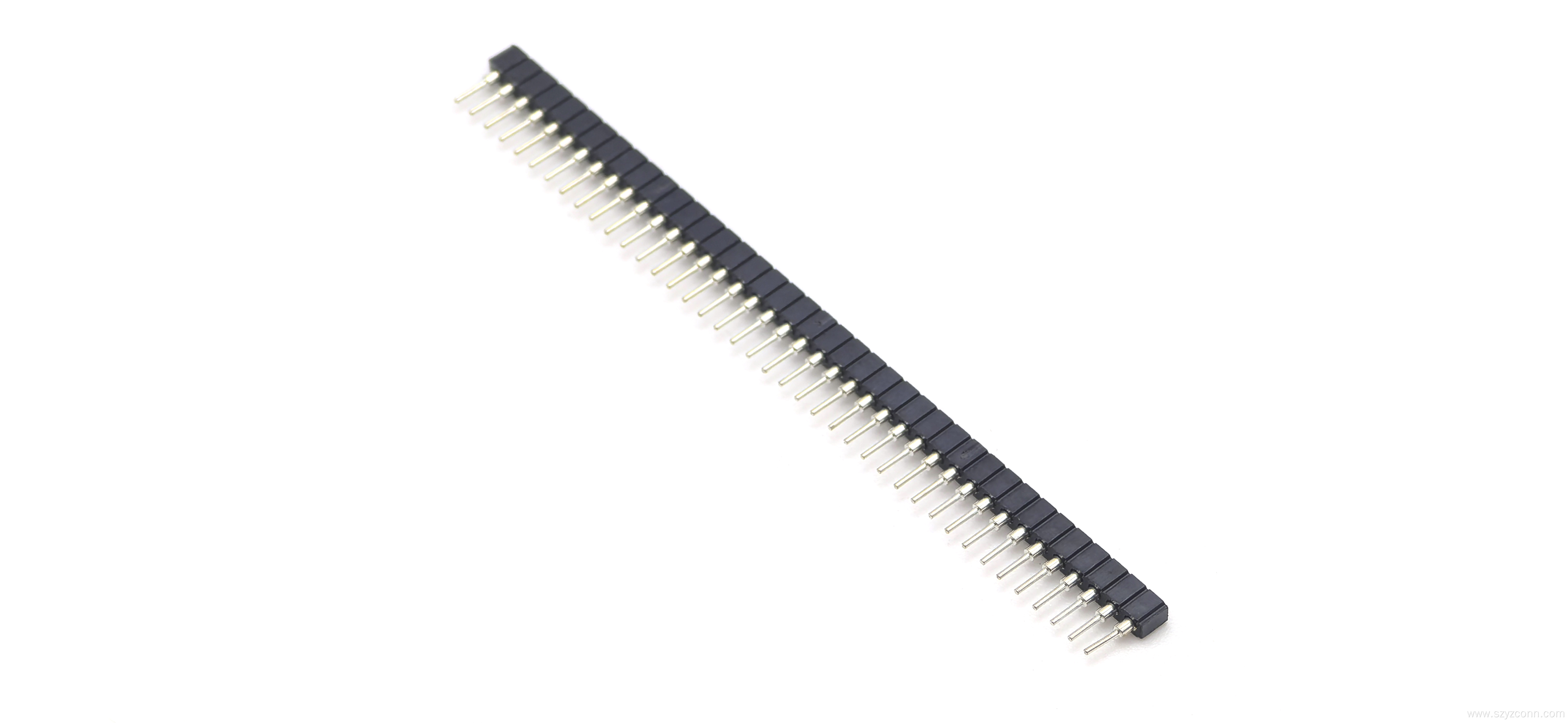

2.0mm Pitch Machined female header connector 40P

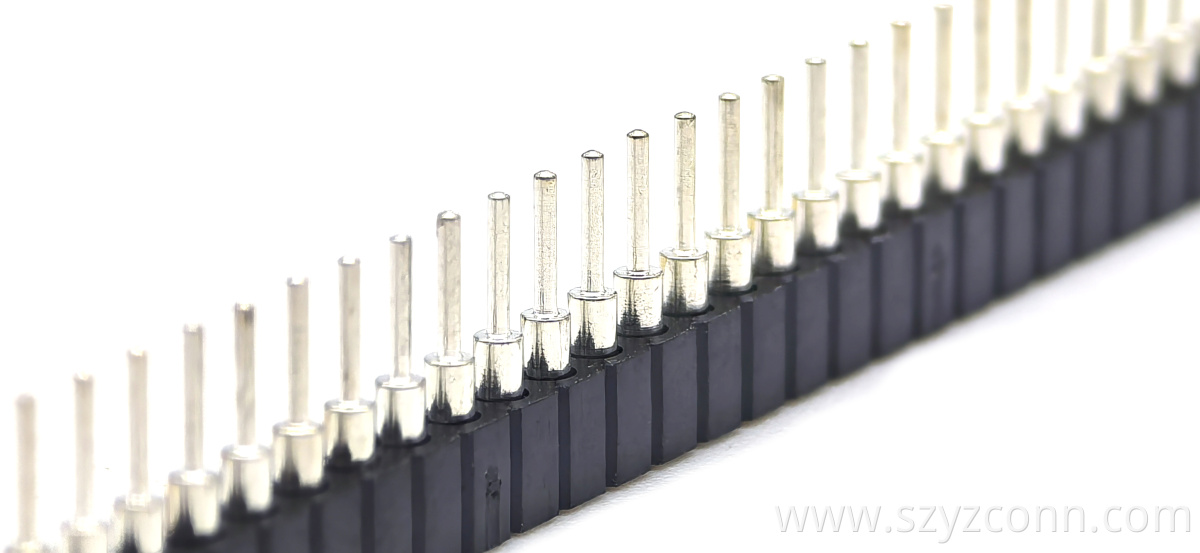

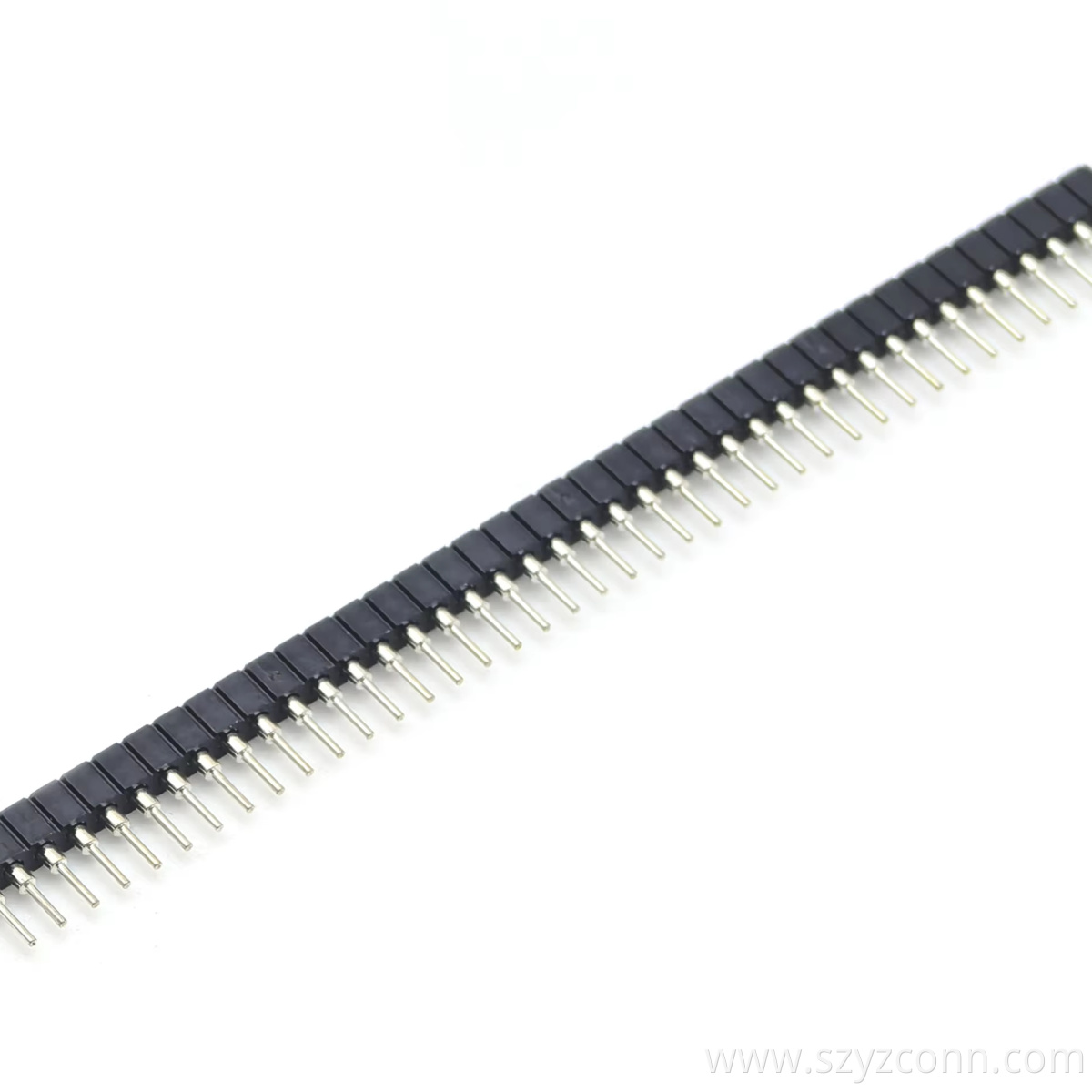

Engineered for reliable PCB interconnections,the YZTECH 2.0mm Pitch Machined Female header connector 40P delivers exceptional durability and consistent performance in a single-row,straight 40-pin layout.This machined 2.0mm Female Header 40p features a round female contact design,specifically crafted to ensure secure mating with corresponding male pins.You can find it in the 2.0mm Female Header of the catalog.

Designed for rigorous operating environments,this machined 2.0mm header female h2.8mm supports a wide temperature range from -40℃ to +105℃,ensuring stable functionality under thermal stress.The contacts are fabricated from machined brass and finished with a selective gold/tin plating process,which provides superior conductivity and protects against oxidation over extended use.Its PPS housing exhibits excellent dimensional stability and insulation properties,capable of enduring a maximum soldering temperature of 260°C for up to 10 seconds without deformation.Rated at 2A per contact and 500V,this 2.0mm female to female header machined delivers consistent electrical performance suitable for a variety of power and signal transmission requirements.

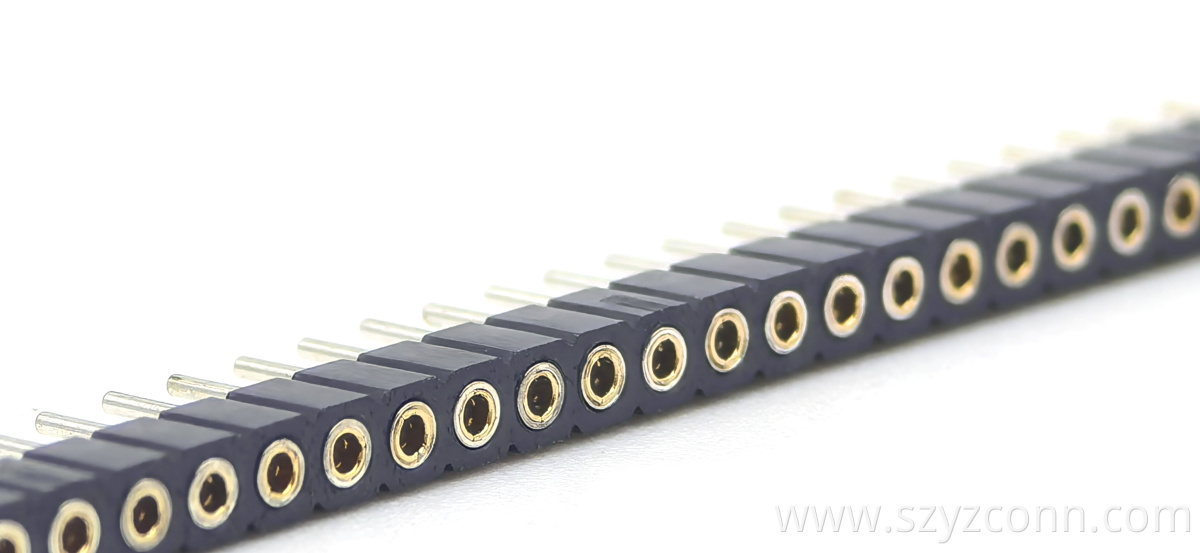

2.0mm machined female header pps material

Supplied in convenient bag packaging,each unit maintains contact alignment and plating integrity from factory to assembly line.With a robust brass contact base and a high-temperature PPS insulating body,it is built to withstand demanding assembly processes.The half-gold and tin-plated contact surface offers an optimal balance of corrosion resistance and cost-effectiveness,making it a versatile choice for precision board-to-board connections.
