2.0mm Pitch Female Header Connector 120P

2.0mm Pitch Female Header Connector 120P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 1102.2S-3DL-4*30P-H,9.35

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

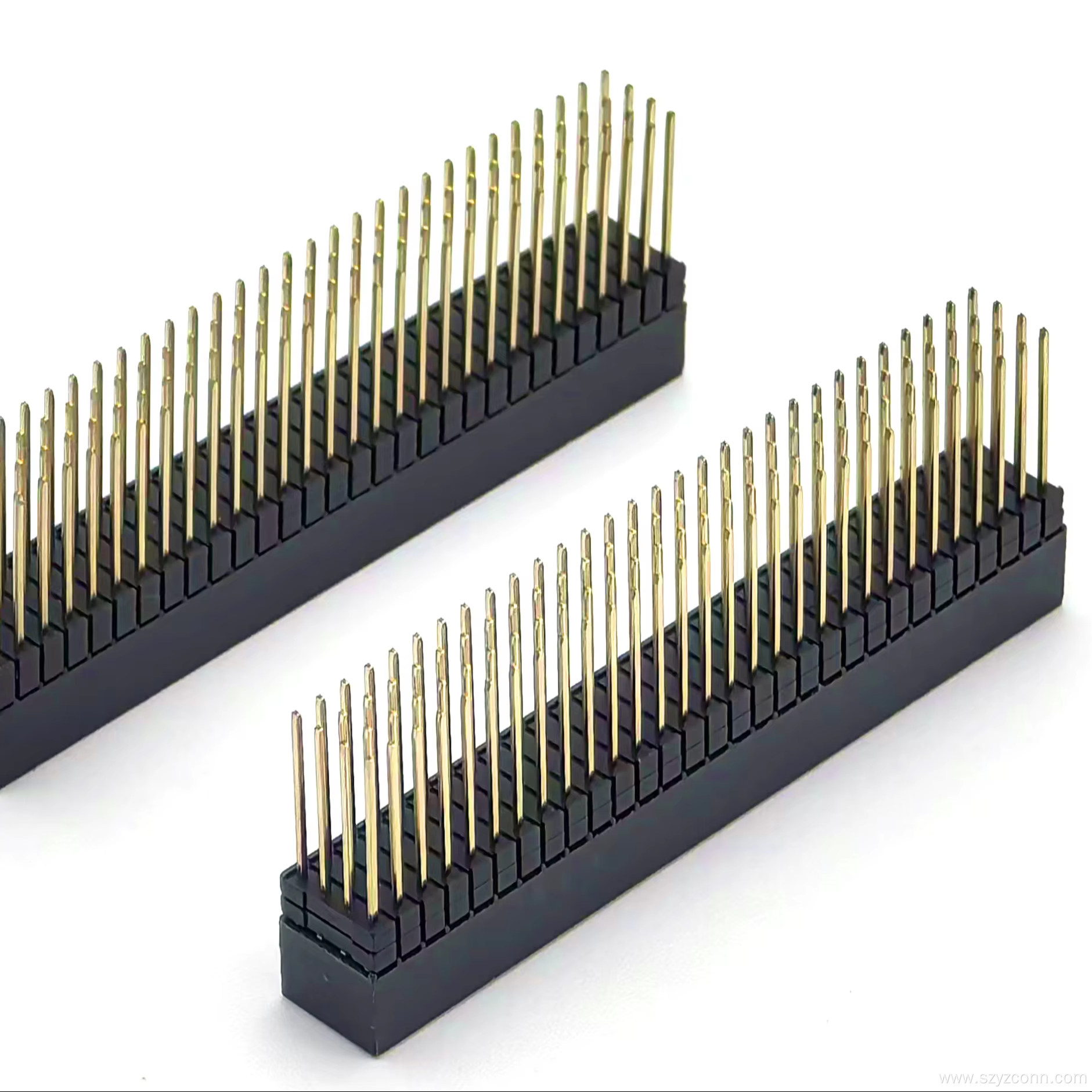

2.0mm pitch female header Connector 120P
Engineered for the demanding PC/104 form factor,this 2.0mm Pitch female header connector 120P add Pin Header from YZTECH delivers exceptional circuit density and reliable performance.Featuring a substantial 30-pin-per-row configuration in a straight-plug design,it provides a robust 120-position interface,fully compliant with industry-standard specifications.The 2.0mm pitch Female Header 120p is built to handle higher power requirements,with a generous 2A current rating and a 500V rated voltage.Constructed for durability,the brass contacts are finished with a full gold plating,ensuring low contact resistance,superior corrosion resistance, and a stable,long-lasting connection in rigorous operating environments.

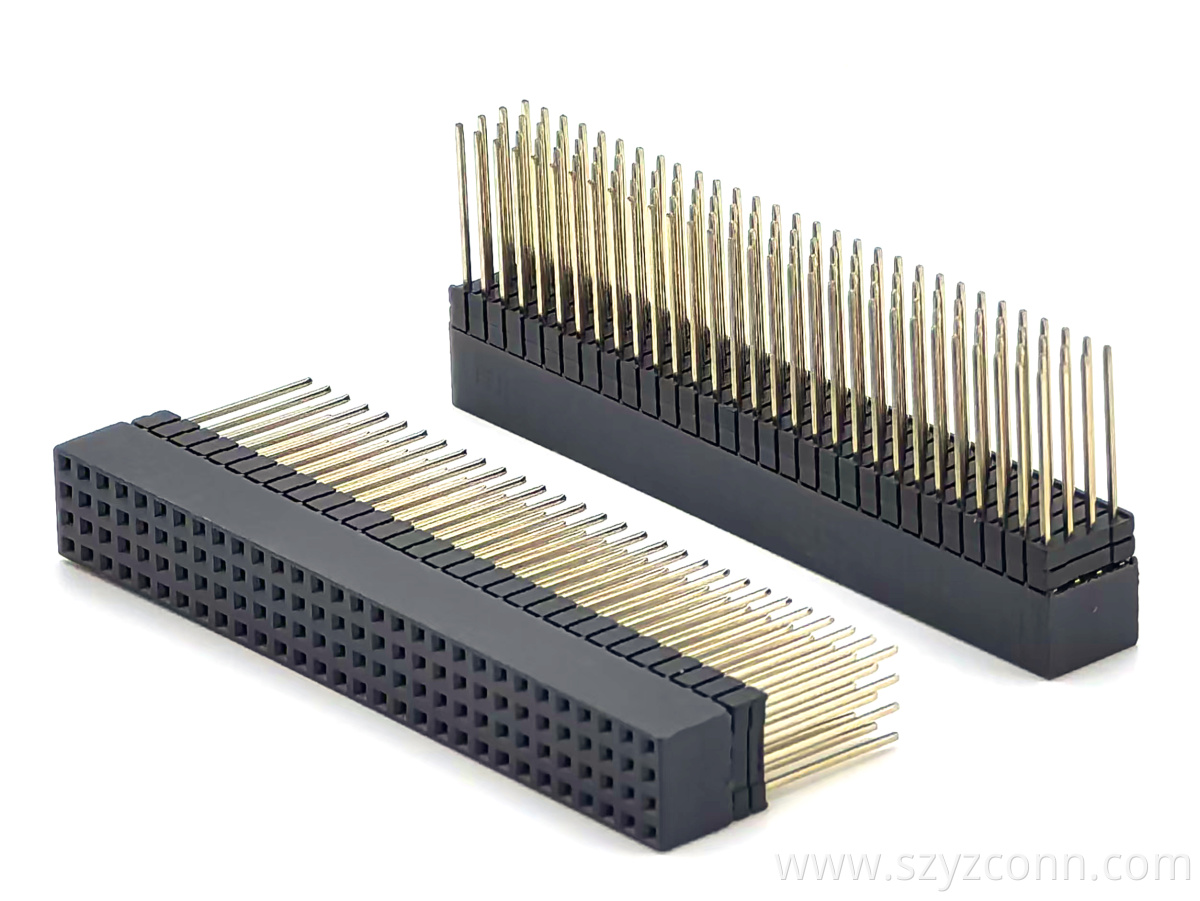

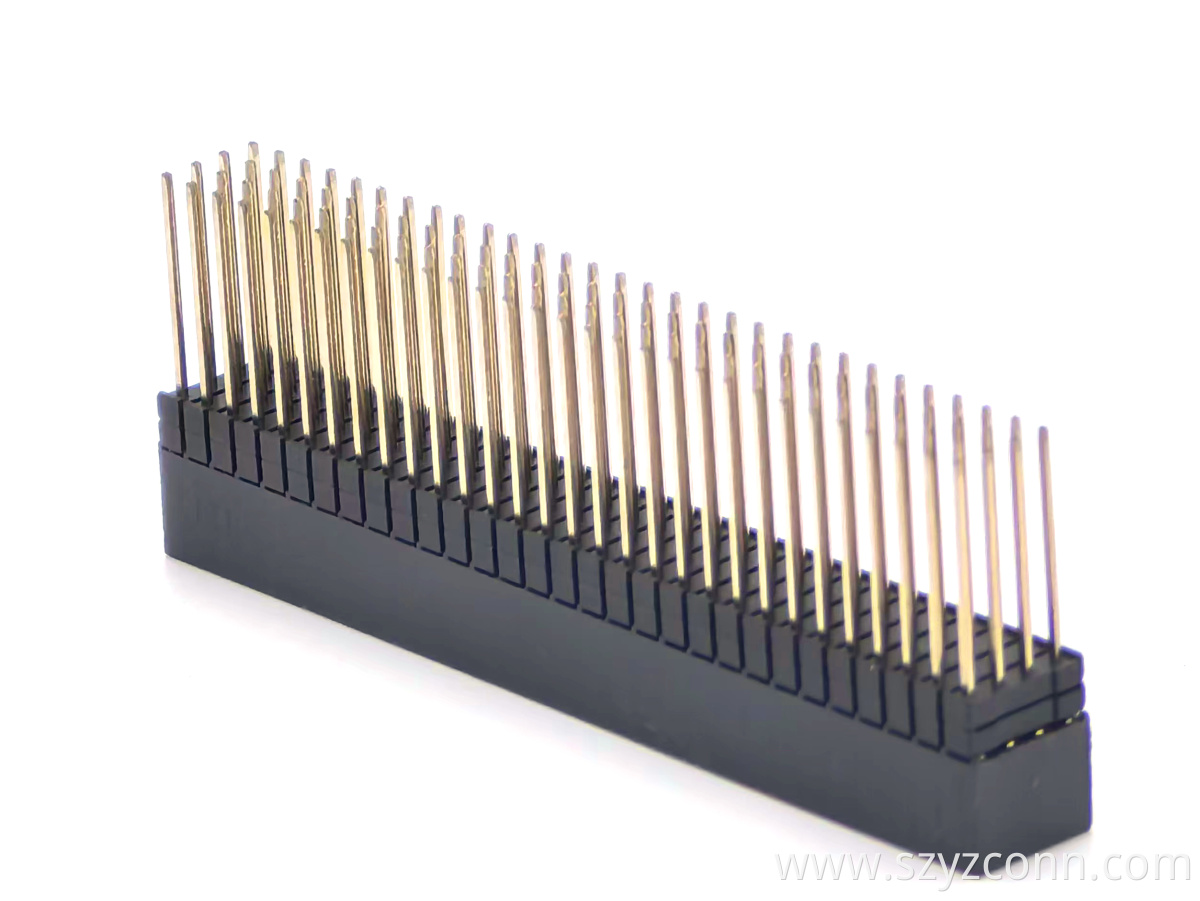

PC104 2.0mm Pitch Female Header Connector Quad-core+ Two-layer Plastic Pin Header Colloid Straight H:9.35mm 4*30P

The connector's design prioritizes resilience and assembly integrity.The housing, molded from high-grade nylon, offers excellent insulation and mechanical strength,capable of withstanding an operational temperature range from -40℃ to +105℃.This makes it suitable for systems exposed to fluctuating and extreme conditions.Its through-hole installation method provides a strong physical bond to the PCB,offering greater resistance to mechanical stress and vibration compared to SMT alternatives.The 2.0mm Female Header quad-core is rated for a maximum welding temperature of 220°C for 10 seconds,ensuring it remains stable during the soldering process.Packaged in protective tubes,it guarantees safe transit and handling, preventing damage to the precise pin alignment before assembly.

This high-pin-count 2.0mm female header is the ideal solution for complex,stackable embedded computing architectures.The 2.0mm female header connector 120p is perfectly suited for industrial automation controllers, sophisticated telecommunications infrastructure,medical diagnostic equipment,and defense electronics where the proven PC/104 standard is required.Its quad-core construction and gold-plated contacts provide a fault-tolerant and highly reliable bus connection that is critical for system stability and data integrity.
